STEERING SHAFT

POWER STEERING

37-18

 DISASSEMBLY AND ASSEMBLY

M1372011700151

DISASSEMBLY SERVICE POINT
<<A>> STEERING LOCK REMOVAL

1. Drill in the special bolt a hole deep enough for the

tap to stand.

2. Remove the special bolt with a left-hand tap.

REASSEMBLY SERVICE POINT
>>A<< ENGINE STARTING SWITCH
ASSEMBLY / ENGINE STARTING SWITCH
BRACKET / STEERING LOCK
INSTALLATION

CAUTION

The steering lock bracket and bolts must be
replaced with new ones when the steering lock is
installed.
1. When installing the steering lock cylinder

assembly and steering lock bracket to the column
tube, temporarily install the steering lock in
alignment with the column boss.

2. After checking that the lock works properly,

tighten the special bolts until the head twists off.

AC302639AC

3

2

1

4

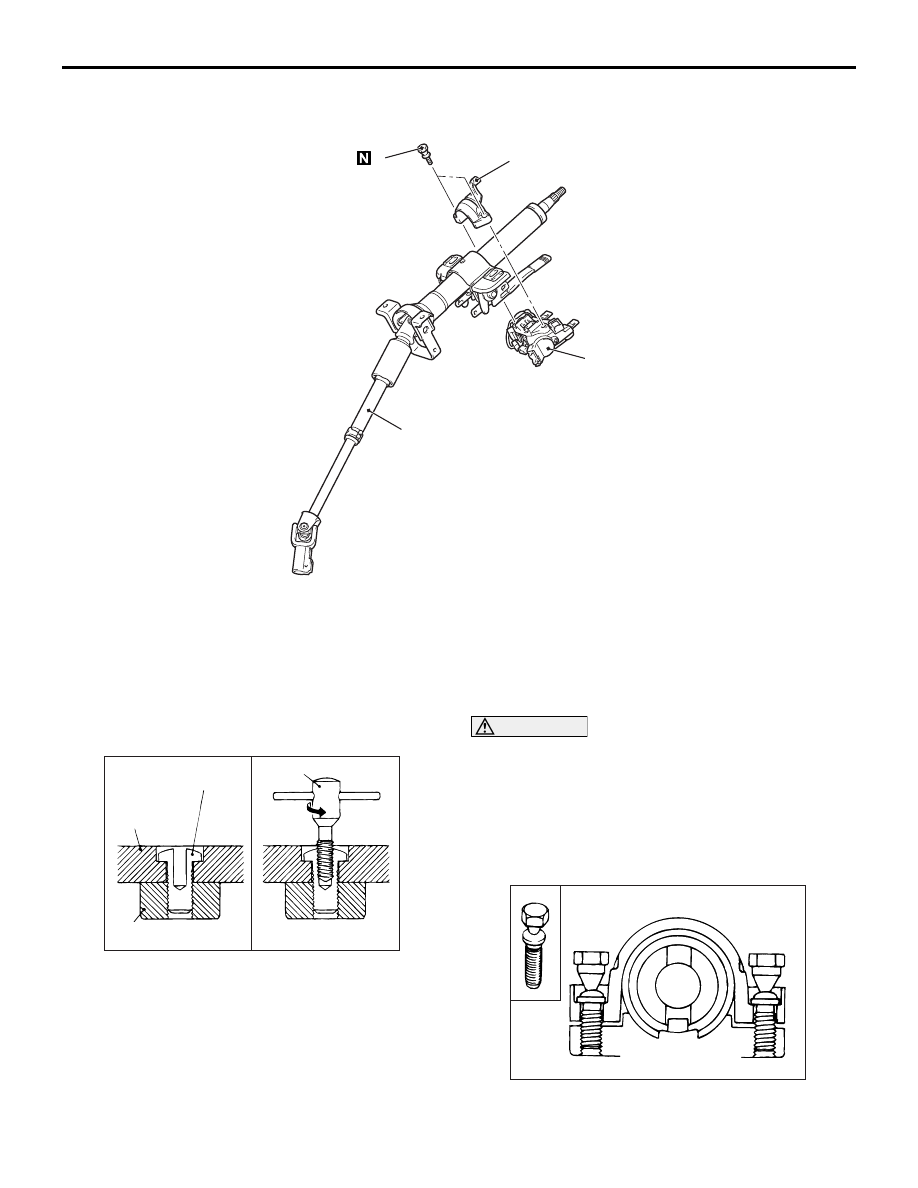

Disassembly steps

<<A>> >>A<<

1.

Steering locking bolt

>>A<<

2.

Engine starting switch bracket

>>A<<

3.

Engine starting switch assembly

4.

Steering column shaft assembly

ACX01138 AB

Steering lock
bracket

Reverse screw tap

Special bolt

Steering lock
cylinder

ACX01139 AB

POWER STEERING GEAR BOX AND LINKAGE

POWER STEERING

37-19

POWER STEERING GEAR BOX AND LINKAGE

REMOVAL AND INSTALLATION

M1372010900345

WARNING

Before removing the steering gear, refer to GROUP 52B, Service Precautions (

P.52B-7

) and

Driver’s, Front Passenger’s Air Bag Module(s) and Clock Spring (

P.52B-225

). Centre the front

wheels. Failure to do so may damage the SRS clock spring and render the SRS system
inoperative, risking serious injury.

CAUTION

• *

1

 indicates parts which should be temporarily tightened, and then fully tightened with the engine

and transmission assembly weight applied on the vehicle body.

• *

2

 indicates parts which should be temporarily tightened, and then fully tightened with the vehicle

standing on the ground and the curb weight condition.

Pre-removal Operation
• Power Steering Fluid Draining (Refer to

P.37-11

.)

• Centre member removal (Refer to GROUP 32, Engine roll

stopper and centre member

P.32-6

.)

• Exhaust pre-muffler removal (Refer to GROUP 15,

Exhaust pipe and main muffler

P.15-9

.)

• Steering wheel assembly and air bag module assembly

removal (Refer to

P.37-14

).

Post-installation Operation
• Centre member installation (Refer to GROUP 32, Engine

roll stopper and centre member

P.32-6

.)

• Exhaust pre-muffler installation (Refer to GROUP 15,

Exhaust pipe and main muffler

P.15-9

.)

• Steering wheel assembly and air bag module assembly

installation (Refer to

P.37-14

).

• Power steering fluid refilling and air bleeding (Refer to

P.37-11

).

• Check the dust cover for crack or damage by pressing

your finger.

• Checking Steering Wheel Position with Wheels Straight

Ahead.

• Front Wheel Alignment Adjustment (Refer to GROUP 33,

On-vehicle Service

− Front Wheel Alignment Check and

Adjustment

P.33-4

.)

POWER STEERING GEAR BOX AND LINKAGE

POWER STEERING

37-20

AC312227

6

108 ± 10 N·m

29 ± 4 N·m

89 ± 9 N·m

89 ± 9 N·m

75 ± 5 N·m

90 ± 10 N·m

90 ± 10 N·m

123 ± 12 N·m

123 ± 12 N·m

12 ± 2 N·m

57 ± 7 N·m

50 ± 10 N·m

57 ± 7 N·m

13 ± 2 N·m

18 ± 2 N·m

5.0 ± 1.0 N·m

69 ± 9 N·m

10

3

20

20

4

1

2

19

18

15

16

21

7

13

5

N

N

N

N

1

1

2

AB

9

11

22

17

14

8

7

N

12

N

13 ± 2 N·m

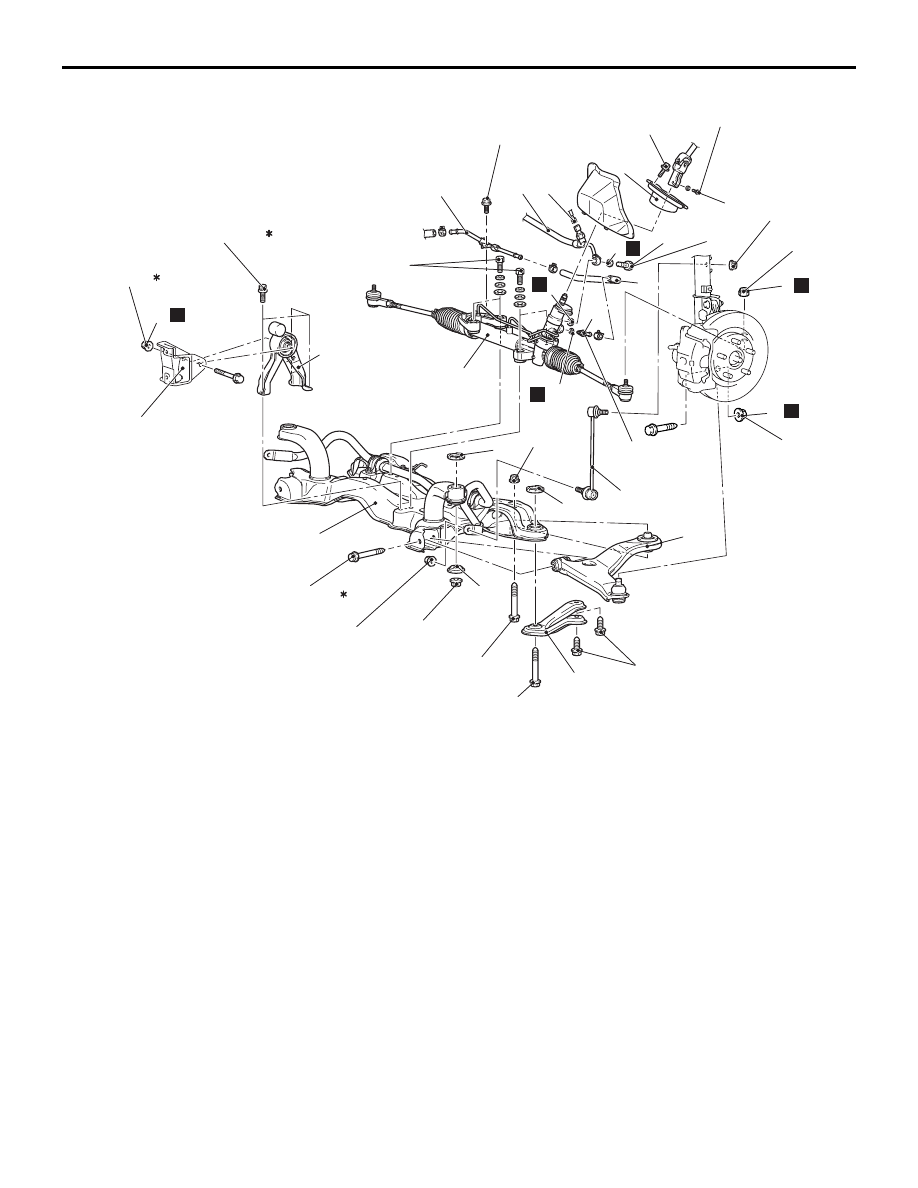

<LH drive vehicles>

Removal steps

<<A>>

1. Self-locking nut (tie rod end and

knuckle connection)

2. Self-locking nut (lower arm and

knuckle connection)

3. Lower arm assembly
4. Stabilizer link
5. Power steering oil pressure sensor

connector connection and harness
clamp

6. Eye bolt
7. Gasket
8. Pressure hose connection

>>C<<

9. Return tube connection

>>B<<

10. Return hose connection

11. Return tube connection
12. O-ring
13. Steering gear and joint connecting bolt

>>A<<

14. Steering column grommet
15. Selflock nut
16. Engine rear roll stopper bracket

connecting bolt

17. Crossmember rear stay
18. Lower stopper

<<B>>

19. Front axle No.1 crossmember

assembly

20. Stopper
21. Engine roll stopper
21. Steering gear and linkage

Removal steps (Continued)

POWER STEERING GEAR BOX AND LINKAGE

POWER STEERING

37-21

AC303001

6

108 ± 10 N·m

29 ± 4 N·m

89 ± 9 N·m

89 ± 9 N·m

75 ± 5 N·m

90 ± 10 N·m

90 ± 10 N·m

123 ± 12 N·m

123 ± 12 N·m

12 ± 2 N·m

57 ± 7 N·m

50 ± 10 N·m

57 ± 7 N·m

13 ± 2 N·m

18 ± 2 N·m

5.0 ± 1.0 N·m

69 ± 9 N·m

9

3

18

18

4

1

2

17

16

13

14

19

7

11

5

N

N

N

N

1

1

2

AC

8

10

20

15

12

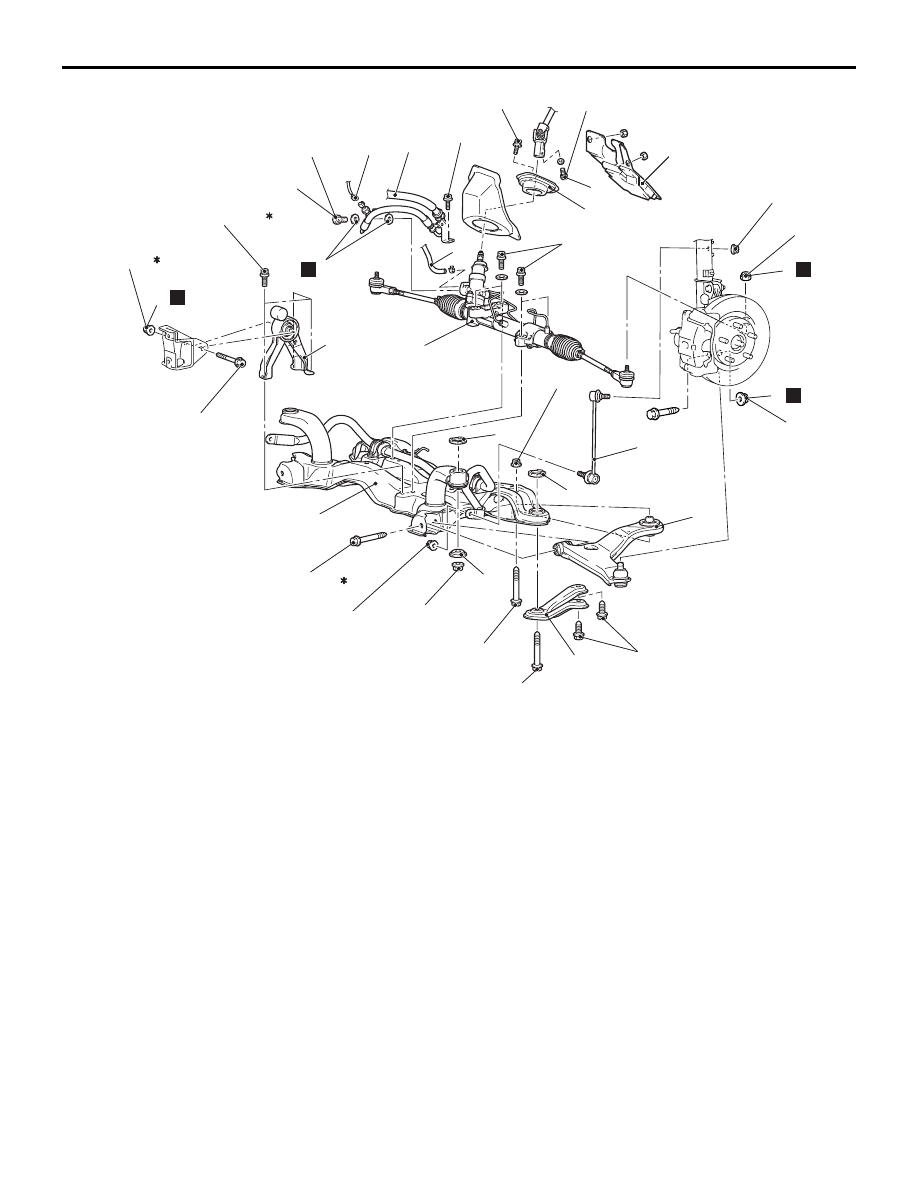

<RH drive vehicles>

Removal steps

<<A>>

1. Self-locking nut (tie rod end and

knuckle connection)

2. Self-locking nut (lower arm and

knuckle connection)

3. Lower arm assembly
4. Stabilizer link
5. Power steering oil pressure sensor

connector connection and harness
clamp

6. Eye bolt
7. Gasket
8. Pressure hose connection

>>B<<

9. Return hose connection
10. Steering dust cover

11. Steering gear and joint connecting bolt

>>A<<

12. Steering column grommet
13. Selflock nut
14. Engine rear roll stopper bracket

connecting bolt

15. Crossmember rear stay
16. Lower stopper

<<B>>

17. Front axle No.1 crossmember

assembly

18. Stopper
19. Engine roll stopper
20. Steering gear and linkage

Removal steps (Continued)
