TROUBLESHOOTING

ANTI-SKID BRAKING SYSTEM (ABS)

35B-63

<RH drive vehicles>

TECHNICAL DESCRIPTION (COMMENT)

If the MUT-III can not communicate with the ABS
system, the CAN bus lines may be defective. If the
ABS system does not work, the ABS-ECU or its
power supply circuit may be defective.

PROBABLE CAUSES

• Damaged wiring harness or connector

• Malfunction of the hydraulic unit (Integrated with

ABS-ECU)

IGNITION
SWITCH (IG1)

DIAGNOSIS
CONNECTOR

POWER
SUPPLY

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

FRONT SIDE

AC313153

ABS-ECU

20

13

26

21

23

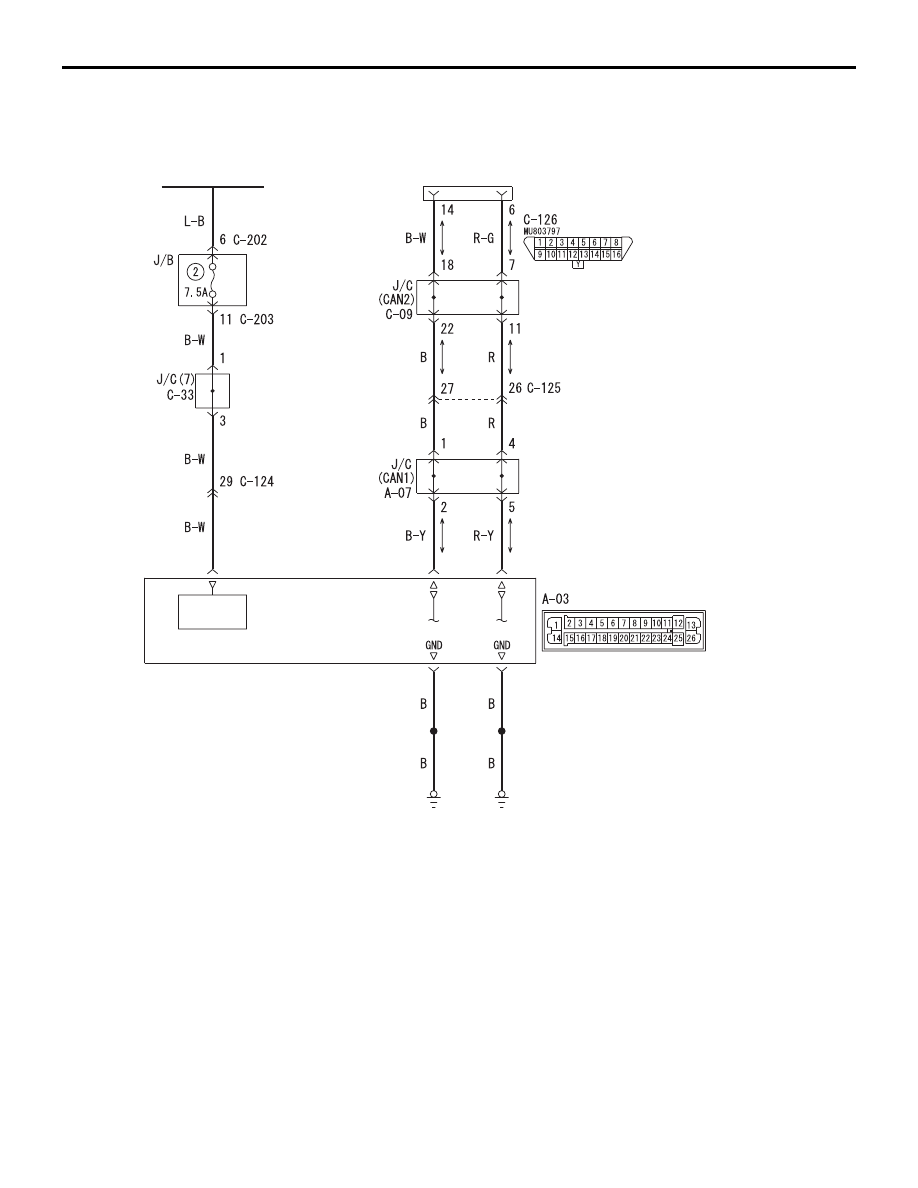

Data Link Connector Circuit

AB

TROUBLESHOOTING

ANTI-SKID BRAKING SYSTEM (ABS)

35B-64

DIAGNOSIS

STEP 1. MUT-III CAN bus diagnostics

CAUTION

Before connecting or disconnecting the MUT-III,
turn the ignition switch to the "LOCK" (OFF)
position.

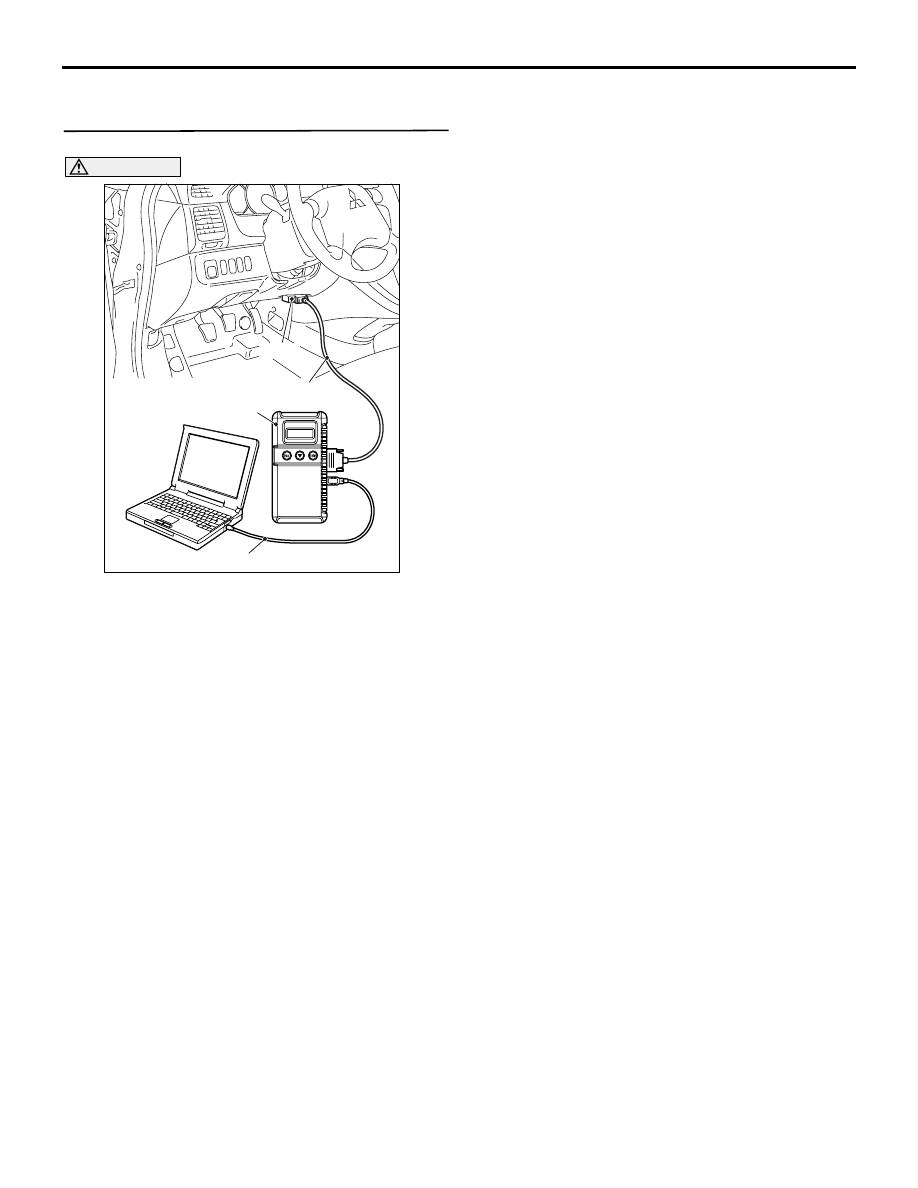

Use MUT-III to diagnose the CAN bus lines.
(1) Connect MUT-III to the 16-pin diagnosis

connector.

(2) Turn the ignition switch to the "ON" position.
(3) Diagnose the CAN bus line.

Q: Is the check result normal?

YES :

Check and repair the power supply circuit

system (Refer to

P.35B-65

).

NO :

Repair the CAN bus lines (Refer to GROUP
54D, CAN bus line Diagnostic flow

P.54D-9

).

AC302297

AC310120

AB

MB991827

16-pin

MB991910

MB991824

TROUBLESHOOTING

ANTI-SKID BRAKING SYSTEM (ABS)

35B-65

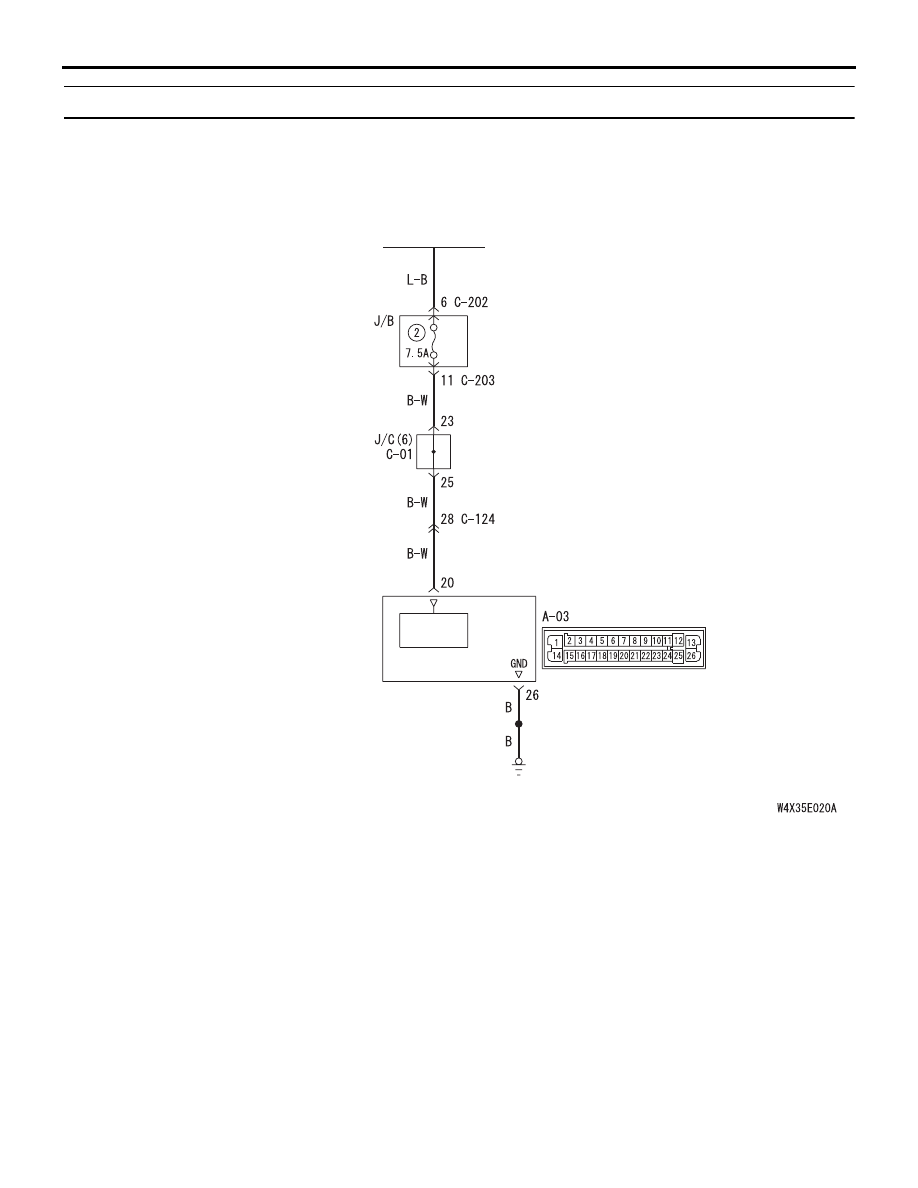

INSPECTION PROCEDURE 2: ABS-ECU power supply supply system

<LH drive vehicles>

IGNITION
SWITCH (IG1)

ABS-ECU

POWER
SOURCE

Wire colour code
B : Black     LG : Light green
G : Green     L : Blue
W : White     Y : Yellow
SB : Sky blue     BR : Brown
O : Orange     GR : Gray
R : Red     P : Pink     V : Violet

ABS-ECU Power Supply and Ground Circuit

TROUBLESHOOTING

ANTI-SKID BRAKING SYSTEM (ABS)

35B-66

<RH drive vehicles>

OPERATION

• The ABS-ECU is energized by the ignition switch

(IG1) through multi-purpose fuse 2 and the
ABS-ECU terminal 20.

• If the power supply to the ABS-ECU has failed,

MUT-III will not be able to communicate with it.

PROBABLE CAUSES

• Damaged wiring harness or connector

• Defective battery

• Charging system failed

• Malfunction of the hydraulic unit (integrated with

ABS-ECU)

IGNITION
SWITCH (IG1)

ABS-ECU

POWER
SOURCE

Wire colour code
B : Black     LG : Light green
G : Green     L : Blue
W : White     Y : Yellow
SB : Sky blue     BR : Brown
O : Orange     GR : Gray
R : Red     P : Pink     V : Violet

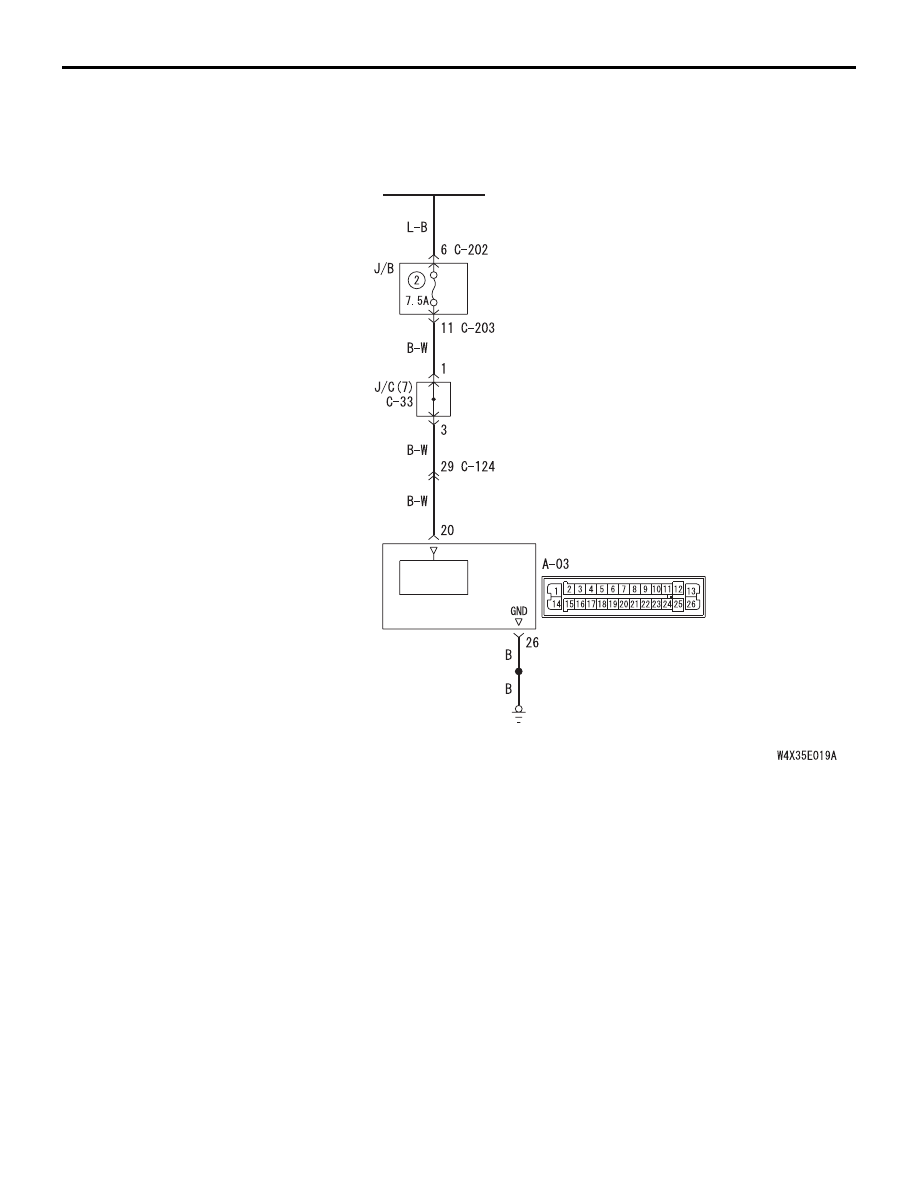

ABS-ECU Power Supply and Ground Circuit
