DIFFERENTIAL
MANUAL TRANSMISSION OVERHAUL
22B-42
2. Push down on the differential case with the press
and remove the bearing.

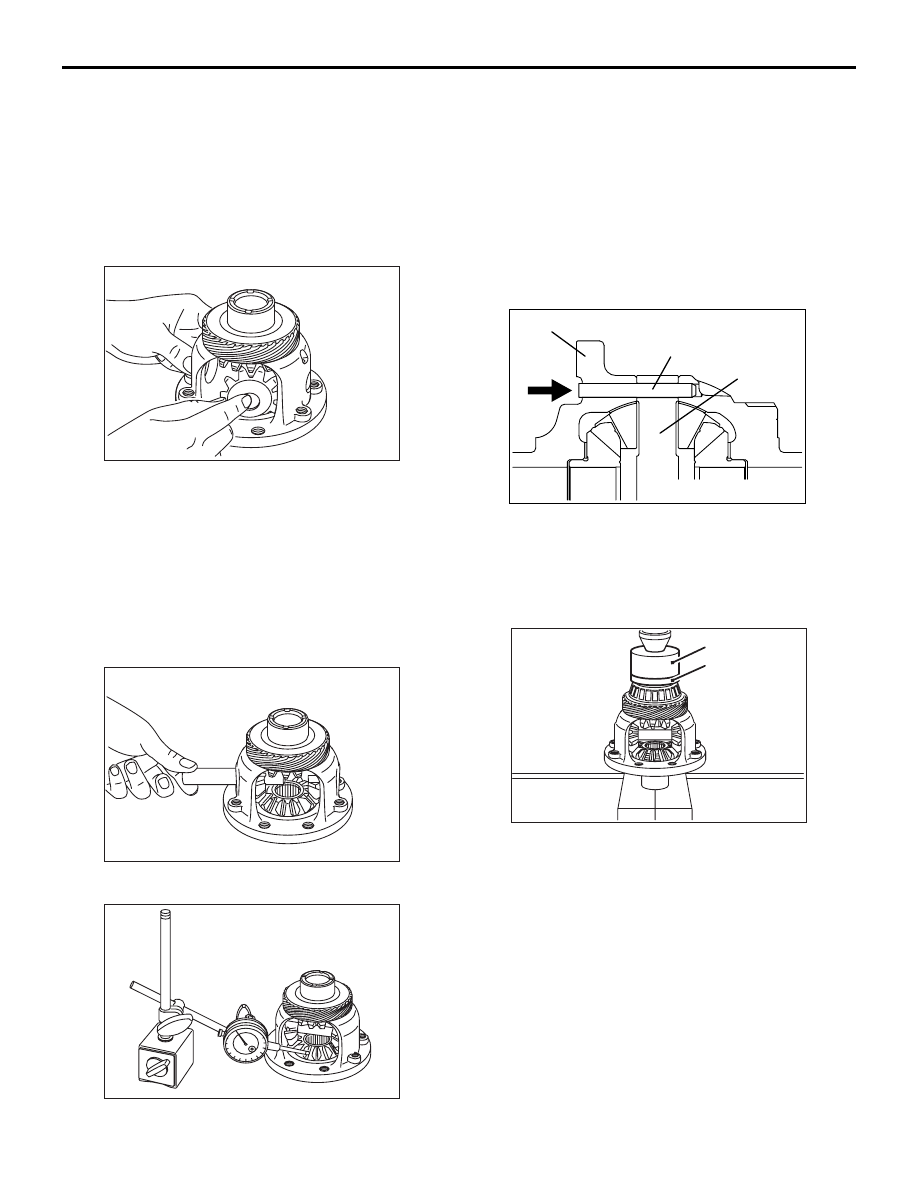

REASSEMBLY SERVICE POINTS
>>A<< SPACER/SIDE
GEAR/WASHER/PINION/PINION SHAFT
INSTALLATION
1. After a spacer has been mounted on the back
surface of the side gear, install the side gear in the
differential case.
NOTE: When a new side gear is to be installed,
mount a medium thickness spacer.
2. Set the washer on the back of each pinion, and
put both pinions simultaneously in mesh with the
side gears. While rotating them, install them in
position.
3. Insert the pinion shaft.
4. Measure the backlash between the side gear and
pinion.
Standard value: 0
− 0.15 mm
5. If the backlash is out of specification, select a
spacer that should get the back lash with in the
standard value and re-measure the backlash.
NOTE: Repeat until the backlash on both sides
are equal.

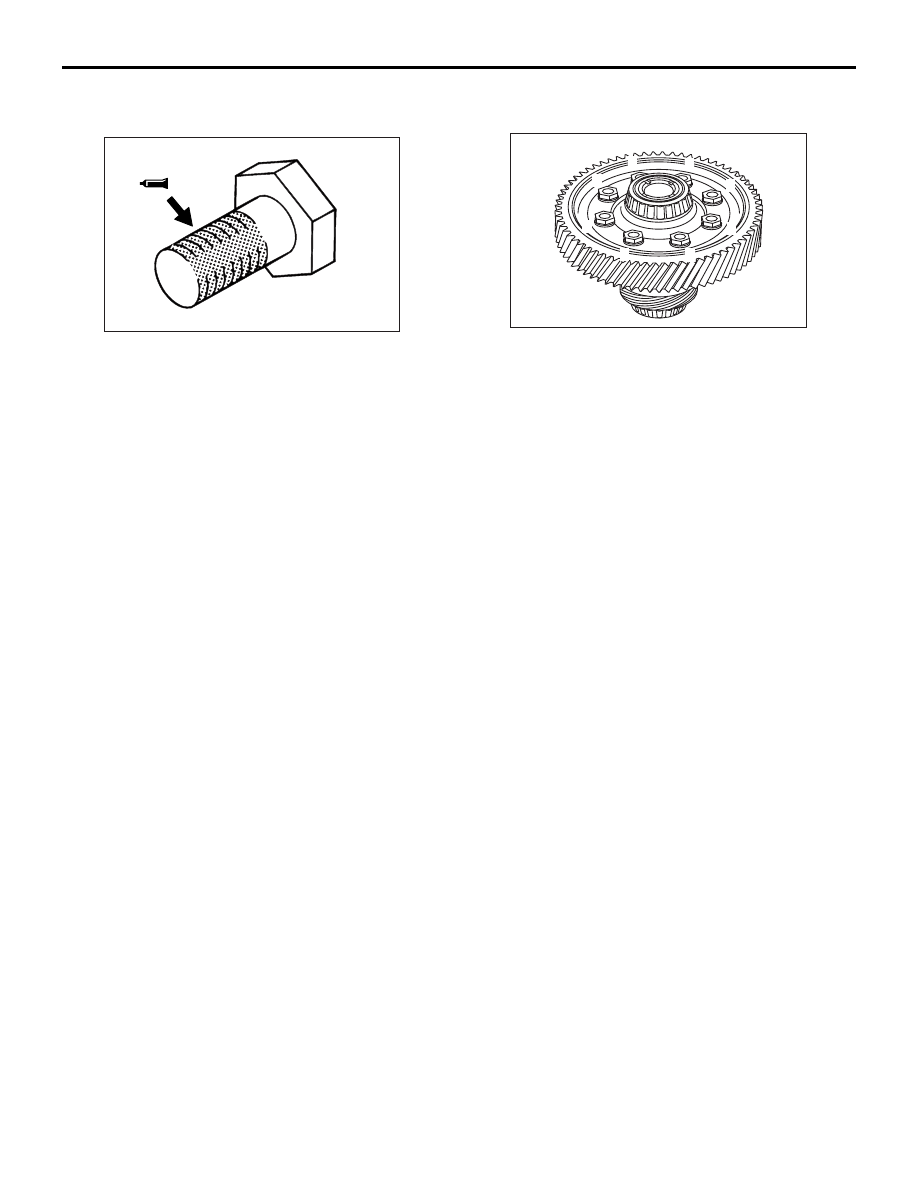

>>B<< LOCK PIN INSTALLATION
Install the lock pin so that it will be oriented in the
direction shown.
>>C<< TAPER ROLLER BEARING
INSTALLATION
Using special tools, install the taper roller bearing
with the press.
• Installer cap (MD998812)
• Installer adapter (MD998823)
AK305230
AK305231
AK305229
AK204290
Differential case
Lock pin
Pinion shaft
AB
AK305199AB
MD998812
MD998823
