TRANSMISSION ASSEMBLY

MANUAL TRANSMISSION (FF)

22A-13

While supporting the engine and transmission
assembly with a garage jack, remove the
transmission mount assembly.

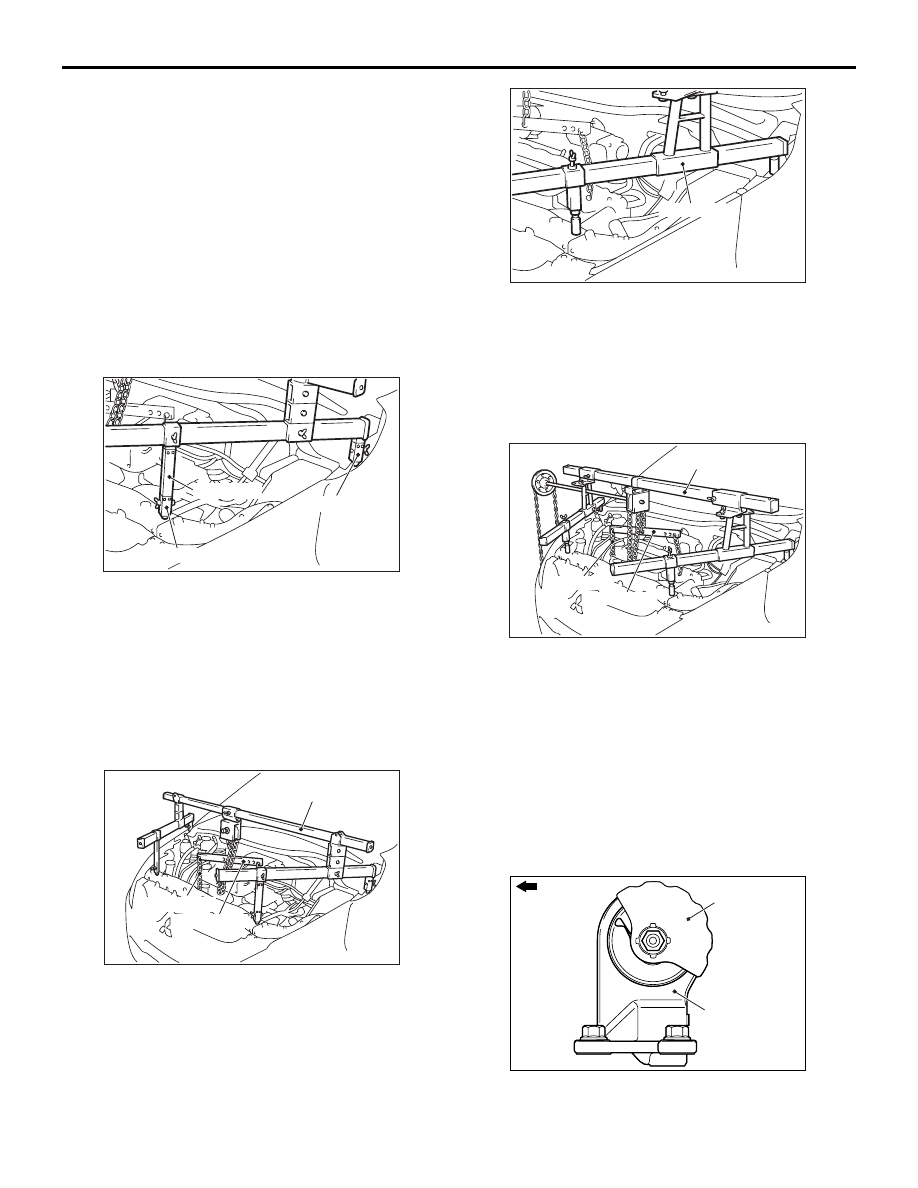

<<B>> ENGINE ASSEMBLY SUPPORTING

1. After removing the transmission mounting

assembly, install a special tool MB991928 or
MB991895.

2. <Engine hanger (special tool MB991928) is used>

(1) Assemble special tool MB991928. (Set the

components below  to the base hanger.)

• Slide bracket (HI)

• Special tool MB991931: Joint (140) × 2

• Special tool MB991932: Foot (standard) × 2

(2) Set the foot (standard) MB991932 of

assembled special tool MB991928 to the front
fender assembling bolts as shown.<rear side>

(3) Set the joint (140) MB991931and foot

(standard)  MB991932 of assembled special
tool MB991928 to the front end upper bar
assembling bolts as shown.

NOTE: Slide the slide bracket (HI) to balance
the engine hanger.

(4)  Set the chains of special tools MB991527 and

MB991454 to hold the engine assembly.

3. <Engine hanger (special tool MB991895) is used>

(1) Set a special tool MB991895.

(2) Set the rear foot of special tool MB991895 to

the front fender assembling bolts as shown.

(3) Set the front foot of special tool MB991895 to

the front end upper bar assembling bolts as
shown.

NOTE: Slide the front foot of special tool
MB991895 to balance the engine hanger.

(4) Set the chains of special tools MB991527 and

MB991454 to hold the engine assembly.

4. Remove the garage jack and raise the vehicle.
5. Hold the transmission assembly with a

transmission jack.

INSTALLATION SERVICE POINTS
>>A<< TRANSMISSION MOUNTING
STOPPER INSTALLATION

Install the transmission mounting stopper as shown
in the illustration.

AC301806

MB991932

MB991931

MB991932

AC

AC301803

MB991454

MB991527

MB991928

AC

AC301807AC

MB991895

AC301804

MB991454

MB991527

MB991895

AC

AC311123

Transmission
mounting
stopper

Transmission
mounting body
side bracket

Engine side

AB

TRANSMISSION ASSEMBLY

MANUAL TRANSMISSION (FF)

22A-14

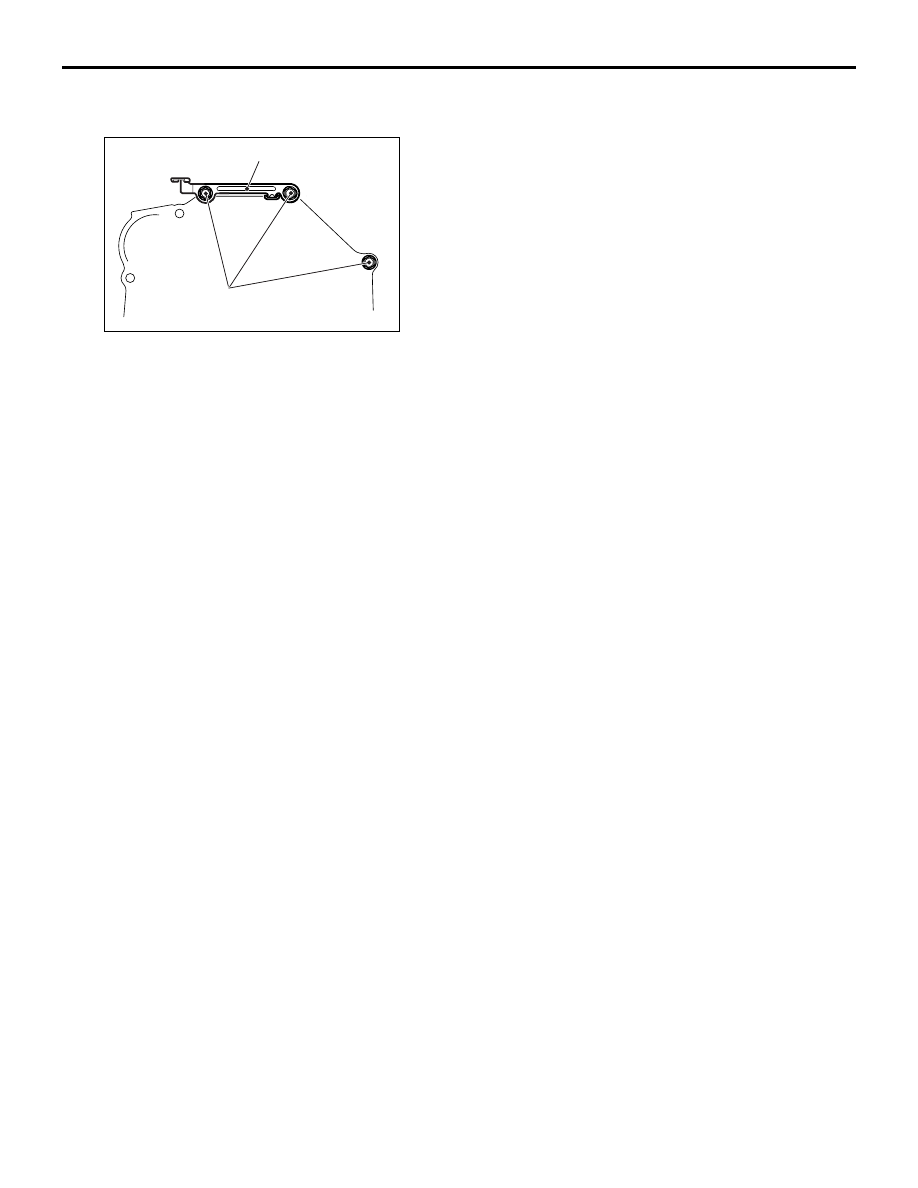

>>B<< TRANSMISSION ASSENBLY
UPPER PART COUPLING BOLTS

Tighten the harness clamp bracket towards the
direction shown to the transmission assembly upper
part coupling bolts.

AC311126

Transmission assembly
upper part coupling bolts

Harness clamp bracket

AB
