MOULDINGS

EXTERIOR

51-7

MOULDINGS

SPECIAL TOOL

M1511000601288

Tool

Number

Name

Application

MB990449

Window molding remover Removal of drip moulding

MB990449

MOULDINGS

EXTERIOR

51-8

MOULDINGS

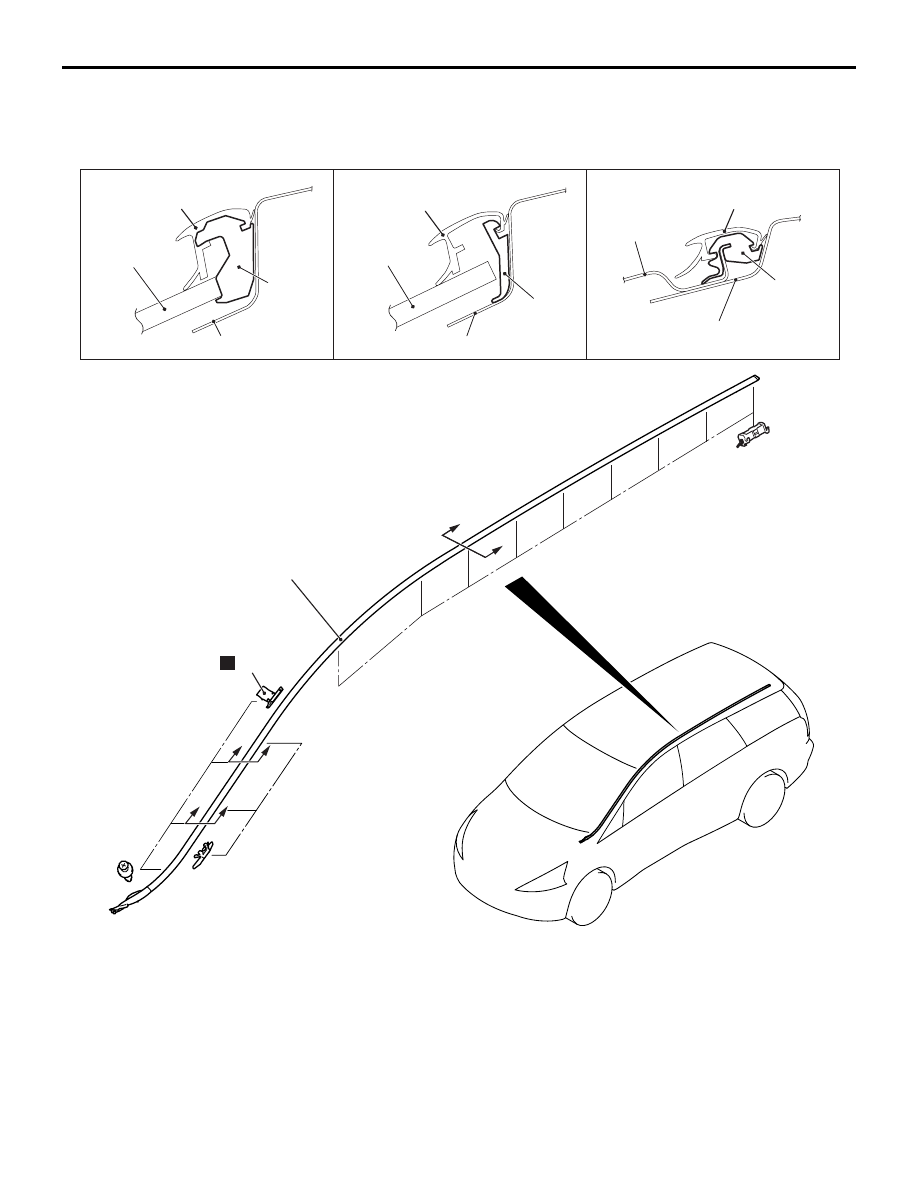

REMOVAL AND INSTALLATION

M1511004700206

AC313459

AB

1

N

C

C

A

A

B

B

1

1

1

Clip

Fender panel

Windshield

Section A – A

Section B – B

Section C – C

Clip

Clip

Roof panel

Windshield

Side outer panel

Side outer panel

Clip

Roof drip molding removal steps

<<A>> >>A<<

1. Roof drip moulding

GARNISHES

EXTERIOR

51-9

REMOVAL SERVICE POINT
<<A>> ROOF DRIP MOULDING REMOVAL

CAUTION

If the molding has become warped, it should not
be reused.

Use special tool window molding remover
(MB990449) to pry out the moulding.

INSTALLATION SERVICE POINT
>>A<< ROOF DRIP MOULDING
INSTALLATION

Install the clips to the roof drip molding before
installing the molding to the vehicle body.

GARNISHES

ADHESIVE

M1511000500523

GARNISHES

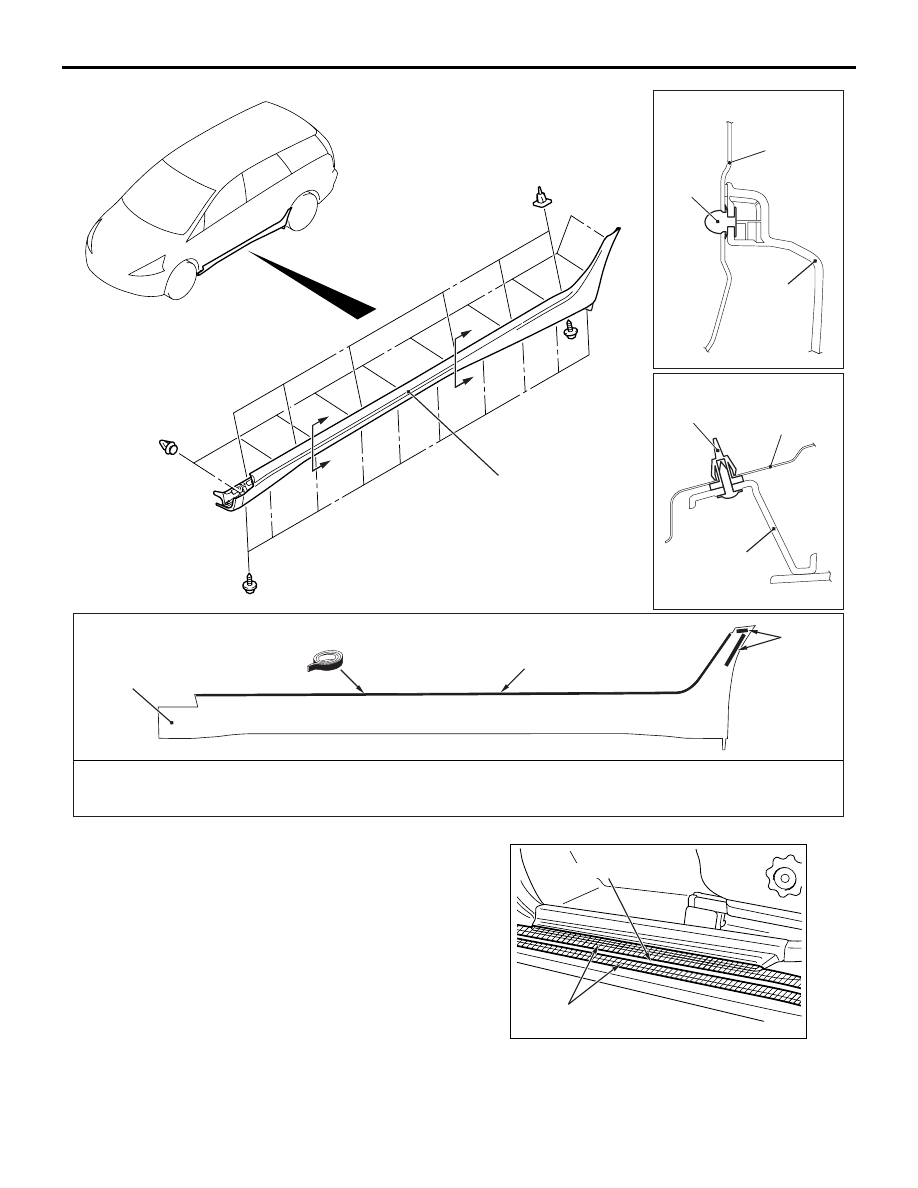

REMOVAL AND INSTALLATION

M1511004100099

AC003626AB

MB990449

Application

Specified adhesive

Side sill garnish

Double-sided tape [5.0 mm width 0.8 mm thickness,
5.0 width 1.2mm thickness]

AC302625

A

A

AB

Section A – A

Clip

Tailgate garnish

Tailgate garnish

GARNISHES

EXTERIOR

51-10

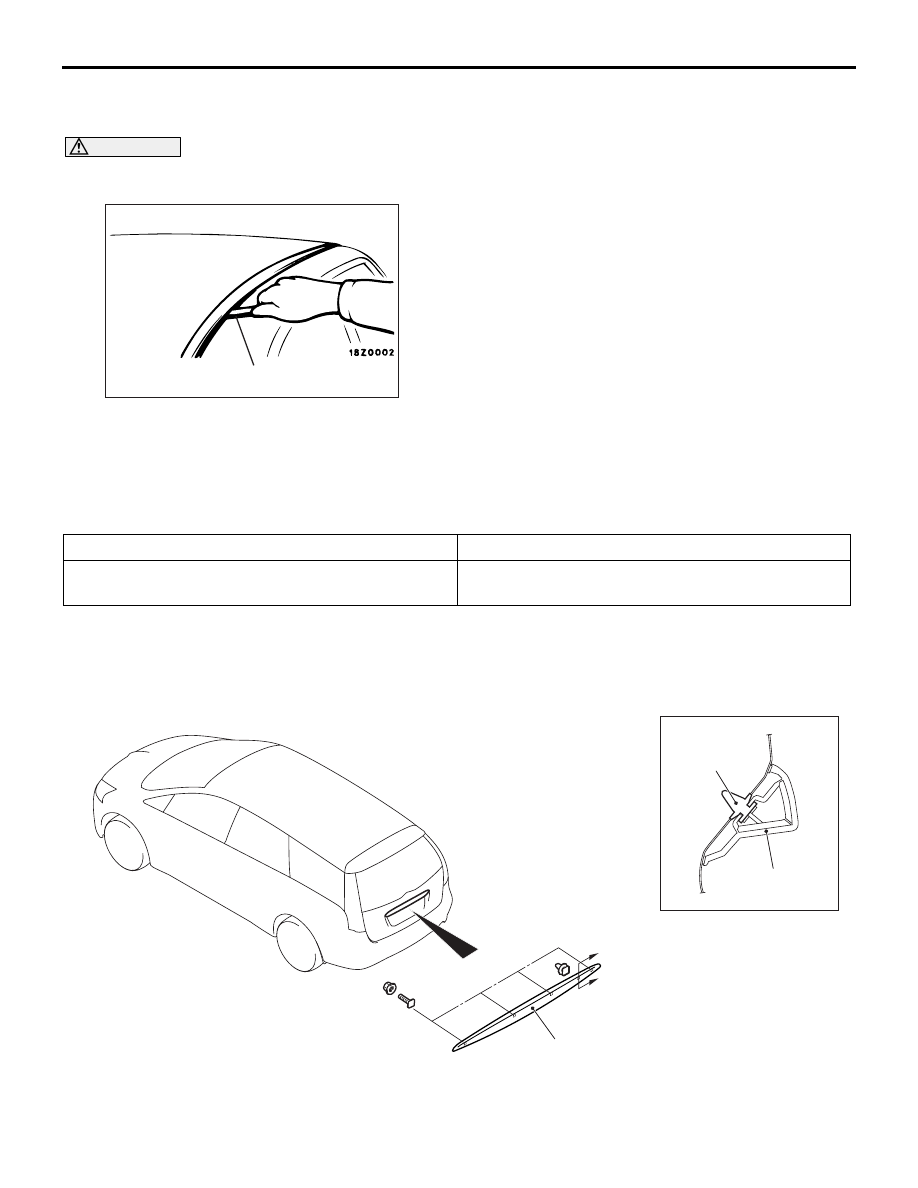

REMOVAL SERVICE POINT
<<A>> SIDE SILL GARNISH REMOVAL

Gently lift and remove the side sill garnish. If there is
any double-sided tape remaining on the side sill
garnish, remove according to the following
instructions.
<Remove double-sided tape remaining on the body
surface>

1. Attach protection tape all the way along the edges

of the double-sided tape which is still adhering to
the body.

AC313480

Clip

Clip

Side outer panel

Section A – A

Double-sided tape affixed location

Section B – B

Double-sided tape: Generic products
                                  a: 5.0 mm width, 1.2 mm thickness, b: 10.0 mm width, 2.5 mm thickness

1

a

b

1

1

1

A

B

B

A

AB

Side outer panel

Removal steps

<<A>> >>A<<

1. Side sill garnish

AC200049

AB

Protection tape

Double-sided tape
