TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI)

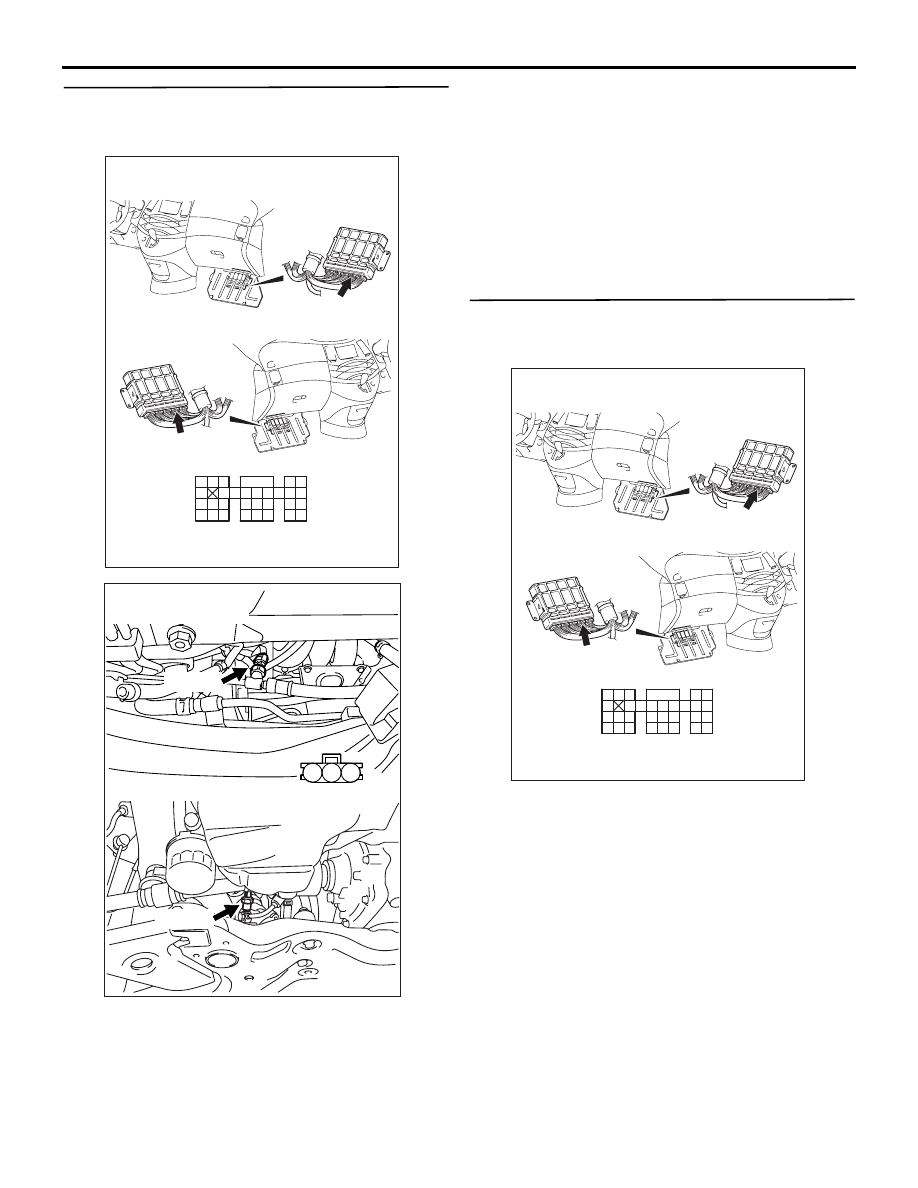

13A-199

STEP 6. Connector check: C-113 engine-ECU
<M/T> connector or engine-A/T-ECU <A/T>
connector

Q: Is the check result normal?

YES :

Check intermediate connector B-17, and

repair if necessary (R. H. drive vehicles). If
intermediate connector is normal, check and
repair harness between B-20 (terminal No.
3) power steering pressure sensor
connector and C-113 (terminal No. 97)
engine-ECU <M/T> connector or
engine-A/T-ECU <A/T> connector.

• Check power supply line for damage.

NO :

Repair or replace.

STEP 7. Connector check: C-113 engine-ECU
<M/T> connector or engine-A/T-ECU <A/T>
connector

Q: Is the check result normal?

YES :

Go to Step 8 .

NO :

Repair or replace.

AK305616AB

Connector: C-113

<L.H. drive vehicles>

<R.H. drive vehicles>

C-113 (GR)

C-113 (GR)

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

Harness side connector

AK305622

1

2

3

AB

Connector: B-20

B-20 (B)

B-20 (B)

Harness side
connector

<L.H. drive vehicles>

<R.H. drive vehicles>

AK305616AB

Connector: C-113

<L.H. drive vehicles>

<R.H. drive vehicles>

C-113 (GR)

C-113 (GR)

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

Harness side connector

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI)

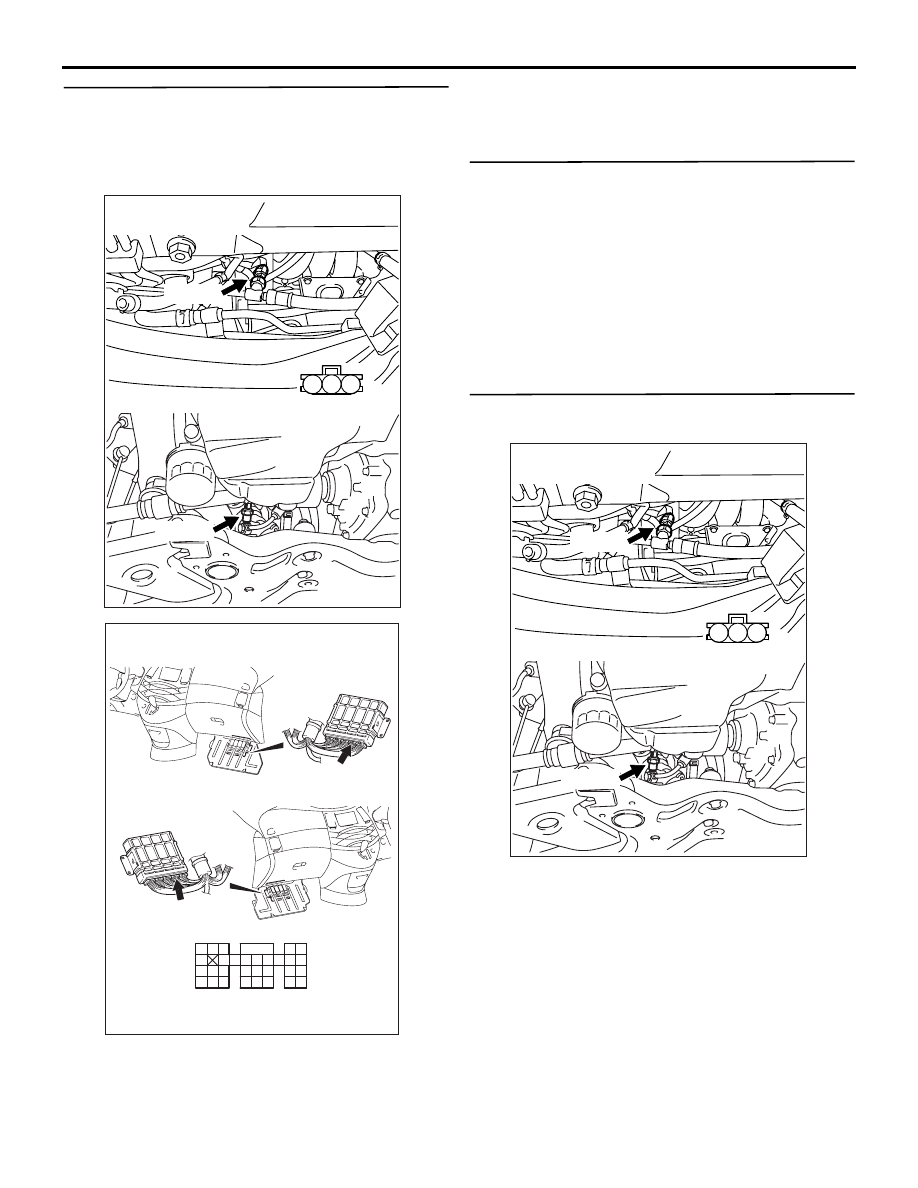

13A-200

STEP 8. Check harness between B-20 (terminal
No. 3) power steering fluid pressure sensor
connector and C-113 (terminal No. 97)
engine-ECU <M/T> connector or engine-A/T-ECU
<A/T> connector.

NOTE: Before checking harness, check intermediate
connector B-17, and repair if necessary (R. H. drive
vehicles).

.

•

Check power supply line for short circuit.

Q: Is the check result normal?

YES :

Go to Step 9 .

NO :

Repair.

STEP 9. MUT-III data list

• Refer to Data List Reference Table

P.13A-363

a. Item B4: Power steering fluid pressure sensor

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to

GROUP00

− How to Use

Troubleshooting/Inspection Service Points

P.00-5

).

NO :

Replace engine-ECU <M/T> or
engine-A/T-ECU <A/T>.

STEP 10. Perform resistance measurement at
B-20 power steering fluid pressure sensor

• Disconnect connector, and measure at harness

side.

• Resistance between terminal No. 1 and earth.

OK: 2

Ω or less

Q: Is the check result normal?

YES :

Go to Step 13 .

NO :

Go to Step 11.

AK305622

1

2

3

AB

Connector: B-20

B-20 (B)

B-20 (B)

Harness side
connector

<L.H. drive vehicles>

<R.H. drive vehicles>

AK305616AB

Connector: C-113

<L.H. drive vehicles>

<R.H. drive vehicles>

C-113 (GR)

C-113 (GR)

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

Harness side connector

AK305622

1

2

3

AB

Connector: B-20

B-20 (B)

B-20 (B)

Harness side
connector

<L.H. drive vehicles>

<R.H. drive vehicles>

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI)

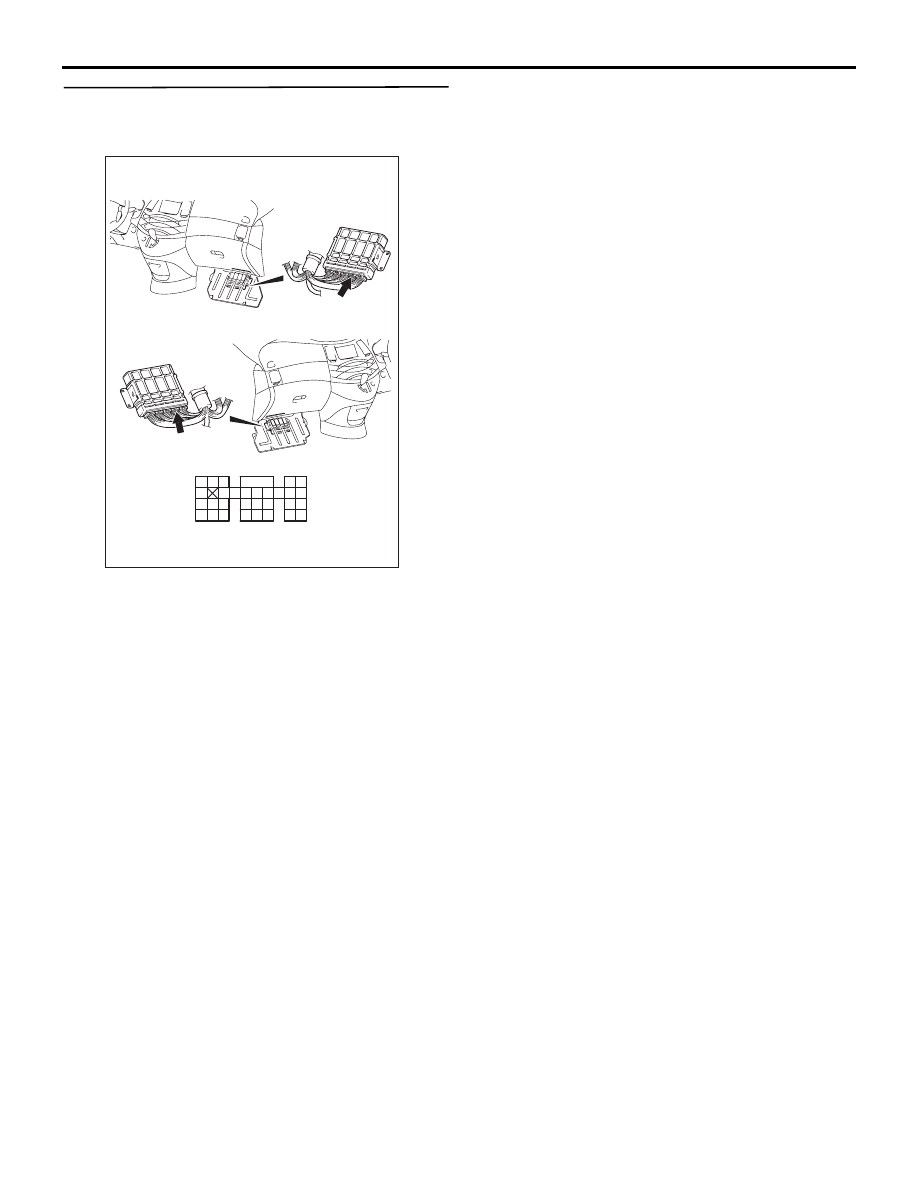

13A-201

STEP 11. Connector check: C-113 engine-ECU
<M/T> connector or engine-A/T-ECU <A/T>
connector

Q: Is the check result normal?

YES :

Go to Step 12 .

NO :

Repair or replace.

AK305616AB

Connector: C-113

<L.H. drive vehicles>

<R.H. drive vehicles>

C-113 (GR)

C-113 (GR)

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

Harness side connector

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI)

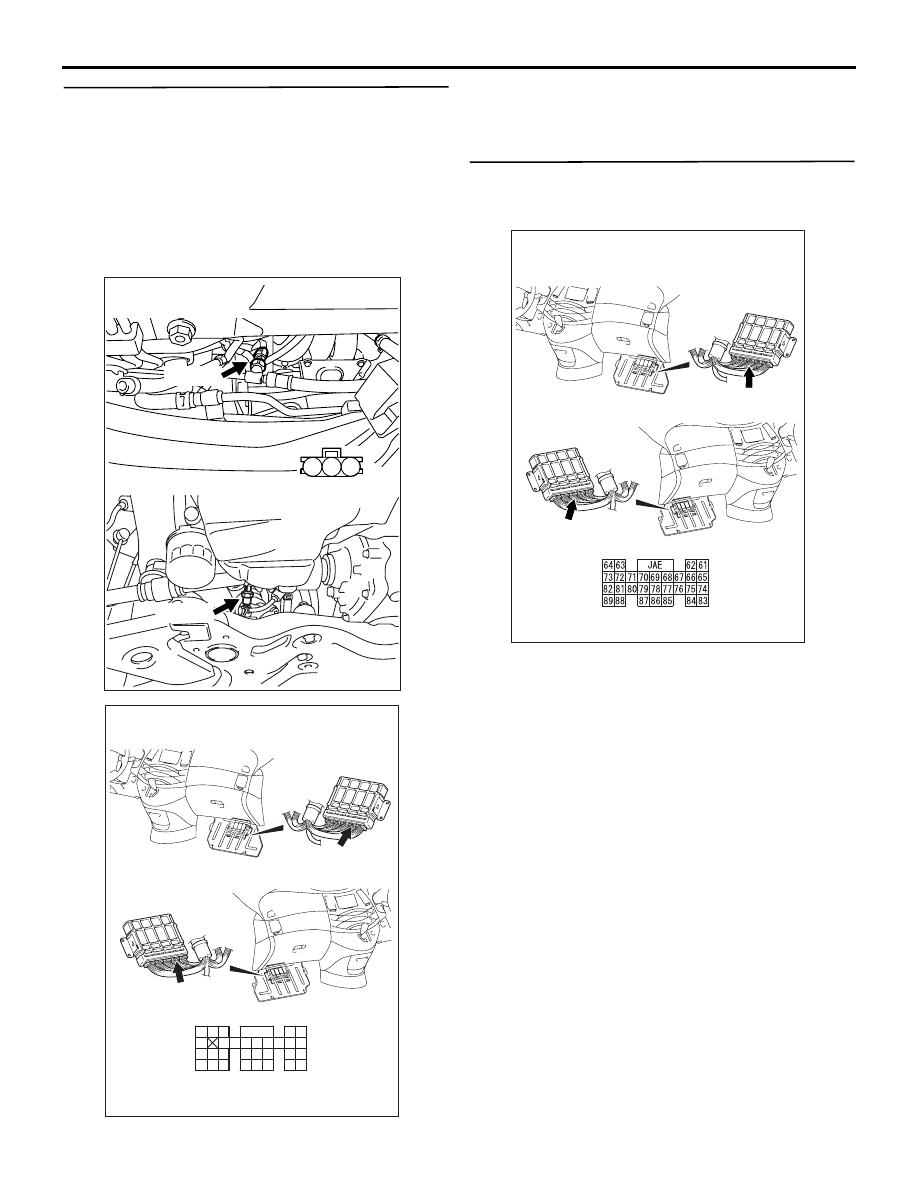

13A-202

STEP 12. Check harness between B-20 (terminal
No. 1) power steering fluid pressure sensor
connector and C-113 (terminal No. 96)
engine-ECU <M/T> connector or engine-A/T-ECU
<A/T> connector.
NOTE: Before checking harness, check intermediate
connector B-17 (R. H. drive vehicles) and C-116, and
repair if necessary.

• Check earthing line for open circuit and damage.

Q: Is the check result normal?

YES :

Go to Step 9 .

NO :

Repair.

STEP 13. Perform voltage measurement at C-112
engine-ECU <M/T> connector or engine-A/T-ECU
<A/T> connector.

• Measure engine-ECU <M/T> or engine-A/T-ECU

<A/T> terminal voltage.

• Ignition switch: ON

• Voltage between terminal No. 84 and earth.

OK: 1V or less (Steering wheel: Not
operated)
Voltage rises (Steering wheel: Operated)

Q: Is the check result normal?

YES :

Go to Step17 .

NO :

Go to Step 14 .

AK305622

1

2

3

AB

Connector: B-20

B-20 (B)

B-20 (B)

Harness side
connector

<L.H. drive vehicles>

<R.H. drive vehicles>

AK305616AB

Connector: C-113

<L.H. drive vehicles>

<R.H. drive vehicles>

C-113 (GR)

C-113 (GR)

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

Harness side connector

AK305617

Connector: C-112

C-112 (GR)

C-112 (GR)

AB

Harness side connector

<R.H. drive vehicles>

<L.H. drive vehicles>
