TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI)

13A-31

PROBABLE CAUSE

• Failed intake air temperature sensor

• Open/short circuit in intake air temperature

sensor circuit or loose connector contact

• Failed engine-ECU <M/T>

• Failed engine-A/T-ECU <A/T>

DIAGNOSIS PROCEDURE

STEP 1. MUT-III data list

• Refer to Data List Reference Table

P.13A-363

.

a. Item 13: Intake air temperature sensor

OK: At ambient temperature (atmospheric
temperature) or equivalent.

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

− How to Use

Troubleshooting/Inspection Service Points

P.00-5

).

NO :

Go to Step 2 .

STEP 2. Connector check: B-106 air flow sensor
connector

Q: Is the check result normal?

YES :

Go to Step 3 .

NO :

Repair or replace.

STEP 3. Check intake air temperature sensor
itself.

• Check intake air temperature sensor itself (Refer

to

P.13A-389

).

Q: Is the check result normal?

YES :

Go to Step 4 .

NO :

Replace air flow sensor.

STEP 4. Perform resistance measurement at
B-106 air flow sensor connector.

• Disconnect connector, and measure at harness

side.

• Voltage between terminal No. 4 and earth.

OK: 2

Ω or less

Q: Is the check result normal?

YES :

Go to Step 8 .

NO :

Go to Step 5 .

STEP 5. Connector check: C-113 engine-ECU
<M/T> connector or engine-A/T-ECU <A/T>
connector

Q: Is the check result normal?

YES :

Go to Step 6 .

NO :

Repair or replace.

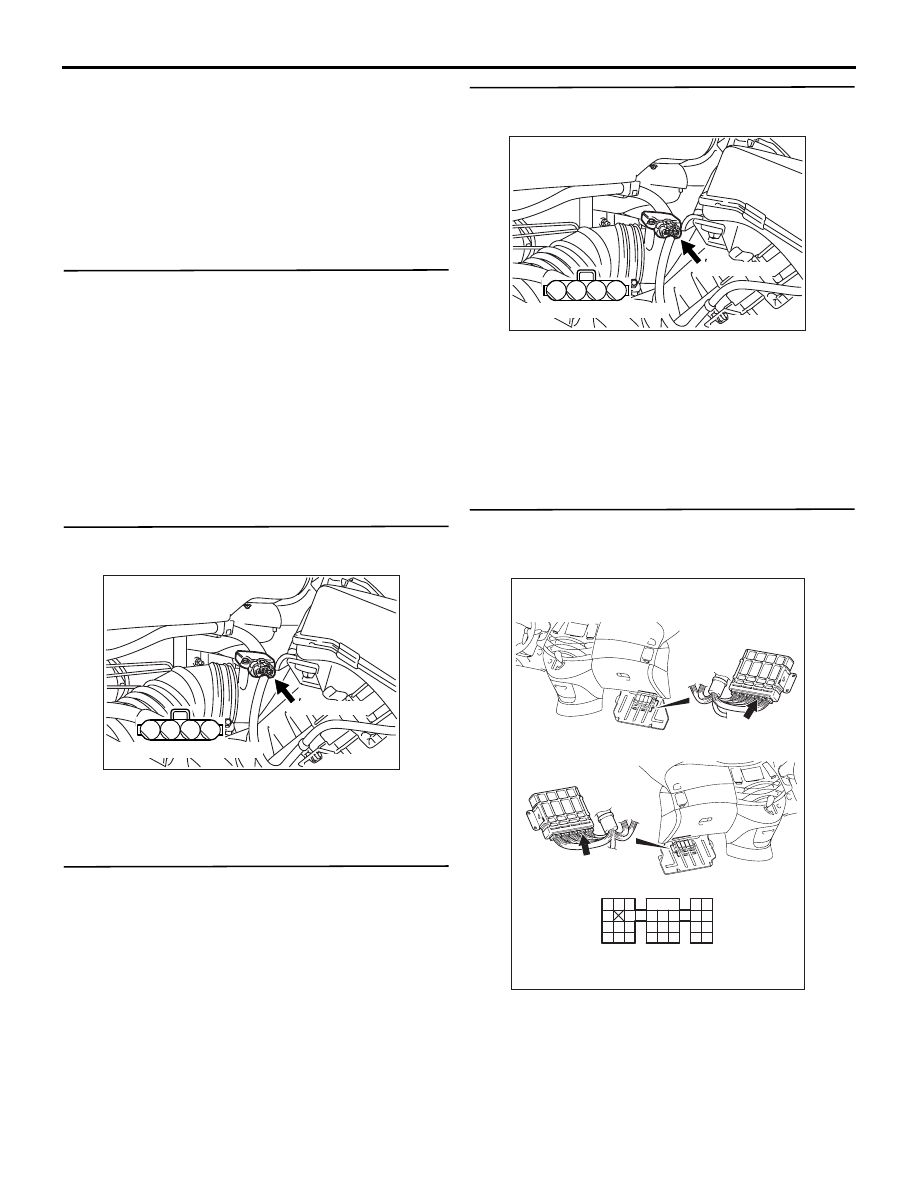

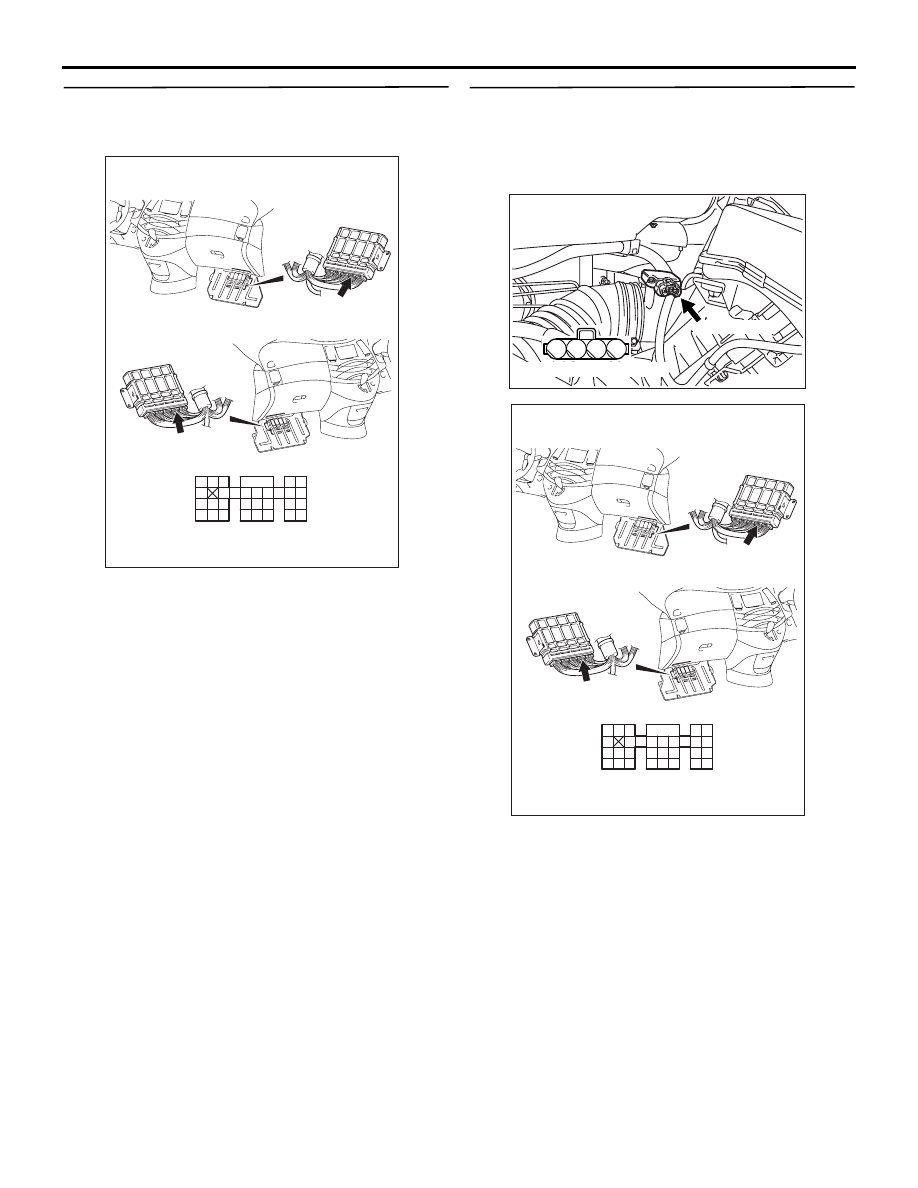

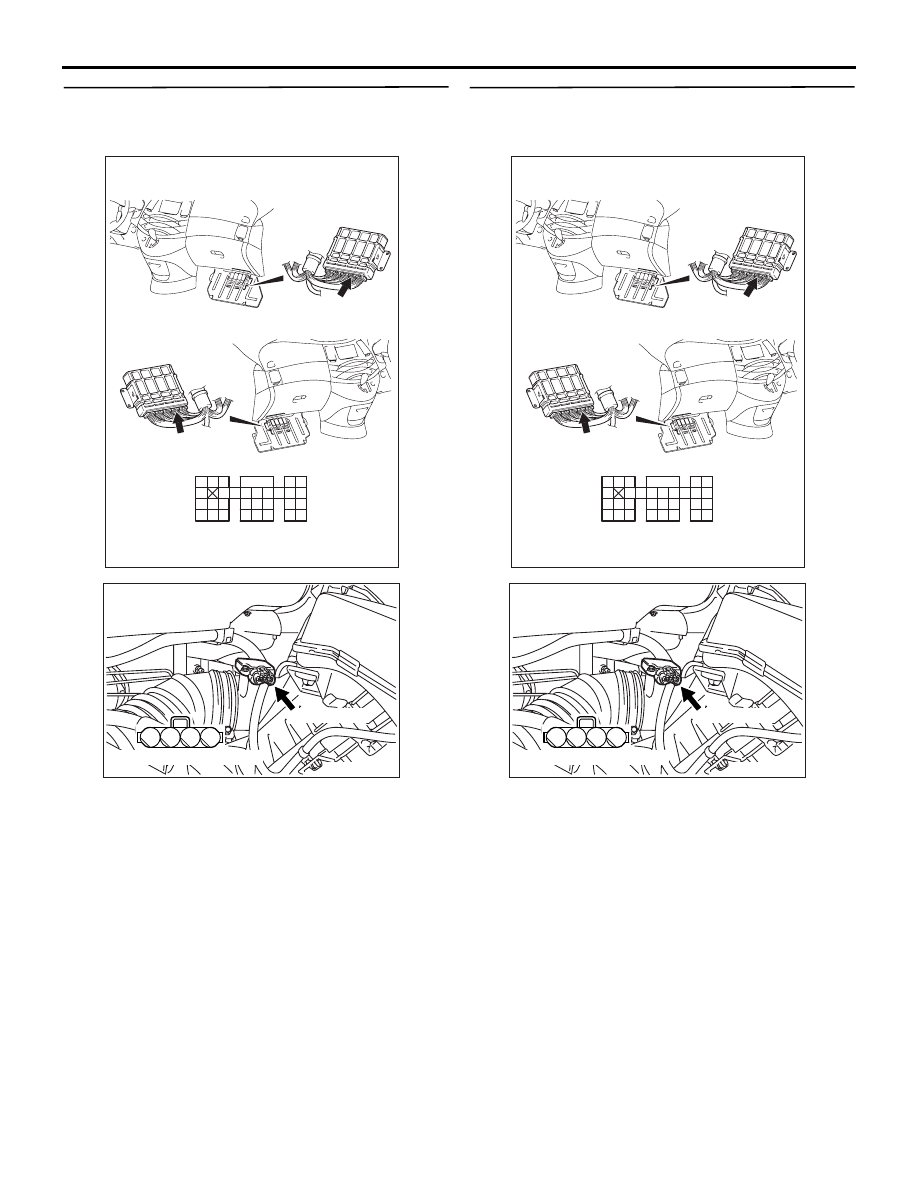

AK300969

2

1

3

4

Harness side connector

AC

Connector: B-106

B-106 (GR)

AK300969

2

1

3

4

Harness side connector

AC

Connector: B-106

B-106 (GR)

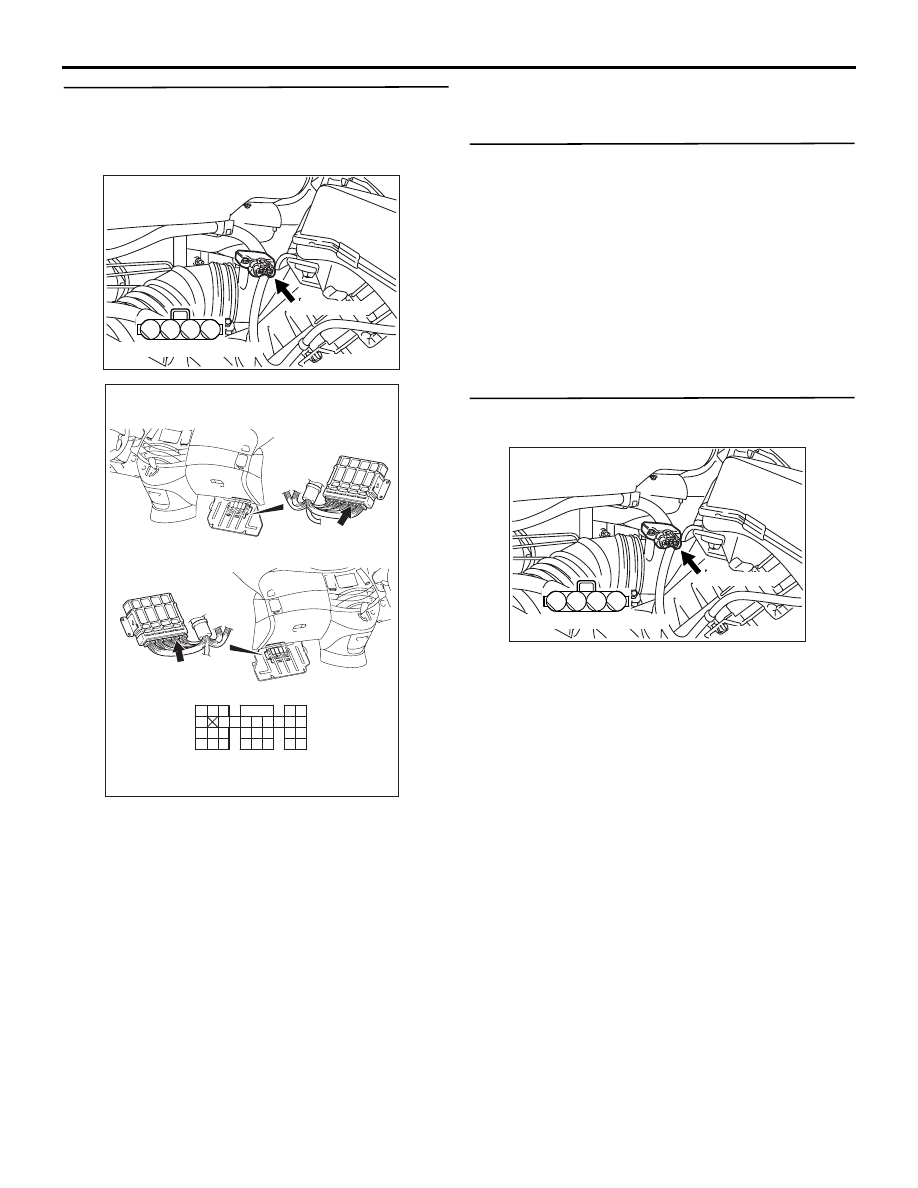

AK305616AB

Connector: C-113

<L.H. drive vehicles>

<R.H. drive vehicles>

C-113 (GR)

C-113 (GR)

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

Harness side connector

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI)

13A-32

STEP 6. Check harness between B-106 (terminal
No. 4) air flow sensor connector and C-113
(terminal No. 96) engine-ECU <M/T> connector or
engine-A/T-ECU <A/T> connector.

NOTE: Before checking harness, check intermediate
connector C-116, and repair if necessary.

• Check earthing line for open circuit and damage.

Q: Is the check result normal?

YES :

Go to Step 7 .

NO :

Repair.

STEP 7. MUT-III data list

• Item No. 13: Intake air temperature sensor

OK: At ambient temperature (atmospheric
temperature) or equivalent.

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

− How to Use

Troubleshooting/Inspection Service Points

P.00-5

).

NO :

Replace engine-ECU <M/T> or
engine-A/T-ECU <A/T>.

STEP 8. Perform voltage measurement at B-106
air flow sensor connector.

• Disconnect connector, and measure at harness

side.

• Ignition switch: ON

• Voltage between terminal No. 1 and earth.

OK: 4.5

− 4.9 V

Q: Is the check result normal?

YES :

Replace engine-ECU <M/T> or

engine-A/T-ECU <A/T>.

NO :

Go to Step 9 .

AK300969

2

1

3

4

Harness side connector

AC

Connector: B-106

B-106 (GR)

AK305616AB

Connector: C-113

<L.H. drive vehicles>

<R.H. drive vehicles>

C-113 (GR)

C-113 (GR)

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

Harness side connector

AK300969

2

1

3

4

Harness side connector

AC

Connector: B-106

B-106 (GR)

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI)

13A-33

STEP 9. Perform voltage measurement at C-113
engine-ECU <M/T> connector or engine-A/T-ECU
<A/T> connector.

• Measure engine-ECU <M/T> or engine-A/T-ECU

<A/T> terminal voltage.

• Disconnect B-106 air flow sensor connector.

• Ignition switch: ON

• Voltage between terminal No. 99 and earth.

OK: 4.5

− 4.9 V

Q: Is the check result normal?

YES :

Go to Step 10 .

NO :

Go to Step 11 .

STEP 10. Connector check: C-113 engine-ECU
<M/T> connector or engine-A/T-ECU <A/T>
connector

Q: Is the check result normal?

YES :

Check and repair harness between B-106

(terminal No. 1) air flow sensor connector
and C-113 (terminal No. 99) engine-ECU
<M/T> connector or engine-A/T-ECU <A/T>
connector.

• Check output line for open circuit.

NO :

Repair or replace.

AK305616AB

Connector: C-113

<L.H. drive vehicles>

<R.H. drive vehicles>

C-113 (GR)

C-113 (GR)

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

Harness side connector

AK300969

2

1

3

4

Harness side connector

AC

Connector: B-106

B-106 (GR)

AK305616AB

Connector: C-113

<L.H. drive vehicles>

<R.H. drive vehicles>

C-113 (GR)

C-113 (GR)

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

Harness side connector

AK300969

2

1

3

4

Harness side connector

AC

Connector: B-106

B-106 (GR)

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI)

13A-34

STEP 11. Connector check: C-113 engine-ECU
<M/T> connector or engine-A/T-ECU <A/T>
connector

Q: Is the check result normal?

YES :

Go to Step 12 .

NO :

Repair or replace.

STEP 12. Check harness between B-106 (terminal
No. 1) air flow sensor connector and C-113
(terminal No. 99) engine-ECU <M/T> connector or
engine-A/T-ECU <A/T> connector.

• Check output line for short circuit.

Q: Is the check result normal?

YES :

Go to Step 7 .

NO :

Repair.

AK305616AB

Connector: C-113

<L.H. drive vehicles>

<R.H. drive vehicles>

C-113 (GR)

C-113 (GR)

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

Harness side connector

AK300969

2

1

3

4

Harness side connector

AC

Connector: B-106

B-106 (GR)

AK305616AB

Connector: C-113

<L.H. drive vehicles>

<R.H. drive vehicles>

C-113 (GR)

C-113 (GR)

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

Harness side connector
