HOOD

BODY

42-4

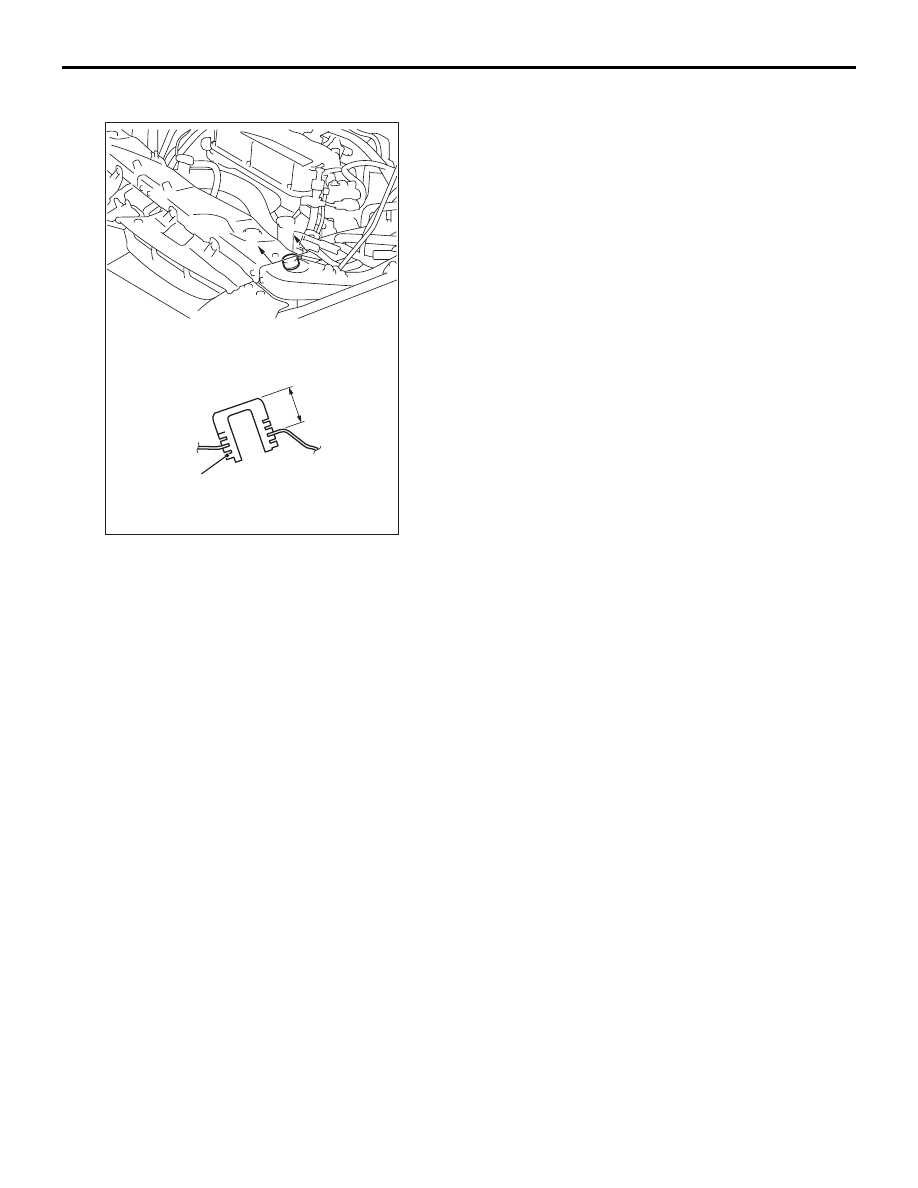

ADJUSTMENT OF HOOD HEIGHT

M1421007400167

Turn bumper (B) to the shown dimension to adjust
the hood height. If the hood height is still not even,
turn bumper (B) again until the height is even.
NOTE: If bumper (B) is turned once, its height
changes by approximately 3 mm.

AC303550

21.4 mm

AC

A

A

Bumper B

Section A – A

HOOD

BODY

42-5

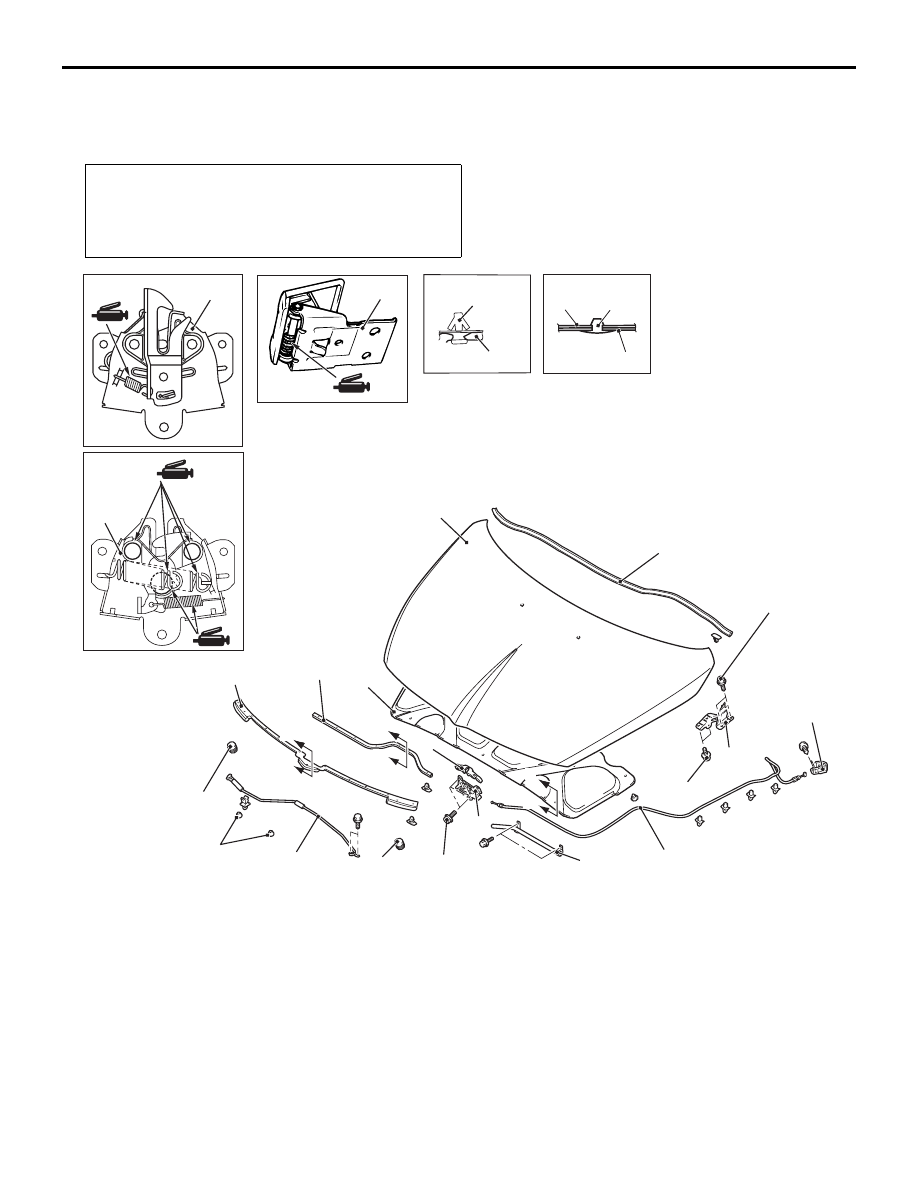

HOOD

REMOVAL AND INSTALLATION

M1421001600420

Post-installation Operation
• Adjustment of Clearance Around Hood (Refer to

P.42-3

).

• Adjustment of Alignment of Hood Stepped Portion and

Hood Striker (Refer to

P.42-3

).

• Adjustment of Hood Height (Refer to

P.42-4

).

AC310407

9.0 ± 2.0 N·m

4

3

5

8,9

Section B – B

Section A – A

Clip

11

12

Clip

9

12

10

6

A

A

7

22 ± 4 N·m

22 ± 4 N·m

22 ± 4 N·m

14

1

2

2

A

A

B

B

8

11

13

AB

6

<Front view>

4

<Rear view>

4

Hood bumper removal steps
1. Hood bumper A
2. Hood bumper B
Hood latch and hood lock release
cable removal steps
3. Hood latch cover
•

Front bumper (Refer to GROUP 51,
Front Bumper

P.51-3

).

4. Hood latch
5. Hood lock release cable cover
•

Cowl side trim (Refer to GROUP 52A,
Interior Trim

P.52A-10

).

6. Hood lock release handle

•

Splash shield LH (Refer to

P.42-6

).

7. Hood lock release cable
Hood and hood hinge removal steps
8. Hood opening weatherstrip
9. Hood weatherstrip front
10. Hood weatherstrip rear
11. Hood Insulator
•

Washer hose, Washer nozzle (Refer
to GROUP 51, Windshield Washer

P.51-26

).

12 Hood
13 Hood support rod

Hood latch and hood lock release
cable removal steps (Continued)

FENDER

BODY

42-6

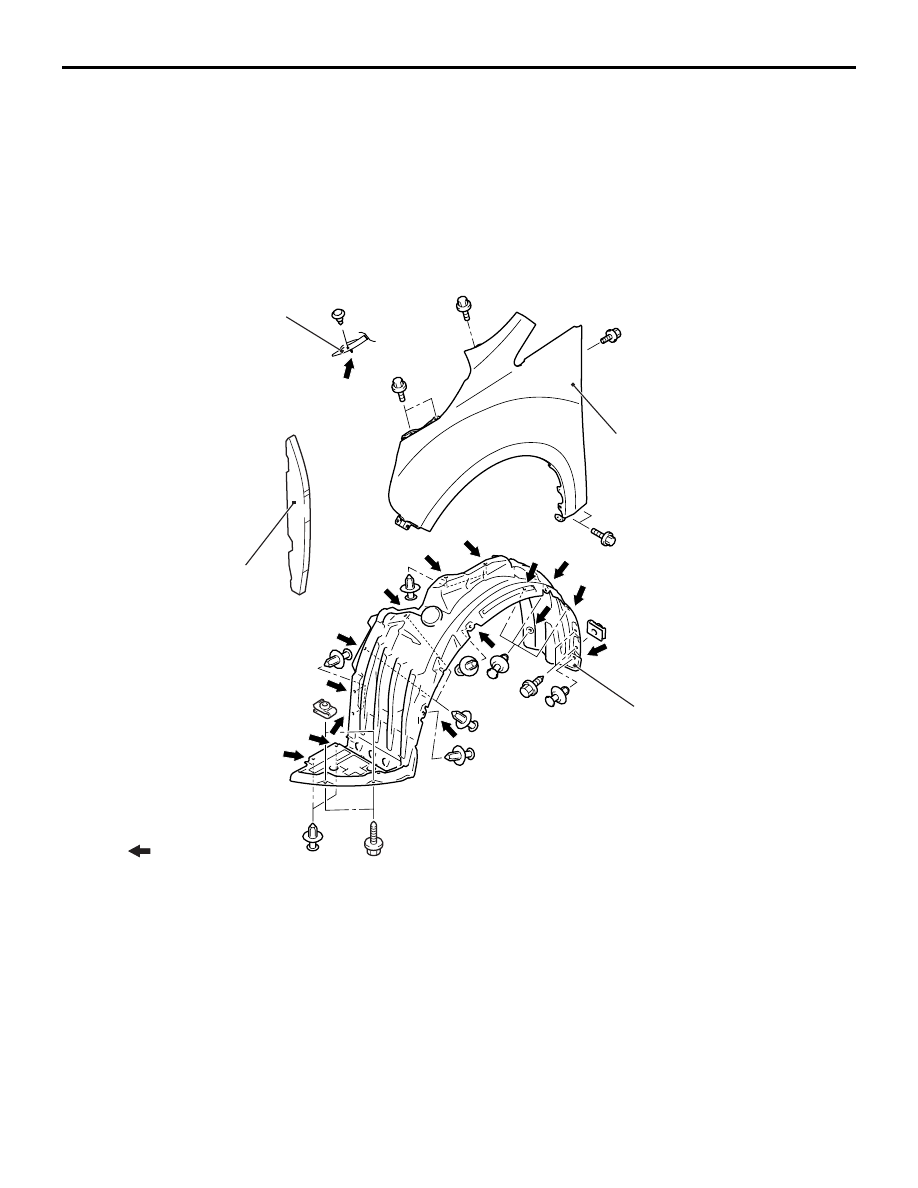

FENDER

REMOVAL AND INSTALLATION

M1421001900432

•

Fender (Refer to

P.42-6

).

14. Hood hinge

Hood and hood hinge removal steps

AC310063

1

4

3

AB

2

Note
         : Clip positions


Splash shield removal step
1. Splash shield
Fender removal steps
1. Splash shield
•

Front bumper assembly (Refer to
GROUP 51, Front Bumper

P.51-3

).

•

Headlamp assembly (Refer to
GROUP 54A, Headlamp

P.54A-89

).

2. Tip of roof drip moulding
3. Fender rear protector
4. Fender
•

Delta window glass (Refer to

P.42-14

).

Fender installation steps
4. Fender
•

Delta window glass (Refer to

P.42-14

).

3. Fender rear protector
2. Tip of roof drip moulding
•

Headlamp assembly (Refer to
GROUP 54A, Headlamp

P.54A-89

).

•

Front bumper assembly (Refer to
GROUP 51, Front Bumper

P.51-3

).

1. Splash shield

FUEL FILLER LID

BODY

42-7

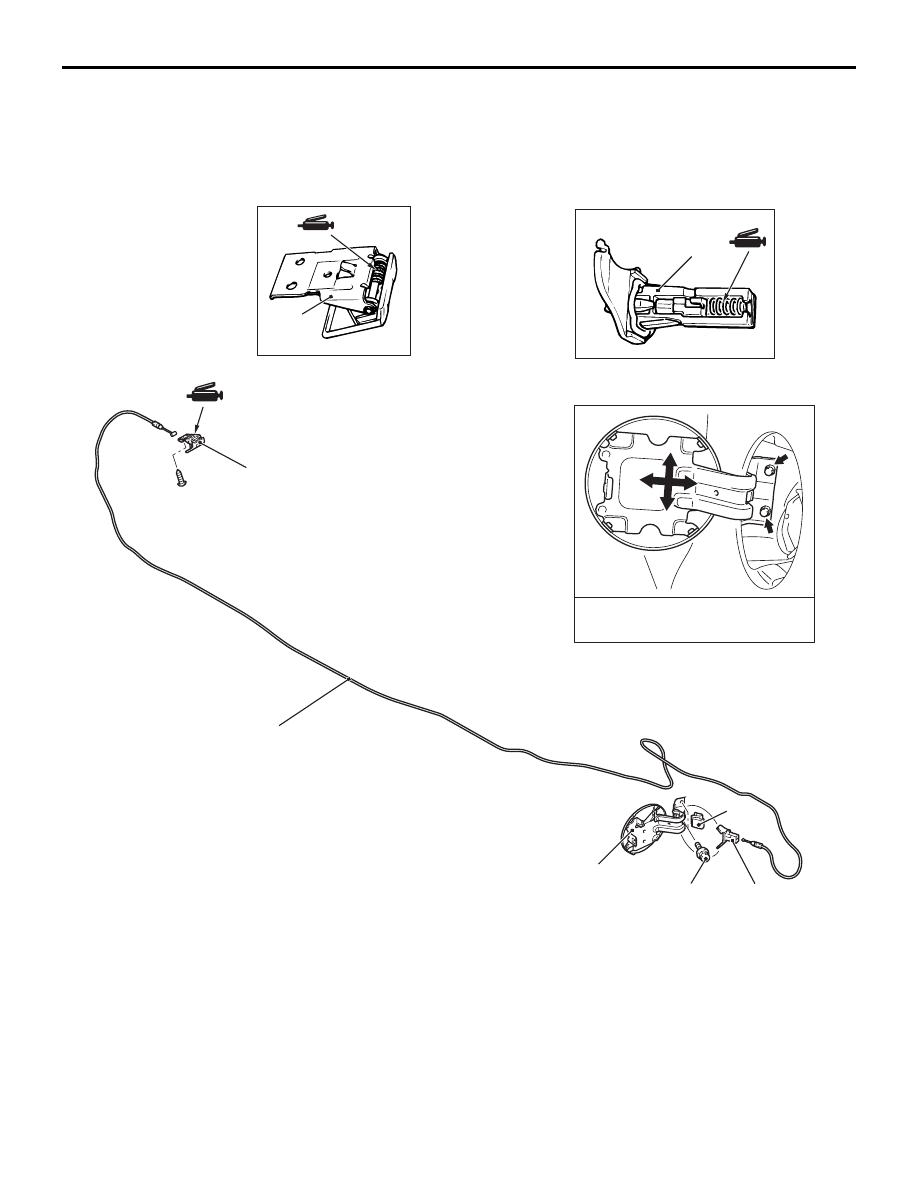

FUEL FILLER LID

REMOVAL AND INSTALLATION

M1421002500341

AC310400

5.0 ± 1.0 N·m

4

2

1

4

3

3

AB

Fuel filler lid height and clearance
adjustment

5

Removal steps
1.

Fuel filler lid

2.

Fuel filler lid damper spring

3.

Fuel filler lid lock release handle

•

Front scuff plate, Rear scuff plate,
Centre pillar trim lower (Refer to
GROUP 52A, Interior Trim

P.52A-10

).

•

Third seat assembly (Refer to
GROUP 52A, Third Seat

P.52A-33

).

•

Cargo floor box (Refer to GROUP
52A, Interior Trim

P.52A-10

).

4.

Fuel filler lid hook

5.

Fuel filler lid lock release cable

Removal steps (Continued)
