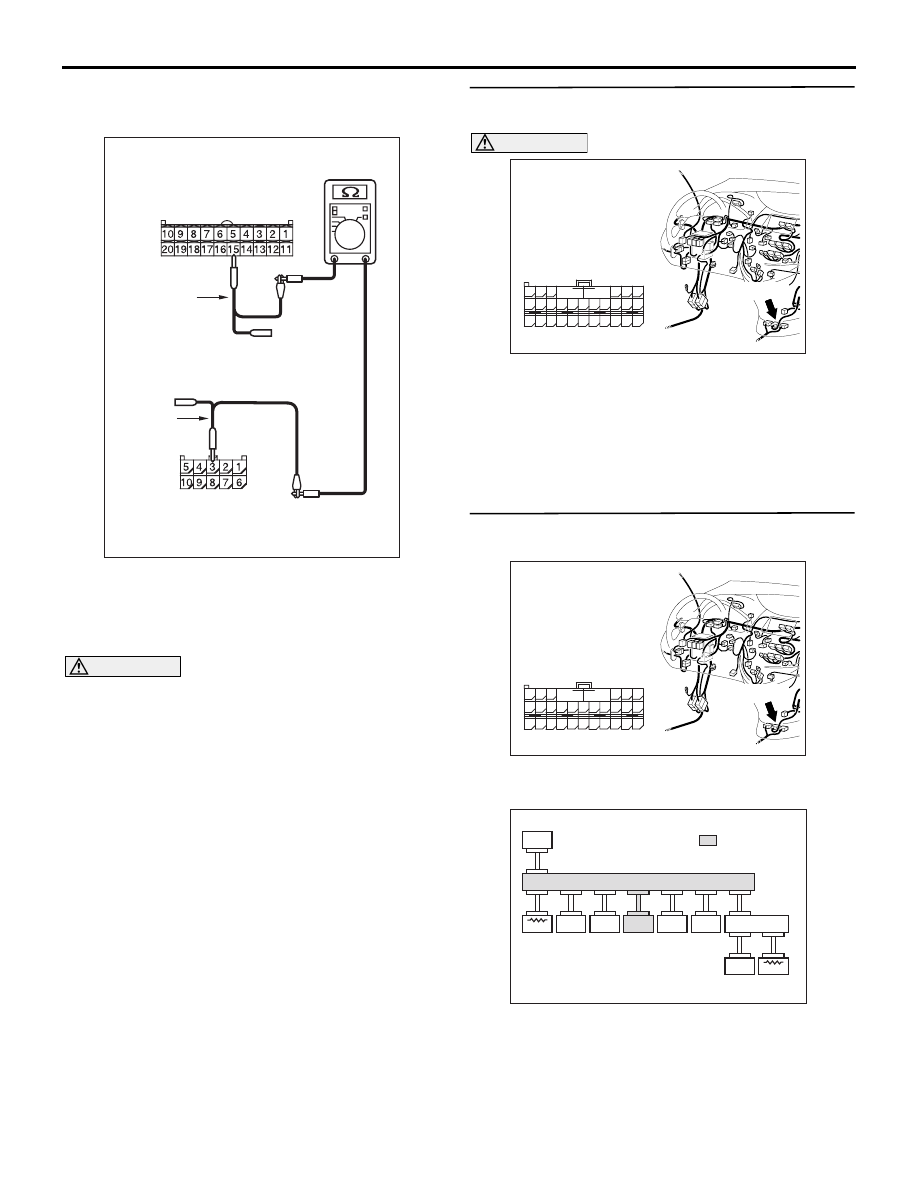

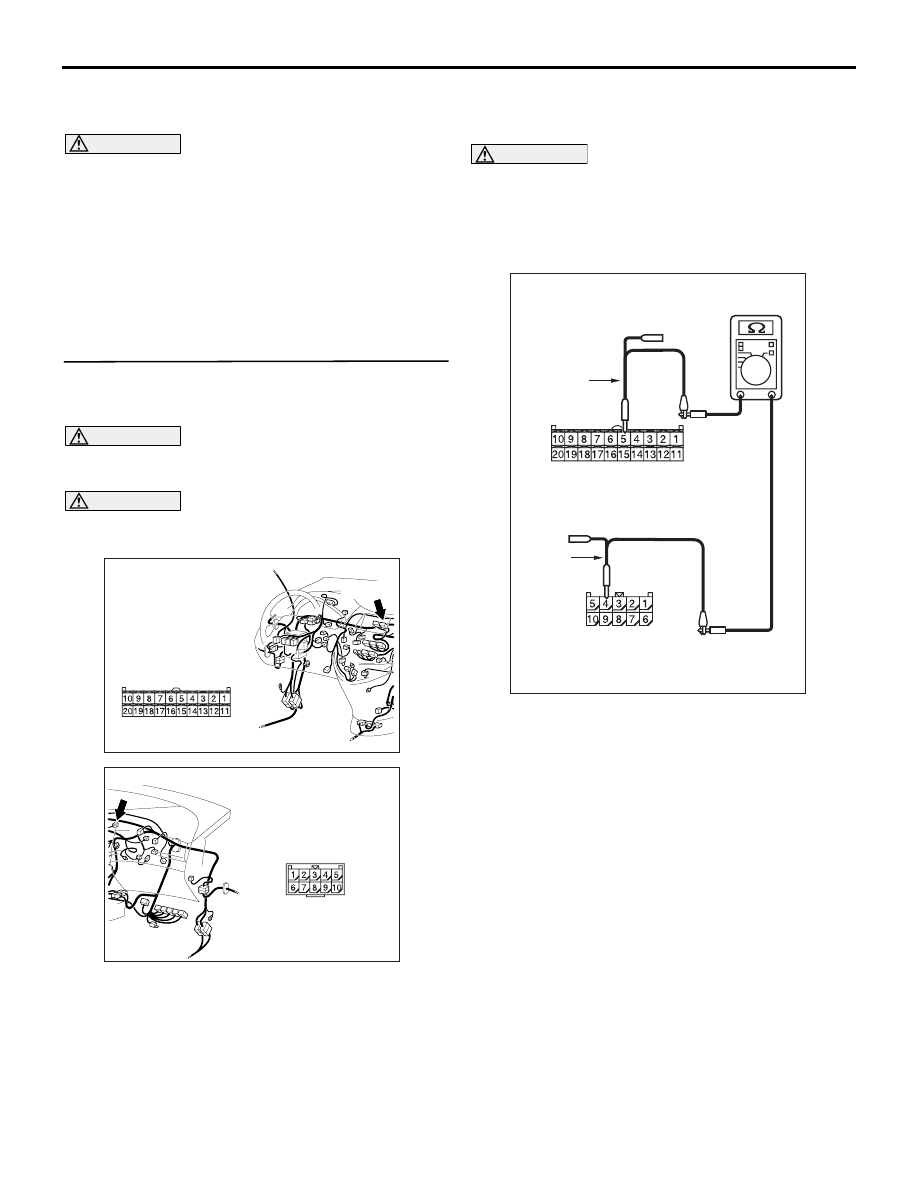

DIAGNOSIS CONTROLLER AREA NETWORK (CAN) 54D-486 STEP 17. Resistance measurement at C-37 CAUTION A digital multimeter should be used. For details CAUTION The test wiring harness should be used. For (1) Disconnect the joint connector (CAN2) and the jumper connector, and measure at the wiring (2) Ignition switch: OFF (LOCK) CAUTION When measuring the resistance, disconnect the (3) Ensure that the negative battery terminal is disconnected. (4) Continuity between C-37 jumper connector terminal No.2 and C-09 joint connector (CAN2) OK: 2 Ω or less (5) Continuity between C-37 jumper connector terminal No.5 and C-09 joint connector (CAN2) AC310615 AU Harness side Connector: C-09 <LHD> C-09 (GR) AC310615 AV Connector: C-37 <LHD> AC312553BI Harness side: C-09 Test Test Harness side: C-37 AC312553 Harness side: C-09 Test Test Harness side: C-37 BJ |
