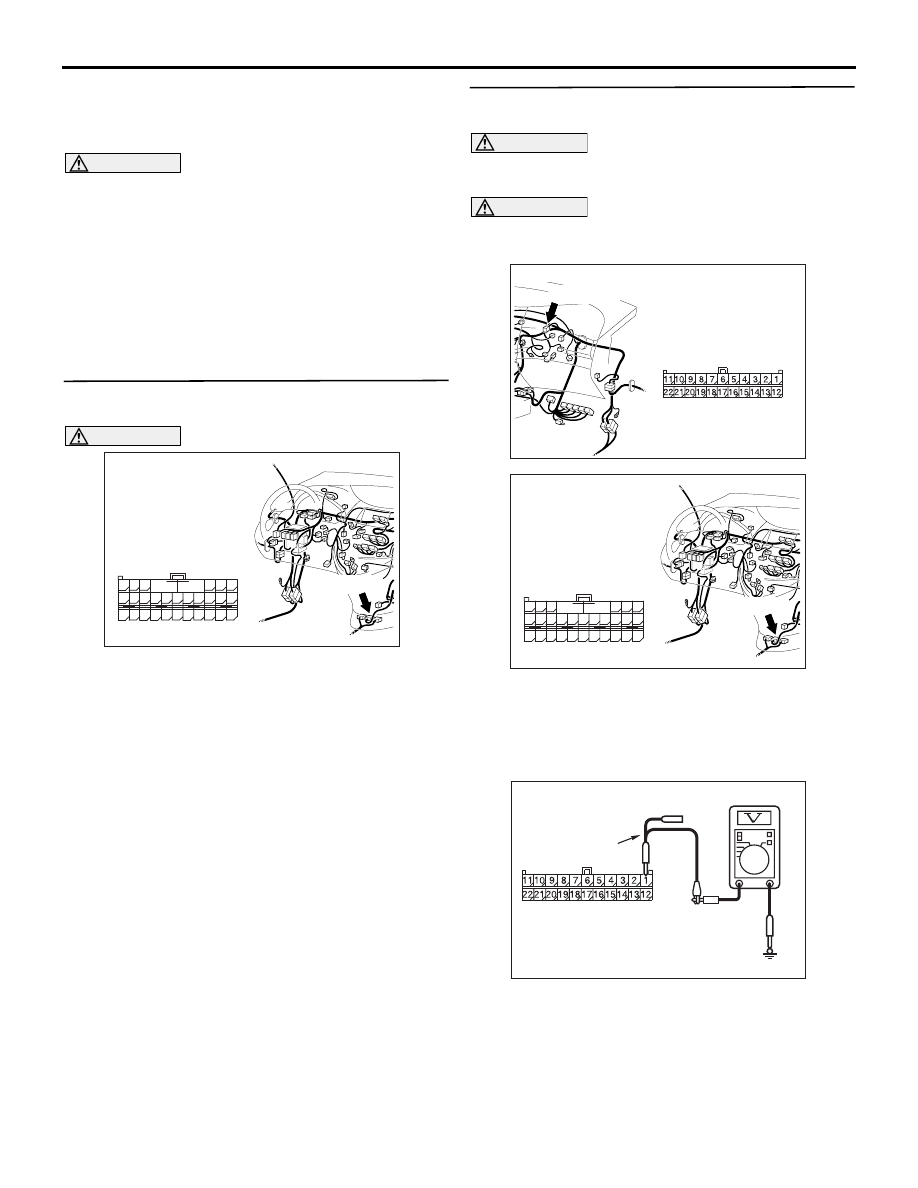

DIAGNOSIS
CONTROLLER AREA NETWORK (CAN)
54D-70
No.4 and body earth
OK: Less than 1.0 V
(4) Disconnect the negative battery terminal.
CAUTION
Strictly observe the specified wiring harness
repair procedure. For details refer to
Q: Is the check result normal?
YES :
<less than 1.0 V> Follow diagnostic item 17
"Diagnose CAN bus lines thoroughly." Refer
to
NO :
<1.0 V or more> Repair the wiring harness
between the jumper connector and the
centre display connector.
STEP 41. Connector check: C-119 SRS-ECU
connector
CAUTION
The strand end of the twist wire should be within
10 cm from the connector. For details refer to
Q: Is the check result normal?
YES :
Go to Step 42 .
NO :
Repair the defective connector.
STEP 42. Voltage measurement at C-09 joint
connector (CAN2).
CAUTION
A digital multimeter should be used. For details
refer to
.
CAUTION
The test wiring harness should be used. For
details refer to
(1) Disconnect the joint connector (CAN2) and the
SRS-ECU connector, and measure at the wiring
harness side.
(2) Connect the negative battery terminal, and turn
the ignition switch to the ON position.
(3) Voltage between C-09 joint connector (CAN2)
AC310613
BD
Connector: C-119
<LHD>
Harness side
C-119 (Y)
48
37
26
42
31
45
34
47
36
46
35
44
33
43
32
25 24
39
28
41
30
40
29
38
27
23
21
22
A
B
AC310615
AU
Harness side
Connector: C-09 <LHD>
C-09 (GR)
AC310613
BD
Connector: C-119
<LHD>
Harness side
C-119 (Y)
48
37
26
42
31
45
34
47
36
46
35
44
33
43
32
25 24
39
28
41
30
40
29
38
27
23
21
22
A
B
AC209365KK
Harness side: C-09
Test
harness
