TURN-SIGNAL LAMP AND HAZARD WARNING LAMP <LHD>
CIRCUIT DIAGRAMS
90-89
TURN-SIGNAL LAMP AND HAZARD WARNING LAMP <LHD> (CONTINUED)

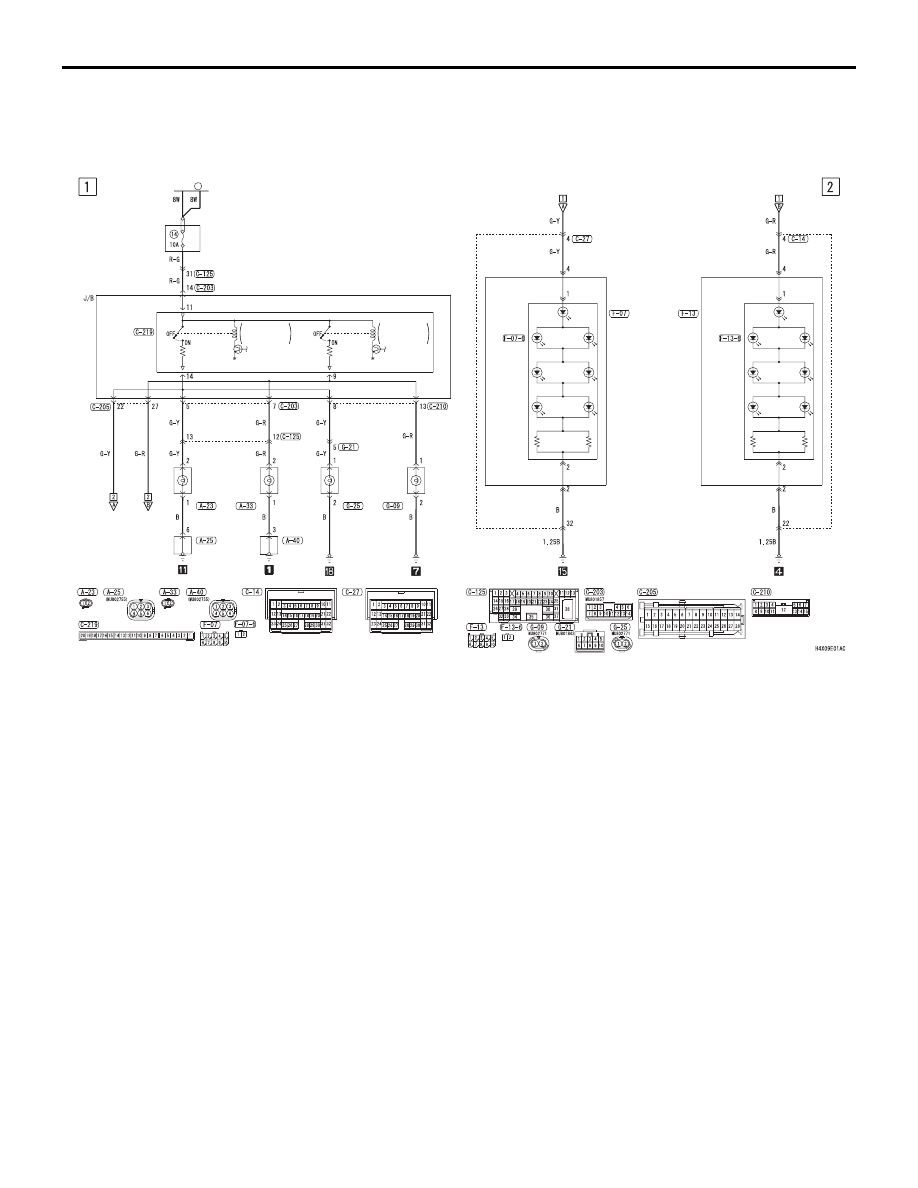

TURN-SIGNAL LAMP AND HAZARD WARNING LAMP <LHD> (CONTINUED)
FRONT-ECU
(TAIL LAMP RELAY)
RELAY
BOX
HAZARD WARNING
LAMP SWITCH
ETACS-ECU
TAIL LAMP,
POSITION LAMP,
LICENCE PLATE
LAMP AND LIGHTING
MONITOR BUZZER
·SPARE CONNECTOR
(FOR NAVIGATION SYSTEM)
·CENTRE DISPLAY
·HEATED SEAT
·TAIL LAMP,
POSITION LAMP,
LICENCE PLATE
LAMP AND LIGHTING
MONITOR BUZZER
·CIGARETTE LIGHTER
AND ASHTRAY
ILLUMINATION LAMP
·SINGLE AUTOMATIC
AIR CONDITIONER
·DUAL AUTOMATIC
AIR CONDITIONER
·INVECS-II 4A/T
·PTC HEATER
J/B SIDE
RELAY
BOX
COLUMN-ECU
COLUMN
SWITCH
TURN-SIGNAL
LAMP SWITCH
POWER
SOURCE
IGNITION
SWITCH (IG1)
BUZZER
26
FUSIBLE
LINK
