SERVICE PRECAUTIONS

GENERAL

00-26

DANGER

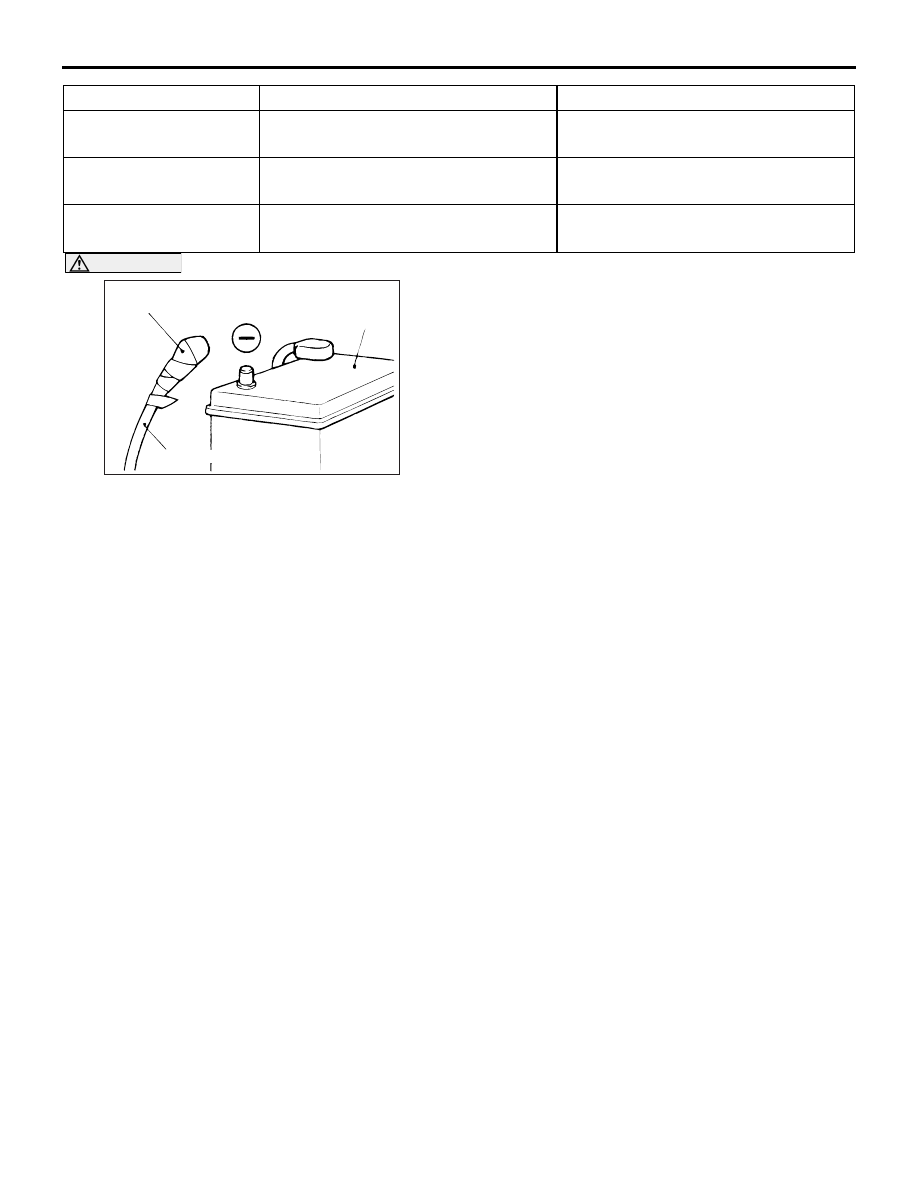

After disconnecting the battery cable, wait 60
seconds or more before proceeding with the
following work. In addition, insulate the
negative battery terminal with a tape. The
condenser inside the SRS-ECU is designed

to retain enough voltage to deploy the air
bag for a short time even after the battery

61, 62

Floor wiring harness

→ Curtain air

bag module (RH)

Correct or replace the floor wiring
harness.

63, 64

Floor wiring harness

→ Side impact

sensor (front) (RH)

Correct or replace the floor wiring
harness.

67, 68

Floor wiring harness

→ Side impact

sensor (rear) (RH)

Correct or replace the floor wiring
harness.

SRS-ECU terminal No.

Destination of harness

Remedy

AC300580AB

Insulating tape

Battery

Battery cable

SERVICE PRECAUTIONS

GENERAL

00-27

has been disconnected, so serious injury
may result from unintended air bag
deployment if work is done on the SRS
system immediately after the battery cables
are disconnected.

CAUTION

• The SRS components and seat belt with

pre-tensioner should not be subjected to
heat, so remove the SRS-ECU, driver’s and
front passenger’s air bag modules, clock
spring, side air bag modules, and seat belt
pre-tensioner before drying or baking the
vehicle after painting.

1. SRS-ECU, air bag modules, clock spring,

impact sensors: 93

°C or more

2. Seat belt with pre-tensioner: 90

°C or more

• Whenever you finish servicing the SRS,

always erase the diagnosis code and check
warning lamp operation to make sure that the
system functions properly.

•

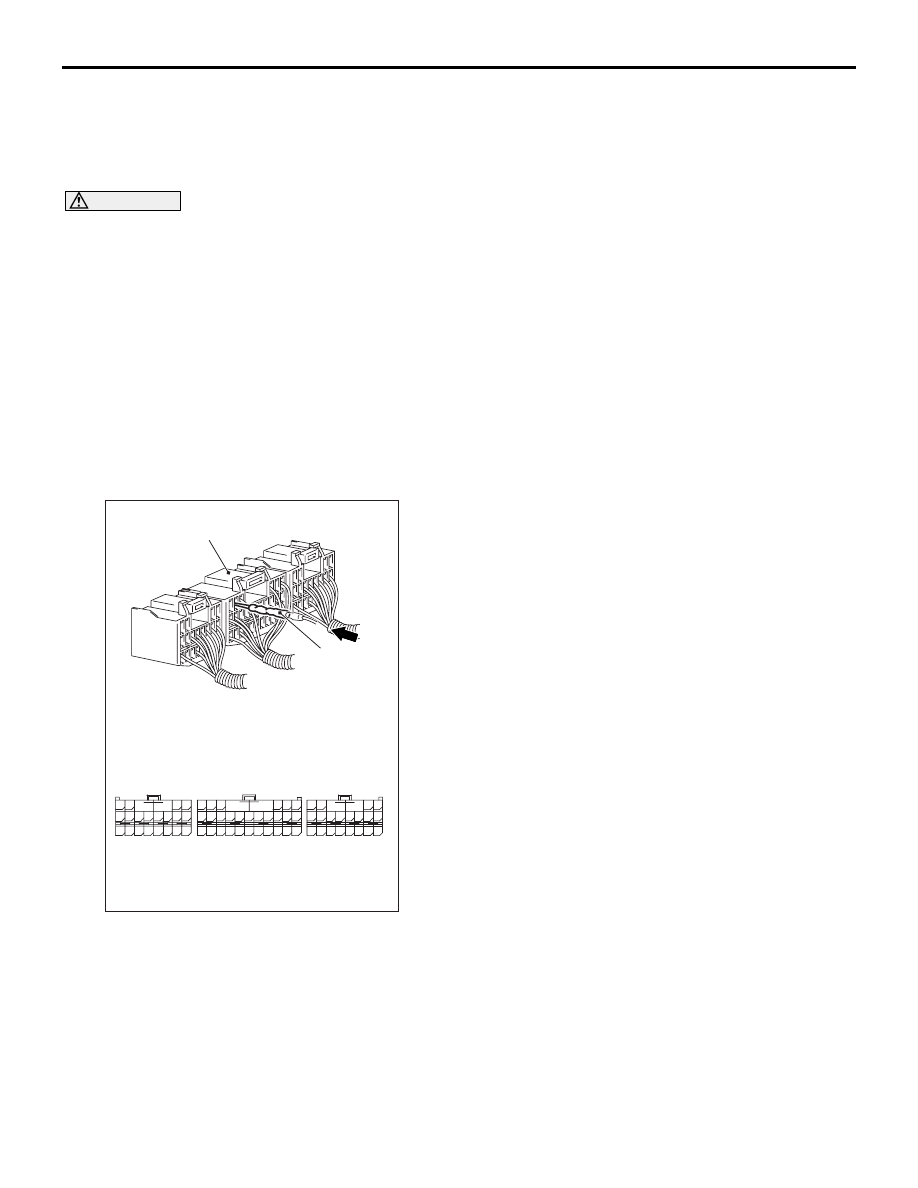

If checks are carried out by using the SRS-ECU

harness connector, observe the following
procedures: Insert the special tool probe in
the harness set (MB991222) into connector
from harness side (rear side), and connect the
tester to this probe. If any tool than special
tool is used, damage to the harness and other
components will result. Never insert the
probe directly to the terminals from the front
of the connector. The terminals are plated to
increase their conductivity, so that if they are

touched directly by the probe, the plating may
break, which will cause drops in reliability.

AC311053

AC300928

63

55

51

69

61

66

58

65

64

56 57

68

60

67

59

70

62

53

52 B

A

54

A

B

18

10

15

7

13

5

14

6

16

8

17

9

19

11

20

12

1 2

3 4

42

31

38

27

21

41

28

39

22

30

25

47

36

33

44

34

45

37

48

26

29

23

40

32

43

35

46

24

B

A

AC

SRS-harness connector

SRS-ECU harness connector
(rear side)

MB991222

SUPPORT LOCATIONS FOR LIFTING AND JACKING

GENERAL

00-28

SUPPORT LOCATIONS FOR LIFTING AND JACKING

M1001000700145

SUPPORT POSITIONS FOR A GARAGE JACK, AXLE STANDS, SINGLE-POST LIFT OR
DOUBLE-POST LIFT AND PLATE TYPE LIFT

CAUTION

Do not support the vehicles at locations other than specified supporting points. Doing so will cause
damage, etc.

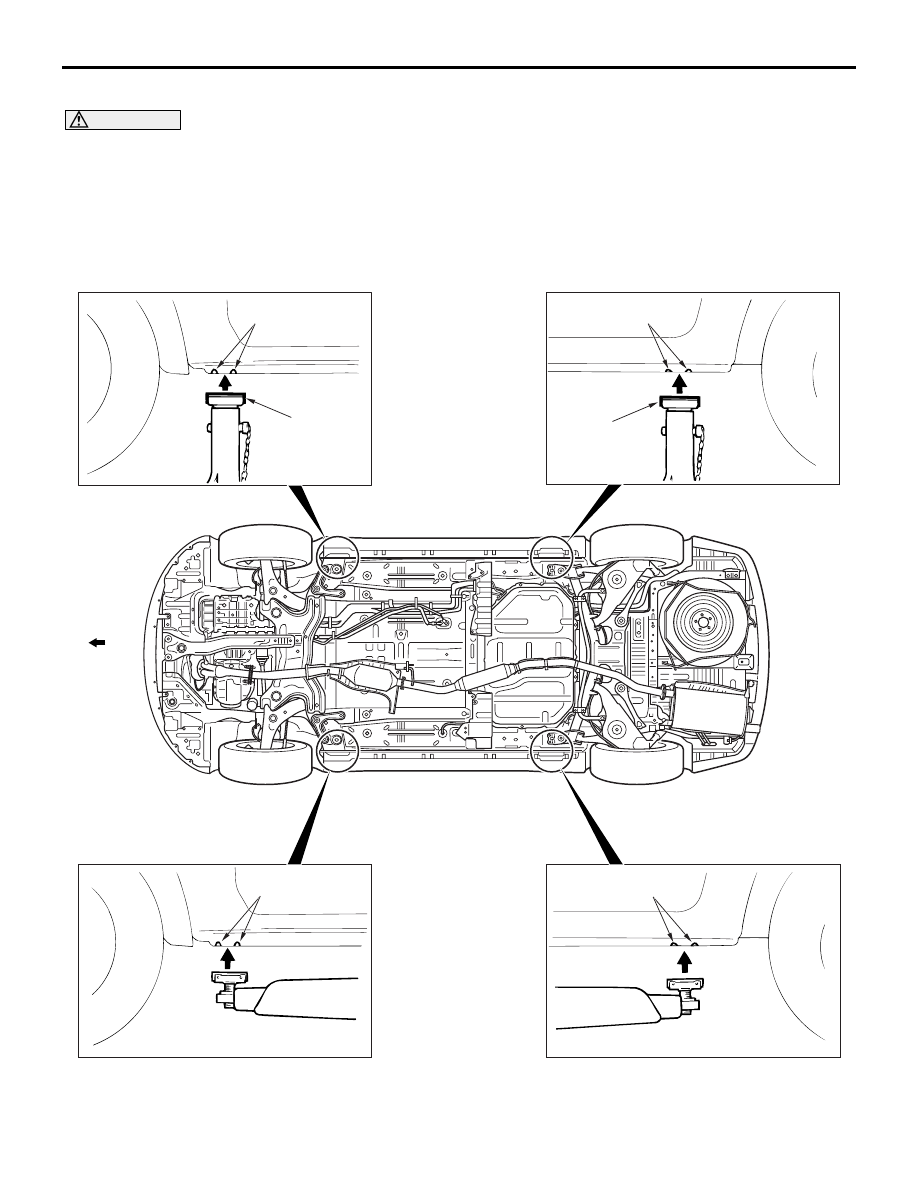

Garage jack

CAUTION

Never support any point other than the specified one, or that point will be deformed.

AC309954AB

<Front side>

<Rear side>

Front

SUPPORT LOCATIONS FOR LIFTING AND JACKING

GENERAL

00-29

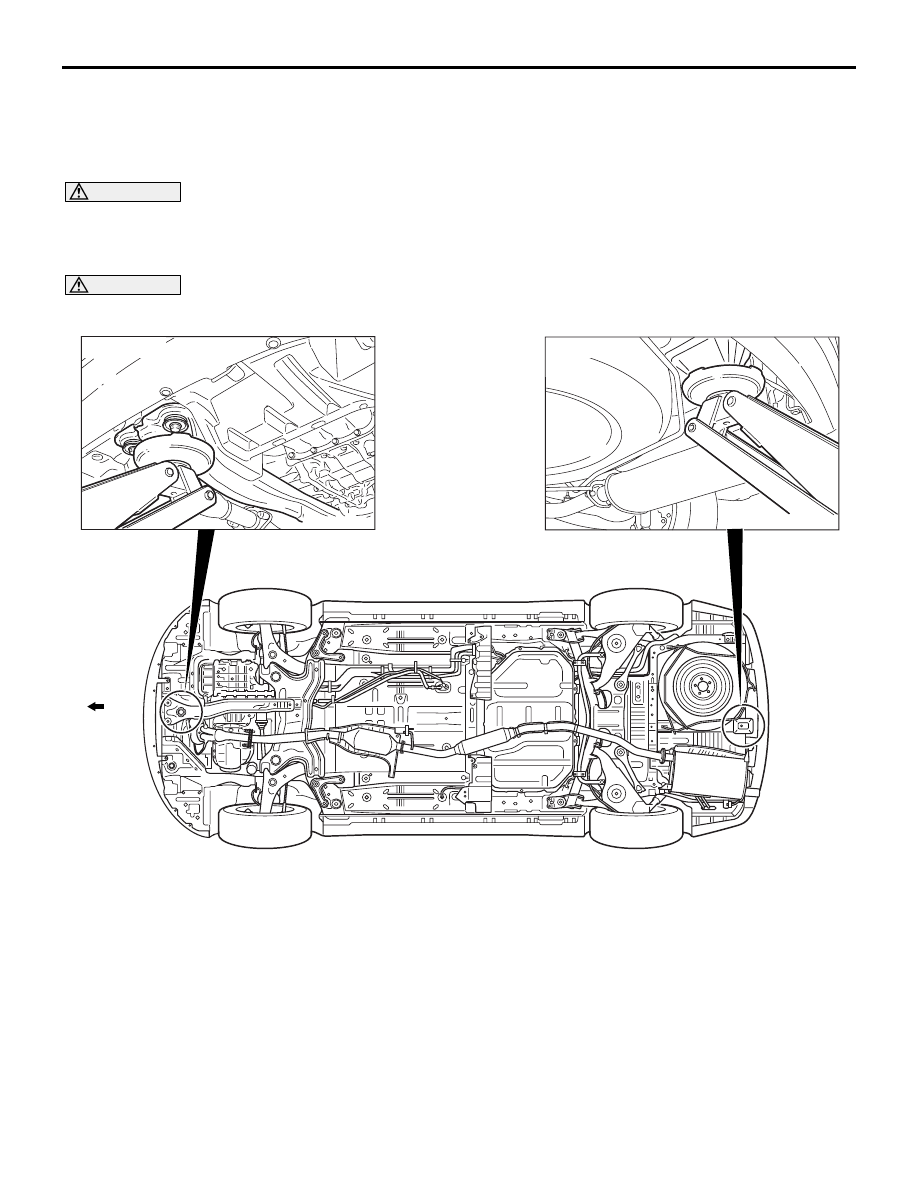

Axle stands and  a single-post lift or double-post lift

CAUTION

• If rubber attachments with grooves that are too thick are used at the front support positions, the

front fender may become bent, so be sure to use rubber attachments with groove thicknesses of
18 mm or less.

• If attachments which are not high enough are used, they may damage areas such as the side sill

garnish. Be sure to use attachments which are high enough, or remove the side sill garnish if not
using attachments.

AC310061

<Axle stands>

<Single-post lift or
 double-post lift>

Notch

Notch

Rubber

Rubber

Notch

Notch

AB

Front
