SPECIAL TOOLS

REAR AXLE

27-3

SPECIAL TOOLS

M1271000600558

ON-VEHICLE SERVICE

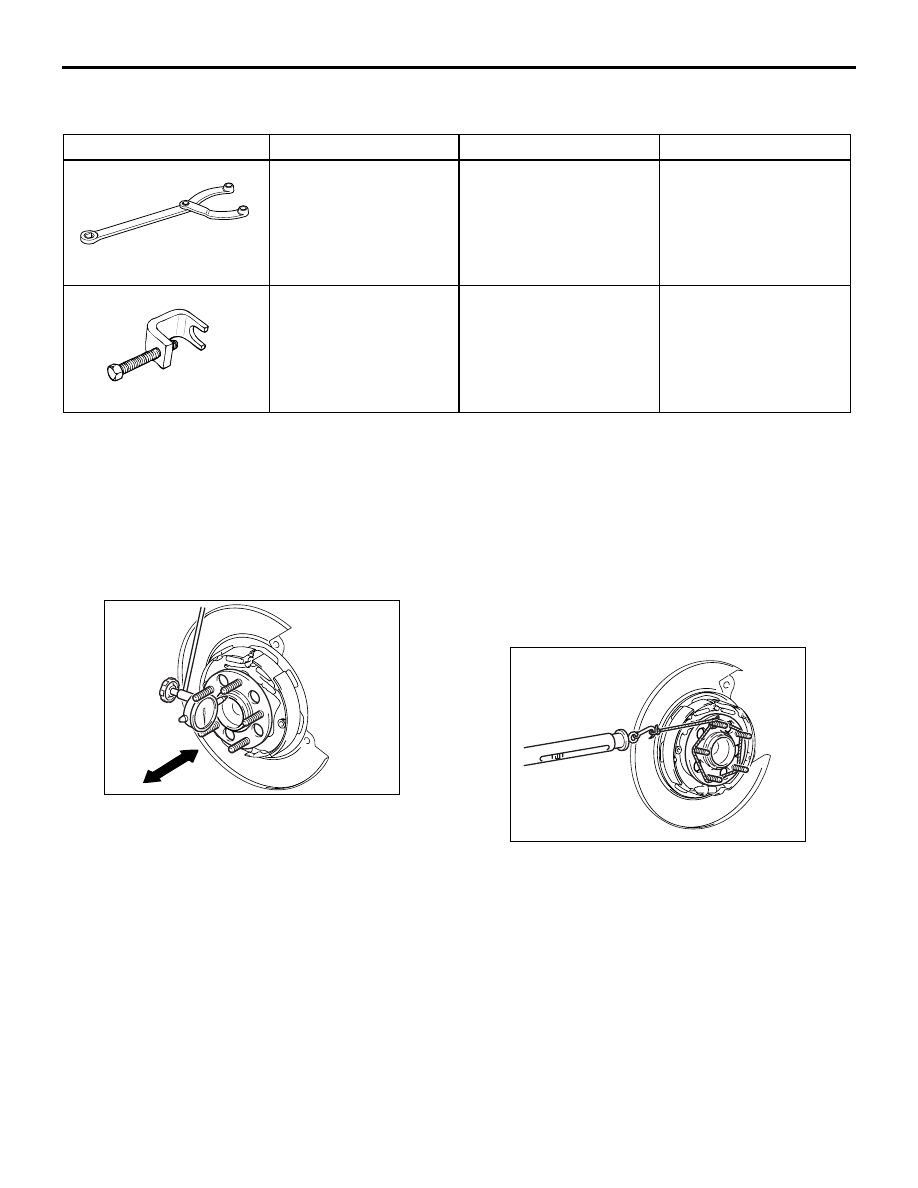

WHEEL BEARING AXIAL PLAY CHECK

M1271000900504

1. Remove the caliper assembly, and suspend the

caliper assembly with a wire and remove the
brake disc.

2. Check the bearing's axial play. Place a dial gauge

against the hub surface; then move the hub in the
axial direction and check whether or not there is
axial play.

Limit: 0.05 mm

3. If the play exceeds the limit, replace the rear hub

assembly.

4. After having checked, install the brake disc, the

caliper assembly and tighten the caliper mounting
bolt to the specified torque.

Tightening torque: 60

± 5 Nm

WHEEL BEARING ROTARY-SLIDING
RESISTANCE CHECK

M1271001100299

1. Remove the caliper assembly, and suspend the

caliper assembly with a wire and remove the
brake disc.

2. Turn the hub a few times to seat the bearing.

3. Wind a rope around the hub bolt and turn the hub

by pulling at a 90

° angle with a spring balance.

Measure to determine whether or not the
rotary-sliding resistance of the wheel bearing is at
the limit value.

Limit: 19 N

4. If limit value is exceeded, replace the rear hub

assembly.

5. After having checked, install the brake disc, the

caliper assembly and tighten the caliper mounting
bolt to the specified torque.

Tightening torque: 60

± 5 Nm

Tool

Number

Name

Use

MB990767

End yoke holder

Hub fixing

MB991618

Hub bolt remover

Hub bolt removal

B990767

MB991618

AC302112 AC

AC302113

ON-VEHICLE SERVICE

REAR AXLE

27-4

HUB BOLT REPLACEMENT

M1271001000300

1. Remove the caliper assembly, and suspend the

caliper assembly with a wire and remove the
brake disc.

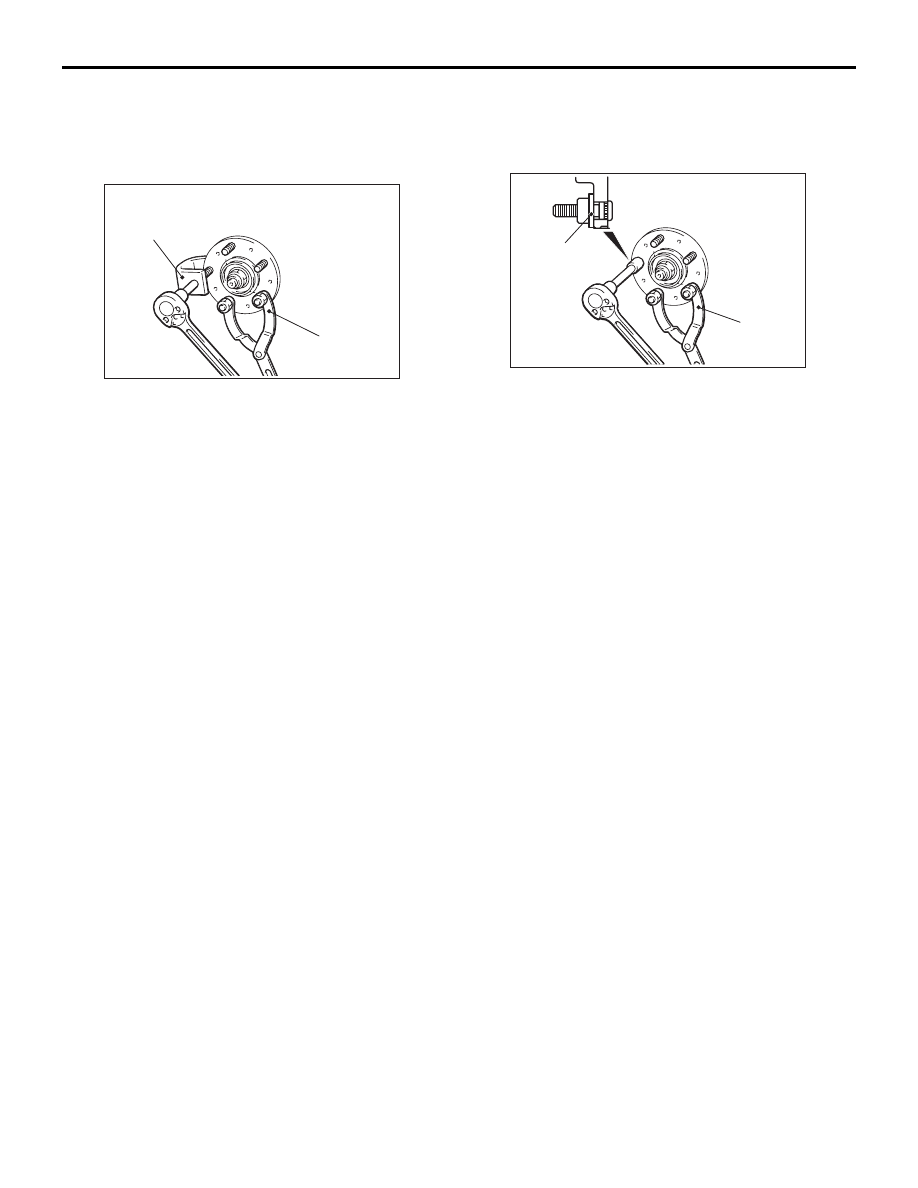

2. Use the following special tools to remove the hub

bolts.

• End yoke holder (MB990767)

• Hub bolt remover (MB991618)

NOTE: To retain a space for removing the hub
bolts, remove them near the retainer spring
mounting position.

3. Install the plain washer to the new hub bolt, and

install the bolt with a nut.

AC301662

MB990767

MB991618

AB

AC301663

MB990767

AB

Plain
washer

REAR AXLE HUB ASSEMBLY

REAR AXLE

27-5

REAR AXLE HUB ASSEMBLY

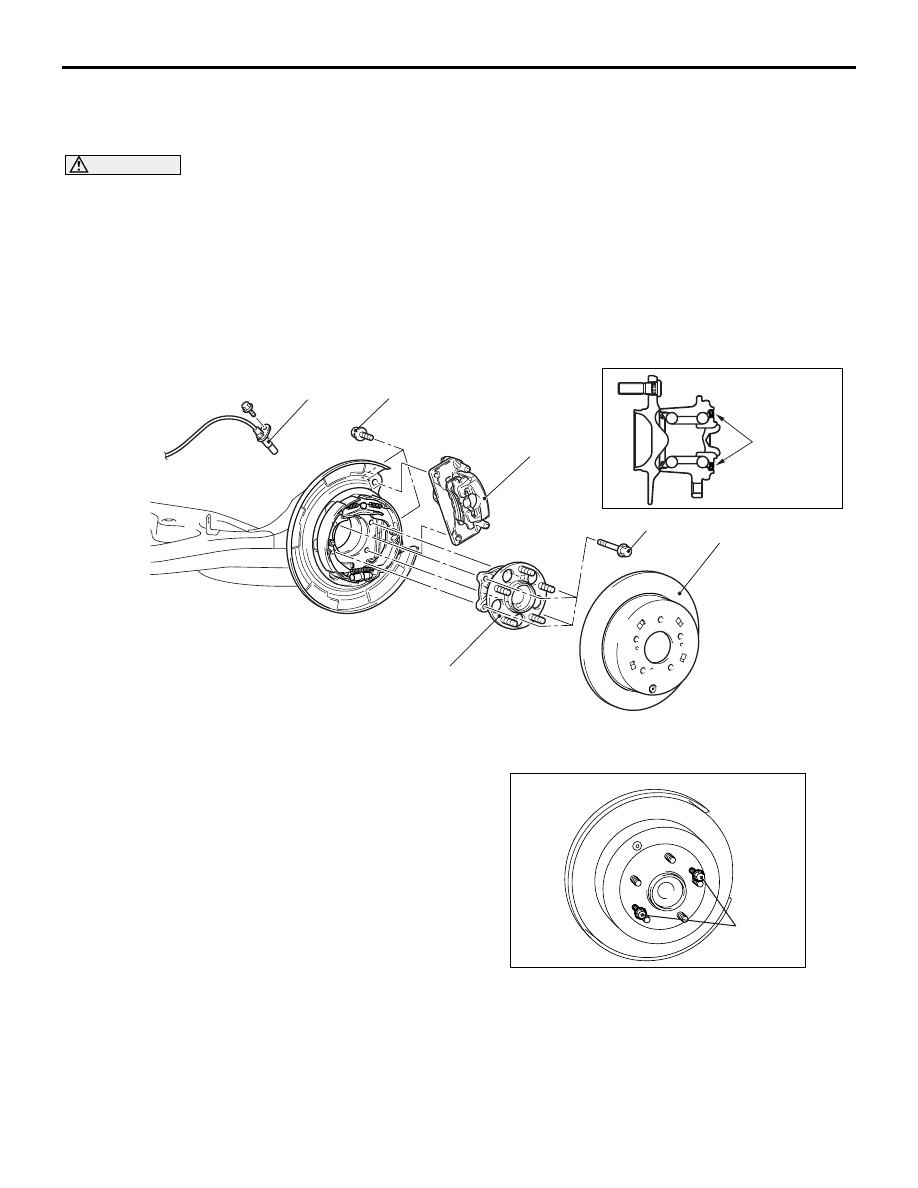

REMOVAL AND INSTALLATION

M1271002000433

CAUTION

• Do not disassemble the rear wheel hub assembly.
• The vehicle speed detection magnetic encoder collects any metallic particle easily, because it is

magnetised.Make sure that the magnetic encoder should not collect any metallic particle. Check
that there is not any trouble prior to reassembling it.

• When the rear wheel hub assembly is removed and installed, make sure that the vehicle speed

detection magnetic encoder does not contact with surrounding parts to avoid damage.

• When the rear wheel speed sensor is removed and installed, make sure that its pole piece does

not contact with surrounding parts to avoid damage.

REMOVAL SERVICE POINTS
<<A>> CALIPER ASSEMBLY REMOVAL

Secure the removed caliper assembly with wire, etc.

<<B>> BRAKE DISC REMOVAL

If the brake disc is seized, install M8

× 1.25 bolts as

shown, and remove the disc by tightening the bolts
evenly and gradually.

INSPECTION

M1271002100281

• Check the rear hub assembly for crack or

damage.

AC311498 AB

4

1

3

60 ± 5 N·m

2

55 ± 5 N·m

Vehicle
speed
detection
magnetic
encoder

Removal steps

1.

Rear wheel speed sensor

<<A>>

2.

Caliper assembly

<<B>>

3.

Brake disc

4.

Rear wheel hub assembly

AC302117AC

Bolts
(M8×1.25)
