INSIDE REARVIEW MIRROR

INTERIOR

52A-20

INSIDE REARVIEW MIRROR

M1521002600204

REMOVAL SERVICE POINT

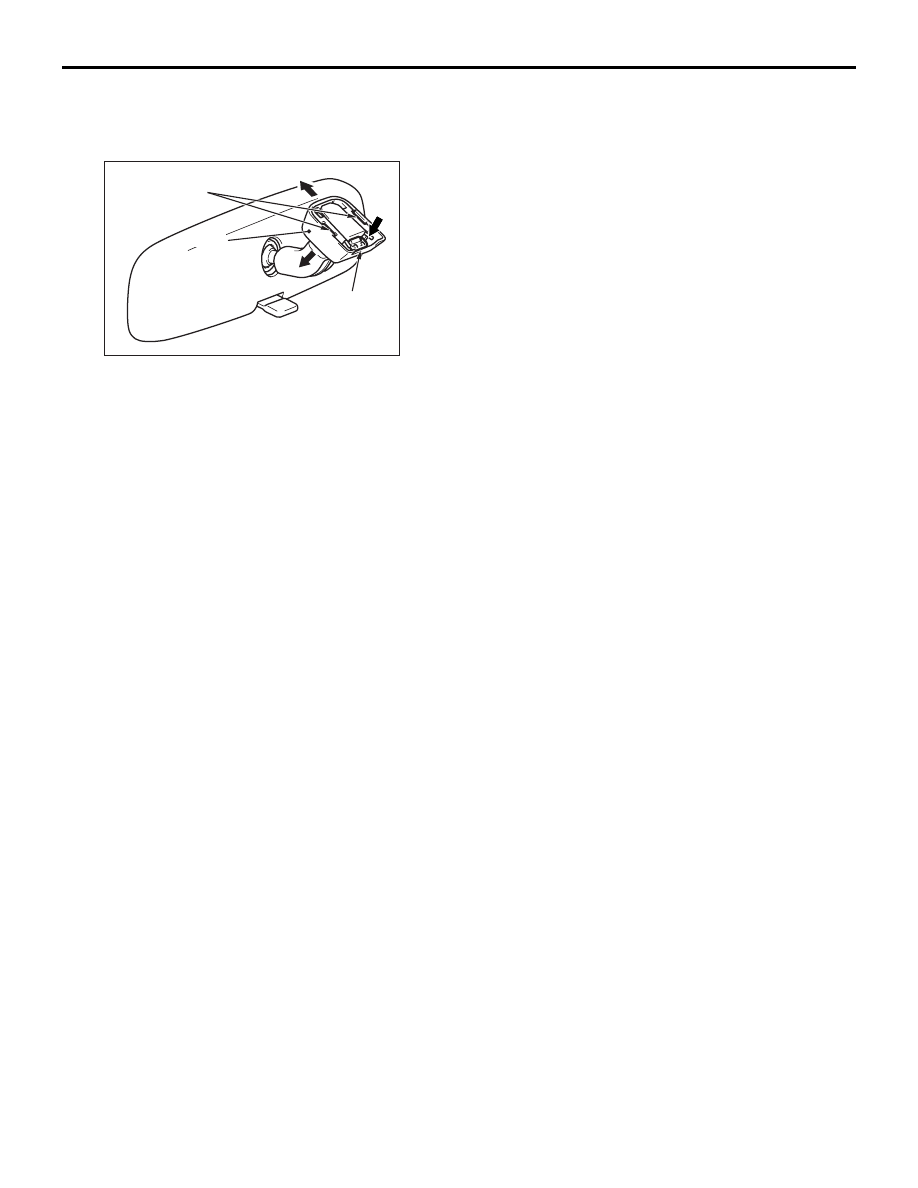

1. Disengage the claw A and lower the cover toward

arrow 1 direction.

2. Push the claw B toward arrow 2 direction to

unlock, and pull out the mirror toward arrow 3
direction.

AC209066

Claw B

Claw A

Cover

1

2

3

AD

FRONT SEAT ASSEMBLY

INTERIOR

52A-21

FRONT SEAT ASSEMBLY

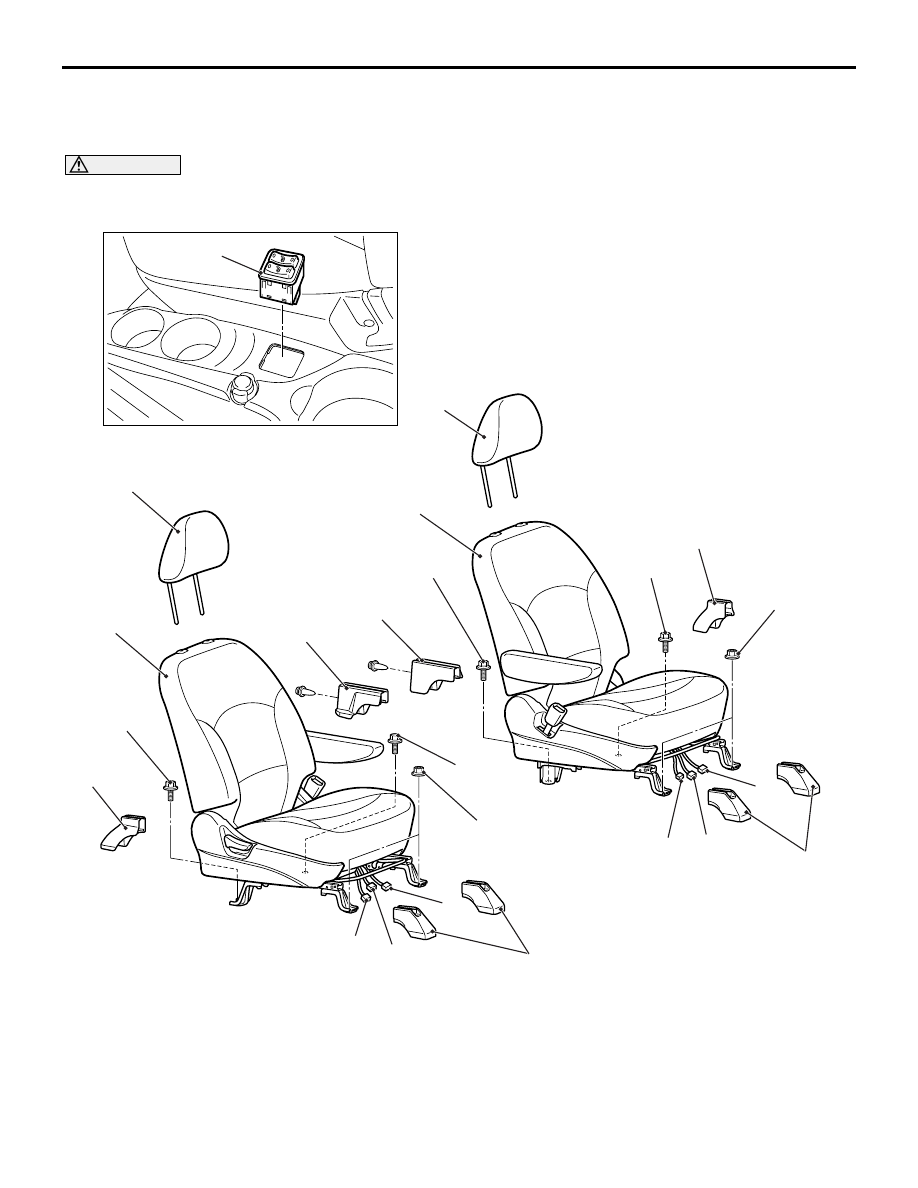

REMOVAL AND INSTALLATION

M1522001300333

CAUTION

For the removal of the front seat assembly on vehicles with the side air bags, refer to GROUP 52B,
Service Precautions

P.52B-7

 and Side and Curtain Air Bag Module

P.52B-231

.

AC312163

H

I

LO

H

I

LO

AB

2

3

4

4

5

6

7

8

9

2

3

5

6

7

8

9

30 ± 5 N·m

44 ± 10 N·m

44 ± 10 N·m

44 ± 10 N·m

30 ± 5 N·m

44 ± 10 N·m

1

1.

Heated seat switch <Vehicles with
heated seat>

2.

Headrest
Removal steps

3.

Seat anchor cover front

4.

Seat anchor cover rear inner

5.

Seat anchor cover rear outer

6.

Seat belt switch harness connector

7.

Side-air bag module (squib)
harness connector <Vehicles with
side-air bag>

8.

Seat heater connector <Vehicles
with heated seat>

9.

Front seat assembly

Removal steps (Continued)

FRONT SEAT ASSEMBLY

INTERIOR

52A-22

INSTALLATION SERVICE POINT
>>A<< FRONT SEAT ASSEMBLY
INSTALLATION

1. Confirm that the seat slide is locked. Then

temporarily tighten all the nuts and bolts with no
load applied to the front seat cushion.

2. Tighten all the nuts and bolts to the specified

torque.

Tightening torque:

Bolt: 44

± 10 N⋅m

Nut: 30

± 5 N⋅m

INSPECTION

M1522005500146

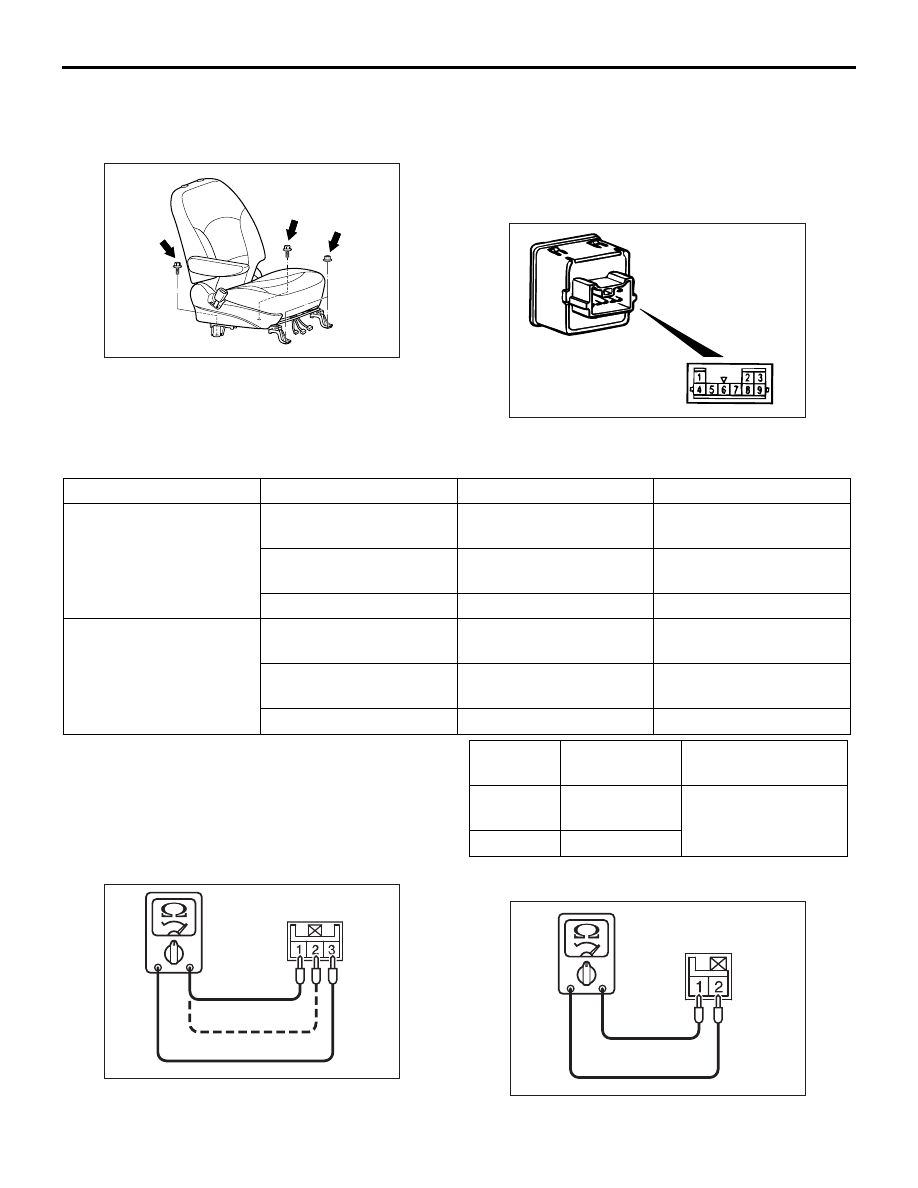

HEATED SEAT SWITCH CHECK

1. Check for continuity between terminals.

2. Check that the indicator is lighted at HI or LO

when battery voltage is supplied to terminal 5, and
terminal 8 is grounded.

3. Check that indicator is lighted when battery

voltage is supplied to terminals 2 and 6.

SEAT CUSHION HEATER CHECK

Measure the resistance between terminals.

Standard value:

SEATBACK HEATER CHECK

Measure the resistance between terminals.

AC311878 AB

ACX00625

Items

Switch position

Tester connection

Specified condition

Driver's seat side

HI

1 - 3, 1 - 5, 1 - 8, 3 - 5, 3 -
8, 5 - 8

Less than 2 ohms

OFF

1 - 3, 1 - 5, 1 - 8, 3 - 5, 3 -
8, 5 - 8

Open circuit

LO

3 - 5, 3 - 8, 5 - 8

Less than 2 ohms

Front passenger's seat
side

HI

4 - 5, 4 - 8, 4 - 9, 5 - 8, 5 -
9, 8

− 9

Less than 2 ohms

OFF

4 - 5, 4 - 8, 4 - 9, 5 - 8, 5 -
9, 8 - 9

Open circuit

LO

5 - 8, 5 - 9, 8 - 9

Less than 2 ohms

AC312536

Measured
terminals

Resistance
value

NOTE

1

− 2

Approximately
4.61

Ω ± 9 %

At room temperature
20

°C

1

− 3

0.2

Ω ± 9 %

AC312543

FRONT SEAT ASSEMBLY

INTERIOR

52A-23

Standard value: Approximately 5.2

Ω ± 9 %

(At room temperature 20

°C)

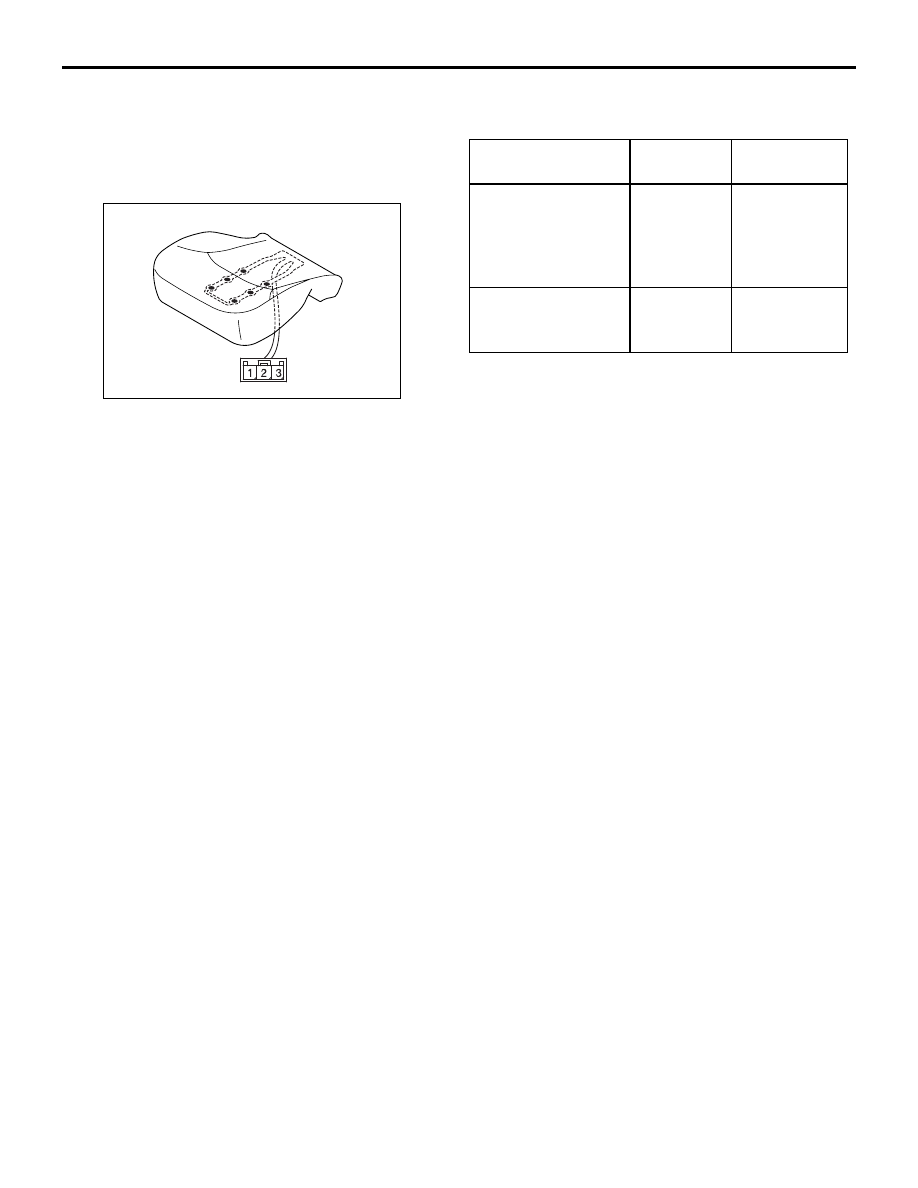

SEAT OCCUPANCY SENSOR
(PASSENGER'S SIDE) CHECK

Measure the resistance between terminals.

Standard value: At room temperature 25

± 10

°C

AC311871

Item

Tester
connection

Specified
condition

When a weight of 3
kg is placed on the
centre at one of the
6 cells of seat
occupancy sensor

1

− 3

Less than 100
ohms

When no weight is
placed on the seat
occupancy sensor

1

− 3

Open circuit
