SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-234

Step 4. Check the wiring harness between
ignition switch (ACC) and G-05 rear wiper motor
connector terminal No.1.

NOTE:

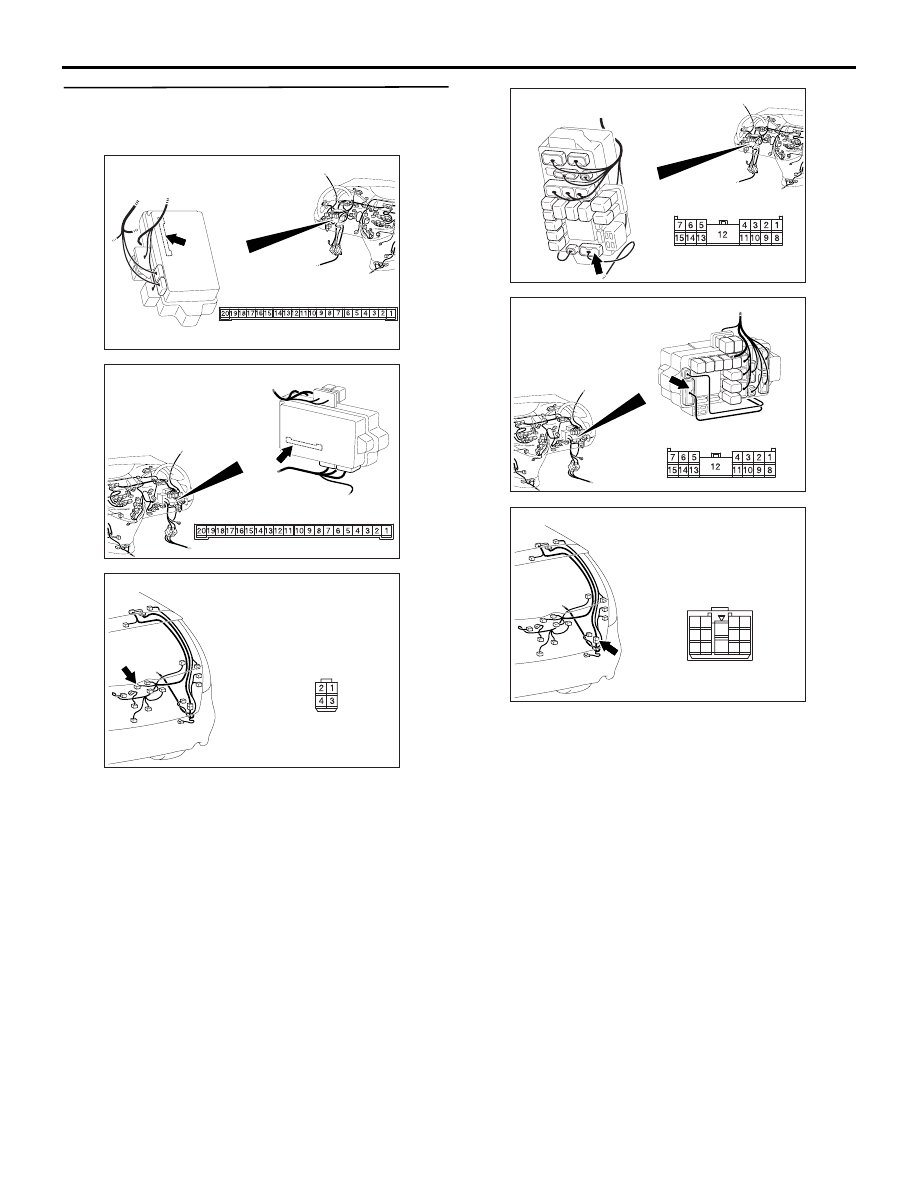

AC310222

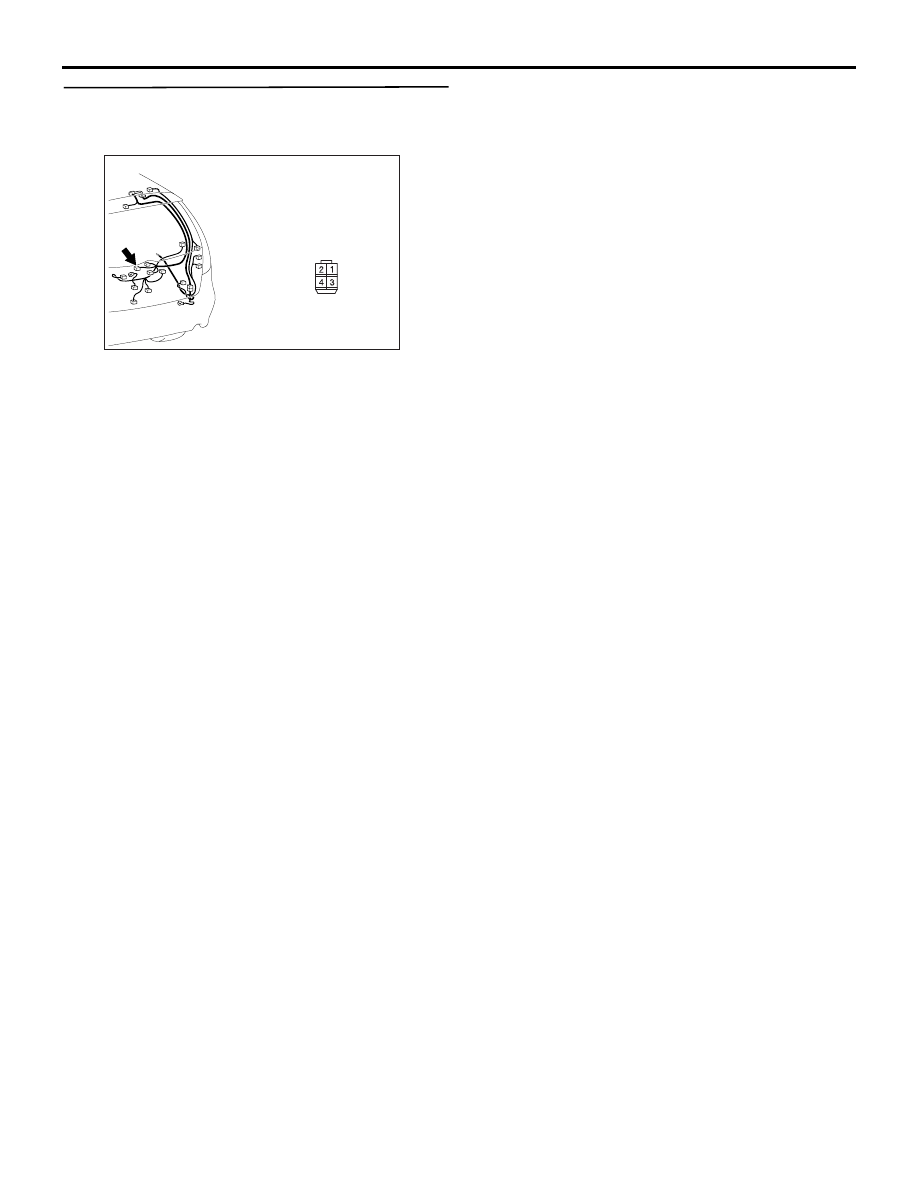

Connector: G-05

AH

Harness side

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-235

Prior to the wiring harness inspection, check
intermediate connector G-14 and junction block
connectors C-202, C-210, and repair if necessary.

• Check the power supply line for open or short

circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Repair the wiring harness.

Step 5. Connector check: C-219 ETACS-ECU
connector.

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Repair the connector.

AC310624

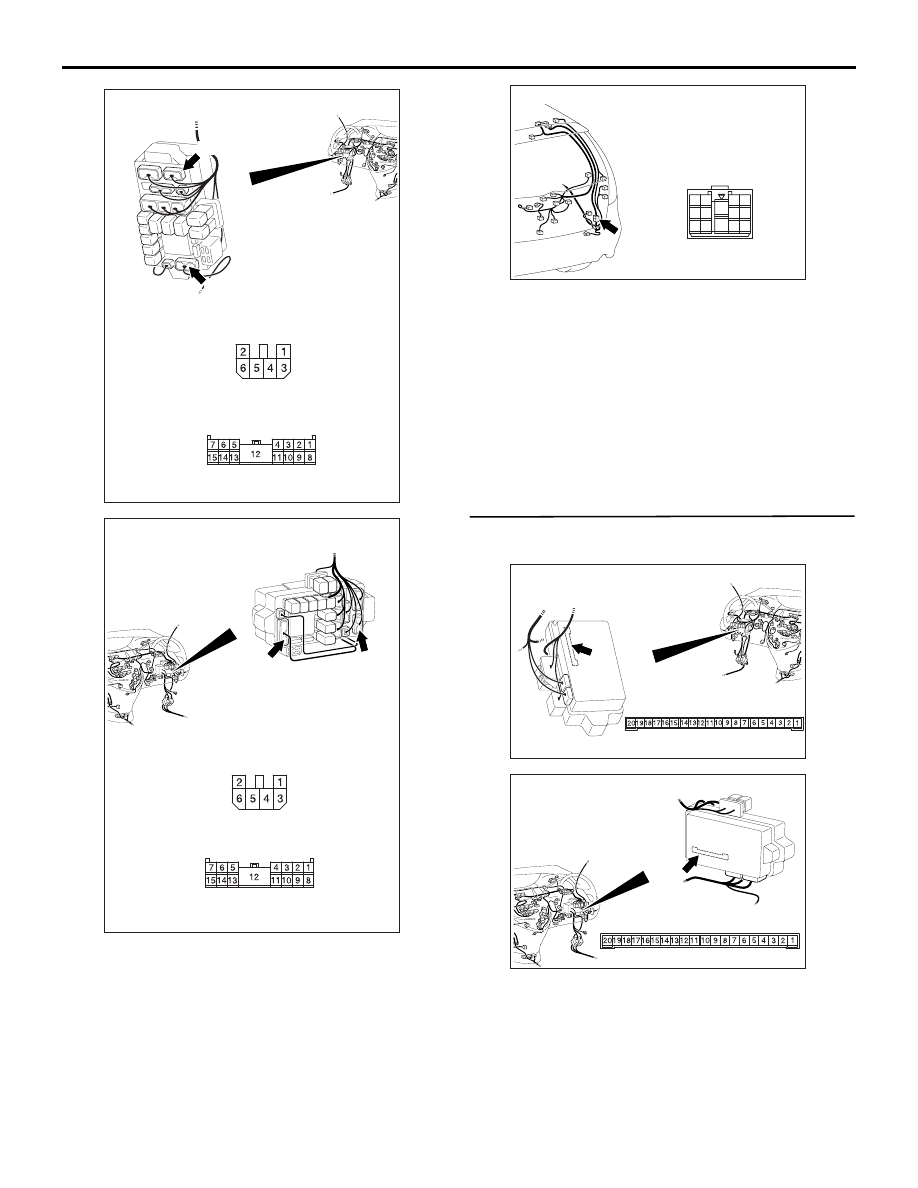

Connectors: C-202, C-210 <LHD>

AT

Junction block (Front view)

C-210

C-202

C-210

Harness side

C-202

Harness side

AC310619

Connectors: C-202, C-210 <RHD>

AT

Junction block (Front view)

C-210

C-202

C-210

Harness side

C-202

Harness side

AC310222

Connector: G-14

AF

2

1

4

3

13

8

11

10

5

7

12

6

14

9

AC310626AD

Connector: C-219 <LHD>
Junction block (Rear view)

Junction block side

AC310620

Connector: C-219

Junction block
(Rear view)

<RHD>

AB

Junction block side

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-236

Step 6. Check the wiring harness between C-219
ETACS-ECU connector terminal No.17 and G-05
rear wiper motor connector terminal No.2.

NOTE:

Prior to the wiring harness inspection, check
intermediate connector G-14, junction block
connectors C-210, and repair if necessary.

• Check the power supply line for open or short

circuit.

Q: Is the check result normal?

YES :

Go to Step 7.

NO :

Repair the wiring harness.

AC310626AD

Connector: C-219 <LHD>
Junction block (Rear view)

Junction block side

AC310620

Connector: C-219

Junction block
(Rear view)

<RHD>

AB

Junction block side

AC310222

Connector: G-05

AH

Harness side

AC310623

Connector: C-210

AN

<LHD>

Junction block (Front view)

Harness side

AC310618

Connector: C-210 <RHD>

AO

Junction block (Front view)

Harness side

AC310222

Connector: G-14

AF

2

1

4

3

13

8

11

10

5

7

12

6

14

9

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-237

Step 7. ETACS switch data by using the SWS
monitor.

• Ignition switch: ACC or ON

• Operate the rear wiper

NOTE: Confirm that the MUT-III displays from "ON"
to "OFF" when rear wiper stops at the predetermined
park position.

OK: Normal conditions is displayed for all
the items.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Replace the ETACS-ECU.

Inspection Procedure H-3: When the selector lever is moved to "R" position during the rear wiper
operation, the rear wiper does not operate at the continuous mode. <A/T>

CAUTION

Whenever the ECU is replaced, ensure that the
input and output signal circuits are normal.

COMMENTS ON TROUBLE SYMPTOM

If the rear wiper does not operate consecutively
when the selector lever is moved to the R position
during the rear wiper operation, the shift position
input signal circuit or the ETACS-ECU may be
defective.

POSSIBLE CAUSES

• Malfunction of the engine-A/T-ECU

• Malfunction of the ETACS-ECU

• Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

Step 1. Check the operation of the rear wiper.

Check that the rear wiper system should work
normally by operating the rear wiper switch.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Refer to Inspection Procedure H-1 "Rear
wiper does not work at all

P.54C-228

."

Item No.

Item name

Normal
condition

Item 09

R.WIPER A/STOP

ON

"R" Position During Wiper Operation Circuit <A/T>

ETACS-ECU

· IGNITION SWITCH (IG1)
· REAR WIPER SWITCH

ENGINE-A/T-
ECU

CAN COMMUNICATION LINE
(CAN_L LINE)

CAN COMMUNICATION LINE
(CAN_H LINE)

INPUT SIGNAL

INPUT SIGNAL

INHIBITOR SWITCH ("R" POSITION)
