SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-198

DIAGNOSTIC PROCEDURE

Step 1. Check the SWS monitor customized
function.

Use the SWS monitor customize function to confirm
that "KEY-OFF TMR T" is set to "W/O FUNCTION".

• 30s

• 3min.

• 10min.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Use the SWS monitor customize function to
set the "KEY-OFF TMR T" to "W/O
FUNCTION" (Refer to

P.54C-574

).

Step 2. ECU check on the SWS monitor.

Check that the power supply and earth lines to the
sunroof motor assembly (sunroof-ECU) and the
ETACS-ECU and the SWS communication lines are
normal.

• Ignition switch: OFF

• Operate the sunroof switch.

NOTE: Operate within the period set by using the
customisation function after the ignition switch is
turned off.

ECUS TO BE CHECKED

• ETACS ECU

• SUNROOF ECU

OK: "OK" are displayed for all the items

Q: Are the check result normal?

"OK" are displayed for all the items :

Go to Step 3.

"NG" is displayed on the "ETACS ECU" menu. :

Refer to Inspection Procedure A-3
"Communication with the ETACS-ECU is
not possible

P.54C-63

."

"NG" is displayed on the "SUNROOF ECU" menu. :

Refer to Inspection Procedure A-6
"Communication with the sunroof motor
assembly (sunroof-ECU) is not possible

P.54C-90

."

Step 3. Function diagnosis by using the SWS
monitor.

Check the SWS communication signal, which are
related to the sunroof.

<Selected item> SUNROOF OPE

• Ignition switch: ON

OK: Normal condition is displayed.

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Replace the sunroof motor assembly.

Step 4. SWS monitor data list.

Check the SWS communication signal, which are
related to the sunroof timer function.

<Selected item> ETACS-ECU

• Driver’s door switch: CLOSE to OPEN

OK: Normal condition is displayed.

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Refer to inspection procedure Q-5 "The
driver's door switch signal is not received
<LH drive vehicles>

P.54C-474

  or <RH

drive vehicles>

P.54C-476

 ."

Step 5. Retest the system.

Check that the sunroof timer function work normally.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Replace the sunroof motor assembly.

Item No.

Item name

Normal conditions

Item 72

S/R ECU ACK INPUT CHECK (only

momentarily when
switch is operated)

Item No.

Item name

Normal conditions

Item 32

DR DOOR SW From OFF to ON

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-199

Inspection Procedure F-4: The sunroof inhibition function does not work normally (The sunroof
operation lock warning buzzer does not sound).

CAUTION

Whenever the ECU is replaced, ensure that the
input and output signal circuits are normal.

SUNROOF MOTOR
ASSEMBLY

CPU

ETACS-
ECU

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

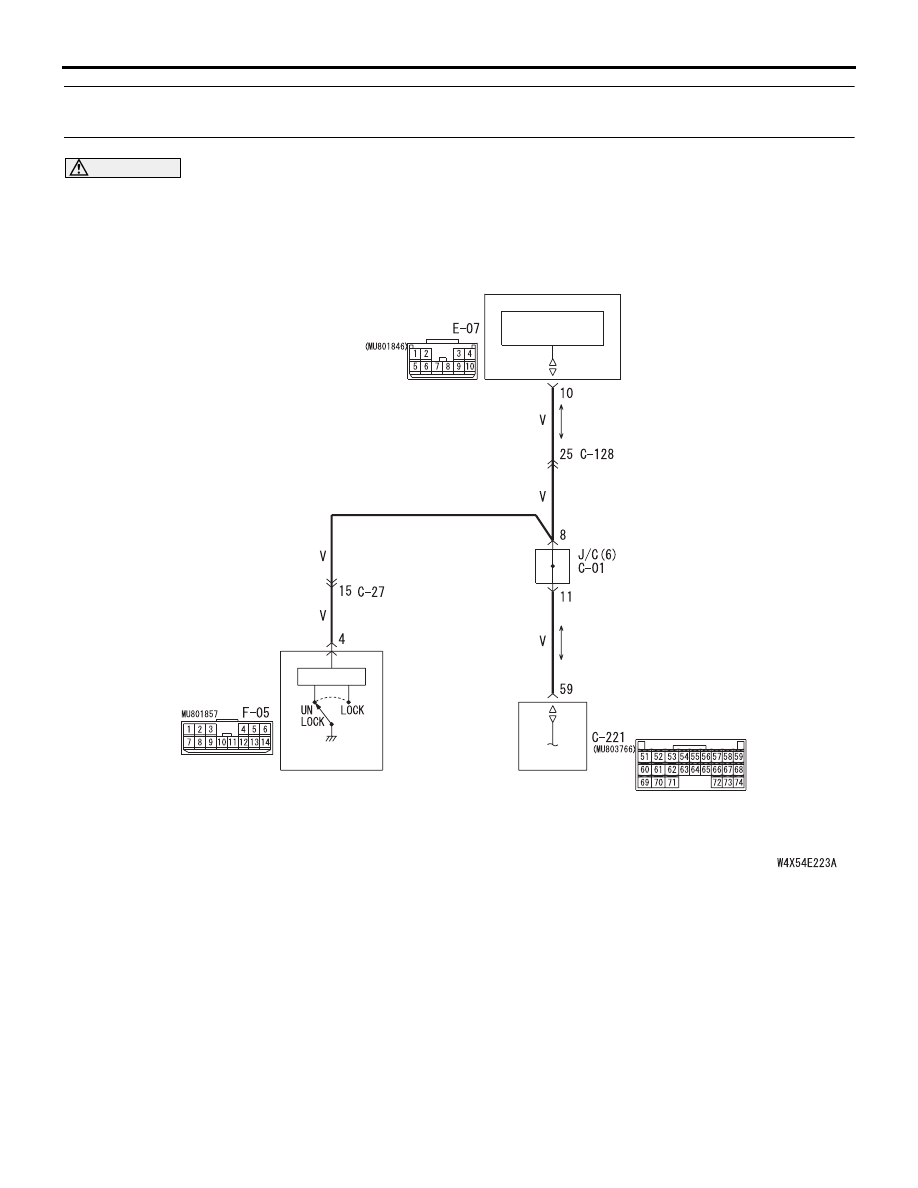

Sunroof Lock Function <LHD>

POWER
WINDOW
MAIN
SWITCH

(LOCK SWITCH)

CPU

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-200

COMMENTS ON TROUBLE SYMPTOM

If the sunroof inhibition function does not work
normally, the communication circuit, the power
window lock switch input circuit, the sunroof motor
assembly or the ETACS-ECU may be defective.

POSSIBLE CAUSES

• Malfunction of the power window main switch

• Malfunction of the sunroof motor assembly

(sunroof ECU)

• Malfunction of the ETACS-ECU

• Damaged harness wires and connectors

Step 1. Which does not operate normally, the
sunroof inhibition or the sunroof operation lock
buzzer?

Q: Which does not operate normally, the sunroof

inhibition or the sunroof operation lock buzzer?

The sunroof inhibition does not work normally. :

Go to Step 2.

The sunroof operation lock buzzer does not work
normally. :

Go to Step 4.

Neither operates normally. :

Go to Step 6.

Step 2. Check the operation condition of the
sunroof.

Check that the sunroof works normally.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Refer to Inspection Procedure F-1 "The
sunroof does not work at all

P.54C-192

."

SUNROOF MOTOR
ASSEMBLY

CPU

ETACS-
ECU

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

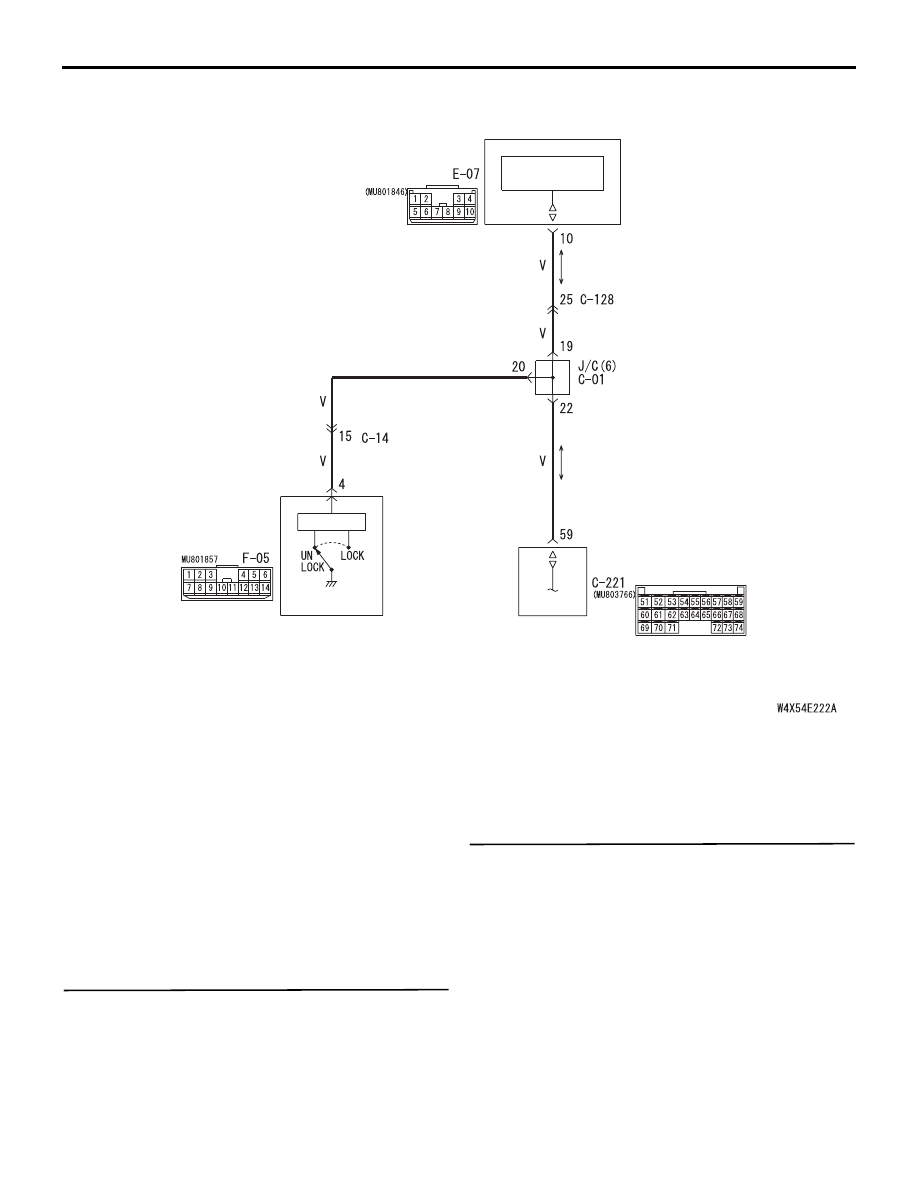

Sunroof Lock Function <RHD>

POWER
WINDOW
MAIN
SWITCH

(LOCK SWITCH)

CPU

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-201

Step 3. ECU check by using the SWS monitor.

Check that the power supply and earth lines to the
ETACS-ECU and the sunroof motor assembly
(incorporating sunroof-ECU) and the SWS
communication lines are normal.

• Ignition switch: ON

• Operate the sunroof switch.

ECUS TO BE CHECKED

• Sunroof ECU

"OK" is displayed on the "SUNROOF ECU"
menu.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Refer to Inspection Procedure A-6
"Communication with the sunroof motor
assembly (sunroof-ECU) is not possible

P.54C-90

."

Step 4. ECU check on the SWS monitor

Check that the power supply and earth lines to the
ETACS-ECU the SWS communication lines is
normal.

• Ignition switch: ON

ECUS TO BE CHECKED

• ETACS ECU

OK: "OK" is displayed on the "ETACS ECU"
menu.

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Refer to Inspection Procedure A-3
"Communication with the ETACS-ECU is
not possible

P.54C-63

."

Step 5. SWS monitor data list

Check the SWS communication signal, which are
related to the sunroof operation lock buzzer.

<Selected item> S/R- REAR S/R LOCK

• Ignition switch: ON

• Power window lock switch :ON

• Operate the sunroof switch

OK: Normal conditions is displayed.

Q: Is the check result normal?

NO :

The trouble can be an intermittent
malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Replace the ETACS.

Step 6. ECU check by using the SWS monitor

Check that the power supply and earth lines to the
ETACS-ECU, the sunroof motor assembly
(incorporating sunroof-ECU) and the power window
main switch (power window module), and the SWS
communication lines are normal.

• Ignition switch: ON

• Operate the sunroof switch.

ECUS TO BE CHECKED

• ETACS ECU

• P/W MODULE

• Sunroof ECU

OK: Normal conditions are displayed for all
the items.

Q: Are the check result normal?

Item No.

Item name

Normal
condition
s

Item 30

IG SW(IG1)

ON

Item 43

BUZZER

ON

Item 72

S/R ECU ACK

BUZZER
ACK
