SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-166

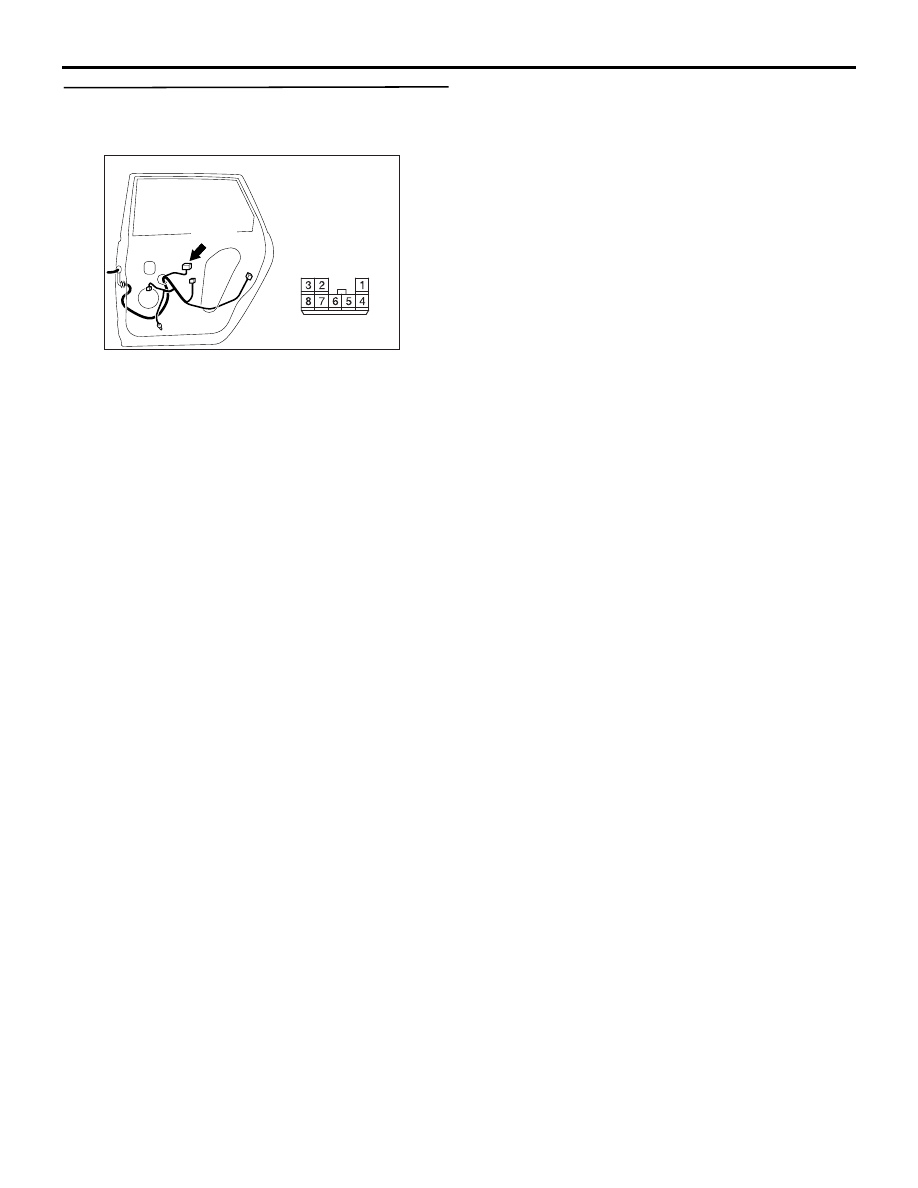

Step 14. Check the wiring harness from F-18
power window sub switch (rear: RH) connector
terminal No.6 to the inserted probe.

NOTE:

AC310216

Connector: F-18

F-18(B)

AB

Harness side

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-167

Prior to the wiring harness inspection, check
intermediate connectors C-16, C-14 <RH drive
vehicles>, C-27 <LH drive vehicles>, D-03, and
repair if necessary.

• Check the communication lines for open circuit.

Q: Is the check result normal?

YES :

Go to Step 15.

NO :

Repair the wiring harness.

Step 15. Check the power window sub switch.

Check that the rear right power window works by
means of the power window sub switch (rear: RH)
when the power window lock switch is turned off.

Q: Is the check result normal?

YES :

Go to Step 16.

NO :

Refer to inspection procedure D-3 "Relevant
power window(s) do not work by means of
the front and rear passenger's power
window sub switches

P.54C-137

."

Step 16. Retest the system.

After the power window sub switch (rear: RH) is
replaced, check that the rear right door power
window can be operated by the power window sub
switch.
(1) Replace the power window sub switch (rear: RH).
(2) Check that the rear right power window works by

means of the power window main switch.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Replace the power window main switch.

AC310632BA

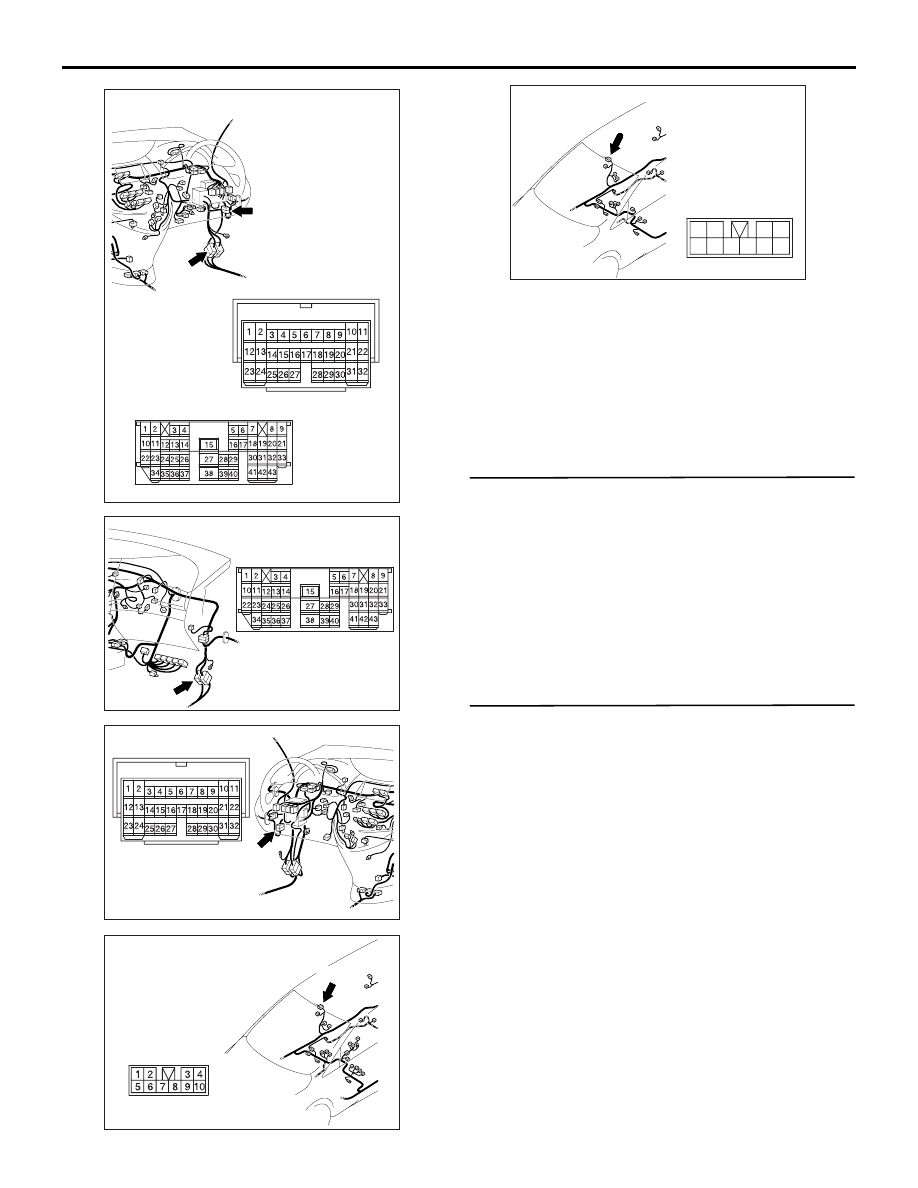

Connectors: C-14, C-16

C-16

C-14

C-14

C-16

<RHD>

AC310615

AE

Connector: C-16 <LHD>

AC310613

Connector: C-27 <LHD>

AJ

AC310633 AB

Connector: D-03 <LHD>

D-03(B)

AC310205

AC

D-03 (B)

9

3

2

1
5 6 7 8

4

10

Connector: D-03 <RHD>

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-168

Step 17. Connector check: F-05 power window
main switch connector.

Q: Is the check result normal?

YES :

Go to Step 18.

NO :

Repair the connector.

AC311150

AB

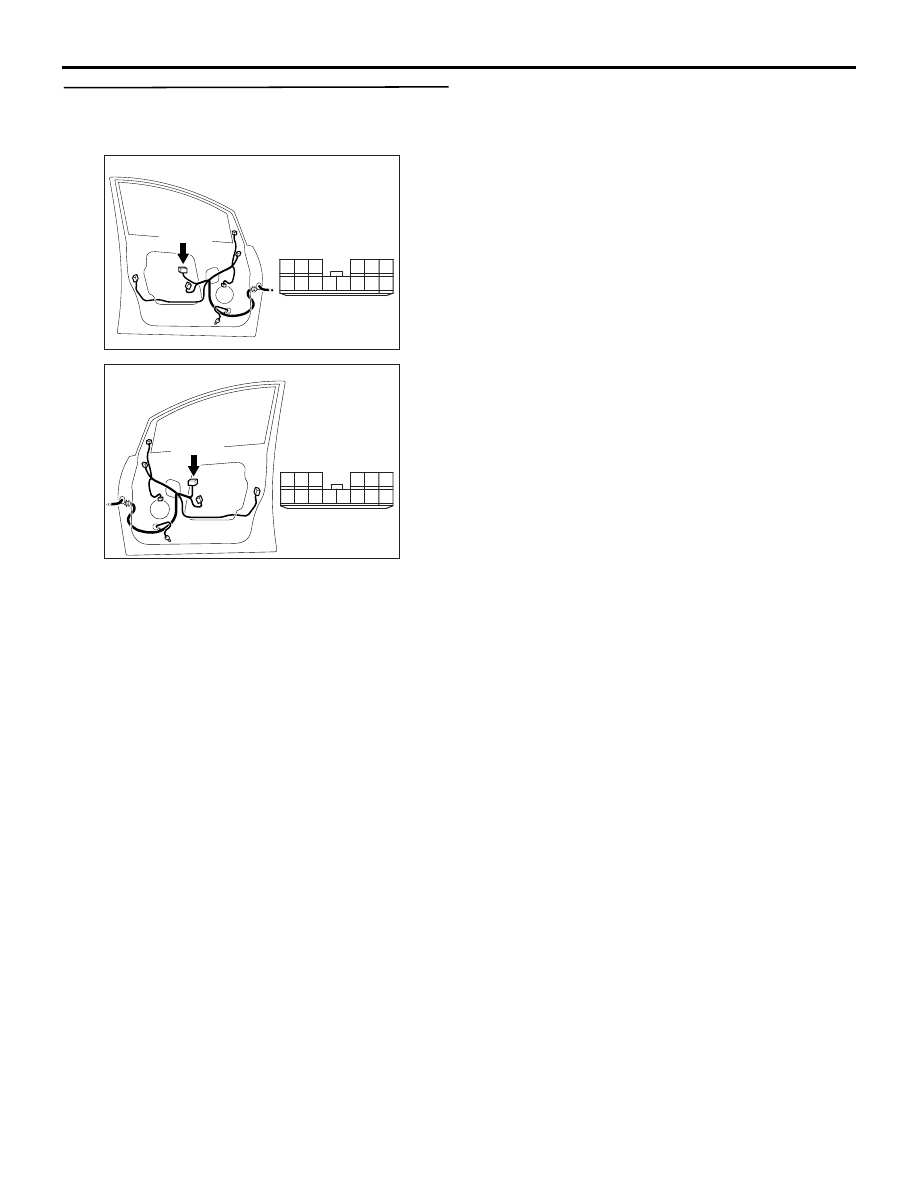

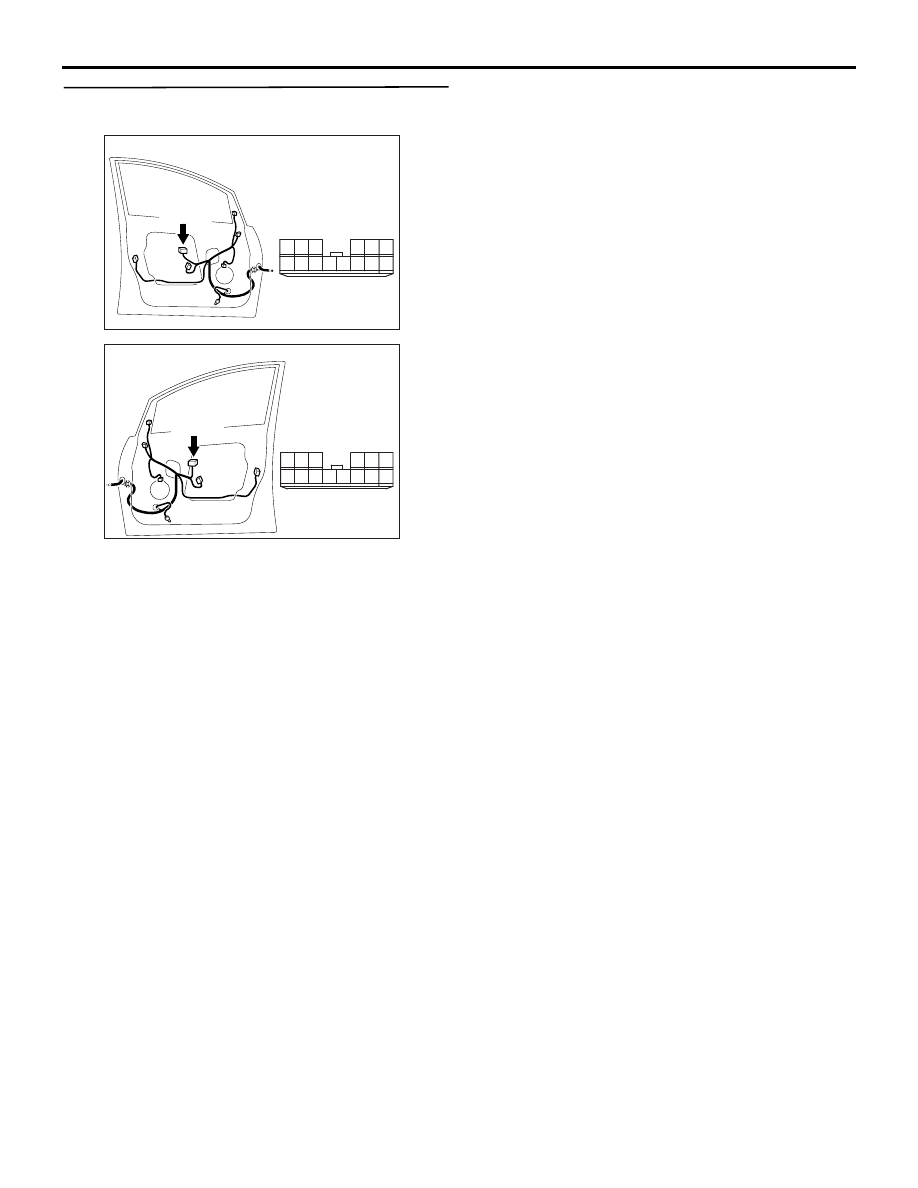

Connector: F-05

Harness side

<LHD>

10

1

6

14

5

12

13

4

11

7

2

3

8

9

F-05(B)

AC310213

Connector: F-05

Harness side

<RHD>

10

1

6

14

5

12

13

4

11

7

2

3

8

9

F-05(B)

AB

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-169

Step 18. Check the wiring harness from F-05
power window main switch connector terminal
No.11 to the inserted probe.

NOTE:

AC311150

AB

Connector: F-05

Harness side

<LHD>

10

1

6

14

5

12

13

4

11

7

2

3

8

9

F-05(B)

AC310213

Connector: F-05

Harness side

<RHD>

10

1

6

14

5

12

13

4

11

7

2

3

8

9

F-05(B)

AB
