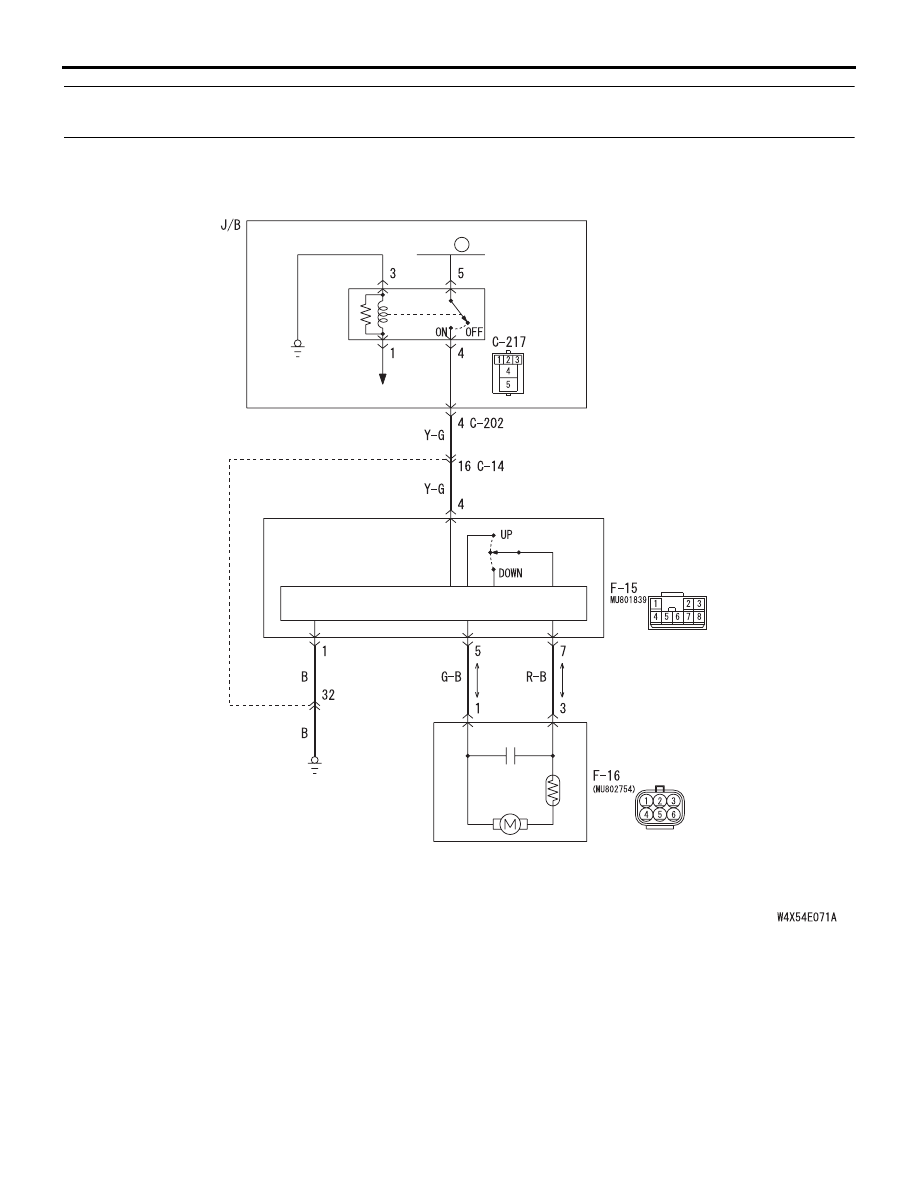

SYMPTOM PROCEDURES SMART WIRING SYSTEM (SWS) USING SWS MONITOR 54C-134 COMMENTS ON TROUBLE SYMPTOM If the driver's power window does not work by means POSSIBLE CAUSES • Malfunction of the power window main switch • Malfunction of the power window motor (front: LH) • Damaged harness wires and connectors DIAGNOSIS PROCEDURE Step 1. Check the power window main switch. Check that all of the front passenger's and rear door Q: Is the check result normal? YES : Go to Step 2. NO : Refer to Inspection Procedure D-1 "Power Step 2. Connector check: F-05 power window Q: Is the check result normal? YES : Go to Step 3. NO : Repair the connector. Step 3. Check the wiring harness from F-10 • Check the input and output lines for open or short circuit. Q: Is the check result normal? YES : Go to Step 4. NO : Repair the wiring harness. Step 4. Retest the system. After the power window main switch is replaced, means of the power window main switch. Q: Is the check result normal? YES : The trouble can be an intermittent malfunction (Refer to GROUP 00 − How to Cope with Intermittent Malfunction NO : Replace the power window motor (front: AC311151 AC311151 AB Connectors: F-05, F-10 Harness side <LHD> 10 1 6 14 5 12 13 4 11 7 2 3 8 9 F-05 F-10 Harness side F-05(B) F-10(B) AC311151 AC311151 AB Connectors: F-05, F-10 Harness side <LHD> 10 1 6 14 5 12 13 4 11 7 2 3 8 9 F-05 F-10 Harness side F-05(B) F-10(B) |
