INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-481

Inspection Procedure Q-15: The driver's door lock actuator switch signal is not received. <RH drive
vehicles>

CAUTION

Whenever the ECU is replaced, ensure that the
input signal circuit is normal.

COMMENTS ON TROUBLE SYMPTOM

Input signal from the front door lock actuator (RH) is
used to operate the functions below. If the signal is
abnormal, these functions will not work normally.

• Central door locking

• Keyless entry system

• Interior lamps

POSSIBLE CAUSES

• Malfunction of the front door lock actuator (RH)

• Malfunction of the ETACS-ECU

• Damaged harness wires and connectors

ETACS-ECU

DOOR LOCK
ACTUATOR
(FRONT: RH)

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

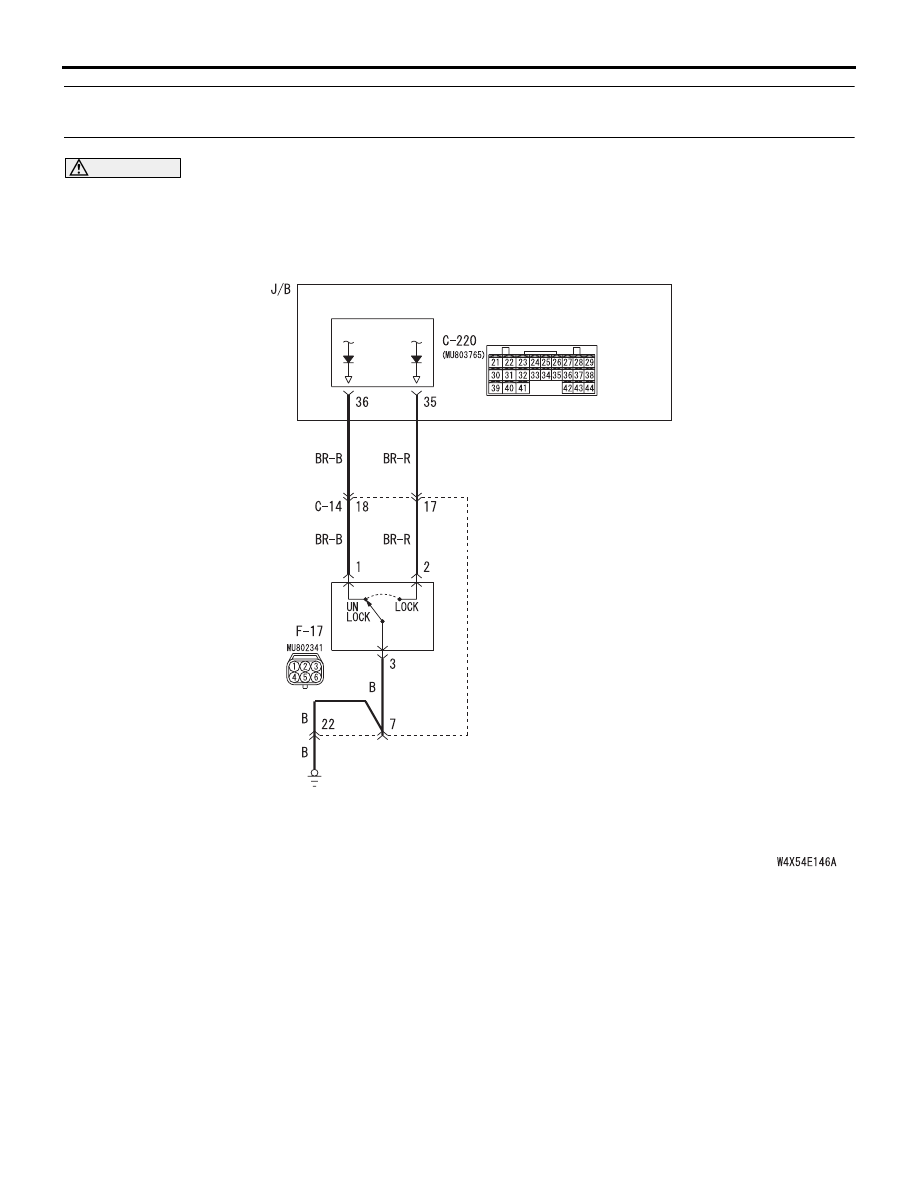

Door Lock Actuator Input Circuit <RHD>

INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-482

DIAGNOSTIC PROCEDURE

Step 1. Connector check: F-17 front door lock
actuator (RH) connector

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Repair the defective connector.

Step 2. Check the front door lock actuator (RH).
Refer to GROUP 42

− Door

P.42-38

.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Replace the front door lock actuator (RH).

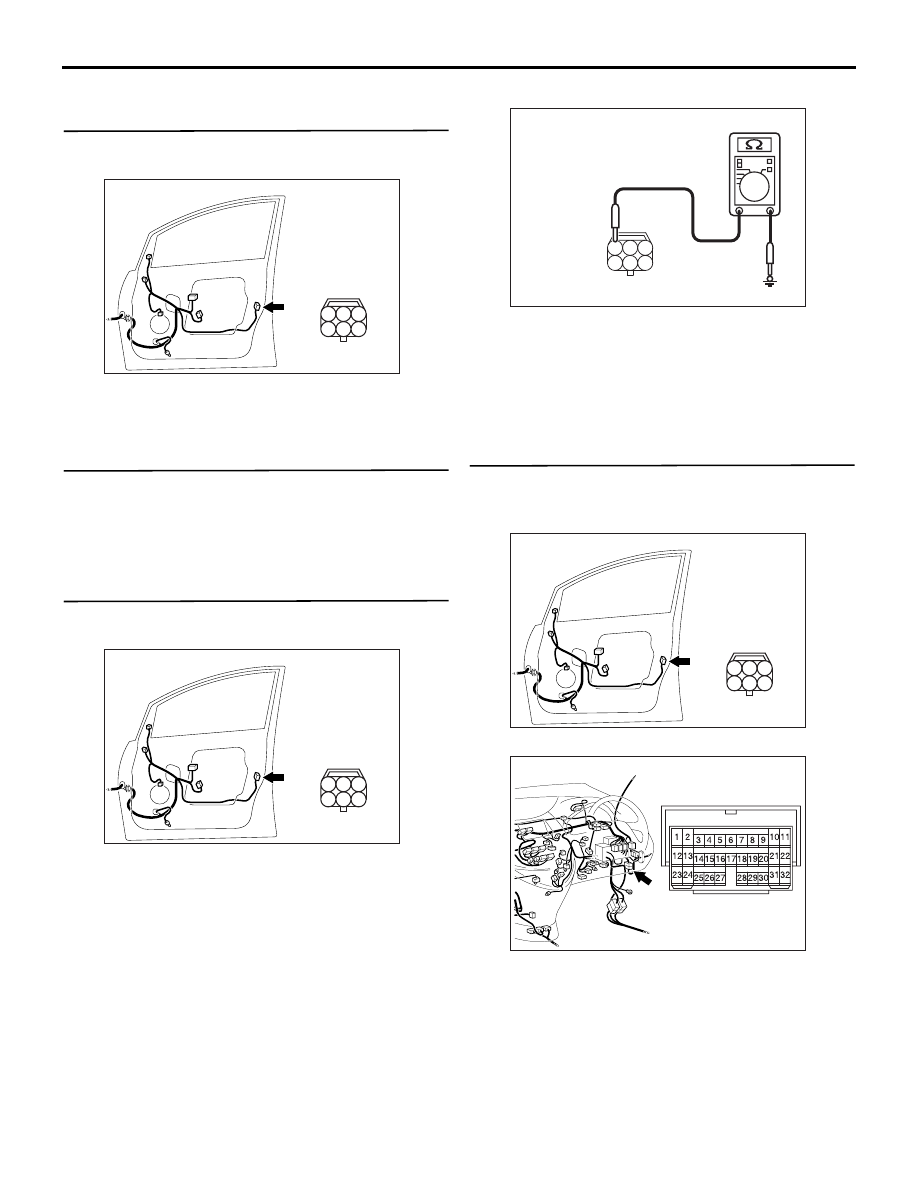

Step 3. Resistance measurement at the F-17 front
door lock actuator (RH) connector

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Resistance between F-17 front door lock actuator

(RH) connector terminal No.3 and body earth

OK: 2

Ω or less

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Go to Step 4.

Step 4. Check the wiring harness between F-17
front door lock actuator (RH) connector terminal
No.3 and body earth

NOTE:

Prior to the wiring harness inspection, check
intermediate connector C-14, and repair if necessary.

• Check the earth wires for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Repair the wiring harness.

AC312089

AB

Connector: F-17

Harness side

5

6

4

2

3

1

<RHD>

AC312089

AB

Connector: F-17

Harness side

5

6

4

2

3

1

<RHD>

AC312730AG

Connector F-17
(Harness side)

5

6

4

2

3

1

AC312089

AB

Connector: F-17

Harness side

5

6

4

2

3

1

<RHD>

AC312043

Connector: C-14 <RHD>

AG

INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-483

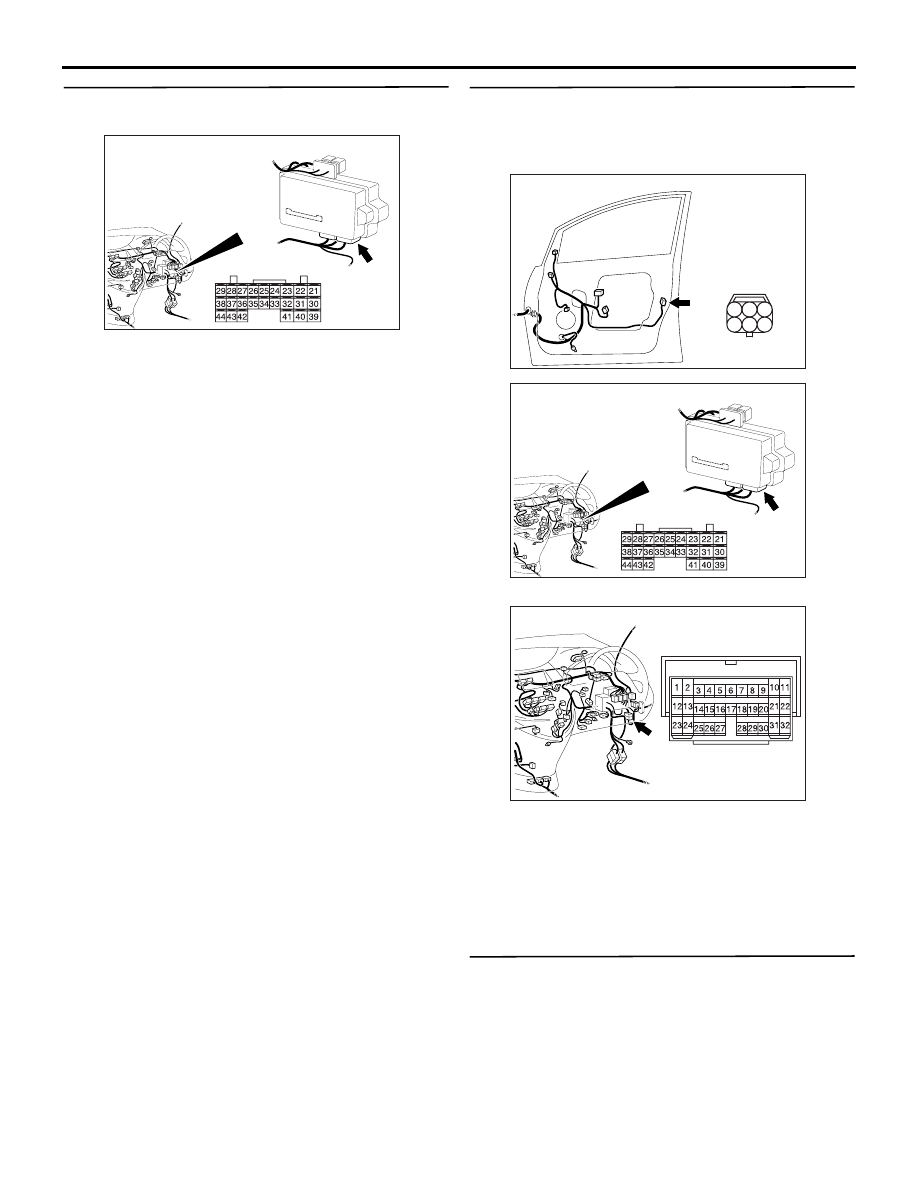

Step 5. Connector check: C-220 ETACS-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Repair the defective connector.

Step 6. Check the wiring harness from F-17 front
door lock actuator (RH) connector terminal Nos.1
and 2 to C-220 ETACS-ECU connector terminal
Nos.35 and 36.

NOTE:

Prior to the wiring harness inspection, check
intermediate connector C-14, and repair if necessary.

• Check the input line for open circuit.

Q: Is the check result normal?

YES :

Go to Step 7.

NO :

Repair the wiring harness.

Step 7. Retest the system.
Check that the front door lock actuator (RH) switch
signal is received normally.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Replace the ETACS-ECU.

AC312047

Connector: C-220

Junction block (Rear view)

AC

<RHD>

Harness side

AC312089

AB

Connector: F-17

Harness side

5

6

4

2

3

1

<RHD>

AC312047

Connector: C-220

Junction block (Rear view)

AC

<RHD>

Harness side

AC312043

Connector: C-14 <RHD>

AG

INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-484

Inspection Procedure Q-16: The passenger’s door key switch signal is not detected. <LH drive
vehicles>

CAUTION

Whenever the ECU is replaced, ensure that the
input signal circuit is normal.

COMMENTS ON TROUBLE SYMPTOM

Input signal from the front passenger's door key
switch is used to operate the central door locking
function. If the signal is abnormal, the central door
locking function will not work normally.

POSSIBLE CAUSES

• Malfunction of the front passenger's door key

switch

• Malfunction of the ETACS-ECU

• Damaged harness wires and connectors

DIAGNOSTIC PROCEDURE

Step 1. Connector check: F-23 door key switch
connector

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Repair the defective connector.

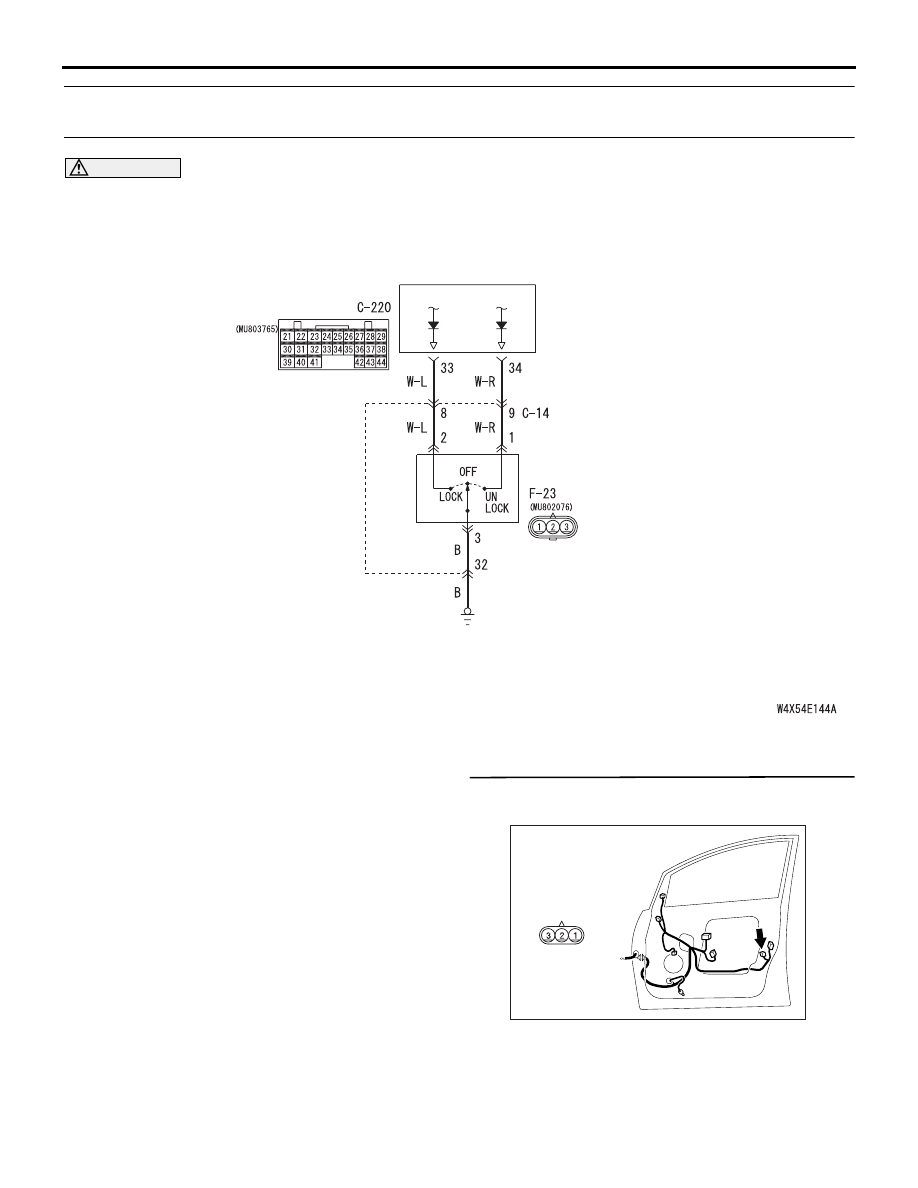

Door Lock Key Cylinder Switch Input Circuit <LHD>

DOOR KEY
SWITCH

ETACS-ECU

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

AC312085

Connector: F-23 <LHD>

Harness side

AB
