SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-401

DIAGNOSTIC PROCEDURE

Step 1. Connector check: F-11 door lamp (front:
LH), F-22 door lamp (front: RH) connector, F-09
door lamp (rear: LH), F-25 door lamp (rear: RH)

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-402

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Repair the defective connector.

Step 2. Check the bulbs of the door lamp.
Check that the door lamp bulbs are not burned out.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Replace the door lamp bulb.

AC310209 AE

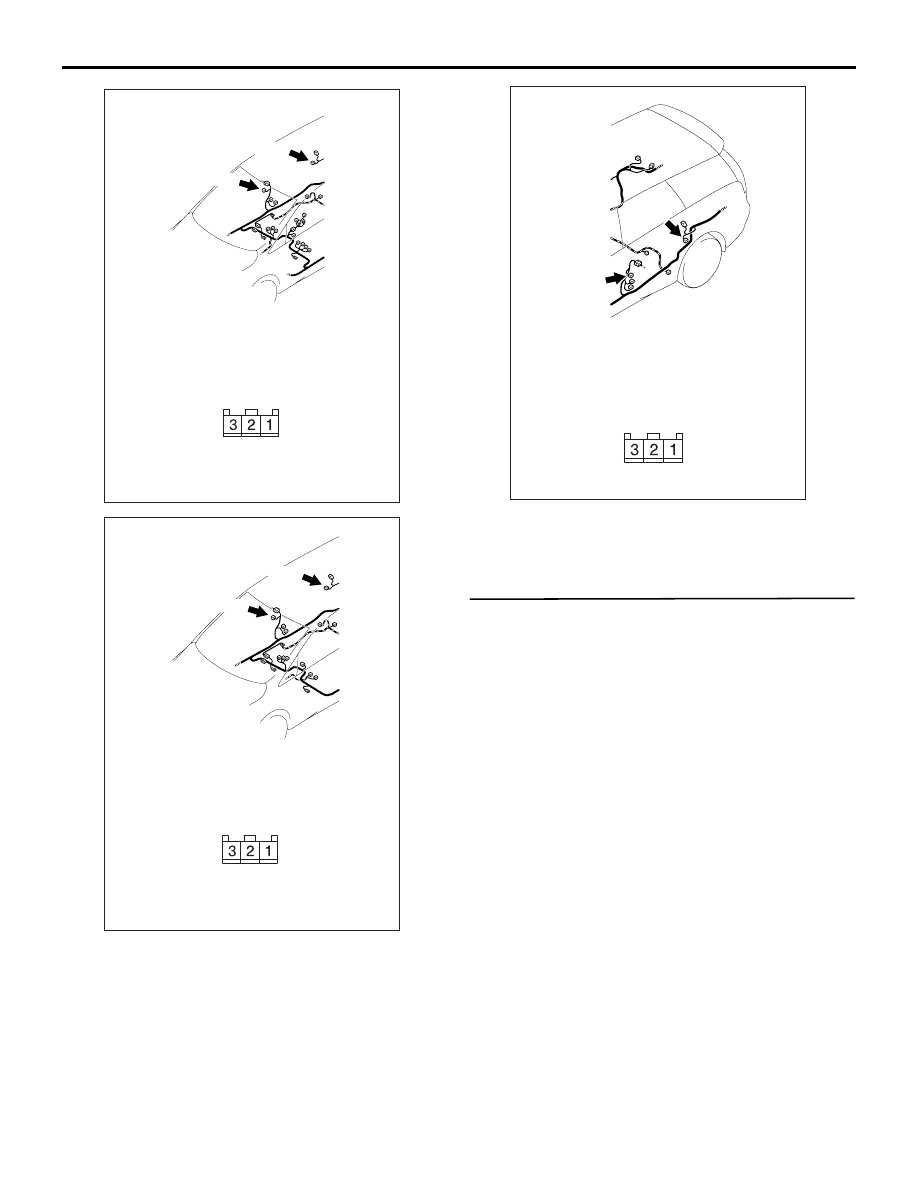

Connector: F-09

AC311150

AE

Connector: F-11

<LHD>

AC310211

AG

Connector: F-11 <RHD>

AC311147

AG

Connector: F-22 <LHD>

AC310213

AF

Connector: F-22 <RHD>

AC310216

AF

Connector: F-25

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-403

Step 3. Connector check: D-17 door switch (front:
LH), D-02 door switch (front: RH) connector, D-13
door switch (rear: LH) connector, D-08 door
switch (rear: RH) connector

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-404

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Repair the defective connector.

Step 4. Check the door switch.

Check the door switch, which corresponds to the
defective door lamp (Refer to GROUP 42

− Door

P.42-38

).

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Replace the door lamp bulb.

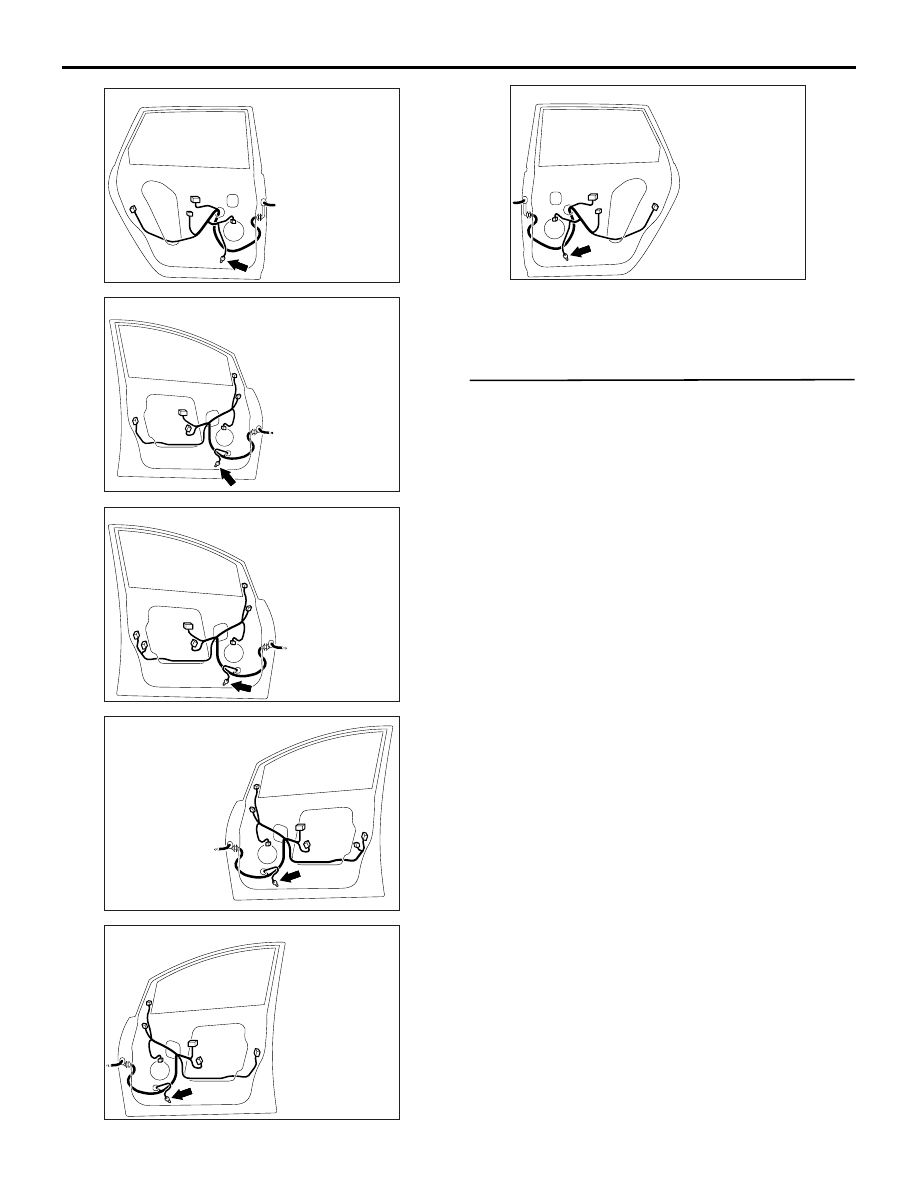

AC310634AB

Harness side

Connectors: D-02, D-08 <LHD>

D-02, D-08

D-02

D-08

AC310206

AB

Harness side

Connectors: D-02, D-08 <RHD>

D-02, D-08

D-02

D-08

AC310208

AC

Harness side

Connectors: D-13, D-17

D-13

D-17

D-13, D-17
