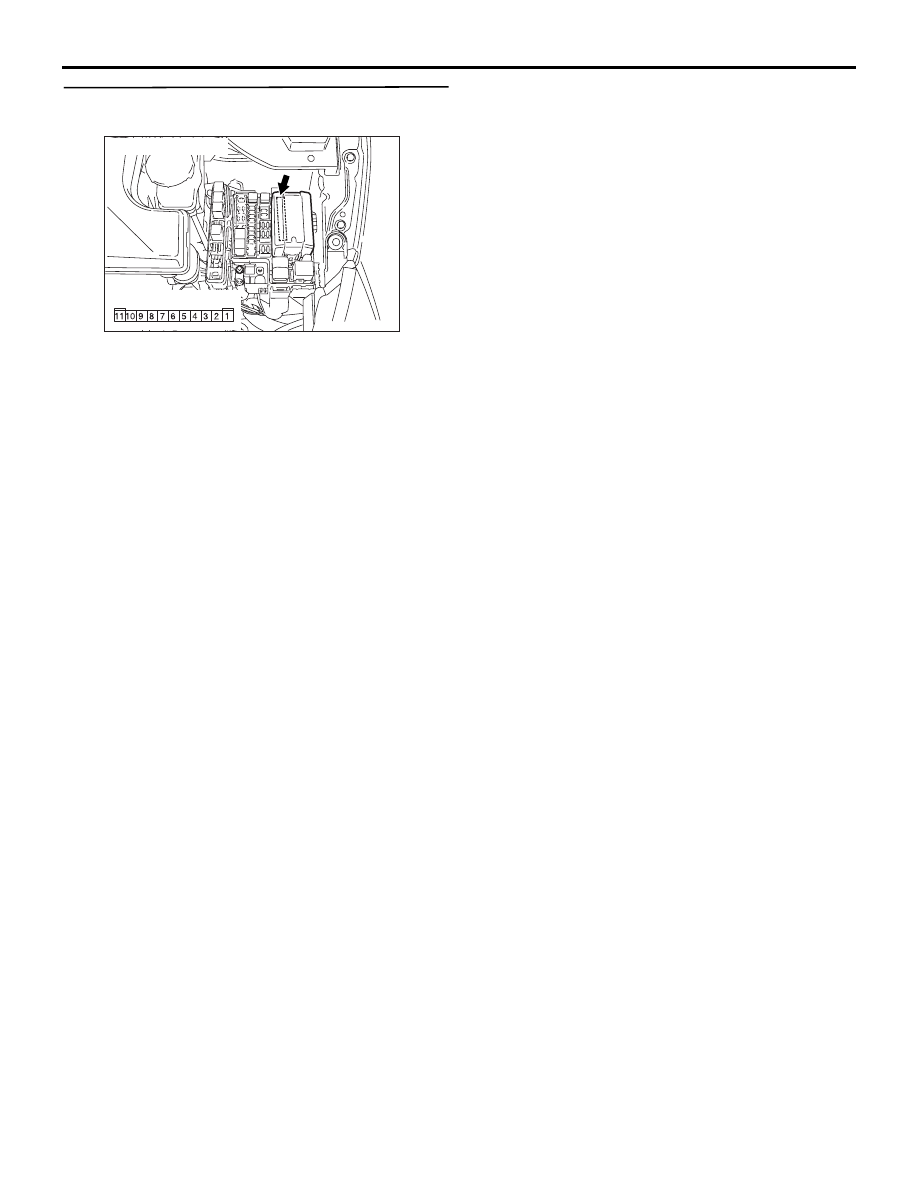

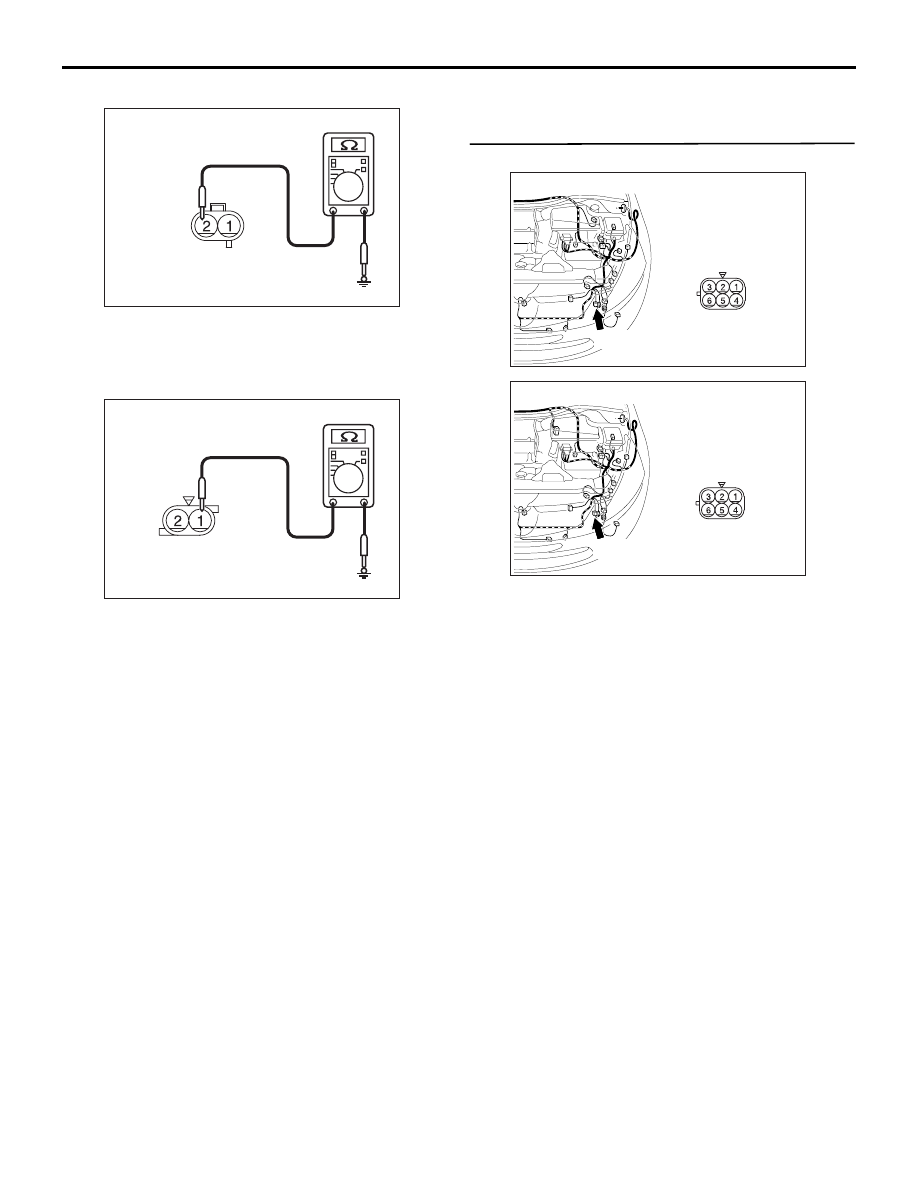

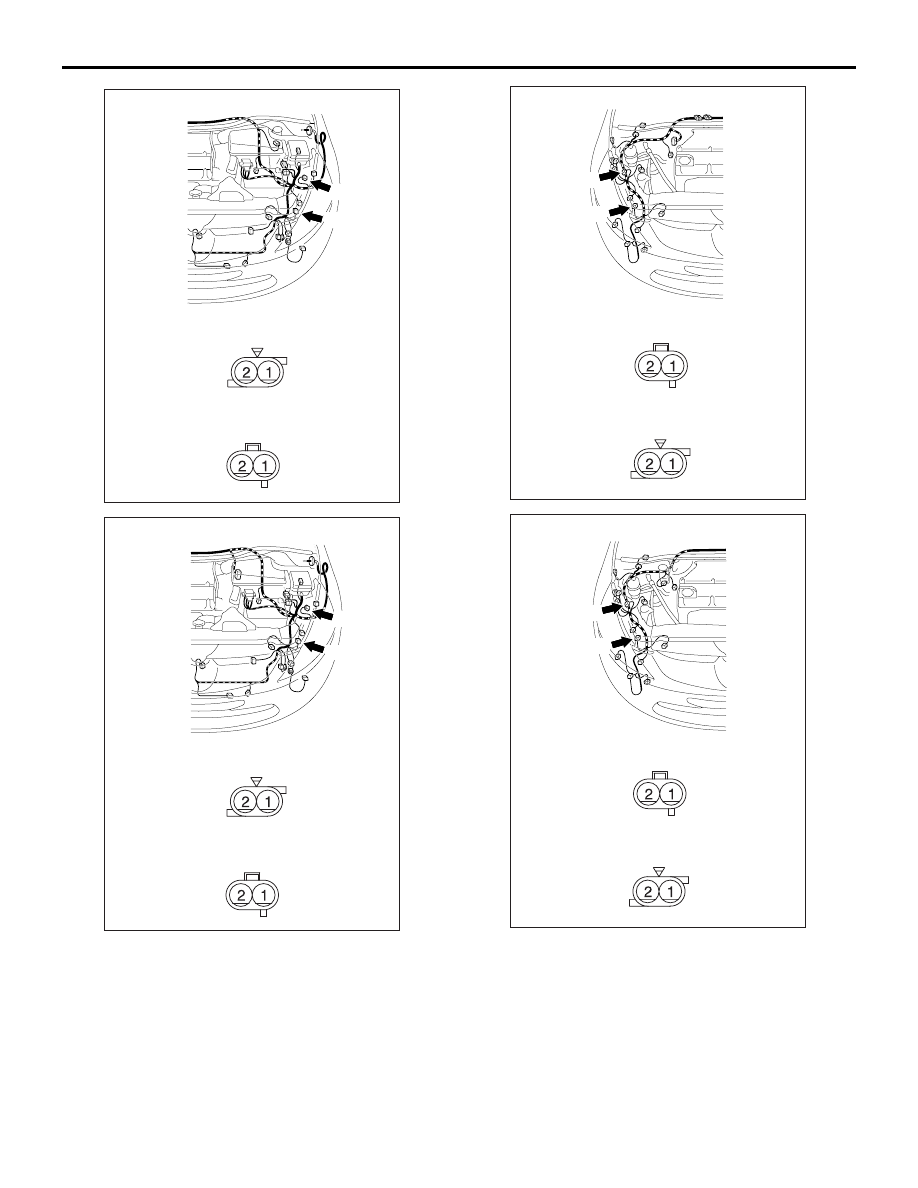

SYMPTOM PROCEDURES SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR 54B-301 connector and body earth. • Resistance between A-35 headlamp (HI: RH) connector terminal No.2 and body earth • Resistance between A-21 headlamp (HI: LH) connector terminal No.2 and body earth • Resistance between A-30 headlamp (LO: RH) connector terminal No.1 and body earth • Resistance between A-18 headlamp (LO: LH) connector terminal No.1 and body earth OK: 2 Ω or less Q: Is the check result normal? YES : Go to Step 6. NO : Go to Step 4. Step 4. Connector check: A-25 earth connector Q: Is the check result normal? YES : Go to Step 5. NO : Repair the defective connector. AC310506AZ Connector A-21, A-35 AC310506 BA Connector A-18, A-38 AC310403 A-25 (GR) AE Connector: A-25 <LHD> Harness side AC310398 A-25 (GR) AE Connector: A-25 <RHD> Harness side |
