SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-169

POWER WINDOW
SUB SWITCH

POWER
WINDOW MOTOR

POWER
WINDOW MAIN
SWITCH

(FRONT: LH)

(FRONT: RH)

POWER
WINDOW MOTOR
(FRONT: LH)

CPU

CPU

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

HALL IC

HALL IC

HALL IC

HALL IC

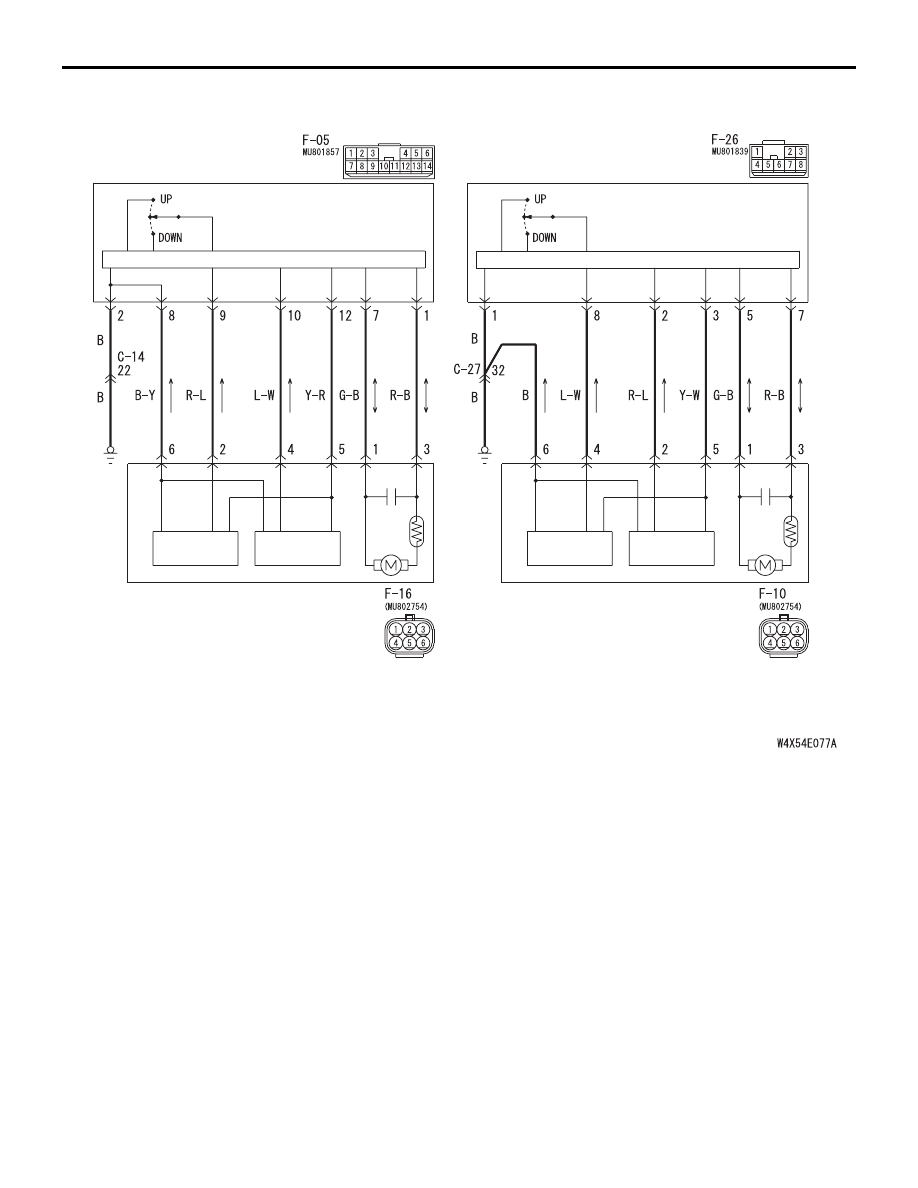

Power Window (front) Circuit <RHD>

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-170

COMMENTS ON TROUBLE SYMPTOM

The revolution detection sensor, which is
incorporated in the power window motor, may be
defective.

POSSIBLE CAUSES

• Malfunction of the power window motor

DIAGNOSIS PROCEDURE

Step 1. Check the power window operating
current.
Check that the power window operating current is
normal (Refer to GROUP 42

− Door − On-vehicle

Service

P.42-29

).

Q: Is the check result normal?

YES :

Adjust the door window glass (Refer to

GROUP 42

− Door − On-vehicle service

P.42-25

), and then go to Step 2.

NO :

Replace the defective power window motor
which operating current are abnormal.

Step 2. Confirm the power window learning
function.
Check that the power window switch has learned the
fully closed position of the windows (Refer to
GROUP 42

− Door

P.42-35

).

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Make the power window switch learn the
fully closed position of the windows (Refer
to GROUP 42

− Door

P.42-35

).

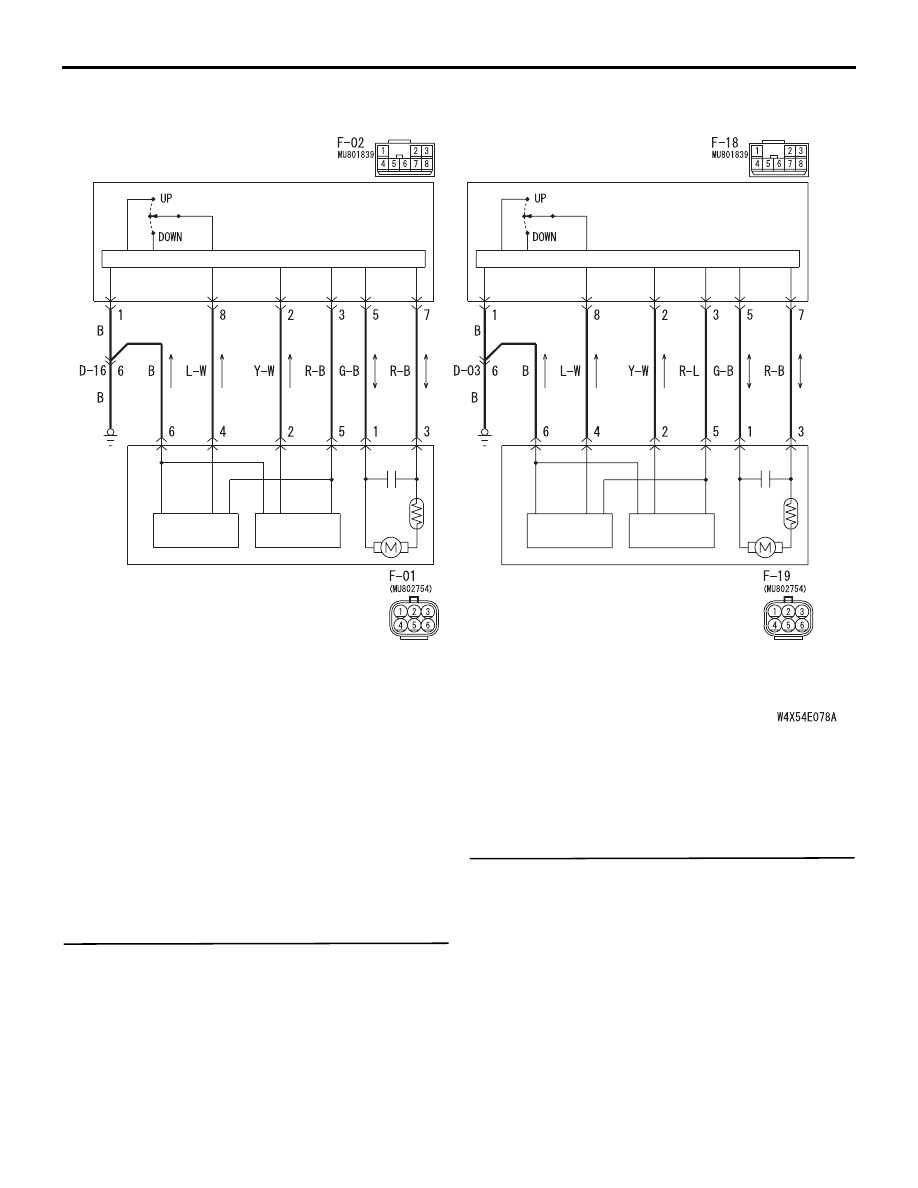

Power Window (rear) Circuit

POWER WINDOW
SUB SWITCH

POWER
WINDOW MOTOR

(REAR: RH)

POWER WINDOW
SUB SWITCH
(REAR: LH)

(REAR: LH)

POWER
WINDOW MOTOR
(REAR: RH)

HALL IC

HALL IC

HALL IC

HALL IC

CPU

CPU

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-171

Step 3. Determine a trouble spot.

Q: Which door does the power window anti-trap

function fail on?
Driver's door <LH drive vehicles> :

Go to Step 4.

Driver's door <RH drive vehicles> :

Go to Step 7.

Front passenger's door <LH drive vehicles> :

Go

to Step 10.

Front passenger's door <RH drive vehicles> :

Go

to Step 16.

Rear right door :

Go to Step 22.

Rear left door :

Go to Step 28.

Step 4. Connector check: F-05 power window
main switch connector and F-10 power window
motor (front: LH) connector

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Repair the defective connector.

Step 5. Check the wiring harness from F-05
power window main switch connector terminal
Nos.8, 9, 10 and 12 to F-10 power window motor
(front: LH) connector terminal Nos.6, 2, 4 and 5.

• Check the input and output lines to the revolution

detection sensor for open or short circuit.

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Repair the wiring harness.

Step 6. Retest the system.
After the power window main switch is replaced,
check that the driver's power window anti-trap
function works.
(1) Replace the power window main switch.
(2) Check that the driver's power window anti-trap

function works.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Replace the power window motor (front:
LH).

AC311151

AC311151

AB

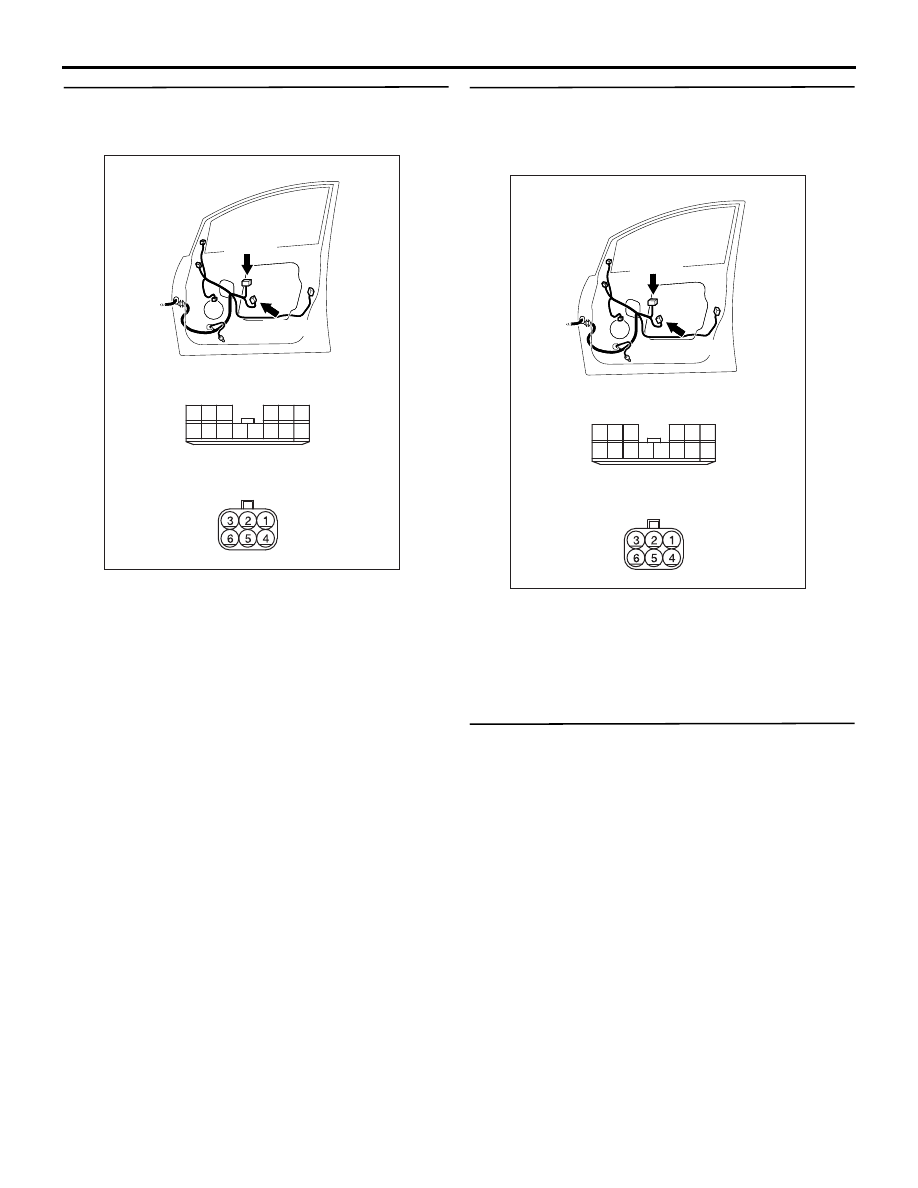

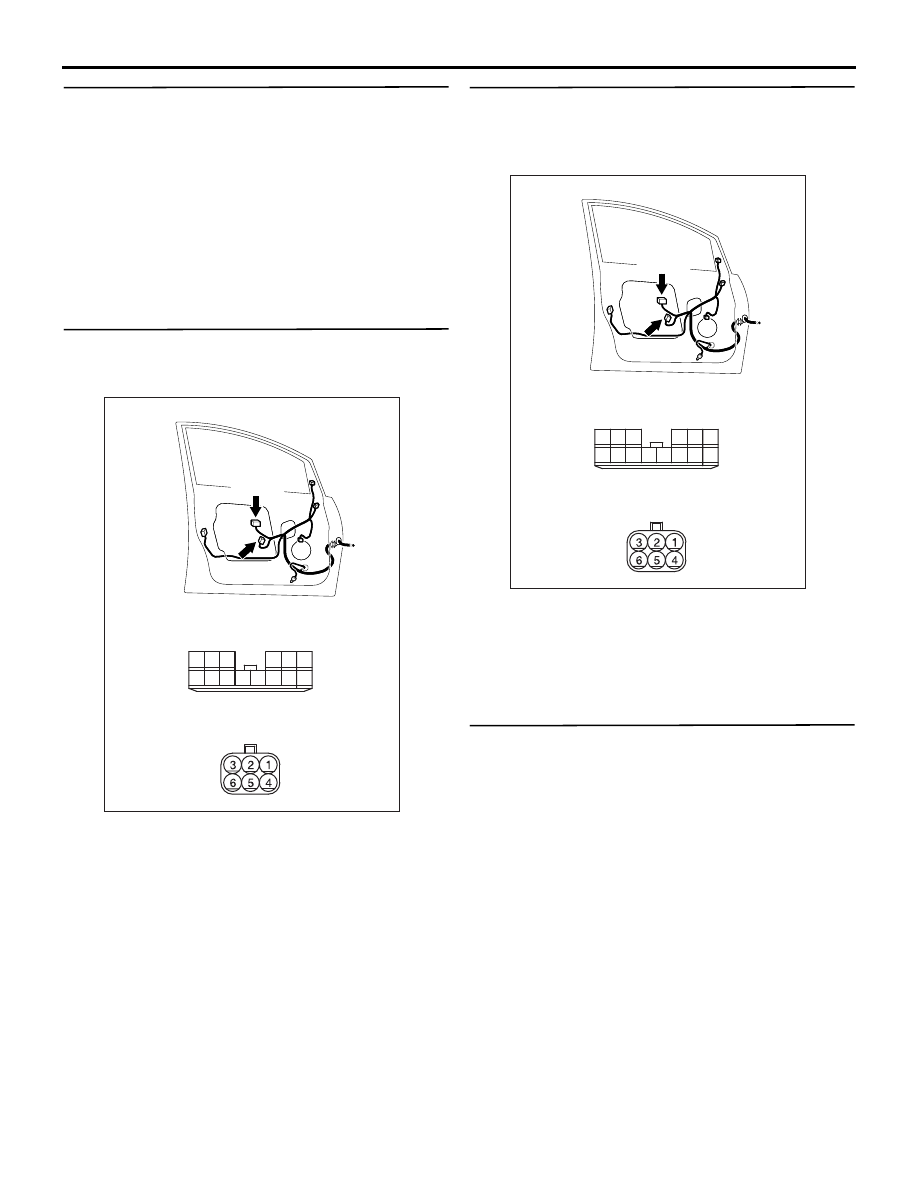

Connectors: F-05, F-10

Harness side

<LHD>

10

1

6

14

5

12

13

4

11

7

2

3

8

9

F-05

F-10

Harness side

F-05(B)

F-10(B)

AC311151

AC311151

AB

Connectors: F-05, F-10

Harness side

<LHD>

10

1

6

14

5

12

13

4

11

7

2

3

8

9

F-05

F-10

Harness side

F-05(B)

F-10(B)

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-172

Step 7. Connector check: F-05 power window
main switch connector and F-16 power window
motor (front: RH) connector

Q: Is the check result normal?

YES :

Go to Step 8.

NO :

Repair the defective connector.

Step 8. Check the wiring harness from F-05
power window main switch connector terminal
Nos.8, 9, 10 and 12 to F-16 power window motor
(front: RH) connector terminal Nos.6, 2, 4 and 5.

• Check the input and output lines to the revolution

detection sensor for open or short circuit.

Q: Is the check result normal?

YES :

Go to Step 9.

NO :

Repair the wiring harness.

Step 9. Retest the system.

After the power window main switch is replaced,
check that the driver's power window anti-trap
function works.
(1) Replace the power window main switch.
(2) Check that the driver's power window anti-trap

function works.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Replace the power window motor (front:
LH).

AC310214

AC310214

AB

Connectors: F-05, F-16

Harness side

<RHD>

10

1

6

14

5

12

13

4

11

7

2

3

8

9

F-05(B)

F-16(B)

F-05

F-16

Harness side

AC310214

AC310214

AB

Connectors: F-05, F-16

Harness side

<RHD>

10

1

6

14

5

12

13

4

11

7

2

3

8

9

F-05(B)

F-16(B)

F-05

F-16

Harness side
