HEADLAMP

CIRCUIT DIAGRAMS

90-45

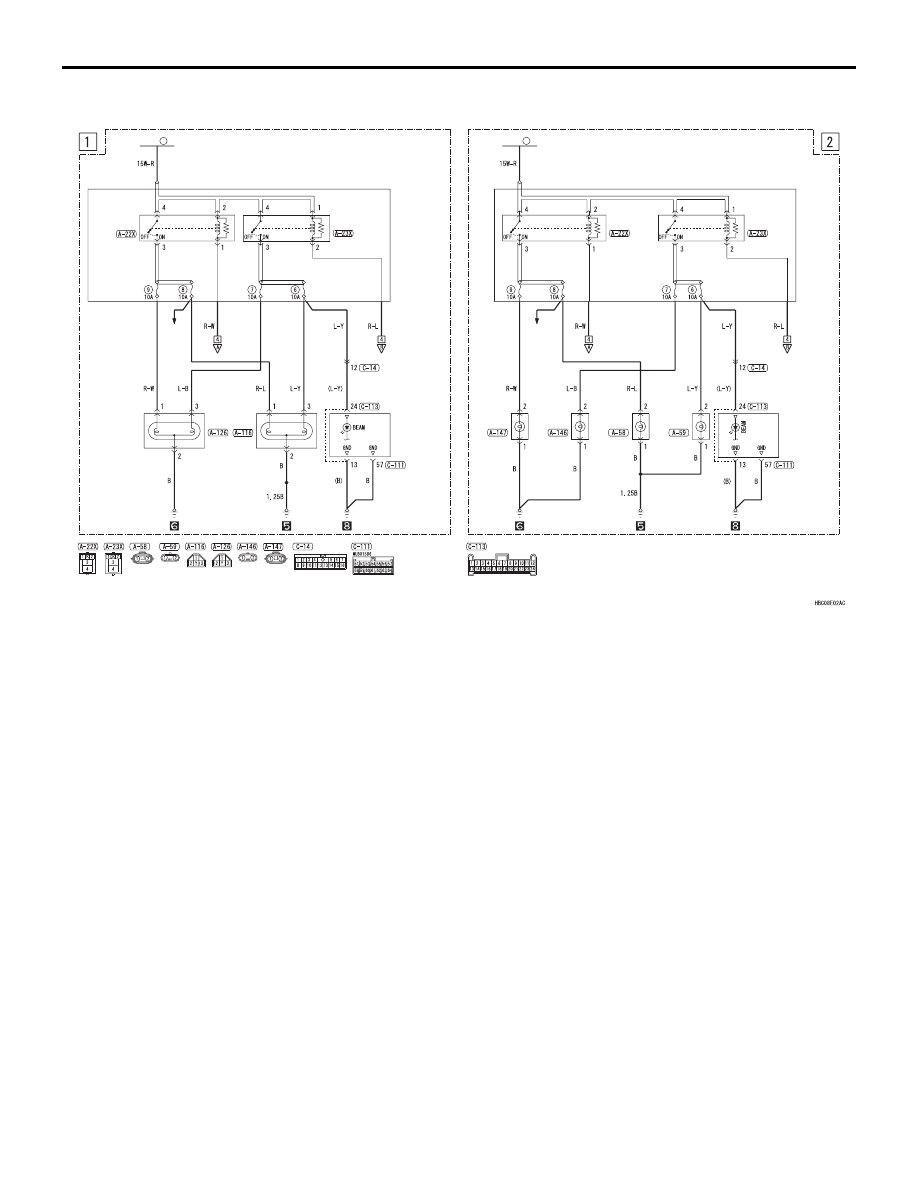

HEADLAMP <LHD (VEHICLES WITH
DAYTIME RUNNING LIGHT)>

M1901001506736

COMBINATION
METER

23

FUSIBLE
LINK

HEADLAMP
RELAY (LO)

HEADLAMP
RELAY (HI)

HEADLAMP

(RH)

(LH)

RELAY
BOX

HEADLAMP
MANUAL
LEVELLING
SYSTEM

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple     SI : Silver

COMBINATION
METER

23

FUSIBLE
LINK

HEADLAMP
RELAY (LO)

HEADLAMP
RELAY (HI)

HEADLAMP
(LO: RH)

HEADLAMP
(HI: RH)

HEADLAMP
(HI: LH)

HEADLAMP
(LO: LH)

RELAY
BOX

HEADLAMP
MANUAL
LEVELLING
SYSTEM

<2-BULB TYPE>

<4-BULB TYPE>

FIELD EFFECT
TRANSISTOR

FIELD EFFECT
TRANSISTOR

HEADLAMP

CIRCUIT DIAGRAMS

90-46

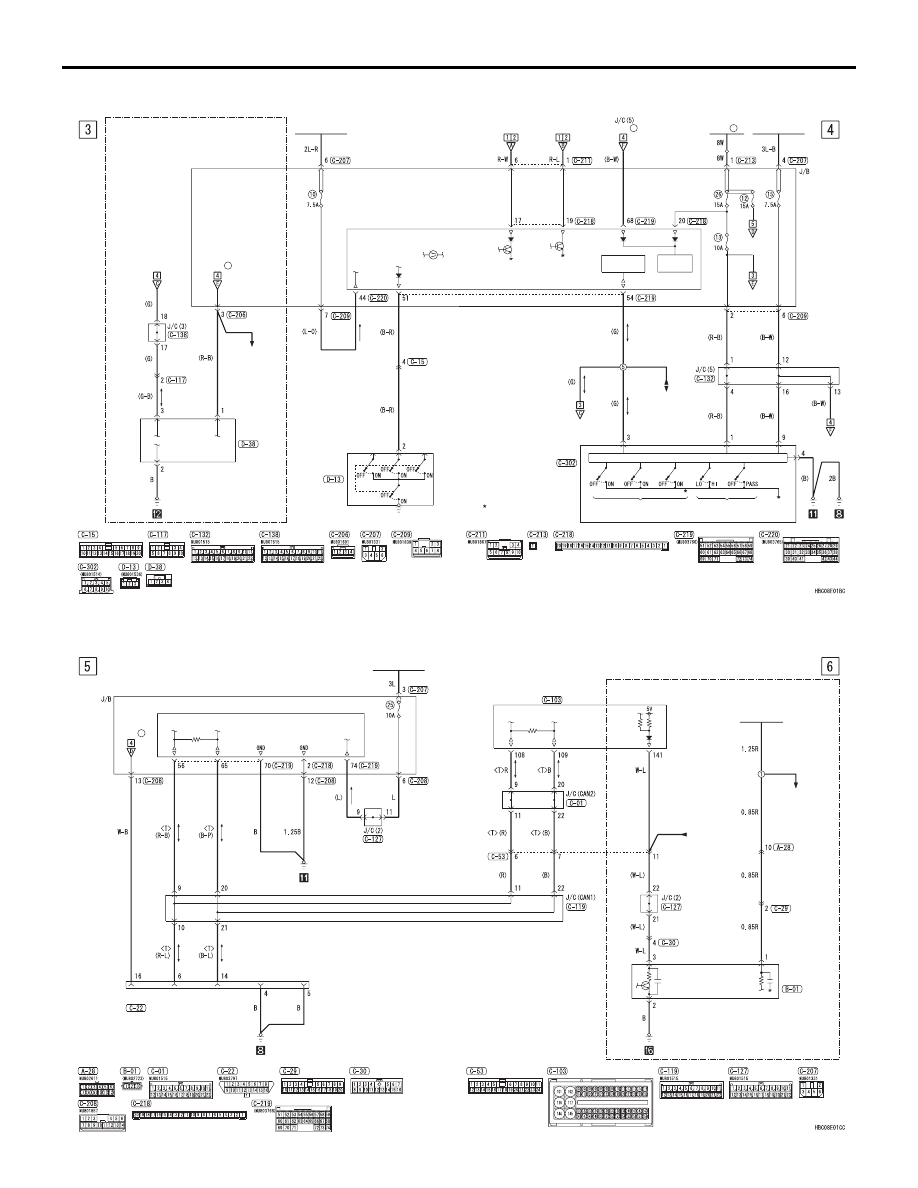

HEADLAMP <LHD (VEHICLES WITH DAYTIME RUNNING LIGHT)> (CONTINUED)

ETACS-ECU

BUZZER

DOOR
SWITCH
(FRONT: LH)

<VEHICLES WITH AUTO LAMP>

ETACS-ECU

LIGHTING
CONTROL
SENSOR

FUSE

13

J/B SIDE

20

FUSIBLE
LINK

IGNITION
SWITCH (IG1)

IGNITION
SWITCH (IG2)

LIN
INTERFACE

POWER
SOURCE

COLUMN
SWITCH

COLUMN-ECU

LIGHTING
SWITCH

DIMMER·PASSING
SWITCH

(HEAD)

(TAIL)

(DIMMER)

(PASSING)

(FUSE     )

15

POWER
WINDOWS

(AUTO)

VEHICLES WITH AUTO LAMP

:

NOTE

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple     SI : Silver

HEADLAMP
RELAY (LO)

HEADLAMP
RELAY (HI)

·CENTRAL DOOR
 LOCKING SYSTEM
 <VEHICLES WITH
 KEYLESS ENTRY
 SYSTEM>
·ROOM LAMP
 AND IGNITION
 KEY CYLINDER
 ILLUMINATION LAMP

HEADLAMP <LHD (VEHICLES WITH DAYTIME RUNNING LIGHT)> (CONTINUED)

DIAGNOSIS
CONNECTOR

FRONT
SIDE

ETACS-ECU

FUSE

12

J/B SIDE

VEHICLE
SPEED
SENSOR

ENGINE
CONTROL
RELAY

·CRUISE CONTROL
 SYSTEM
·ENGINE CONTROL
 SYSTEM
·GLOW SYSTEM
·IMMOBILIZER SYSTEM

ENGINE-ECU

IGNITION
SWITCH (ACC)

ELC-4A/T

<VEHICLES WITH AUTO LAMP>

HEADLAMP

CIRCUIT DIAGRAMS

90-47

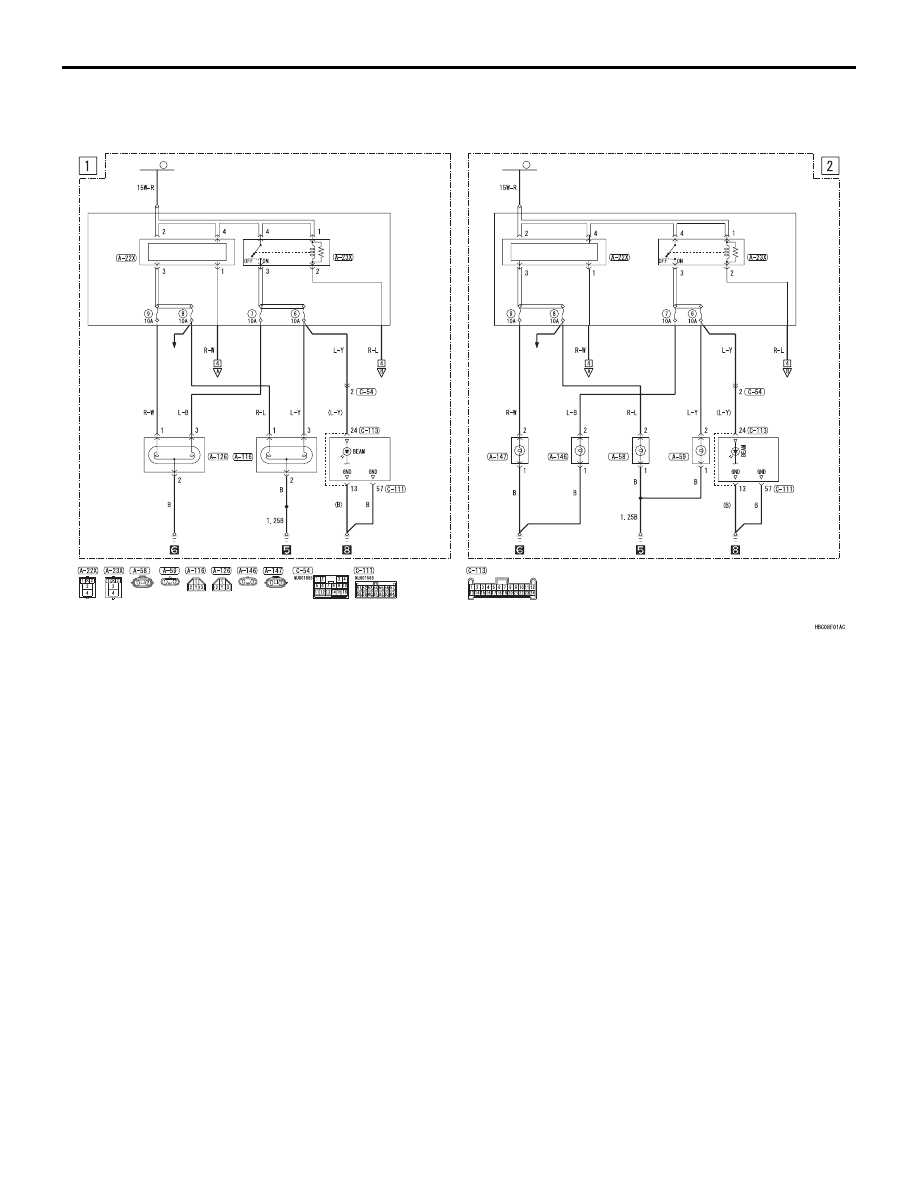

HEADLAMP <RHD>

M1901001506747

COMBINATION
METER

23

FUSIBLE
LINK

HEADLAMP
RELAY (LO)

HEADLAMP
RELAY (HI)

HEADLAMP

(RH)

(LH)

RELAY
BOX

HEADLAMP
MANUAL
LEVELLING
SYSTEM

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple     SI : Silver

COMBINATION
METER

23

FUSIBLE
LINK

HEADLAMP
RELAY (LO)

HEADLAMP
RELAY (HI)

HEADLAMP
(LO: RH)

HEADLAMP
(HI: RH)

HEADLAMP
(HI: LH)

HEADLAMP
(LO: LH)

RELAY
BOX

HEADLAMP
MANUAL
LEVELLING
SYSTEM

<2-BULB TYPE>

<4-BULB TYPE>

HEADLAMP

CIRCUIT DIAGRAMS

90-48

HEADLAMP <RHD> (CONTINUED)

ETACS-ECU

BUZZER

DOOR
SWITCH
(FRONT: RH)

<VEHICLES WITH AUTO LAMP>

ETACS-ECU

LIGHTING
CONTROL
SENSOR

FUSE

13

J/B SIDE

20

FUSIBLE
LINK

IGNITION
SWITCH (IG1)

IGNITION
SWITCH (IG2)

LIN
INTERFACE

POWER
SOURCE

COLUMN
SWITCH

COLUMN-ECU

LIGHTING
SWITCH

DIMMER·PASSING
SWITCH

(HEAD)

(TAIL)

(DIMMER)

(PASSING)

(FUSE     )

15

POWER
WINDOWS

(AUTO)

VEHICLES WITH AUTO LAMP

:

NOTE

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple     SI : Silver

HEADLAMP
RELAY (LO)

HEADLAMP
RELAY (HI)

·CENTRAL DOOR
 LOCKING SYSTEM
 <VEHICLES WITH
 KEYLESS ENTRY
 SYSTEM>
·ROOM LAMP
 AND IGNITION
 KEY CYLINDER
 ILLUMINATION LAMP

HEADLAMP <RHD> (CONTINUED)

DIAGNOSIS
CONNECTOR

FRONT
SIDE

ETACS-ECU

FUSE

12

J/B SIDE

VEHICLE
SPEED
SENSOR

ENGINE
CONTROL
RELAY

·CRUISE CONTROL
 SYSTEM
·ENGINE CONTROL
 SYSTEM
·GLOW SYSTEM
·IMMOBILIZER SYSTEM

ENGINE-ECU

IGNITION
SWITCH (ACC)

ELC-4A/T

<VEHICLES WITH AUTO LAMP>
