ENGINE CONTROL SYSTEM

CIRCUIT DIAGRAMS

90-29

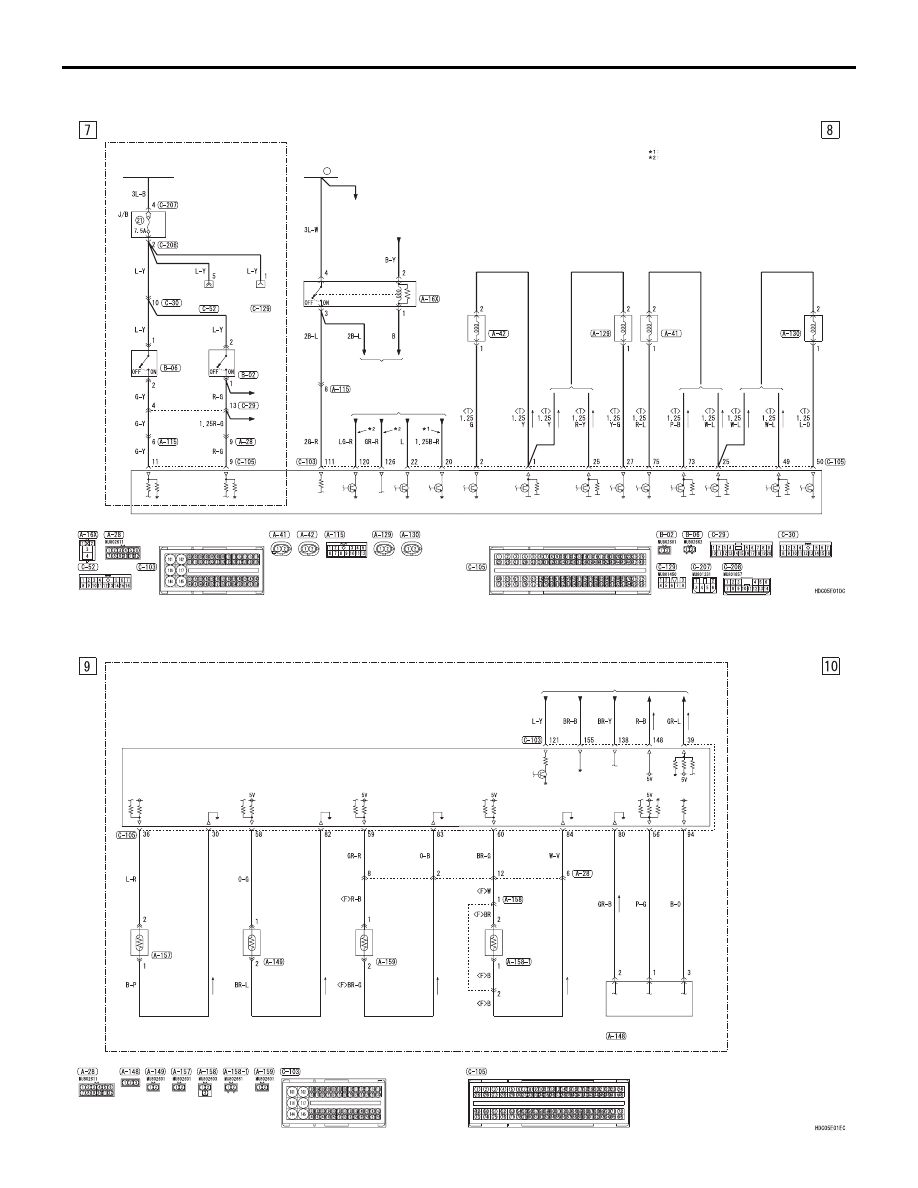

ENGINE CONTROL SYSTEM <LHD> (CONTINUED)

IGNITION
SWITCH (IG1)

<M/T (2WD-HIGH RIDER, 4WD)>

1ST RAIL
SWITCH

BACK-UP
LAMP
SWITCH

·BACK-UP
 LAMP
·MMCS

STARTING
SYSTEM

GLOW
SYSTEM

STARTING
SYSTEM

STARTER
RELAY

3

FUSIBLE
LINK

REFER TO
POWER
DISTRIBUTION
SYSTEM

NO.1
INJECTOR

NO.4
INJECTOR

NO.2
INJECTOR

NO.3
INJECTOR

EUR05

EUR05

EXCEPT
EUR05

EXCEPT
EUR05

EUR05

EXCEPT
EUR05

ENGINE-ECU

NO
CONNECTION

NO
CONNECTION

ABS AND
ASTC

NOTE

EXCEPT EURO5
EURO5

ENGINE CONTROL SYSTEM <LHD> (CONTINUED)

EGR GAS
TEMPERATURE
SENSOR

NO.1
EXHAUST GAS
TEMPERATURE
SENSOR

NO.2
EXHAUST GAS
TEMPERATURE
SENSOR

NO.3
EXHAUST GAS
TEMPERATURE
SENSOR

CHARGING SYSTEM

EXHAUST DIFFERENTIAL
PRESSURE SENSOR

<EUR05>

ENGINE-ECU

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue
W : White     Y : Yellow     SB : Sky blue     BR : Brown
O : Orange     GR : Grey     R : Red     P : Pink
V : Violet     PU : Purple     SI : Silver

ENGINE CONTROL SYSTEM

CIRCUIT DIAGRAMS

90-30

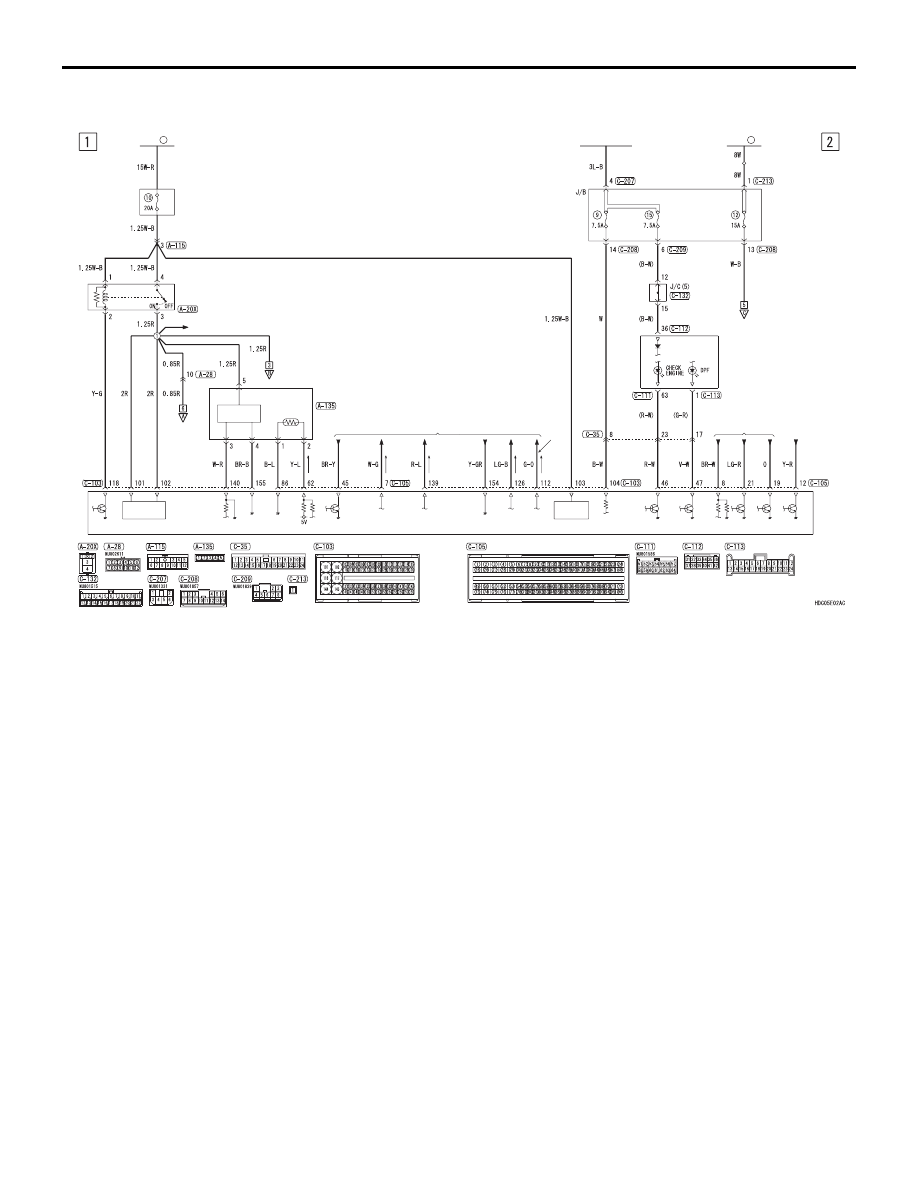

ENGINE CONTROL SYSTEM <RHD>

M1901000811387

20

FUSIBLE
LINK

IGNITION
SWITCH (IG1)

COMBINATION
METER

BATTERY
BACK-UP

ENGINE-
ECU

·AUTOMATIC
 AIR CONDITIONER
·MANUAL
 AIR CONDITIONER

23

FUSIBLE
LINK

RELAY
BOX

ENGINE
CONTROL
RELAY

AIR FLOW
SENSOR

POWER
SOURCE

AIR FLOW
SENSOR

INTAKE AIR
TEMPERATURE
SENSOR NO.1

GLOW SYSTEM

AUTOMATIC AIR
CONDITIONER

CRUISE CONTROL
SYSTEM

<M/T>

ENGINE CONTROL SYSTEM

CIRCUIT DIAGRAMS

90-31

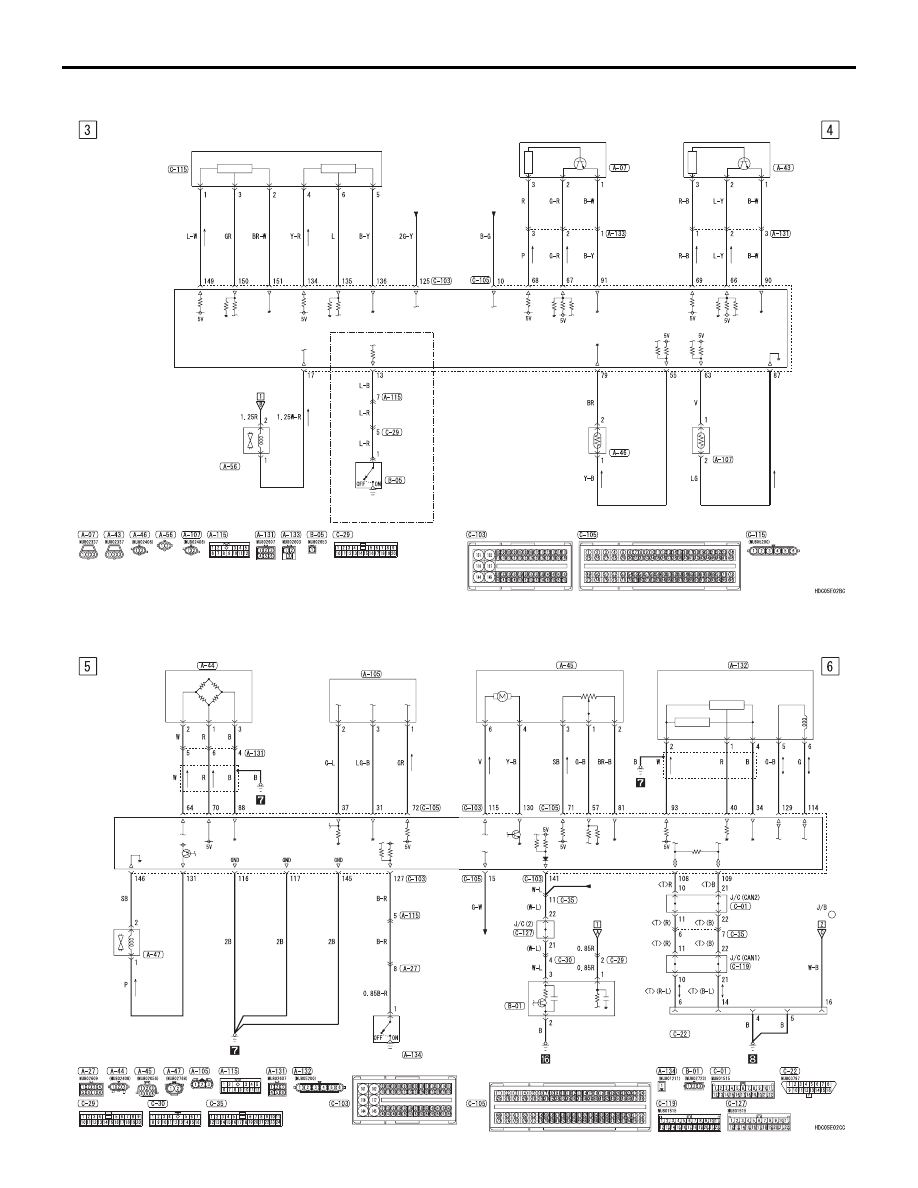

ENGINE CONTROL SYSTEM <RHD> (CONTINUED)

ACCELERATOR
PEDAL POSITION
SENSOR

HALL IC

HALL IC

(MAIN)

(SUB)

CRANK
ANGLE
SENSOR

CAMSHAFT
POSITION
SENSOR

ENGINE-
ECU

ENGINE
COOLANT
TEMPERATURE
SENSOR

FUEL
TEMPERATURE
SENSOR

ENGINE
CONTROL
RELAY

VARIABLE
GEOMETRY
CONTROL
SOLENOID
VALVE

4LLC
SWITCH

<VEHICLES WITH
HIGH POWER ENGINE-M/T>

·HEATER
·MANUAL AIR
 CONDITIONER

REAR WINDOW
DEFOGGER AND
HEATED DOOR
MIRROR

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple     SI : Silver

ENGINE CONTROL SYSTEM <RHD> (CONTINUED)

FRONT
SIDE

THROTTLE
VALVE
CONTROL
SERVO

THROTTLE POSITION
SENSOR

ELECTRONIC-CONTROLLED
THROTTLE VALVE

HALL IC

HALL IC

EGR VALVE ASSEMBLY

METER
AND
GAUGE

VEHICLE
SPEED
SENSOR

DIAGNOSIS
CONNECTOR

(FUSE     )

12

MANIFOLD ABSOLUTE
PRESSURE
SENSOR

RAIL PRESSURE
SENSOR

SUCTION
CONTROL
VALVE

POWER
STEERING
FLUID
PRESSURE
SWITCH

ENGINE-
ECU

ENGINE
CONTROL
RELAY

ELC-4A/T

ENGINE CONTROL SYSTEM

CIRCUIT DIAGRAMS

90-32

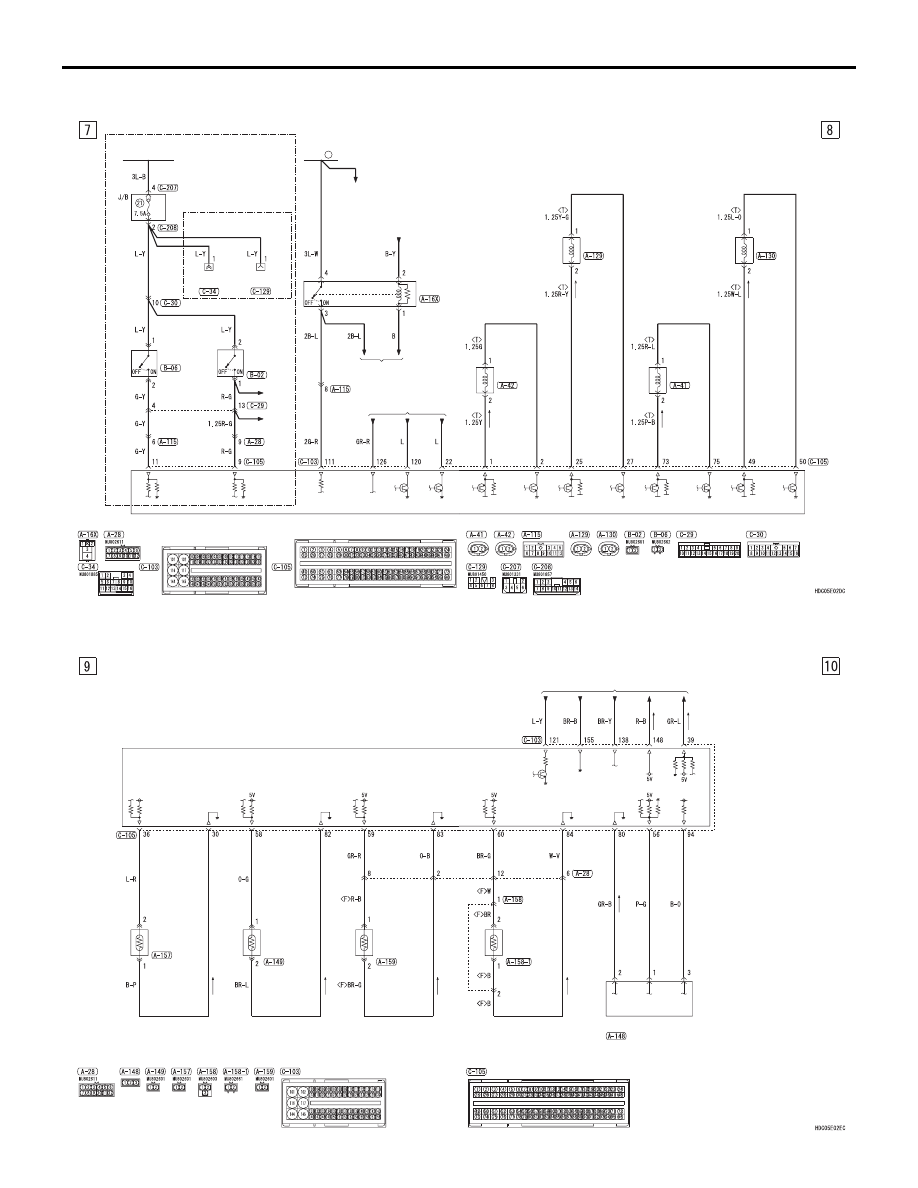

ENGINE CONTROL SYSTEM <RHD> (CONTINUED)

IGNITION
SWITCH (IG1)

<M/T>

STARTING
SYSTEM

GLOW
SYSTEM

STARTING
SYSTEM

STARTER
RELAY

3

FUSIBLE
LINK

REFER TO
POWER
DISTRIBUTION
SYSTEM

NO.1
INJECTOR

NO.2
INJECTOR

NO.4
INJECTOR

NO.3
INJECTOR

ENGINE-ECU

1ST RAIL
SWITCH

BACK-UP
LAMP
SWITCH

·BACK-UP
 LAMP
·MMCS

NO
CONNECTION

NO
CONNECTION

ABS AND
ASTC

<VEHICLES WITH
 SUPER SELECT 4WD SYSTEM>

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White
Y : Yellow     SB : Sky blue     BR : Brown     O : Orange     GR : Grey
R : Red     P : Pink     V : Violet     PU : Purple     SI : Silver

ENGINE CONTROL SYSTEM <RHD> (CONTINUED)

EGR GAS
TEMPERATURE
SENSOR

NO.1
EXHAUST GAS
TEMPERATURE
SENSOR

NO.2
EXHAUST GAS
TEMPERATURE
SENSOR

NO.3
EXHAUST GAS
TEMPERATURE
SENSOR

CHARGING SYSTEM

EXHAUST DIFFERENTIAL
PRESSURE SENSOR

ENGINE-ECU

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue
W : White     Y : Yellow     SB : Sky blue     BR : Brown
O : Orange     GR : Grey     R : Red     P : Pink
V : Violet     PU : Purple     SI : Silver
