HEADLAMP

CHASSIS ELECTRICAL

54A-143

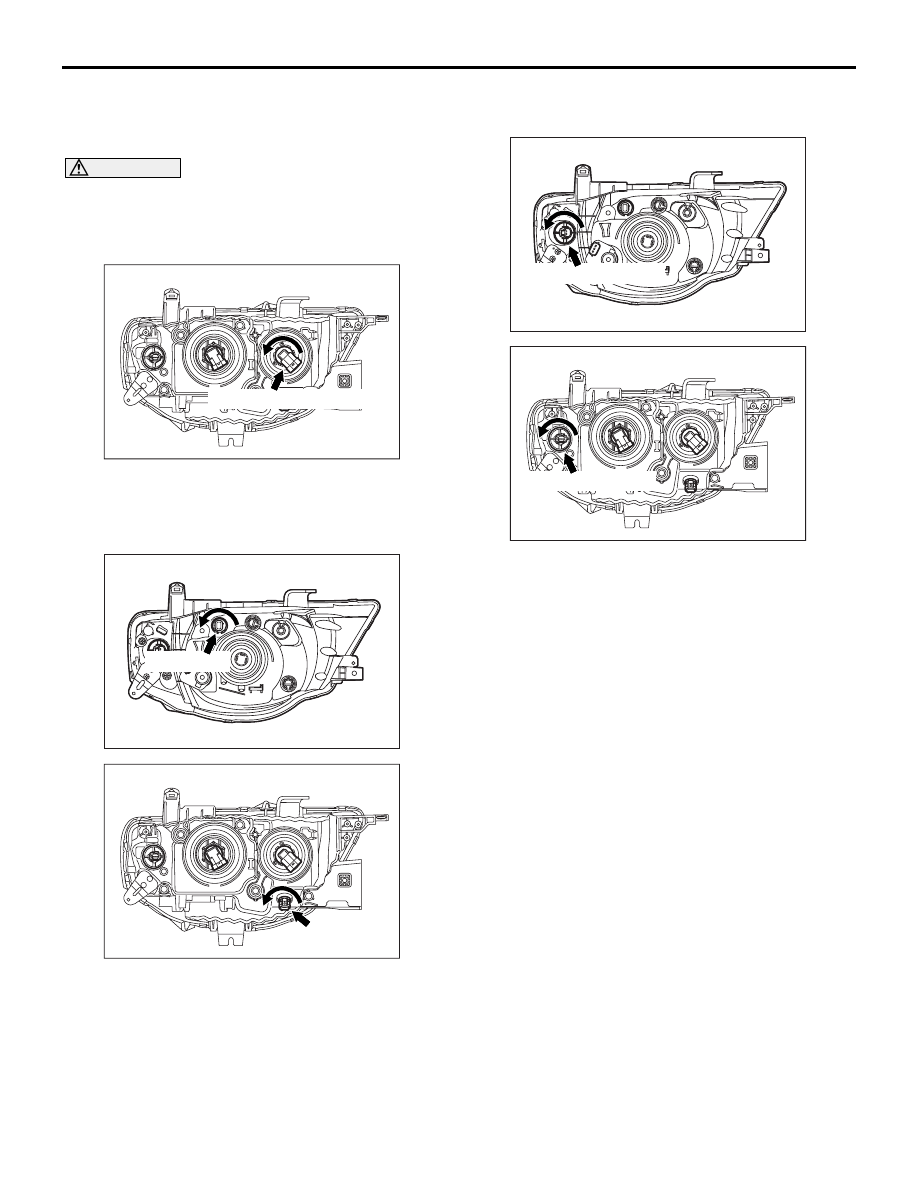

HEADLAMP BULB (HIGH-BEAM)
REPLACEMENT <VEHICLES FOR
EUROPE (EXCEPT FOR SINGLE CAB)>

CAUTION

Do not touch the bulb surface with bare hands or
dirty gloves. If the bulb surface (glass part) gets
dirty, immediately clean it with alcohol or thinner.
After drying completely, install the bulb.

Disconnect the connector, and twist the headlamp
bulb (high-beam) to remove.

POSITION LAMP BULB REPLACEMENT

Disconnect the connector, and twist the position
lamp socket to remove it.

FRONT TURN-SIGNAL LAMP BULB
REPLACEMENT

Disconnect the connector, and twist the front turn-
signal lamp socket to remove it.

HEADLAMP AUTOMATIC-SHUTDOWN
FUNCTION CHECK

M1540100800026

Confirm that the headlamp turns off when the ignition
switch is ON and the driver's door is opened and
when the ignition key is pulled out with the lighting
switch at ON (HEAD) position and the driver's door is
opened. If not, carry out the troubleshooting. (Refer
to

P.54A-109

.)

HEADLAMP AUTO LAMP FUNCTION
CHECK

M1540100900261

Verify that the headlamps will illuminate when plac-
ing a hand over the light receiver of the lighting con-
trol sensor under direct sunlight with the ignition
switch in the "ON" position and the lighting switch in
the "AUTO" position. If there is a malfunction, per-
form the troubleshooting (Refer to

P.54A-109

).

NOTE: When covering the lighting control sensor
receiver, be careful not to touch the windshield sur-
face (where the lighting control sensor receiver is
mounted). (The lighting control sensor receiver has
limited resistance to oil.)

AC800990AG

Headlamp bulb (High-beam)

<Vehicles for Europe (except for single cab)>

AC900629AD

Position lamp

<Single cab and vehicles for Russia>

AC800990AH

Position lamp

<Vehicles for Europe (except for single cab)>

AC900629AE

Front turn-signal lamp

<Single cab and vehicles for Russia>

AC800990 AI

Front turn-signal lamp

<Vehicles for Europe (except for single cab)>

HEADLAMP

CHASSIS ELECTRICAL

54A-144

CUSTOMISATION FUNCTION

M1540103701087

The following functions can be customised using
M.U.T.-III.

Function

Item name

Configuration

Turn-signal lamp operation sound
function

Turn-signal lamp buzzer

• Operation: Standard tone (Initial

setting)

• Operation (type A): Differs from

standard tone

Comfort flashing function

Comfort flashing
function

• Inhibit (initial condition)

• Operation

Headlamp automatic-shutdown function Headlamp automatic-

shutdown

• Not operation

• B-spec (initial condition)

Hazard lamp blink time of keyless entry
hazard lamp answerback function
<vehicles with keyless entry system>

Hazard answer-back

• Lock 1 Unlock 2 (initial condition)

• Lock 1 Unlock 0

• Lock 0 Unlock 2

• Lock 2 Unlock 0

• Lock 0 Unlock 0

Auto lamp function sensor sensitivity
(illumination intensity) <vehicles with
auto lamp>

Sensitivity for auto
lamp(RLS)

• Level 1 bright

• Level 2 bright

• Level 3 (Initial setting)

• Level 4 dark

• Level 5 dark

HEADLAMP

CHASSIS ELECTRICAL

54A-145

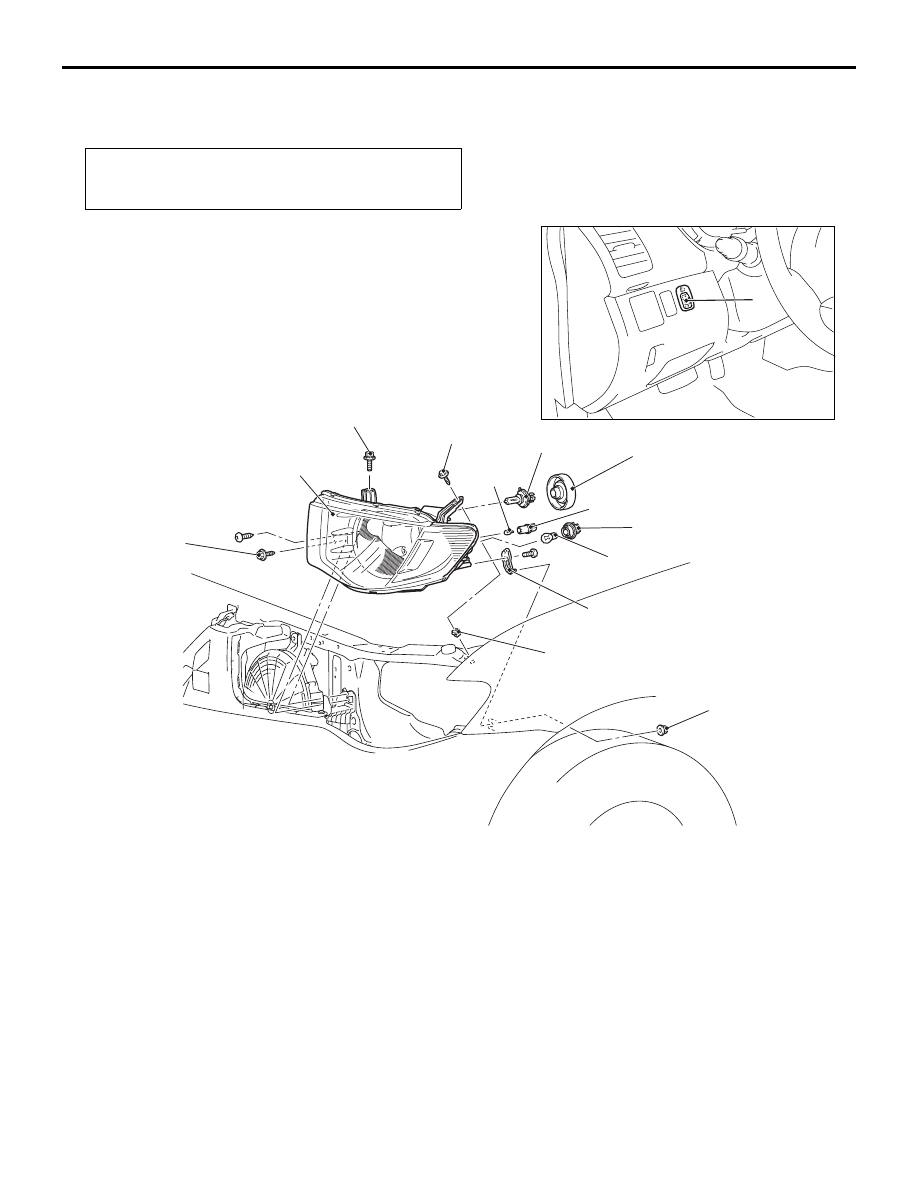

HEADLAMP REMOVAL AND INSTALLATION

M1540101000733

<SINGLE CAB AND VEHICLES FOR RUSSIA>

Post-installation operation
Check the beam direction of the headlamp (Refer to
Headlamp Aiming

P.54A-140

).

AC809114AB

2

4.9 ± 0.7 N·m

3

4

5

6

7

8

9

10

2.5 ± 0.3 N·m

4.9 ± 0.7 N·m

2.5 ± 0.3 N·m

1

Headlamp levelling switch
removal steps

•

Lower panel assembly (Refer to
GROUP 52A, Instrument Panel
Assembly ).

1.

Headlamp levelling switch
Headlamp removal steps

2.

Headlamp bulb socket cover

3.

Headlamp bulb

4.

Position lamp bulb socket

5.

Position lamp bulb

6.

Front turn-signal lamp bulb socket

7.

Front turn-signal lamp bulb
Headlamp body removal step

•

Radiator grille (Refer to GROUP
51, Radiator grille .)

•

Front splash shield (Front bumper
side) (Refer to GROUP 42, Splash
shield ).

8.

Headlamp body

9.

Grommet

10. Headlamp bracket

Headlamp removal steps

HEADLAMP

CHASSIS ELECTRICAL

54A-146

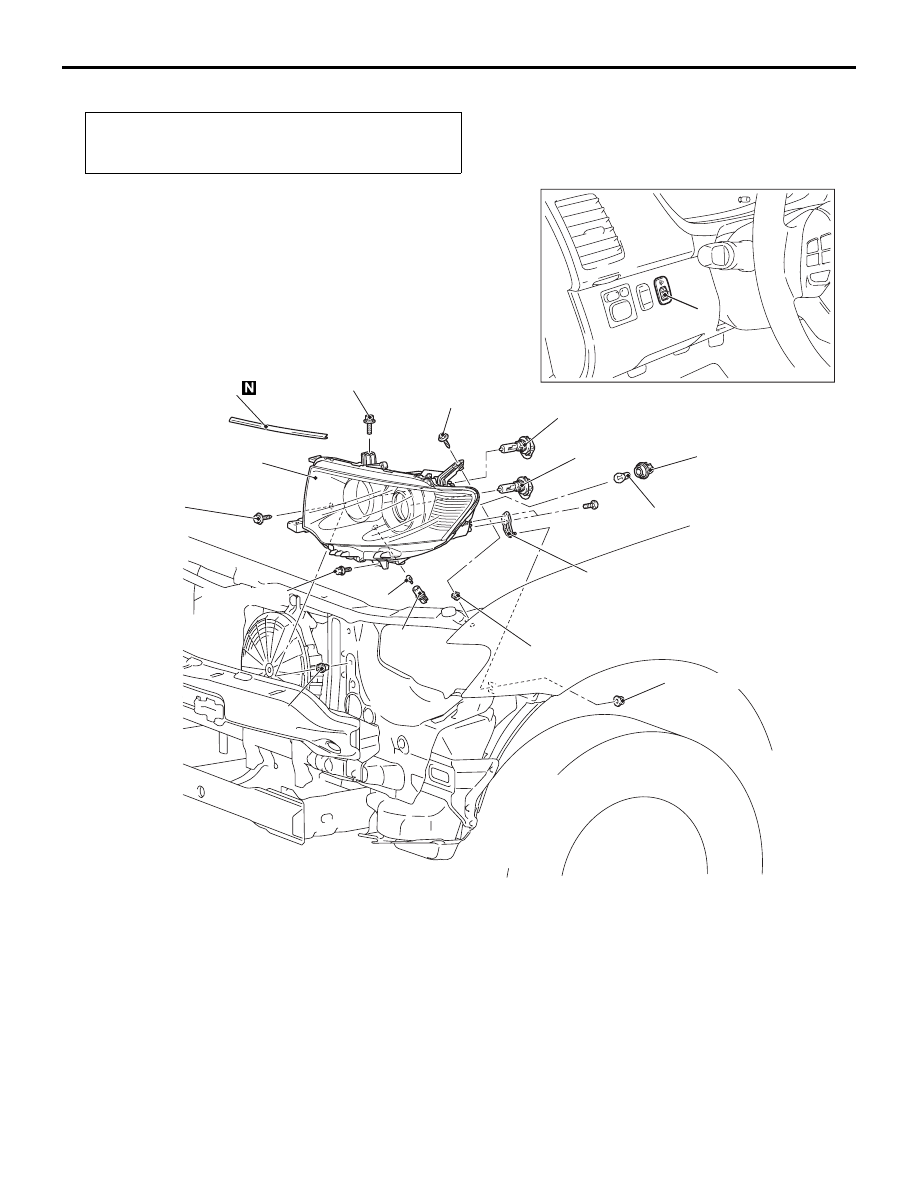

<VEHICLES FOR EUROPE (EXCEPT FOR SINGLE CAB)>

Post-installation operation
Check the beam direction of the headlamp (Refer to
Headlamp Aiming

P.54A-140

).

AC807115

3

4.9 ± 0.7 N·m

2

4

5

6

7

9

10

10

11

AD

2.5 ± 0.3 N·m

2.5 ± 0.3 N·m

1

4.9 ± 0.7 N·m

4.9 ± 0.7 N·m

8

Headlamp levelling switch
removal steps

•

Lower panel assembly (Refer to
GROUP 52A, Instrument Panel
Assembly ).

1.

Headlamp levelling switch
Headlamp removal steps

2.

Headlamp bulb (low-beam)

3.

Headlamp bulb (high-beam)

4.

Position lamp bulb socket

5.

Position lamp bulb

6.

Front turn-signal lamp bulb socket

7.

Front turn-signal lamp bulb

8.

Headlamp seal
Headlamp body removal step

•

Front bumper assembly (Refer to
GROUP 51, Front bumper
assembly ).

9.

Headlamp body

10. Grommet
11. Headlamp bracket

Headlamp removal steps
