INSTALLATION

NOTE: Be certain to add refrigerant oil if the rear
A/C evaporator is being replaced. The refrigerant oil
must be drained from the old evaporator and mea-
sured to determine the amount of refrigerant oil to
add to the new evaporator. Use only refrigerant oil
of the type recommended for the rear A/C compres-
sor in the vehicle.

(1) If the rear A/C evaporator is being replaced,

install the correct amount and type of refrigerant oil
into the new rear A/C evaporator. Drain the old evap-
orator and measure the refrigerant oil. Fill the new
evaporator with the same amount of new refrigerant
oil that was drained out of the old evaporator.

(2) With help from an assistant, position and sup-

port the rear A/C evaporator housing into the vehicle.

(3) Inspect the four rubber damping washers for

correct sealing. Replace the washers as required.

CAUTION: Be sure to install the rear A/C system
ground lead with one of the rear evaporator hous-
ing retaining bolts. Failure to correctly install the

ground lead could result in improper operation or
possible damage to the rear A/C system.

(4) Position the ground lead to the rear A/C evap-

orator housing and install the four bolts and washers
and four damping washers that secure the evapora-
tor housing to the roof panel. Tighten the bolts to 25
N·m (18 ft. lbs.).

(5) Install the nine screws that secure the rear A/C

evaporator housing to the roof panel. Tighten the
screws to 5 N·m (45 in. lbs.).

(6) Unplug and connect the two rear evaporator

drain hoses.

(7) Remove the tape or plugs from the refrigerant

line fittings and the rear expansion valve and evap-
orator tube ports.

(8) Lubricate a new O-ring seal with clean refrig-

erant oil and install it onto the rear liquid line fit-
ting. Use only the specified O-ring seal as it is made
of a special material for the R-134a system. Use only
refrigerant oil of the type recommended for the rear
A/C compressor in the vehicle.

(9) Connect the rear liquid line to the rear A/C

expansion valve. Tighten the liquid line nut to 35
N·m (26 ft. lbs.).

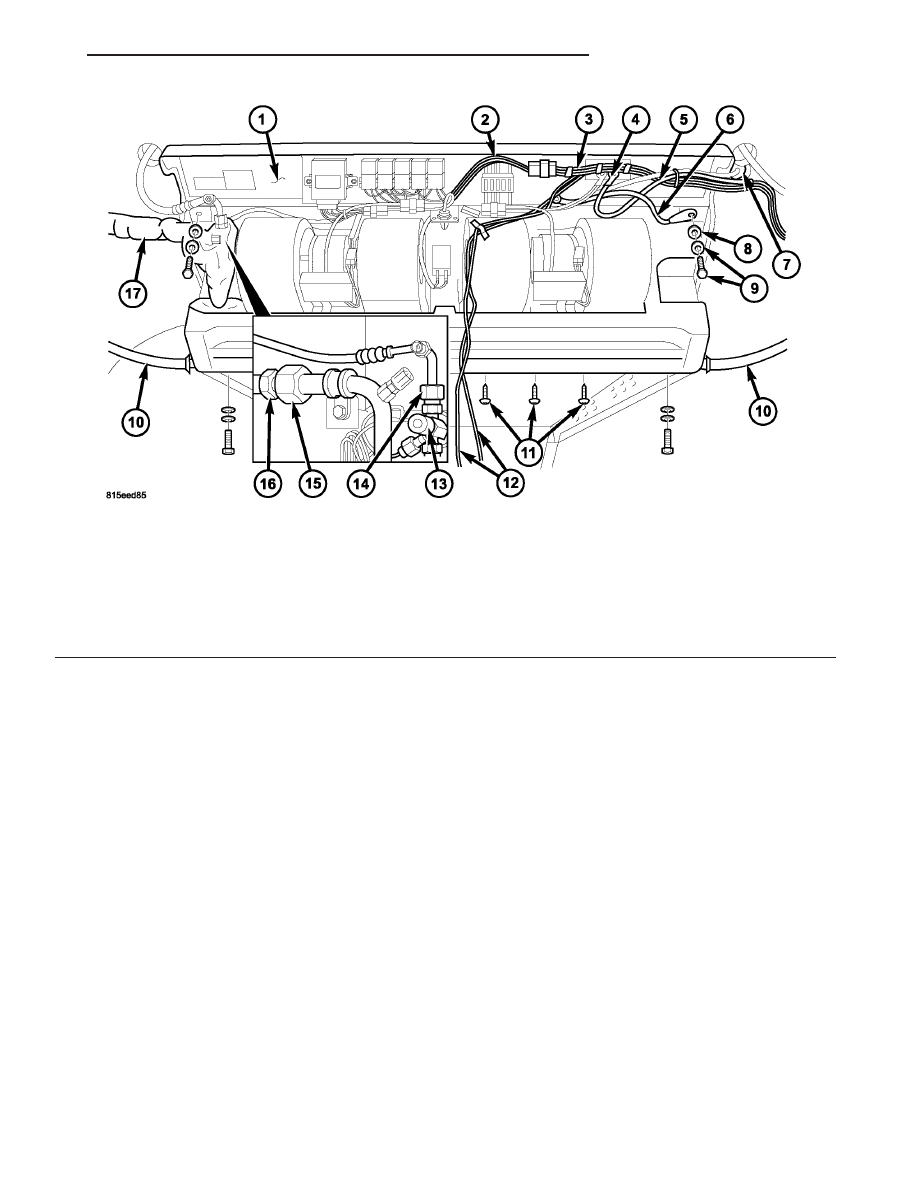

Fig. 5 Rear A/C Evaporator Housing

1 - REAR A/C EVAPORATOR HOUSING
2 - REAR A/C WIRE HARNESS
3 - REAR BODY WIRE HARNESS
4 - NUT
5 - POSITIVE WIRE LEAD
6 - GROUND LEAD
7 - GROMMET
8 - SEALING WASHER (4)
9 - BOLT AND WASHER (4)

10 - REAR EVAPORATOR DRAIN HOSES
11 - SCREW (9)
12 - REAR DOME LAMP HARNESS
13 - REAR A/C EVAPANSION VALVE
14 - REAR LIQUID LINE FITTING
15 - REAR A/C EVAPORATOR OUTLET TUBE
16 - REAR SUCTION LINE FITTING
17 - INSULATING TAPE

VA

DISTRIBUTION - REAR

24 - 57

(10) Lubricate a new O-ring seal with clean refrig-

erant oil and install it onto the rear suction line fit-
ting. Use only the specified O-ring seal as it is made
of a special material for the R-134a system. Use only
refrigerant oil of the type recommended for the rear
A/C compressor in the vehicle.

(11) Connect the rear suction line to the rear evap-

orator outlet tube. Tighten the suction line nut to 35
N·m (26 ft. lbs.).

(12) Install new insulating tape around the rear

evaporator connections.

(13) Install the positive wire lead onto the rear

A/C system terminal block and install the retaining
nut. Tighten the nut securely.

(14) Reposition the rear dome lamp harness and

install the retaining straps that secure the harness
to the rear A/C evaporator housing.

(15) Connect the rear A/C wire harness connector

to the rear body wire harness.

(16) Route the rear A/C wire harness up through

the roof panel and install the grommet.

(17) Connect the rear A/C wire harness to the rear

condenser fan suppression filter and the rear A/C
high pressure switch and install the retaining straps
that secure the wire harness to the rear liquid line.

(18) Reconnect the negative battery cable.
(19) Evacuate the rear refrigerant system (Refer to

24 - HEATING & AIR CONDITIONING/PLUMBING
- STANDARD PROCEDURE - REFRIGERANT SYS-
TEM EVACUATE).

(20) Charge the rear refrigerant system (Refer to

24 - HEATING & AIR CONDITIONING/PLUMBING
- STANDARD PROCEDURE - REFRIGERANT SYS-
TEM CHARGE).

(21) Install the cover onto the rear A/C evaporator

housing (Refer to 24 - HEATING & AIR CONDI-
TIONING/DISTRIBUTION - REAR/A/C EVAPORA-
TOR COVER-REAR - INSTALLATION).

(22) Install the cover onto the rear A/C condenser

housing (Refer to 24 - HEATING & AIR CONDI-
TIONING/DISTRIBUTION

-

REAR/A/C

CON-

DENSER COVER - INSTALLATION).

AIR FILTER

REMOVAL

(1) Unlock the eight quick-release fasteners by

turning them 90 degrees counter clockwise (Fig. 6).

(2) Remove the rear air inlet grate from the rear

A/C evaporator cover.

(3) Remove the rear particulate air filter by disen-

gaging the velcro-type retainers.

(4) Carefully clean the rear particulate air filter

using compressed air.

INSTALLATION

NOTE: Replace the rear particulate air filter if it is
heavily soiled or damaged.

(1) Position the rear particulate air filter and

engage the velcro-type retainers.

(2) Install the rear air inlet grate onto the rear

A/C evaporator cover.

(3) Lock the eight quick-release fasteners by turn-

ing them 90 degrees clockwise.

BLOWER MOTOR

REMOVAL

(1) Disconnect and isolate the negative battery

cable.

(2) Remove the cover from the rear A/C evaporator

housing (Refer to 24 - HEATING & AIR CONDI-
TIONING/DISTRIBUTION - REAR/A/C EVAPORA-
TOR COVER-REAR - REMOVAL).

(3) Disconnect the wire harness connectors from

the rear blower motor suppression filter and from the
rear blower motor being serviced and remove the
suppression filter (Fig. 7).

(4) Remove the body sealer from around the rear

blower motor area being serviced.

(5) Remove the screws that secure each rear

blower motor to the rear evaporator housing and
remove blower motor.

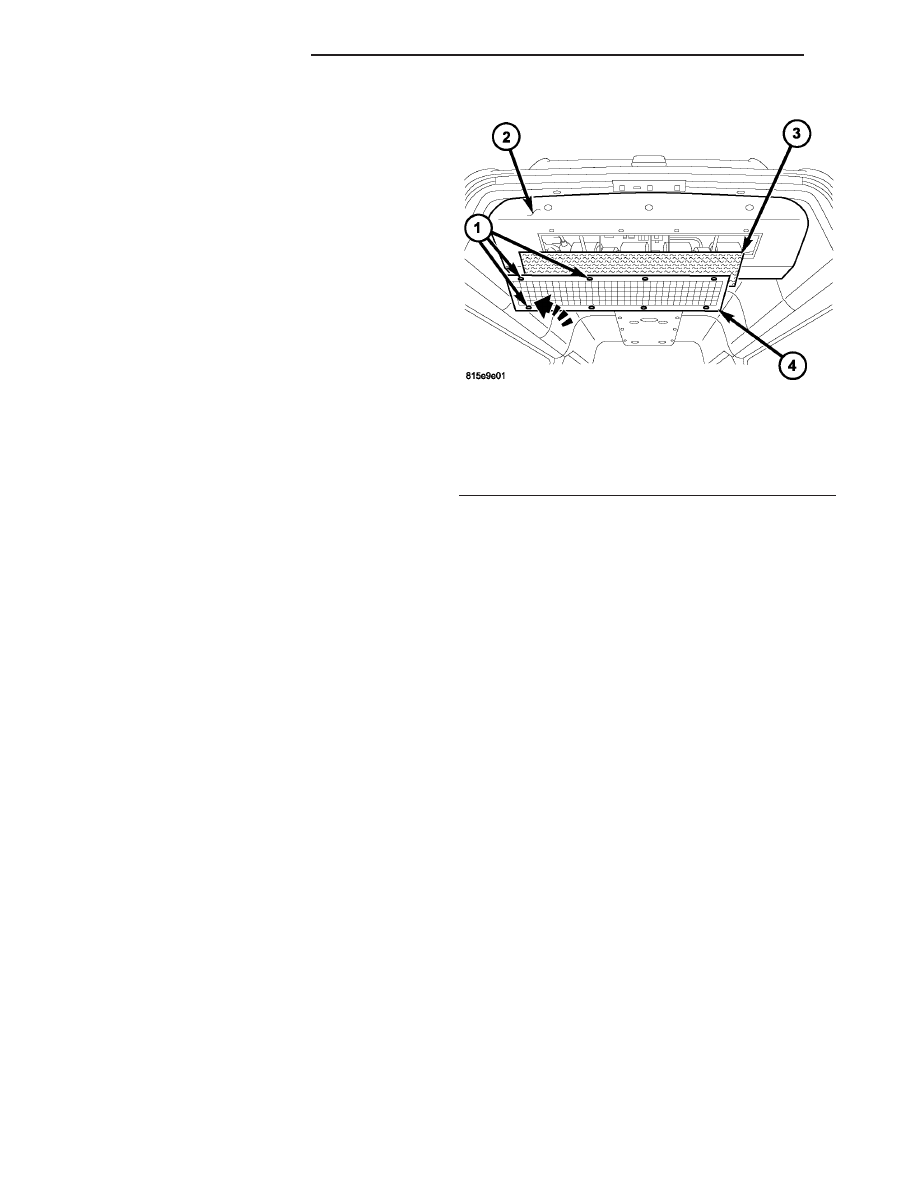

Fig. 6 Rear Particulate Air Filter

1 - QUICK-RELEASE FASTENER (8)
2 - REAR A/C EVAPORATOR COVER
3 - REAR PARTICULATE AIR FILTER
4 - REAR AIR INLET GRATE

24 - 58

DISTRIBUTION - REAR

VA

INSTALLATION

(1) Position the rear blower motor being serviced

to the rear A/C evaporator housing.

(2) Install the screws that secure each rear blower

motor to the rear A/C evaporator housing. Tighten
the screws to 5 N·m (45 in. lbs.).

(3) Install a new bead of body sealant to the

blower motor area being serviced.

(4) Install the rear blower motor suppression filter

and connect the wiring harness connectors to the
suppression filter and to the rear blower motor being
serviced.

(5) Install the cover onto the rear A/C evaporator

housing (Refer to 24 - HEATING & AIR CONDI-
TIONING/DISTRIBUTION - REAR/A/C EVAPORA-
TOR COVER-REAR - INSTALLATION).

(6) Reconnect the negative battery cable.

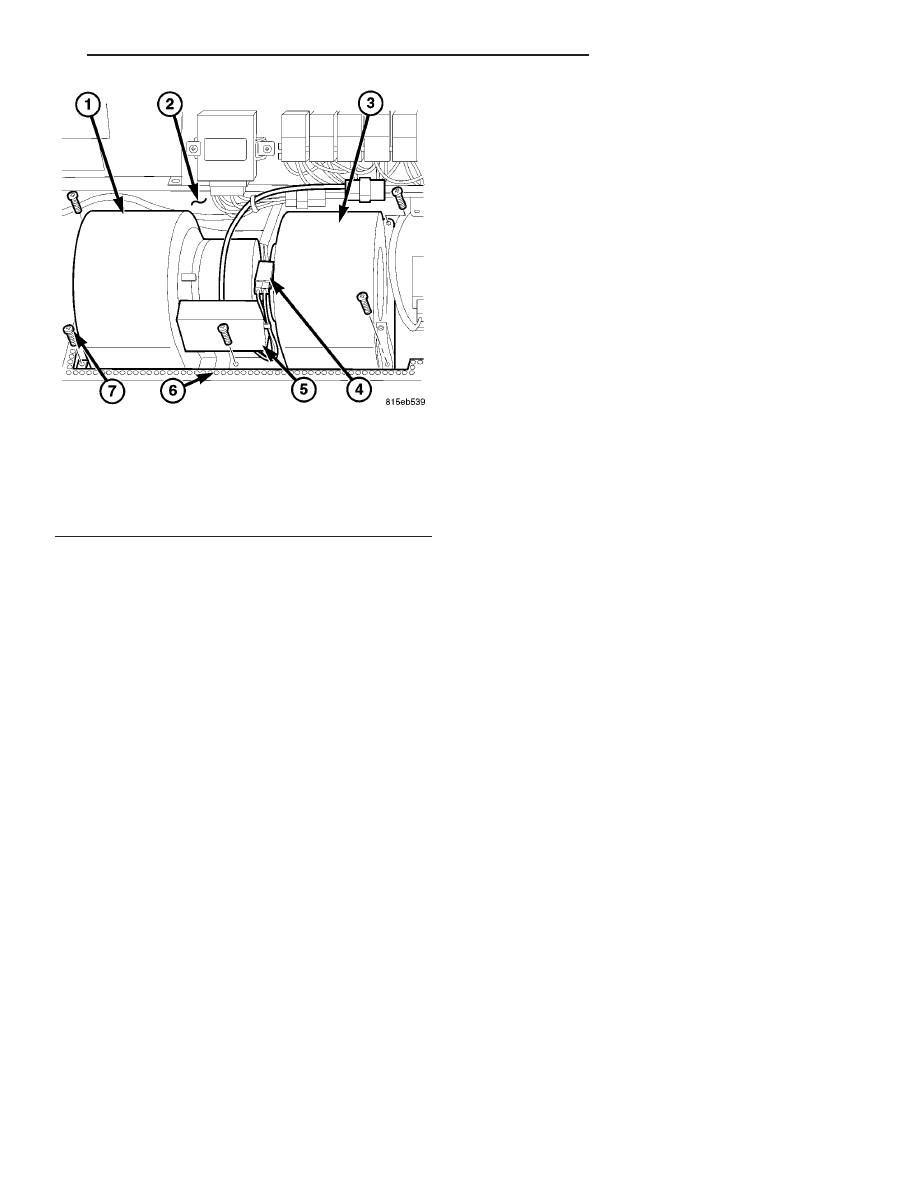

Fig. 7 Rear Blower Motors - LH shown, RH similar

1 - REAR BLOWER MOTOR (2)
2 - REAR A/C EVAPORATOR HOUSING
3 - SUPPRESSION FILTER WIRE CONNECTOR
4 - BLOWER MOTOR WIRE CONNECTOR
5 - REAR BLOWER MOTOR SUPPRESSION FILTER
6 - SEALER
7 - SCREW (5 PER MOTOR)

VA

DISTRIBUTION - REAR

24 - 59

PLUMBING
