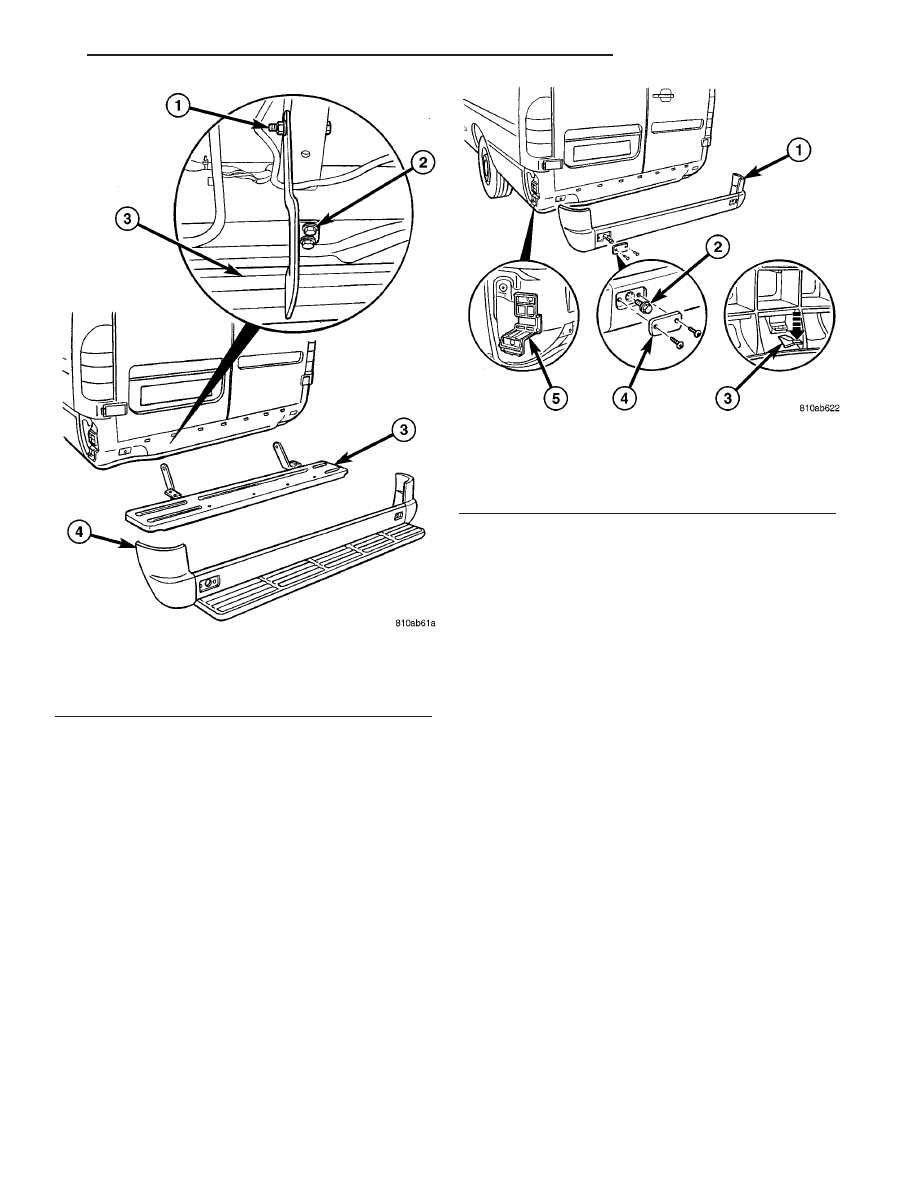

INSTALLATION (1) Install bumper step and install support bolts. (66 ft. lbs.). (4) Install fascia. (Refer to 13 - FRAME & BUMPERS/BUMPERS/REAR FASCIA - INSTALLA- REAR FASCIA REMOVAL (1) Remove screws and remove reflectors. (Fig. 4) end panel. (4) Press dowel pins out of and remove four plastic rivets connecting fascia to rear step, if equipped. (5) Separate the corners of the fascia from the sup- port brackets and remove fascia. INSTALLATION (1) Install fascia and seat the corners over the sup- port brackets. (2) Seat bumper support brackets clips below end panel firmly. (3) Install the four plastic rivets to the bumper step, if equipped. (4) Install fascia bolts and tighten to 23 N·m (17 ft. lbs.). (5) Install reflectors and reflector screws. FRAME SPECIFICATIONS SPECIFICATIONS - FRAME DIMENSIONS NOTE: Frame dimensions are listed in metric scale. VEHICLE PREPARATION Position the vehicle on a level work surface. Verti- cal dimensions can be taken from the work surface to Fig. 3 REAR BUMPER STEP 1 - FRAME BOLTS/NUTS (2) Fig. 4 REAR FASCIA 1 - FASCIA VA FRAME & BUMPERS 13 - 3 |
