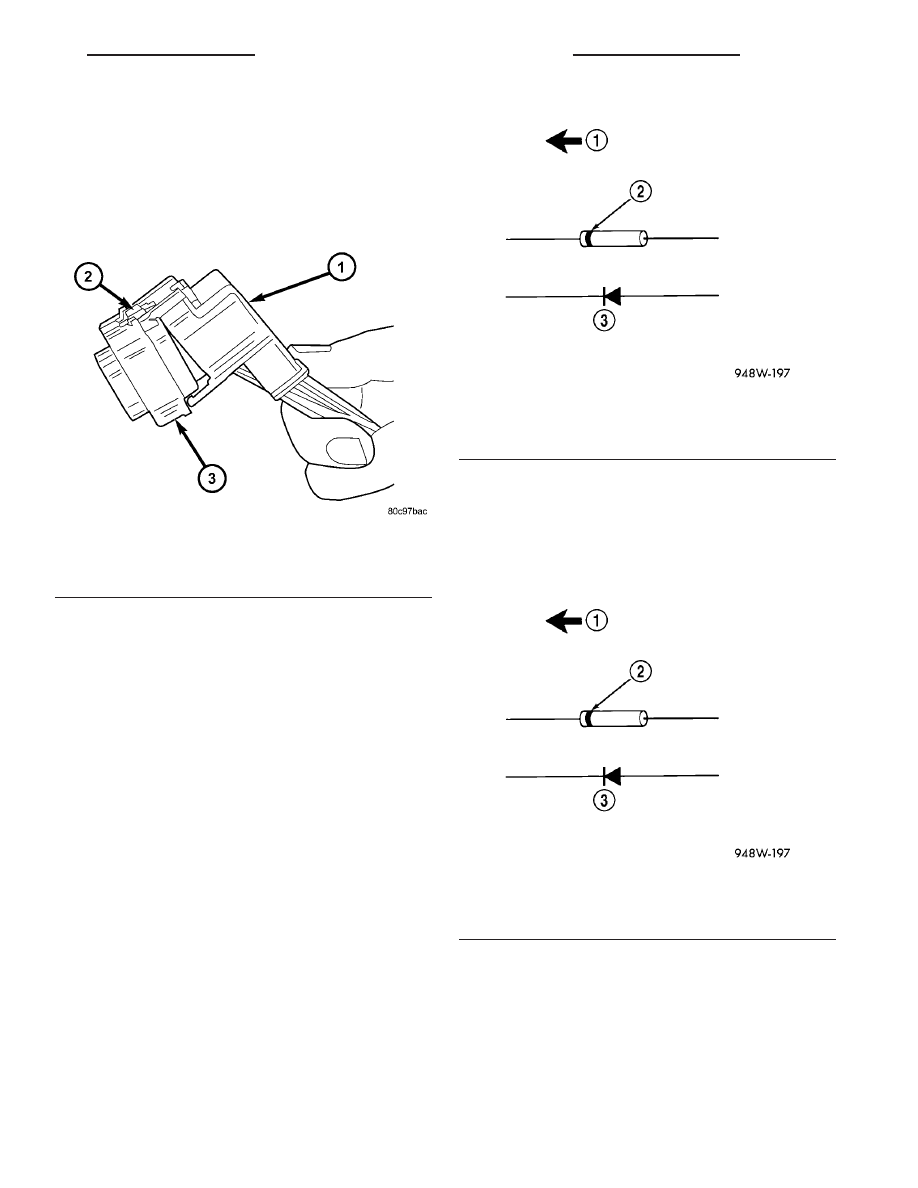

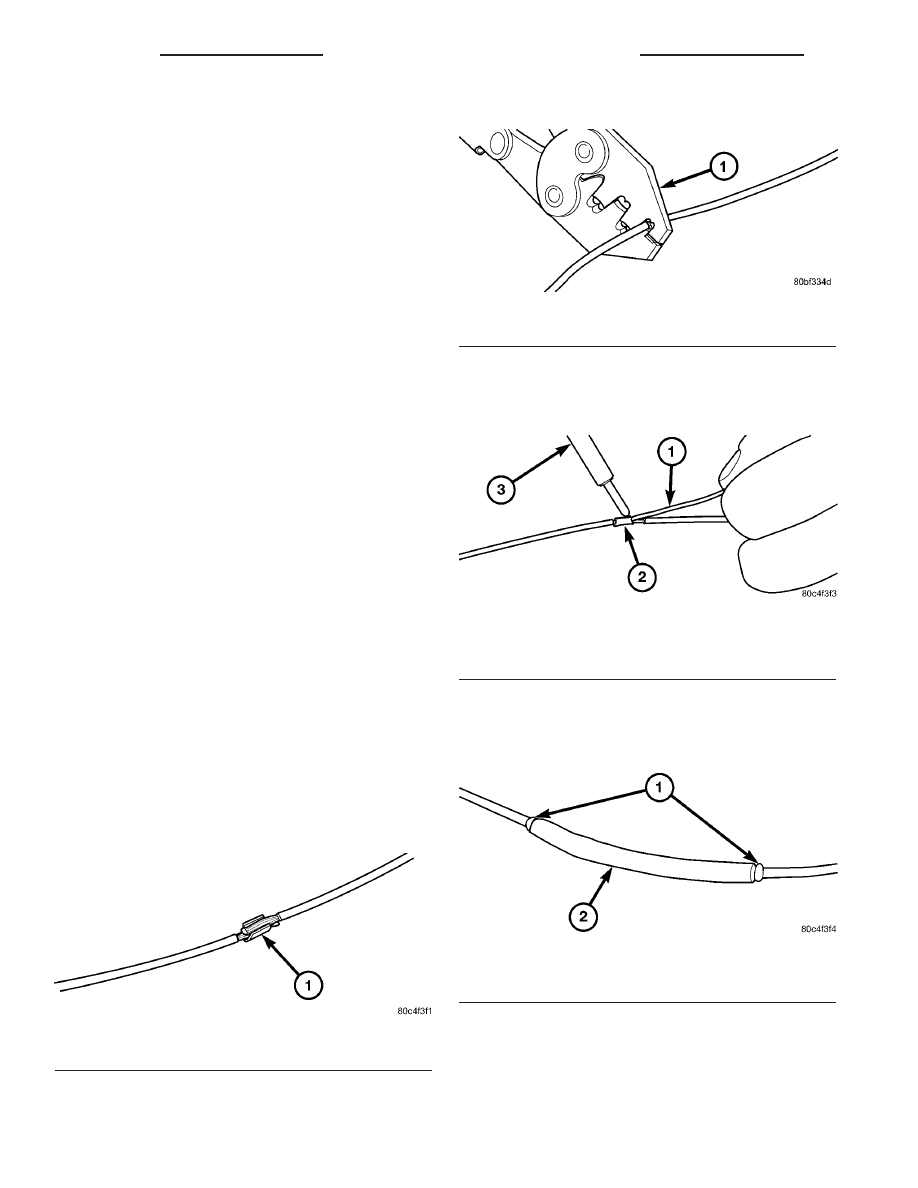

CONNECTOR REMOVAL (1) Disconnect battery. its mating half/component. (4) Remove the dress cover (if applicable) (Fig. 9). (5) Release the Secondary Terminal Lock, if required. (6) Position the connector locking finger away from the terminal using the proper special tool. Pull on INSTALLATION (1) Insert the removed terminal in the same cavity on the repair connector. (2) Repeat steps for each terminal in the connec- tor, being sure that all wires are inserted into the (3) When the connector is re-assembled, the sec- ondary terminal lock must be placed in the locked (4) Replace dress cover (if applicable). nent. (6) Connect battery and test all affected systems. DIODE REMOVAL (1) Disconnect the battery. the protective covering. (3) Remove the diode from the harness, pay atten- tion to the current flow direction (Fig. 10). INSTALLATION (1) Remove the insulation from the wires in the harness. Only remove enough insulation to solder in (2) Install the new diode in the harness, making sure current flow is correct. If necessary, refer to the (3) Solder the connection together using rosin core type solder only. Do not use acid core solder. (4) Tape the diode to the harness using electrical tape. Make sure the diode is completely sealed from (5) Re-connect the battery and test affected sys- tems. Fig. 9 REMOVAL OF DRESS COVER 1 - DRESS COVER Fig. 10 DIODE IDENTIFICATION 1 - CURRENT FLOW Fig. 11 Diode Identification 1 - CURRENT FLOW VA 8W-01 WIRING DIAGRAM INFORMATION 8W - 01 - 9 |
