(10) loosen the park brake adjuster to allow clear-

ance for the rotor removal (Fig. 25).

(11) Remove the rear disc brake rotor.

REMOVAL - FRONT (DRW)

(1) Raise and support the vehicle.
(2) Remove the front wheels.
(3) Remove the front brake pads (Fig. 26).
(4) Remove the caliper adapter (Fig. 26).
(5) Remove the wheel flange ring (Fig. 26).
(6) Install two lug studs to secure the disc brake

rotor when the locking bolt is removed.

(7) Remove the locking bolt for the disc brake rotor

(Fig. 26).

(8) Remove the two lug nuts.
(9) Remove the disc brake rotor (Fig. 26).

REMOVAL - REAR (DRW)

(1) Raise and support the vehicle.
(2) Remove the rear wheels.
(3) Remove the rear disc brake pads (Fig. 27).
(4) Remove the disc brake caliper adapter (Fig.

27).

(5) Apply the parking brake.
(6) Install two lug studs to secure the disc brake

rotor when the locking bolt is removed.

(7) Remove the wheel flange ring (Fig. 27).
(8) Remove the locking bolt for the disc brake rotor

(Fig. 27).

(9) Remove the two lug nuts.
(10) Release the parking brake.
(11) loosen the park brake adjuster to allow clear-

ance for the rotor removal (Fig. 27).

(12) Remove the rear disc brake rotor.

Fig. 25 REAR DISC BRAKE ROTOR

1 - M8 BOLT
2 - CALIPER ADAPTER
3 - DISC BRAKE ROTOR
4 - LOCKING BOLT
5 - DISC BRAKE PADS
6 - RATTLE SPRING
7 - DISC BRAKE CALIPER
8 - GUIDE BOLT
9 - COVER
10 - WEAR INDICATOR

Fig. 26 FRONT DISC BRAKE ROTOR WITH DUAL

REAR WHEELS

1 - ADAPTER BOLT
2 - ADAPTER
3 - GUIDE PIN/BOLT
4 - WEAR INDICATOR WIRE
5 - DISC BRAKE CALIPER
6 - DISC BRAKE PADS
7 - WHEEL FLANGE RING MOUNTING BOLT
8 - WHEEL FLANGE RING
9 - LOCKING BOLT
10 - DISC BRAKE ROTOR

VA

BRAKES - BASE

5 - 21

INSTALLATION

INSTALLATION - FRONT (SRW)

(1) Install the disc brake rotor to the hub and

install two lug studs to hold rotor in place.

(2) Install the locking bolt for the rotor (Fig. 24).

Tighten to 23 N·m (204 in. lbs.).

(3) Install the disc brake caliper adapter (Fig. 24).

Tighten to 170 N·m (125 ft. lbs.) (Refer to 5 -
BRAKES/HYDRAULIC/MECHANICAL/DISC
BRAKE CALIPER ADAPTER - INSTALLATION).

(4) Install the brake pads (Refer to 5 - BRAKES/

HYDRAULIC/MECHANICAL/BRAKE PADS/SHOES
- INSTALLATION) (Fig. 24).

(5) Press and release the brake pedal several times

until pressure has built up.

(6) Check fluid in reservoir and correct if neces-

sary.

(7) Install the front wheels (Refer to 22 - TIRES/

WHEELS/WHEELS - INSTALLATION).

(8) Lower the vehicle.

INSTALLATION - REAR (SRW)

(1) Install the disc brake rotor to the hub and

install two lug studs to hold rotor in place (Fig. 25).

(2) Apply the parking brake.
(3) Install the locking bolt for the rotor (Fig. 25).

Tighten to 23 N·m (204 in. lbs.).

(4) Install the disc brake caliper adapter (Fig. 25).

Tighten to 90 N·m (66 ft. lbs.) (Refer to 5 - BRAKES/

HYDRAULIC/MECHANICAL/DISC

BRAKE

CALI-

PER ADAPTER - INSTALLATION).

(5) Install the brake pads (Refer to 5 - BRAKES/

HYDRAULIC/MECHANICAL/BRAKE PADS/SHOES
- INSTALLATION) (Fig. 25).

(6) Release the parking brake.
(7) Adjust

the

parking

brake

(Refer

to

5

-

BRAKES/PARKING

BRAKE/SHOES

-

ADJUST-

MENTS).

(8) Press and release the brake pedal several times

until pressure has built up.

(9) Check fluid in reservoir and correct if neces-

sary.

(10) Install the rear wheels.
(11) Lower the vehicle.

INSTALLATION - FRONT (DRW)

(1) Install the disc brake rotor to the hub and

install two lug studs to hold rotor in place.

(2) Install the locking bolt for the rotor (Fig. 26).

Tighten to 23 N·m (204 in. lbs.).

(3) Install the disc brake caliper adapter (Fig. 26).

Tighten to 170 N·m (125 ft. lbs.) (Refer to 5 -
BRAKES/HYDRAULIC/MECHANICAL/DISC
BRAKE CALIPER ADAPTER - INSTALLATION).

(4) Install the wheel flange ring. Tighten to 180

N·m (133 ft. lbs.)

(5) Install the brake pads (Refer to 5 - BRAKES/

HYDRAULIC/MECHANICAL/BRAKE PADS/SHOES
- INSTALLATION) (Fig. 26).

(6) Press and release the brake pedal several times

until pressure has built up.

(7) Check fluid in reservoir and correct if neces-

sary.

(8) Install the front wheels (Refer to 22 - TIRES/

WHEELS/WHEELS - INSTALLATION).

(9) Lower the vehicle.

INSTALLATION - REAR (DRW)

(1) Install the disc brake rotor to the hub and

install two lug studs to hold rotor in place (Fig. 27).

(2) Apply the parking brake.
(3) Install the locking bolt for the rotor (Fig. 27).

Tighten to 23 N·m (204 in. lbs.).

(4) Install the disc brake caliper adapter (Fig. 27).

Tighten to 170 N·m (125 ft. lbs.) (Refer to 5 -
BRAKES/HYDRAULIC/MECHANICAL/DISC
BRAKE CALIPER ADAPTER - INSTALLATION).

(5) Install the wheel flange ring (Fig. 27) Tighten

to 200 N·m (148 ft. lbs.).

(6) Install the brake pads (Refer to 5 - BRAKES/

HYDRAULIC/MECHANICAL/BRAKE PADS/SHOES
- INSTALLATION) (Fig. 27).

(7) Release the parking brake.
(8) Adjust

the

parking

brake

(Refer

to

5

-

BRAKES/PARKING

BRAKE/SHOES

-

ADJUST-

MENTS).

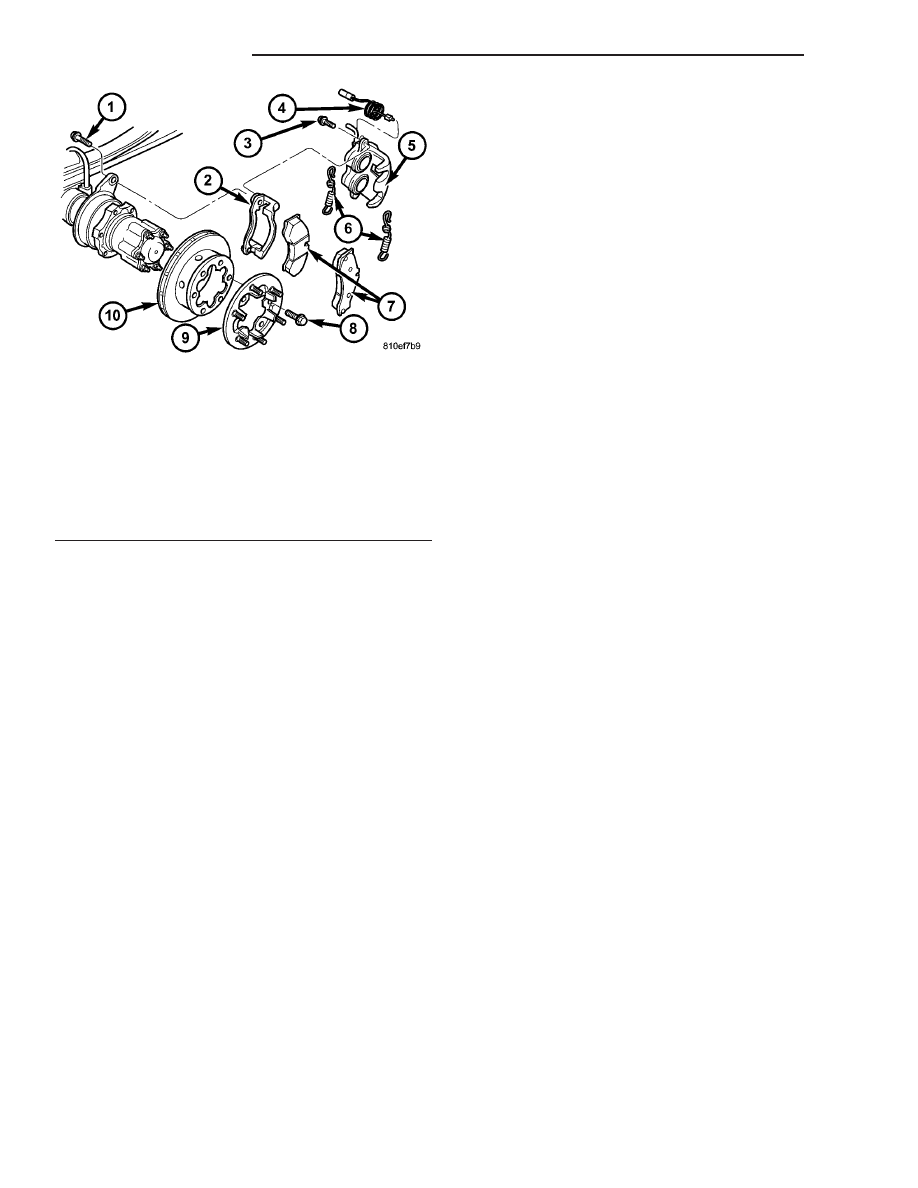

Fig. 27 REAR DISC BRAKE ROTOR WITH DUAL

REAR WHEELS

1 - ADAPTER BOLT
2 - ADAPTER
3 - GUIDE PIN/BOLT
4 - WEAR INDICATOR
5 - DISC BRAKE CALIPER
6 - RETAINING SPRING
7 - DISC BRAKE PADS
8 - WHEEL FLANGE RING MOUNITNG BOLT
9 - WHEEL FLANGE RING
10 - DISC BRAKE ROTOR

5 - 22

BRAKES - BASE

VA

(9) Press and release the brake pedal several times

until pressure has built up.

(10) Check fluid in reservoir and correct if neces-

sary.

(11) Install the rear wheels.
(12) Lower the vehicle.

SUPPORT PLATE

REMOVAL - REAR

(1) Raise and support the vehicle.
(2) Remove the disc brake caliper adapter (Refer to

5

-

BRAKES/HYDRAULIC/MECHANICAL/DISC

BRAKE CALIPER ADAPTER - REMOVAL).

(3) Remove the disc brake rotor (Refer to 5 -

BRAKES/HYDRAULIC/MECHANICAL/ROTORS

-

REMOVAL).

(4) Remove the rear park brake shoes (Refer to 5 -

BRAKES/PARKING BRAKE/SHOES - REMOVAL).

(5) Remove the park brake cable from he support

plate.

(6) Remove the rear axle bearing (Refer to 3 - DIF-

FERENTIAL

&

DRIVELINE/REAR

AXLE/AXLE

BEARINGS - REMOVAL).

(7) Remove brake support plate.

INSTALLATION - REAR

(1) Press the brake support plate with the axle

bearing onto the axle shaft (Refer to 3 - DIFFEREN-
TIAL & DRIVELINE/REAR AXLE/AXLE BEARINGS
- INSTALLATION).

(2) Install the park brake cable to the support

plate.

(3) Install the rear park brake shoes (Refer to 5 -

BRAKES/PARKING BRAKE/SHOES - INSTALLA-
TION).

(4) Install the disc brake rotor (Refer to 5 -

BRAKES/HYDRAULIC/MECHANICAL/ROTORS

-

INSTALLATION).

(5) Install the disc brake caliper adapter (Refer to

5

-

BRAKES/HYDRAULIC/MECHANICAL/DISC

BRAKE CALIPER ADAPTER - INSTALLATION).

(6) Adjust the rear park brake shoes (Refer to 5 -

BRAKES/PARKING

BRAKE/SHOES

-

ADJUST-

MENTS).

(7) Install the rear wheels (Refer to 22 - TIRES/

WHEELS/WHEELS - INSTALLATION).

PARKING BRAKE

SPECIFICATIONS

TORQUE CHART

TORQUE SPECIFICATIONS

DESCRIPTION

N·m

Ft. Lbs.

In. Lbs.

Pressure Transformer Unit

For Brake Cables To

Frame Crossmember

25

221

Hand Brake Lever To

Seat Frame

25

221

VA

BRAKES - BASE

5 - 23

SPECIAL TOOLS

PARK BRAKE

SPECIAL TOOL CROSS REFERENCE CHART

MB

TOOL #

MILLER
TOOL #

DESCRIPTION

116 589

01 62 00

9280

RETURN SPRING PULL-
ING HOOK

112 589

09 61 00

9281

RETAINING SPRING
TOOL

901 589

00 63 00

9289

RETAINING CLIP RE-
LEASE TOOL

CABLE TENSIONER

REMOVAL

NOTE: Observe the installation position of the
brake control cable lock, for a reference on instal-
lation.

(1) Open the brake control cable lock (Fig. 28).
(2) Press out the safety bolt and remove the brake

control cable lock (Fig. 28).

INSTALLATION

(1) Push the brake control cable lock onto the

brake cable (Fig. 28).

(2) Insert the safety bolt and snap shut the brake

control cable lock. Observe the installation posi-
tion of the brake control cable lock (Fig. 28).

CABLES

REMOVAL

REMOVAL - FRONT

(1) Raise and support the vehicle.
(2) Disconnect the front park brake cable from the

pulley unit.

(3) Remove the front park brake cable from the

hand brake lever (Fig. 29).

RETAINING CLIP RELEASE TOOL - 9289

RETAINING SPRING TOOL - 9281

RETURN SPRING PULLING HOOK - 9280

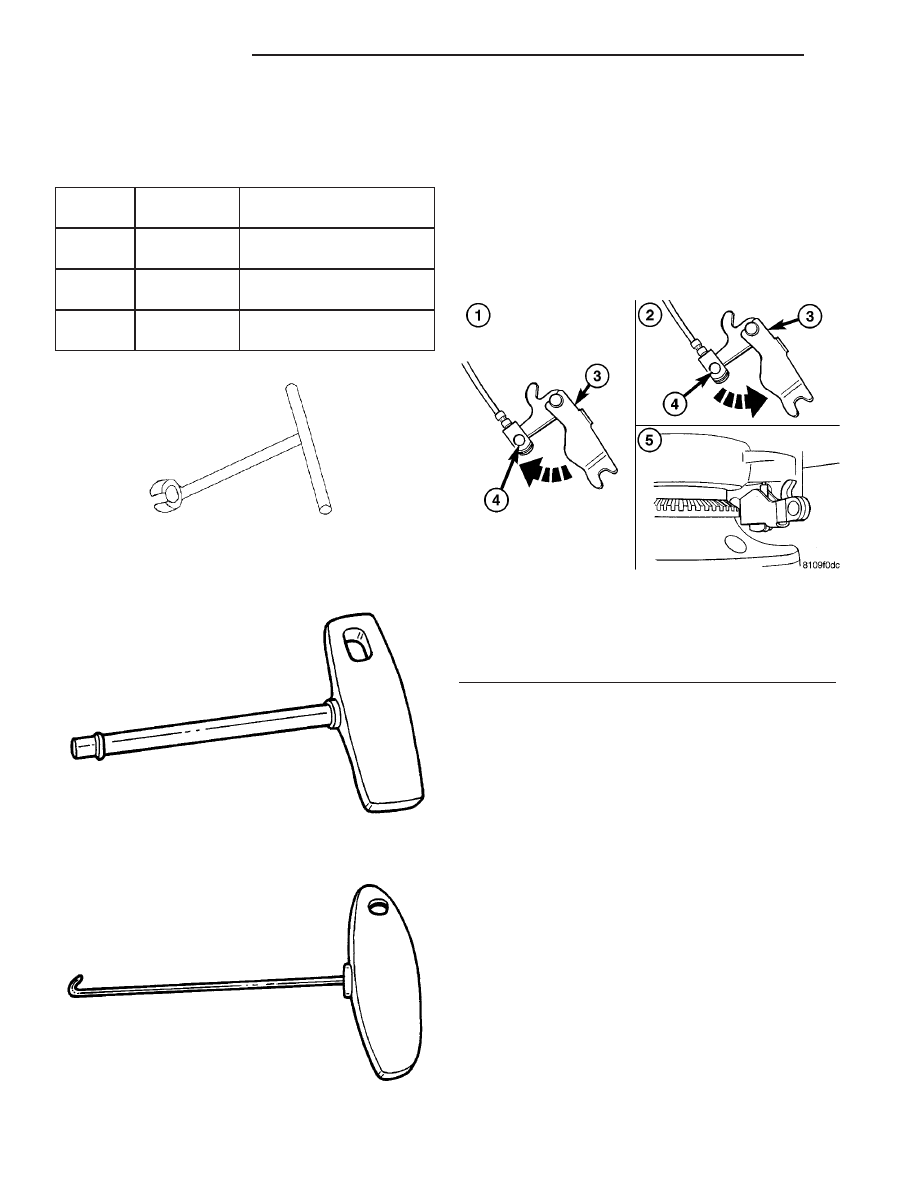

Fig. 28 CONTROL CABLE LOCK

1 - BRAKE CABLE CONTROL LOCK OPEN
2 - BRAKE CABLE CONTROL LOCK CLOSED
3 - BRAKE CONTROL CABLE LOCK
4 - SAFETY BOLT
5 - INSTALLATION POSITION OF BRAKE CONTROL CABLE
LOCK

5 - 24

BRAKES - BASE

VA
