Page 3

AH40.10-P-0001-01A

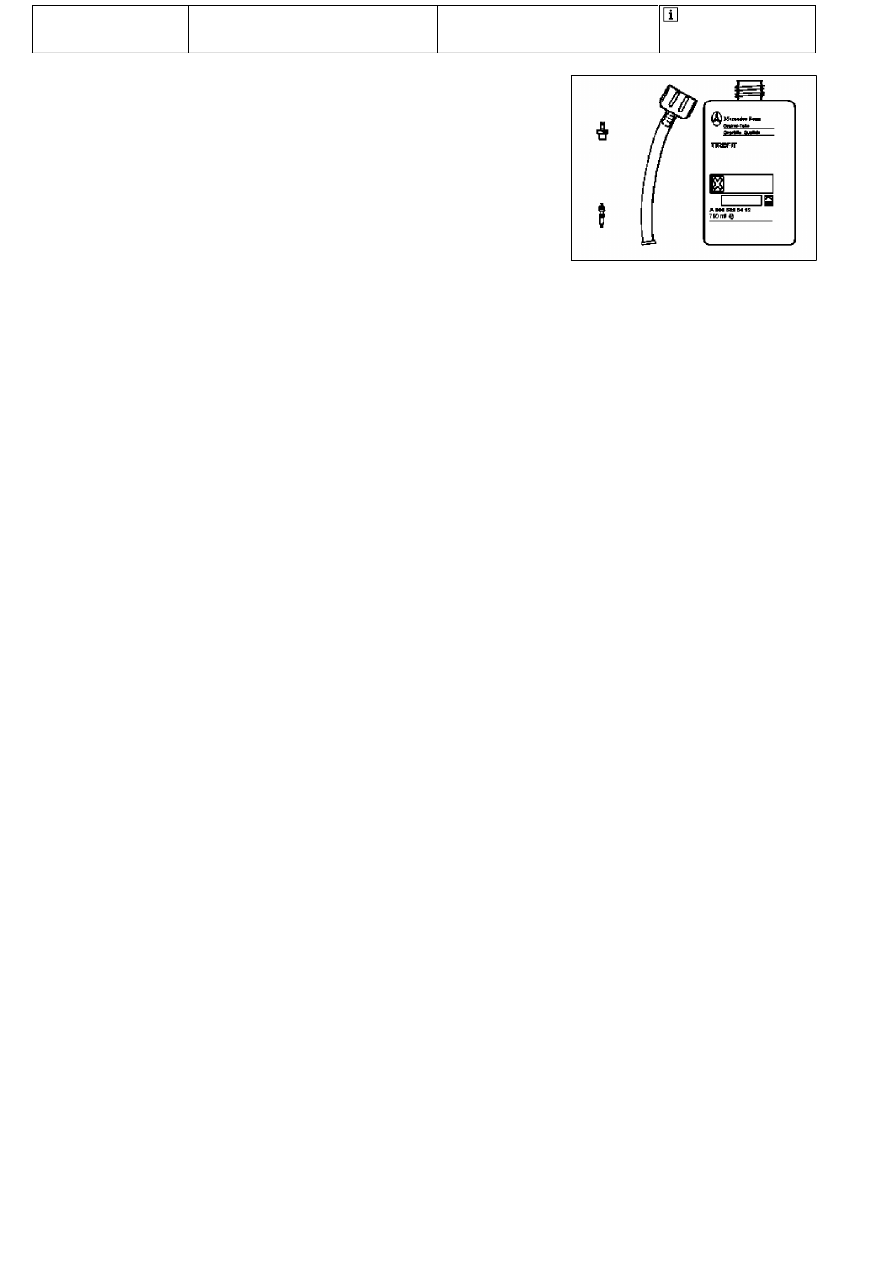

TIREFIT tire sealant

MODEL 163, 168, 169, 170, 171, 199,
203, 209, 211,215, 219, 230, 240, 414,
639



P40.10-0311-01

Note
TIREFIT tire sealant has a shelf life of 3 or 4 years depending on the version, measured from the
date of manufacture marked on the container. The TIREFIT tire sealant must be replaced after
this date.

Application
TIREFIT tire sealant can be used at the roadside to seal minor punctures, in particular in the
tread. After this the tire will be finitely operational.

F

Tires which have been treated with TIREFIT tire sealant must not be repaired. The should
be replaced with new tires of the same type and specifications from the same manufacturer.

F

To prevent odor emission by TIREFIT tire sealant, deflate tire outdoors.

F

The TIREFIT tire sealant must not come into contact with skin,
eyes or clothing. If tire sealant comes into contact with skin,
eyes or clothing, rinse immediately with clean water.
Call a physician immediately if allergic reactions occur.
Keep the TIREFIT tire sealant away from children. If TIREFIT
tire sealant is swallowed, induce vomiting and call a physician
immediately.

Regulations for disposal
Dispose of used or obsolete TIREFIT in a container designed for
paint shop waste (see Workshop Equipment Manual Volume 2,
Chapter U, Group 00 (22), Subject 2.3).
When using TIREFIT always avoid fire, open flames and smoking,
avoid arcing, and avoid inhaling the fumes fro the product.

Copyright DaimlerChrysler AG  06.07.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

AR01.20-P-5014-02A

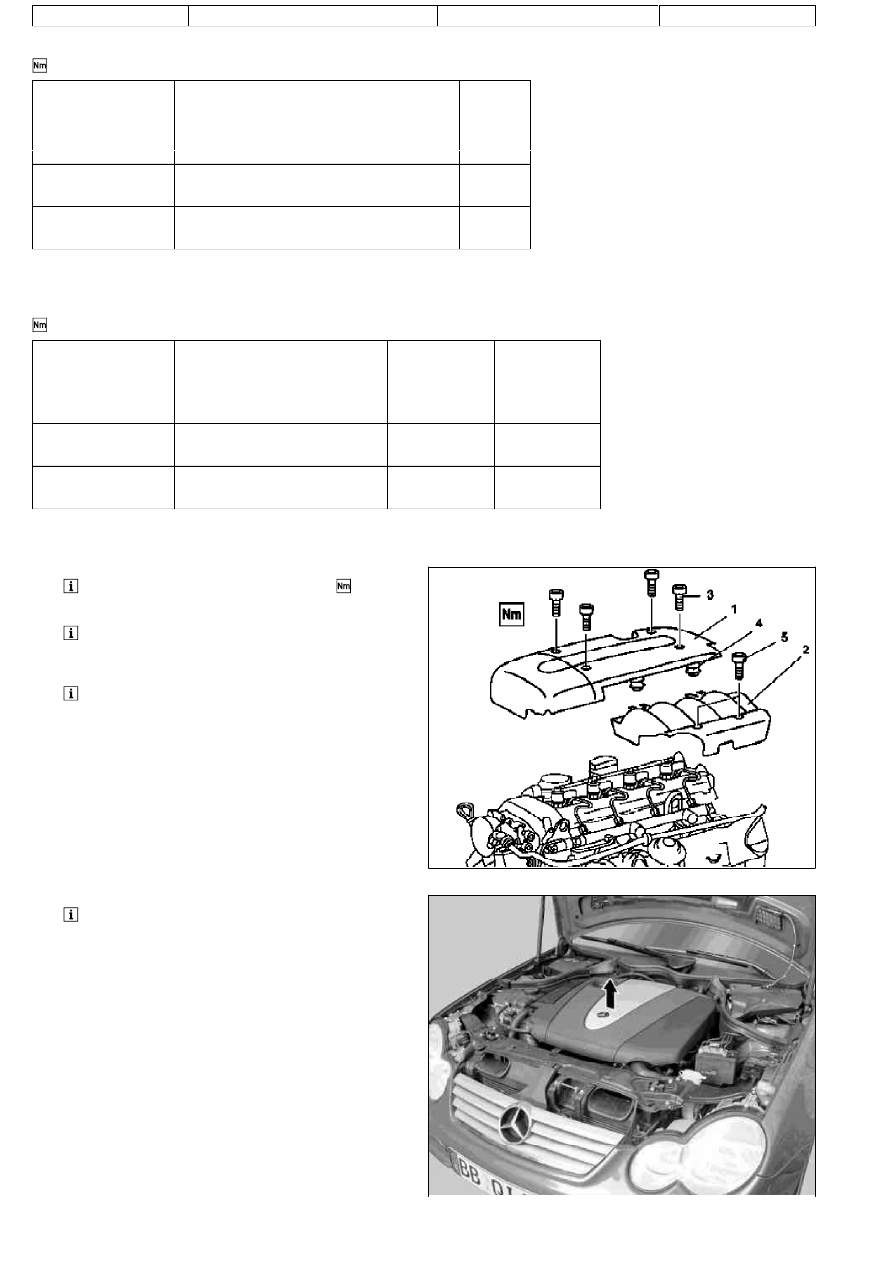

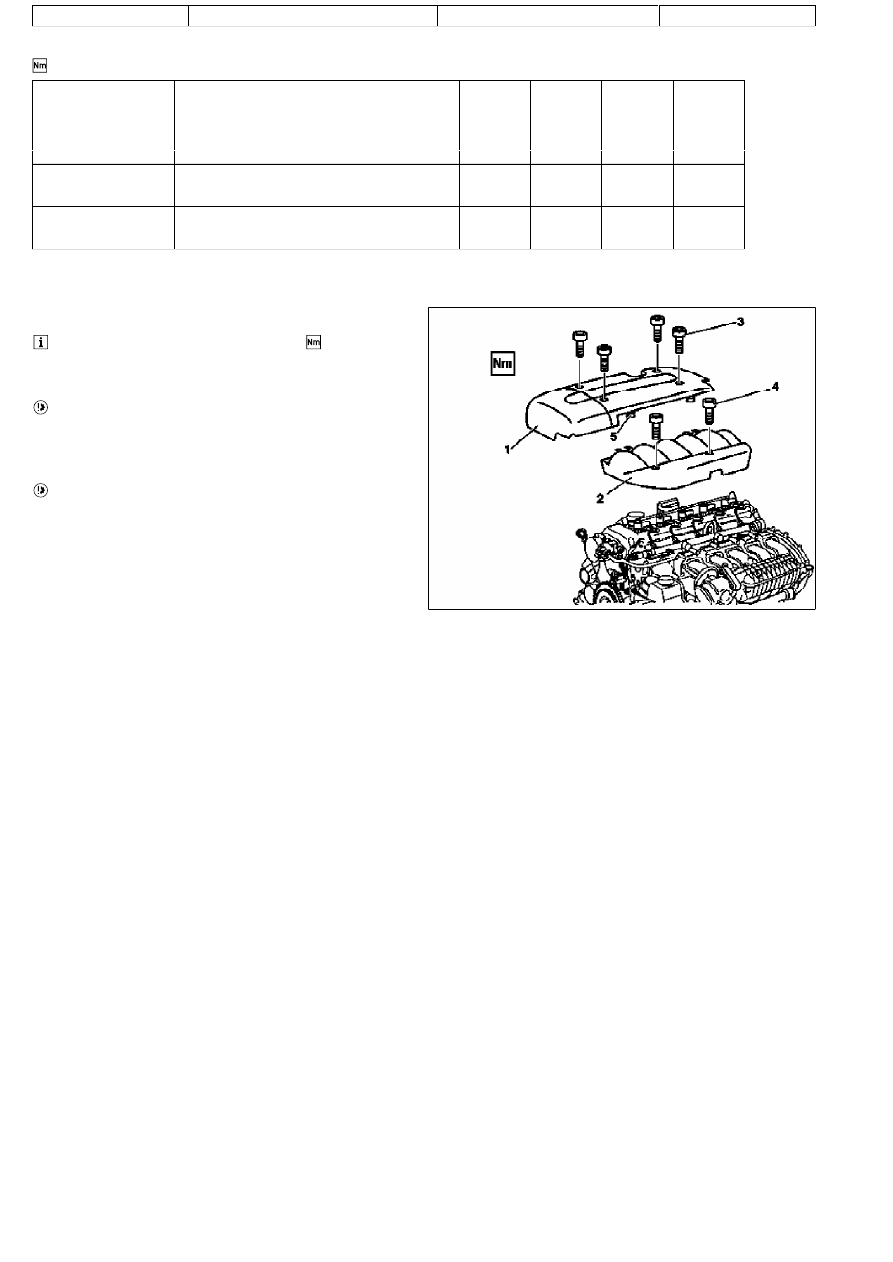

Remove/install cylinder head cover trim

 Crankcase ventilation, cylinder head cover

Number

Designation

Engine
611.960/
961/962

BA01.20-P-1002-01A

Screw of trim panel of cylinder head cover
to cylinder head cover

Nm

10

BA01.20-P-1003-01A

Screw attaching cover panel to charge air
distribution pipe

Nm

10

 Crankcase ventilation, cylinder head cover

Number

Designation

Engine
646.951/961,
647

Engine
646.962/963

BA01.20-P-1002-01G

Bolt, trim panel of cylinder
head cover to cylinder head

Nm

9

9

BA01.20-P-1003-01G

Bolt, cover to charge air
distribution pipe.

Nm

9

9

P01.20-0242-11

1

Unscrew bolts (3, 5).



Installation: Pay attention to tightening torques

.

2

Pull out trim panel (2) of charge air distribution pipe to the side.



Installation: Insert plates of trim panel (2) into the rubber

mounts (4).

3

Take off trim panel (1) of cylinder head cover.

 Installation: Ensure the trim panel (1) is correctly installed;

ensure no lines are trapped.

4

Install in the reverse order.

Shown on ENGINE 611.961

P01.00-2358-11

1

Unclip cover on left and right at top and remove (arrow)

 Installation: Ensure the trim panel is correctly installed;

ensure no lines are trapped.

2

Install in the reverse order.

Illustrated on model 646.962

Copyright DaimlerChrysler AG  28.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

AR01.20-P-5014-02B

Remove/install cylinder head cover trim

 Crankcase ventilation, cylinder head cover

Number

Designation

Engine
612.961/
962/967

Engine
612.963

Engine
612.965/
966

Engine
612.990

BA01.20-P-1002-01A

Screw of trim panel of cylinder head cover
to cylinder head cover

NM

10

10

10

8

BA01.20-P-1003-01A

Screw attaching cover panel to charge air
distribution pipe

NM

10

10

10

-

P01.20-2018-11

1

Unscrew bolts (3, 4).



Installation: Pay attention to tightening torques

.

2

Pull out trim panel (2) of charge air distribution pipe to the side.



Installation: Insert shackles of trim panel (2) into the rubber

mounts (5), so that the trim panel (2) is not damaged.

3

Take off trim panel (1) of cylinder head cover.

 Installation: Ensure the trim panel is correctly installed; ensure

no lines are trapped.

4

Install in reverse sequence.

Illustrated on Engine 612.961
