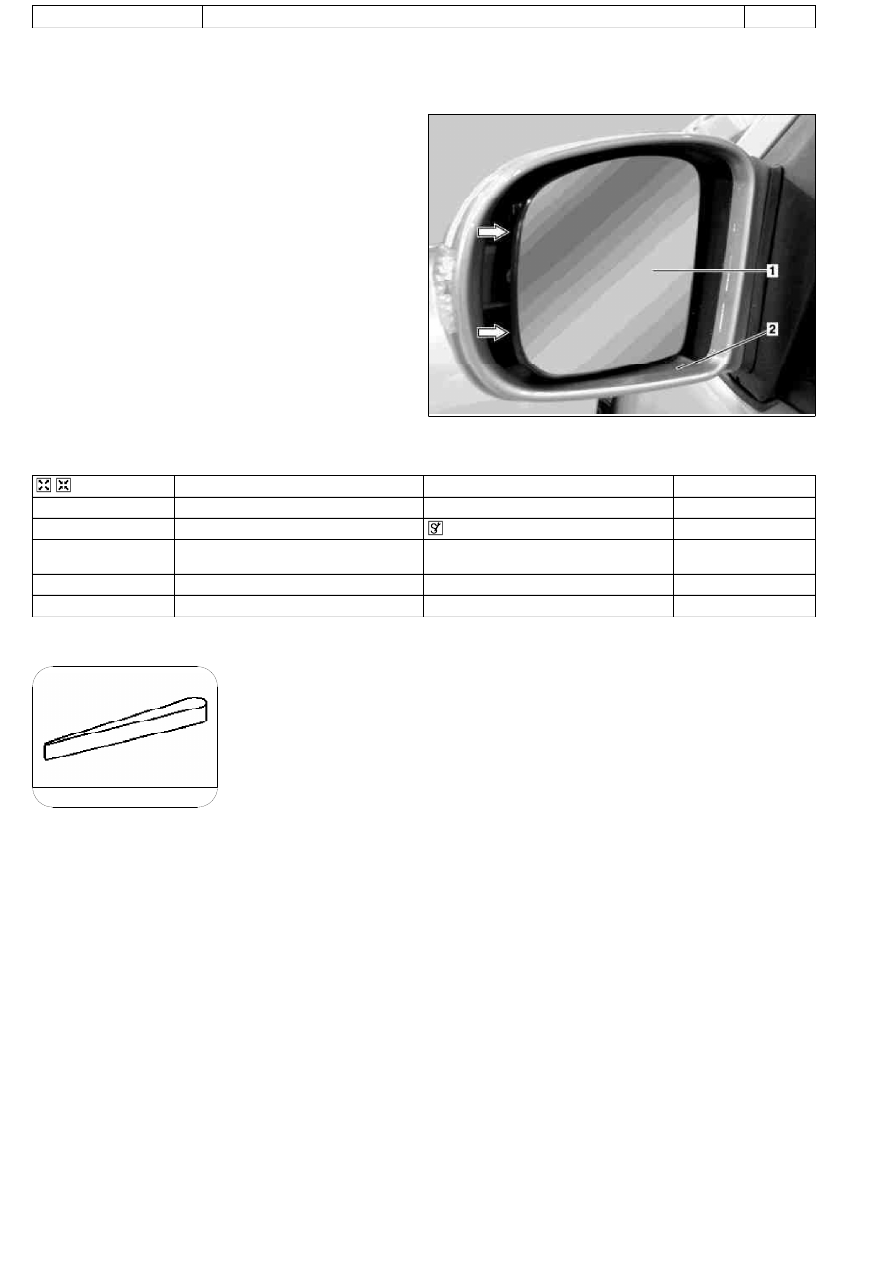

AR88.70-P-9040GI

Remove/install outside rearview mirror paneling

27.2.01

MODEL

163.113 /154 /174 #A as of 289565,

163.113 /154 /174 #X as of 754620,
163.128 /157 /175

P88.70-2107-11

1

Mirror glass

2

Outside rearview mirror paneling

Arrows

Retaining lugs



Remove/install

1

Adjust mirror glass (1) toward inside.

2

Loosen retaining lugs (arrows) in housing.

 Long wedge

*115589035900

3

Remove outside rearview mirror paneling (2)
toward outside.

4

Disconnect connector from turn signal lamp.

5

Install in the reverse order

Long wedge

115 589 03 59 00

Copyright DaimlerChrysler AG  04.08.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

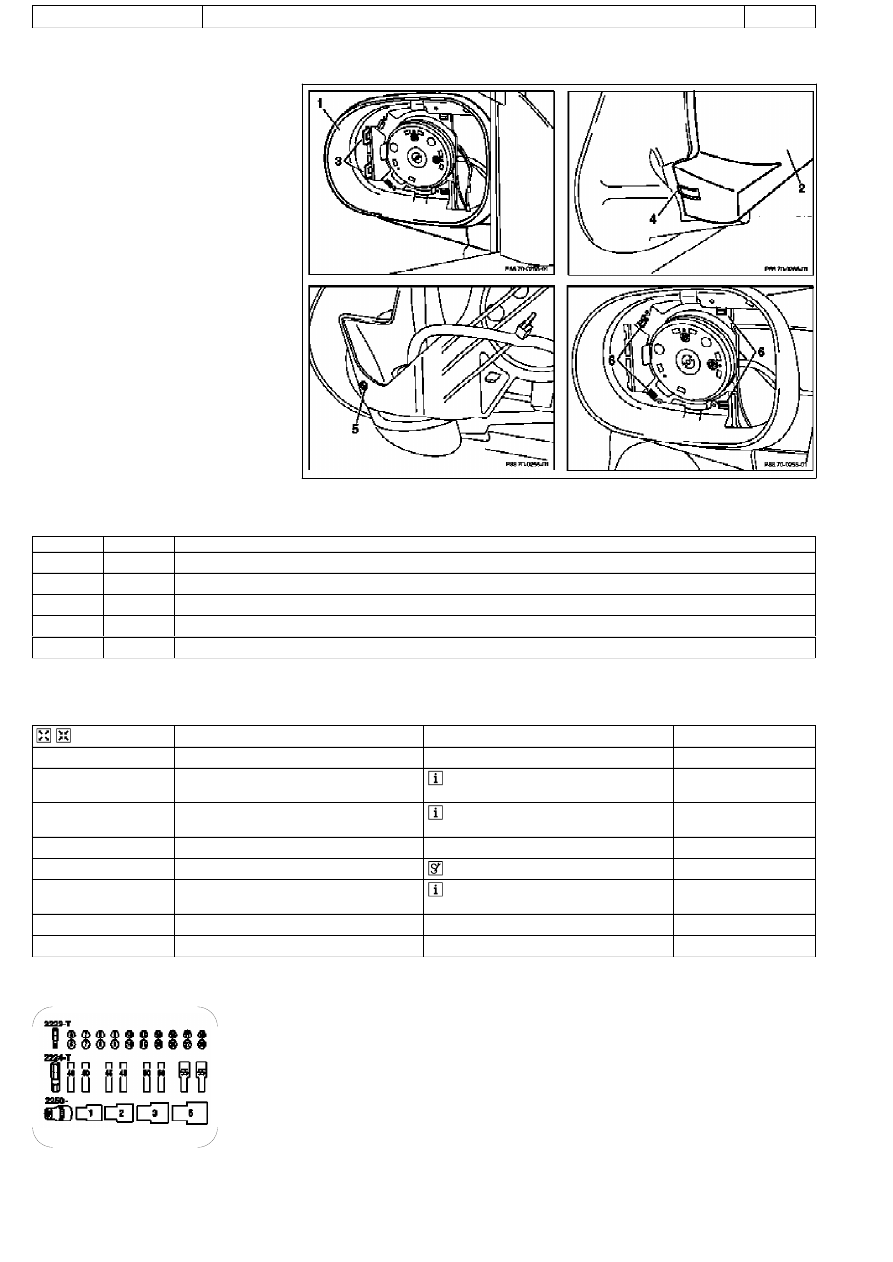

AR88.70-P-9040GH

Removing and installing outside rearview mirror cover

12.2.97

MODEL

163.113 /136 /154 /172 /174 up to 31.8.01

P88.70-0255-06

1

Frame

2

Mirror housing paneling

3

Catches in mirror housing

4

Outer catch

5

Bolt

6

Clips

Operation no. of operation texts or standard texts and flat rates

Range

Op. no.

Operation text

P

883424

REPLACING HOUSING FOR LEFT OUTSIDE REARVIEW MIRROR

P

883425

CONVERTING HOUSING FOR LEFT OUTSIDE REARVIEW MIRROR (MIRROR REMOVED)

P

883427

REPLACING HOUSING FOR RIGHT OUTSIDE REARVIEW MIRROR

P

883428

CONVERTING HOUSING FOR RIGHT OUTSIDE REARVIEW MIRROR (MIRROR REMOVED)

P

883430

REPLACING HOUSINGS FOR BOTH OUTSIDE REARVIEW MIRRORS



Remove/install

1

Remove mirror glass

AR88.70-P-9020GH

2

Release catch in mirror housing (3)

 Press mirror housing out of frame (1) with

slight pressure

3

Release paneling for mirror housing (2) from
frame (1)

 Outer catch (4) only accessible if mirror

housing is pivoted toward door

4

Remove mirror housing paneling (2)

5

Unscrew screw (5) from frame (1)

 Torx bit set

*000589011000

6

Unclip frame (1) from mirror actuator motor

 Pivot mirror housing back to initial

position. Unclip clips (6) from actuator motor.

6

Remove frame (1)

7

Install in the reverse order



Torx bit set

000 589 01 10 00

Copyright DaimlerChrysler AG  04.08.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

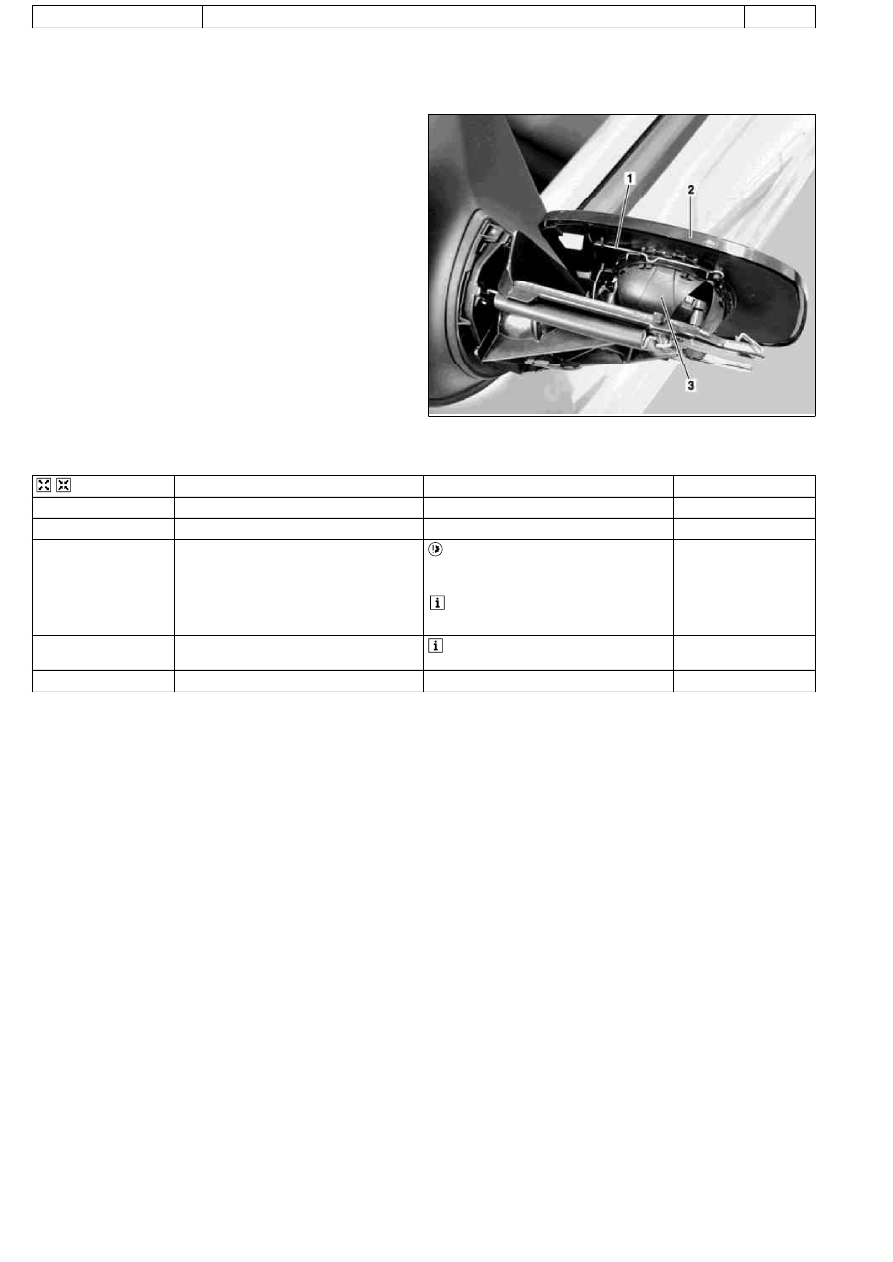

AR88.70-P-9020GI

Remove/install mirror glass

24.4.01

MODEL

163.113 /154 /174 #A as of 289565,

163.113 /154 /174 #X as of 754620,
163.128 /157 /175

P88.70-2126-11

1

Locking mechanism

2

Mirror glass

3

Housing



Removing and installing

1

Remove outside rearview mirror covering

AR88.70-P-9040GI

2

Open locking mechanism (1)

3

Separate mirror glass (2) from housing (3)

 Separate carefully to avoid braking

retaining clips.



Installation: Ensure that retaining clips

catch properly.

4

Disconnect electrical connectors from mirror
heater

 3 electrical connectors.

5

Install in the reverse order

Copyright DaimlerChrysler AG  04.08.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

GF54.30-P-4104A

Outside temperature display, location/function

8.7.99

MODEL

129

MODEL

140 as of 1.6.96

MODEL

170

MODEL

163, 202 with CODE (240a) Outside temperature display

MODEL

202 as of 1.8.96

MODEL

168

MODEL

208 up to 31.7.99,
210 as of 1.6.96 up to 30.6.99

To display the temperature, the outside temperature indicator
A1p4 requires:
D

the outside temperature

D

the speed signal

D

the engine running time

and
D

the coolant temperature (model 129, and model 140 as of
1.6.96, model 170, model 202 as of 08/96 and model 163,
model 168, model 210)

The outside temperature is determined by the outside temperature
indicator temperature sensor B14. The temperature sensor is
installed at the front left of the vehicle under the bumper and
connected to the instrument cluster A1 via the 21 or 25-pin
connector, coding part A terminal 1 and 2.

The speed signal, engine running time and engine temperature are
determined internally by the instrument cluster A1.

Since the outside temperature display depends on the speed, engine
running time and coolant temperature, high temperatures (influenced
by the heat generated by the engine, for example) are not displayed
when the vehicle is stationary or moving slowly.

Function, model 202 until 08/95
When the ignition is switched on and off and at speeds below approx.
20 km/h, the last temperature measured is stored and displayed.

If the measured outside temperature drops below the stored value,
the current measured temperature is displayed.
If the outside temperature rises above the stored value, the current
measured outside temperature is displayed only after the following
delays:

D

When the engine is not running, the current outside
temperature is only displayed after 6 times the engine running
time. For example, if the preceding running time was 5 minutes,
the current temperature is not displayed until after 30 minutes.
The maximum delay, however, is 1 hour.
Up to 09.94

D

At vehicle speeds between 20-60 km/h, outside temperatures
are displayed after a delay of approx. 5 min.

D

At vehicle speeds over 60 km/h, outside temperatures are
displayed after a delay of approx. 2 minutes.
As of 09.94

D

At vehicle speeds between 20-45 km/h, outside temperatures
are displayed after a delay of approx. 3 min.

D

At vehicle speeds over 45 km/h, outside temperatures are
displayed after a delay of approx. 1.5 min.

Function
Model 129, model 140 as of 1.6.96, model 170, model 202 as of
08/96, model 163, model 168, model 208 and model 210

D

When the ignition is turned on or off
and with an engine temperature < 60°C
the current temperature is always stored and displayed.

D

When the ignition is turned off
and with an engine temperature < 60°C
the temperature last measured is stored and displayed.

D

When the ignition is turned on
and when an engine temperature < 60(C
The stored temperature is displayed.

If the measured outside temperature drops below the stored value,
the current measured temperature is displayed.
If the outside temperature rises above the stored value, the current
measured outside temperature is displayed only after the following
delays:

D

When the engine is not running, the current outside
temperature is only displayed after 6 times the engine running
time. For example, if the preceding running time was 5 minutes,
the current temperature is not displayed until after 30 minutes.
The maximum delay, however, is 1 hour.

D

At vehicle speeds between 20-45 km/h, outside temperatures
are displayed after a delay of approx. 3 minutes.

D

At vehicle speeds above 45 km/h, outside temperatures are
displayed after a delay of approx. 1.5 minutes.
