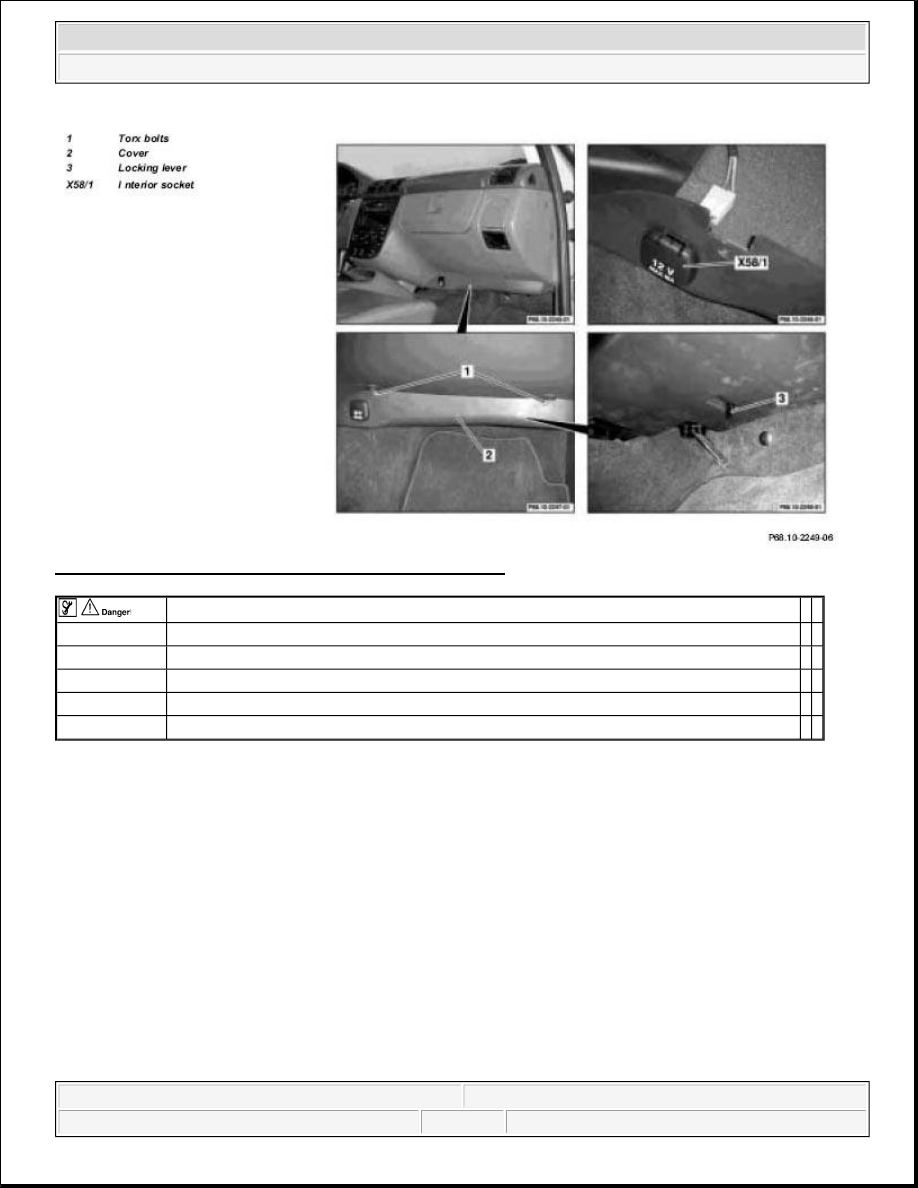

Fig. 27: Identifying Cover Below Instrument Panel (Right)

REMOVE/INSTALL STOWAGE COMPARTMENT OR BEVERAGE HOLDER - AR68.10-P-1600GH

MODEL 163.113 /128 /136 /154 /157 /172 /174 /175 driver's side

Instrument panel is illustrated disassembled for clarity.

Vehicles up to VIN A145272, X708318





Remove/Install



1

Unscrew Torx screws (1) form cover (2)



2

Fold locking lever (3) downward



3

Pull cover (2) downward and lay down



4

Disconnect electrical connector from interior socket (X58/1)



5

Install in the reverse order





2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis



me



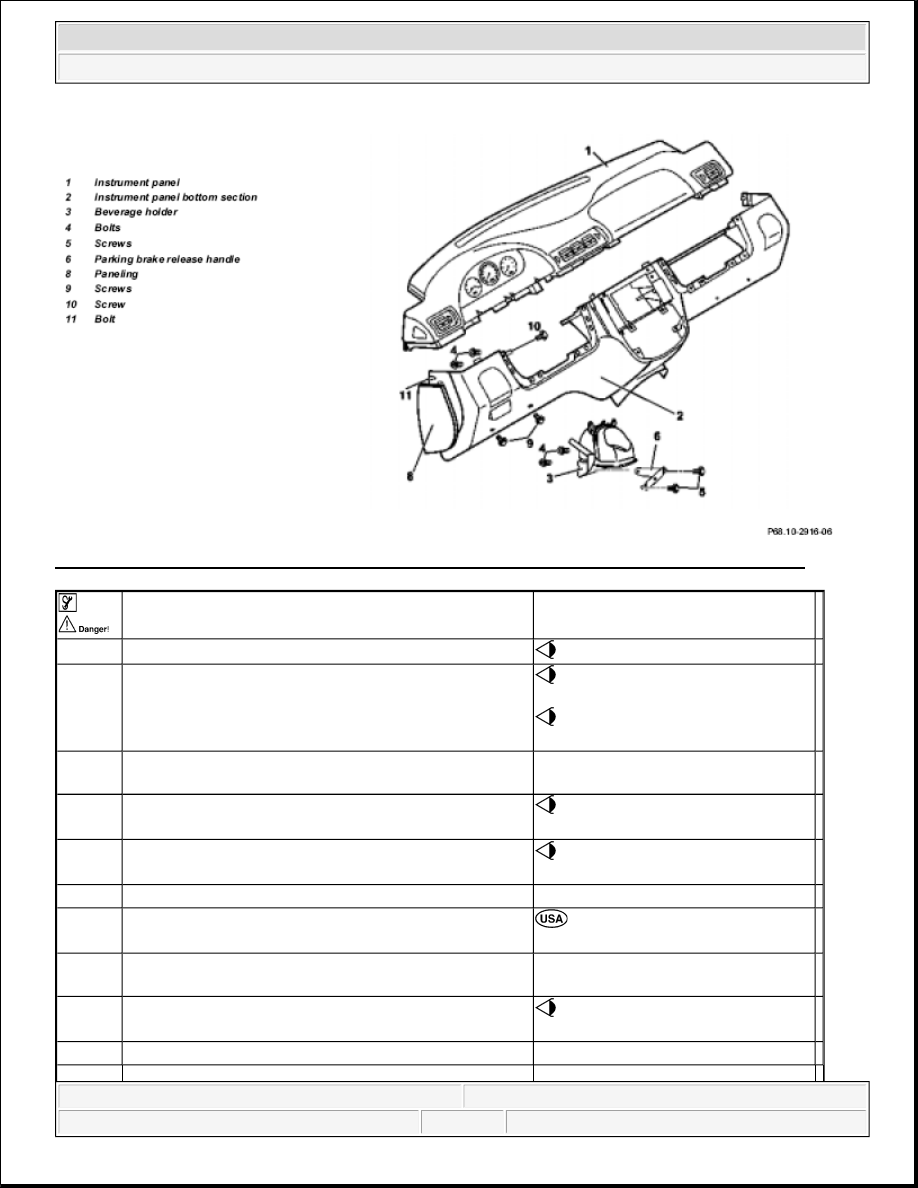

Fig. 28: Identifying Stowage Compartment Components (Driver's Side Vehicles Up To VIN A145272,
X708318)

Instrument panel is illustrated disassembled for clarity

Vehicles as of VIN A145273, X708319



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis



me



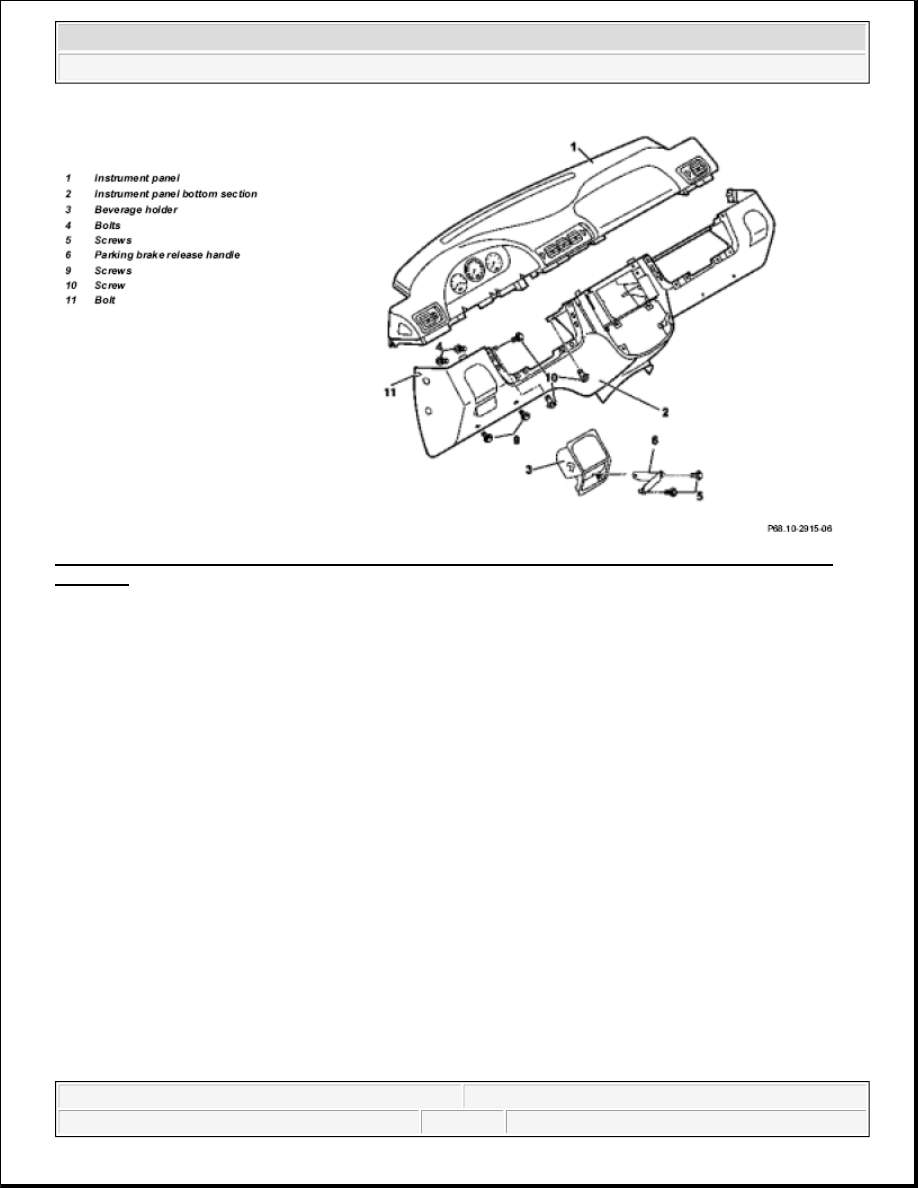

Fig. 29: Identifying Stowage Compartment (Driver's Side Vehicles As Of VIN A145273, X708319)





Remove/install





1

Remove left and right cover below instrument cluster

 Risk of breakage!



2

Unscrew bolt (10)

 Up to VIN A145272, X708318: 3

screws.

 As of VIN A145273, X708319: 1

screw.



3

Unscrew screws (9) from bottom side of instrument
panel





4.1

Remove entry lamp from bottom of instrument panel

 Only as of VIN A145273,

X708319.



5.1

Remove paneling (8)

 Only as of VIN A145273,

X708319.



6

Unscrew screw (11) from left side of instrument panel





7

Loosen instrument panel bottom (2) at side on
instrument panel (1) and pull downward

 Carefully pull downward to

prevent damaging instrument.



8

Unscrew screws (4) from beverage holder (3) at inside
of instrument panel bottom section (2)





9

Unscrew screws (5) at outside of instrument panel
bottom section (2)

 At parking brake release handle

(6).



10

Remove beverage holder (3)







2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis



me



REMOVE/INSTALL STOWAGE COMPARTMENT OR BEVERAGE HOLDER - AR68.10-P-1600GI

MODEL 163.113 /128 /136 /154 /157 /172 /174 /175 passenger side

Instrument panel is illustrated disassembled for clarity.

Vehicles up to VIN A145272, X708318

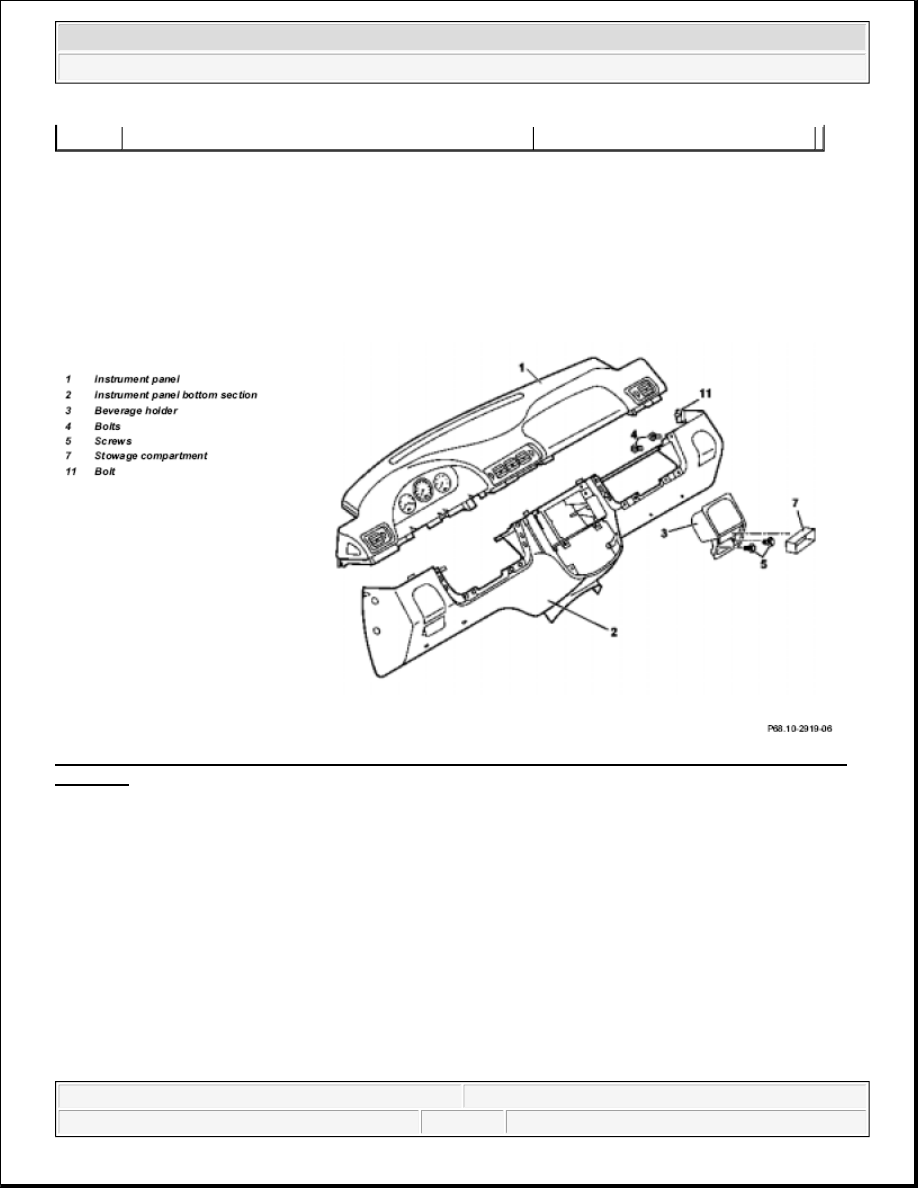

Fig. 30: Identifying Stowage Compartment Components (Passenger Side Vehicles Up To VIN A145272,
X708318)

Instrument panel is illustrated disassembled for clarity.

Vehicles as of VIN A145273, X708319

11

Install in the reverse order
