Mercedes-Benz ML320. Manual - part 691





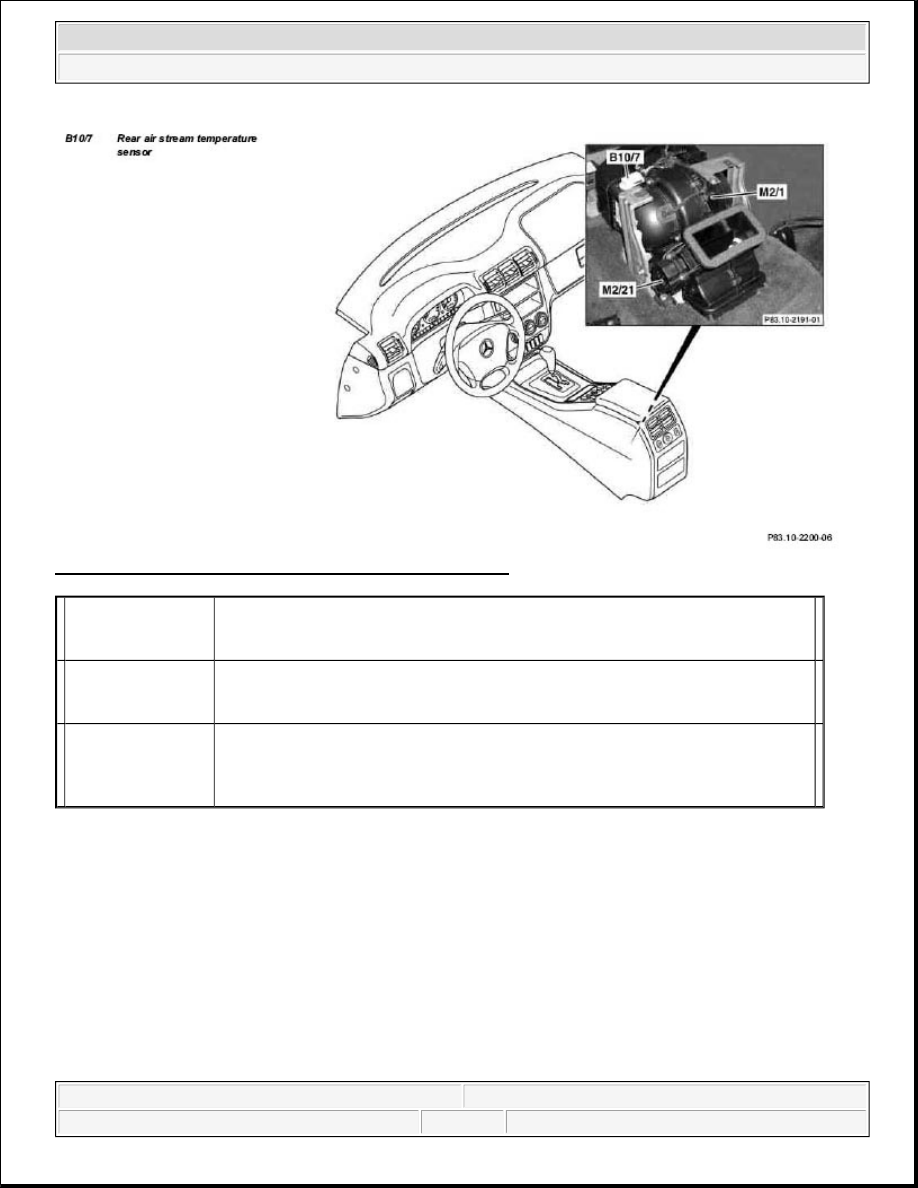

Fig. 128: Identifying Rear Air Stream Temperature Sensor

AMBIENT TEMPERATURE DISPLAY TEMPERATURE SENSOR, FUNCTION - GF83.57-P-2119-01GI

Function

The resistance of the ambient temperature display temperature sensor is dependent on the ambient temperature
and speed. The current resistance value is sent via the CAN data bus to the AAC push-button control module
(N22), which then slightly readjusts the set temperature.

The fact that the ambient temperature is dependent on the speed helps to prevent any excess temperature being
sent to the AAC push-button control module (N22) when the car is at a standstill or traveling slowly, e.g. as
induced by engine heat radiation.



Rear air stream
temperature sensor,
location

The rear air stream temperature sensor (B10/7) is located to the left of the rear
passenger compartment blower motor housing behind the rear nozzle.





Rear air stream
temperature sensor,
task

The rear air stream temperature sensor (B10/7) records the temperature of the air
flowing in the rear passenger compartment and sends it to the AAC push-button
control module (N22).





Rear air stream
temperature sensor,
function

The recorded temperature value for the rear ventilation air stream is compared by
the AAC push-button control module (N22) with the setting in the temperature
selector wheel and authorizes a corresponding adjustment to the blending air flap
to be made depending upon the result.





2001 Mercedes-Benz ML320

1998-2005 HVAC Climate Control - 163 Chassis



me



When switching the ignition on or off and at speeds of less than 20 km/h the last measured temperature value is
used.

At ignition OFF, the last ambient temperature used for the control operation is stored.

AMBIENT TEMPERATURE DISPLAY TEMPERATURE SENSOR, LOCATION/TASK/FUNCTION - GF83.57-P-2119GI

MODEL 163 as of 1.9.01 with CODE (580a) Automatic air conditioning

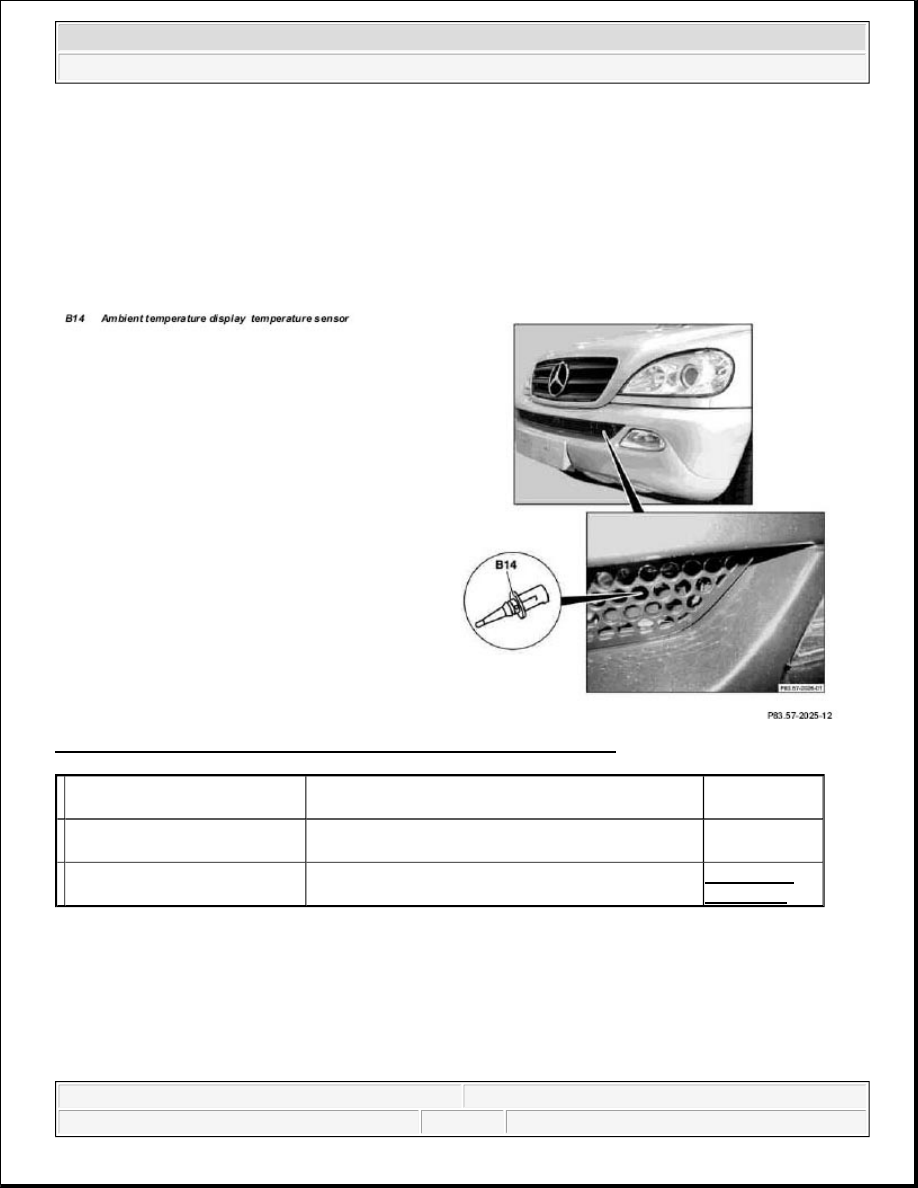

Fig. 129: Identifying Ambient Temperature Display Temperature Sensor

RESIDUAL ENGINE HEAT UTILIZATION SYSTEM, FUNCTION - GF83.75-P-2000GI

MODEL 163 as of 1.9.01 with CODE (580a) Automatic air conditioning

Function

The residual engine heat utilization system allows the vehicle to be heated even when the ignition is switched



Ambient temperature display
temperature sensor, location

The ambient temperature display temperature sensor
(B14) is located on the front left side of the bumper.





Ambient temperature display
temperature sensor, task

The ambient temperature display temperature sensor
(B14) determines the ambient temperature.





Ambient temperature display
temperature sensor, function



GF83.57-P-
2119-01GI



2001 Mercedes-Benz ML320

1998-2005 HVAC Climate Control - 163 Chassis



me



OFF . To this end the system uses the residual heat of the engine. The residual engine heat is dissipated to the
coolant and routed through the heat exchanger with the aid of the heating water circulation pump. The air drawn
in by the blower motor is routed around the heat exchanger, whereby it is then warmed up. The heated air is
then routed over the air outlets into the passenger compartment.

The residual engine heat utilization system can only be used when the ignition is switched OFF.

Once the Rest push-button  (



)  on the AAC push-button control module (N22) has been pressed the

following program sequence is run:

Blending air flaps are automatically controlled

Heating water circulation pump ON

The blower's control voltage is limited to a maximum value of 5 Volt.

End of program

Pressing the Rest push-button (

 )

Timeout of 30 minutes period (repeated operation possible)

Protection against undervoltage at a battery voltage of less than 11 V (LED flashes)

Ignition ON

 During the residual engine heat utilization function no function keys are accepted apart from the Rest push-

button (

 ) and the set point adjusters.

SAFETY PRECAUTIONS

RISK OF EXPLOSION CAUSED BY WELDING OR SOLDERING WORK ON CLOSED AIR CONDITIONING SYSTEM.
RISK OF POISONING CAUSED BY INHALING OVERHEATED REFRIGERANT VAPORS. RISK OF INJURY TO SKIN AND
EYES CAUSED BY CONTACT WITH LIQUID REFRIGERANT. - AS83.00-Z-0001-01A

Never perform welding work on or near a closed air conditioning system. No smoking or open flames.
Wear safety glasses and protective gloves. Work only in well ventilated areas. Carry out repair work on
the air conditioning system circuit only after the system has been discharged.

Potential risks

Risk of explosion

When closed air conditioning systems (charged or empty) become heated, high pressures are produced that can

  Rest push-button, location/task/function

  GF83.40-P-2148GI

  Heating water circulation pump, location/task/ function

  GF83.20-P-2109GI

  Heating system heat exchanger, location/ purpose/function

  GF83.20-P-2108GC

  Blower motor, location/task/design/function

  GF83.10-P-2170GI

  Blending air flap actuator, location/task/function

  GF83.57-P-2112GI



2001 Mercedes-Benz ML320

1998-2005 HVAC Climate Control - 163 Chassis



me



ultimately cause the system to burst. For this reason, all welding and soldering operations on or near closed
air conditioning systems are prohibited. High pressure levels can combine with refrigerant vapors to produce a
mixture that is potentially explosive when exposed to atmospheric air.

Risk of poisoning

Refrigerant can decompose when overheated. The resulting substances are toxic and should never be inhaled.

Risk of injury

Refrigerant vapors are heavier than air; this means that escaping gases pose a risk of suffocation for anyone in a
work pit beneath the vehicle.

Contact with liquid refrigerant may cause chilblain-like damage to the skin (due to under-cooling).

Safety instructions/precautions

All welding, brazing and soldering operations on sealed air conditioning systems and in their
immediate vicinity are prohibited.

Never smoke when working with refrigerant, never expose refrigerant to open flames.

A piercing odor can indicate overheated refrigerant - never inhale these vapors. Leave closed rooms
immediately and ventilate thoroughly.

All refrigerant must be evacuated from the entire air conditioning system prior to doing any repair work
on the air conditioning circuit or components.

Because it poses a hazard to the atmosphere as well as to personal health and safety, discharging
refrigerant directly into the air is prohibited.

Suitable evacuation, treatment and charging devices equipped with integral disposal and treatment
facilities must be used for evacuating refrigerant.

Even after the system has been evacuated, residual pressure may still be present in the system when
loosening couplings. Therefore, loosen the couplings carefully, so that the pressure can dissipate slowly.

Avoid all contact with liquid refrigerant.

Always wear safety glasses and protective gloves when working with refrigerant.

First aid measures

In case of eye contact

Immediately flush with plenty of running water and consult a physician.

In case of skin contact

Consult a physician immediately in case of frostbite. In case of inhalation

of concentrated refrigerant, immediately take victim out into the fresh air and keep victim calm.



2001 Mercedes-Benz ML320

1998-2005 HVAC Climate Control - 163 Chassis



me
