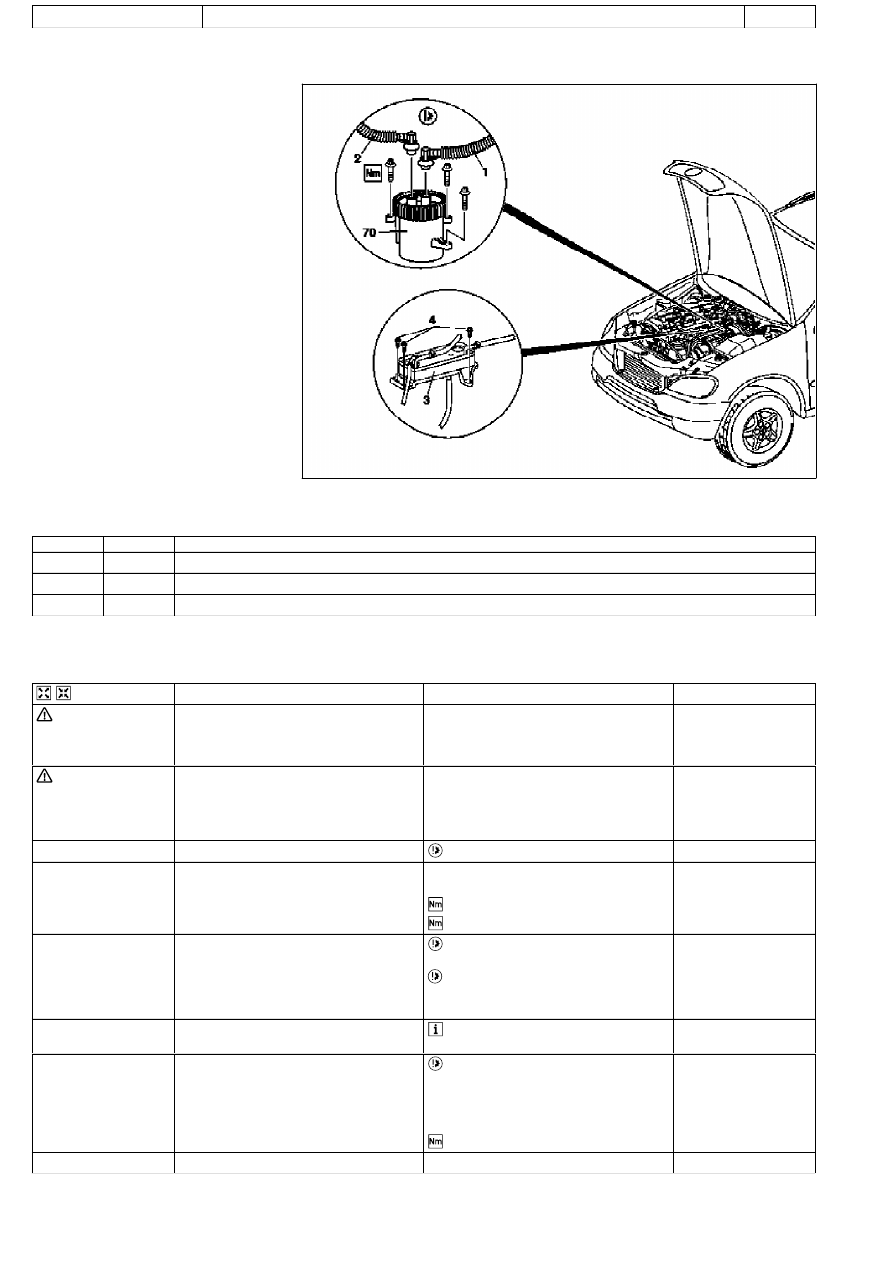

AR47.20-P-1070M

Removing and installing fuel full-flow filter

24.8.99

ENGINE

612.963 in MODEL 163.113

P47.20-2043-06

1

Fuel feed line

2

Fuel return flow line

3

Fuel cooler

4

Bolts of fuel cooler

70

Fuel full-flow filter

Operation no. of operation texts or standard texts and flat rates

Sector

Op. no.

Operation text

P

075560

REMOVING AND INSTALLING FUEL FULL-FLOW FILTER

P

075563

REPLACING FUEL FULL-FLOW FILTER

P

075564

REPLACING FUEL FULL-FLOW FILTER (AFTER INSPECTING)



Removing, installing

 Danger!

Risk of injury from fingers being jammed or
bruised when removing or installing and
aligning hood, doors, trunk lid/tailgate or
sliding roof

Ensure that no parts of your body or limbs are
within the operating range when moving such
components.

AS00.00-Z-0011-01A

 Danger!

Risk of explosion as a result of fuel vapors
igniting. Risk of poisoning as a result of
inhaling fuel vapors. Risk of injury as a
result of fuel coming into contact with skin
and eyes.

No fire, naked flame or smoking.
Pour fuels only into suitable and appropriate
marked containers.

Wear protective clothing when handling fuel.

AS47.00-Z-0001-01A

1

Open hood and raise to vertical position



Have assistant secure hood.

AR88.40-P-1000GI

2

Remove trim panel of charge air distribution
pipe

AR01.20-P-5014-02B

*BA01.20-P-1002-01A

*BA01.20-P-1003-01A

3

Disconnect fuel lines (1, 2) at fuel full-flow
filter (70)



Collect fuel which flows out.

 Pay attention to use of locking arm. See:

#

Disconnecting and connecting fuel lines at
engine.

AR47.25-P-1000-01A

4

Take off fuel cooler (3)

 Take off only the bolts (4) and raise fuel

cooler slightly.

5

Remove fuel full-flow filter (70)



Collect fuel which flows out.

Installation: If the fuel full-flow filter has been
drained, it must be filled with fuel after being
installed and before starting the engine to
ensure engine starts properly.

*BA47.20-P-1001-02A

6

Install in the reverse order

Copyright DaimlerChrysler AG  28.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

 Danger!

Risk of accident as a result of vehicle
starting off when engine running. Risk of
injury as a result of bruises and burns if you
insert your hands into engine when it is being
started or when it is running.

Secure vehicle to prevent it starting off.
Wear closed and close-fitting work clothes.
Do not grasp hot or rotating parts.

AS00.00-Z-0005-01A

7

Run engine and inspect fuel system for leaks

 Crankcase ventilation, cylinder head cover

Number

Designation

Engine
612.963

BA01.20-P-1002-01A

Screw of trim panel of cylinder head cover
to cylinder head cover

Nm

10

BA01.20-P-1003-01A

Screw of trim panel of charge air distribution
pipe to charge air distribution pipe

Nm

10



Fuel filter

Number

Designation

Engine
612.961/
963

BA47.20-P-1001-02A

Bolt of fuel filter to charge air distribution pipe

Nm

14

Copyright DaimlerChrysler AG  28.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 2

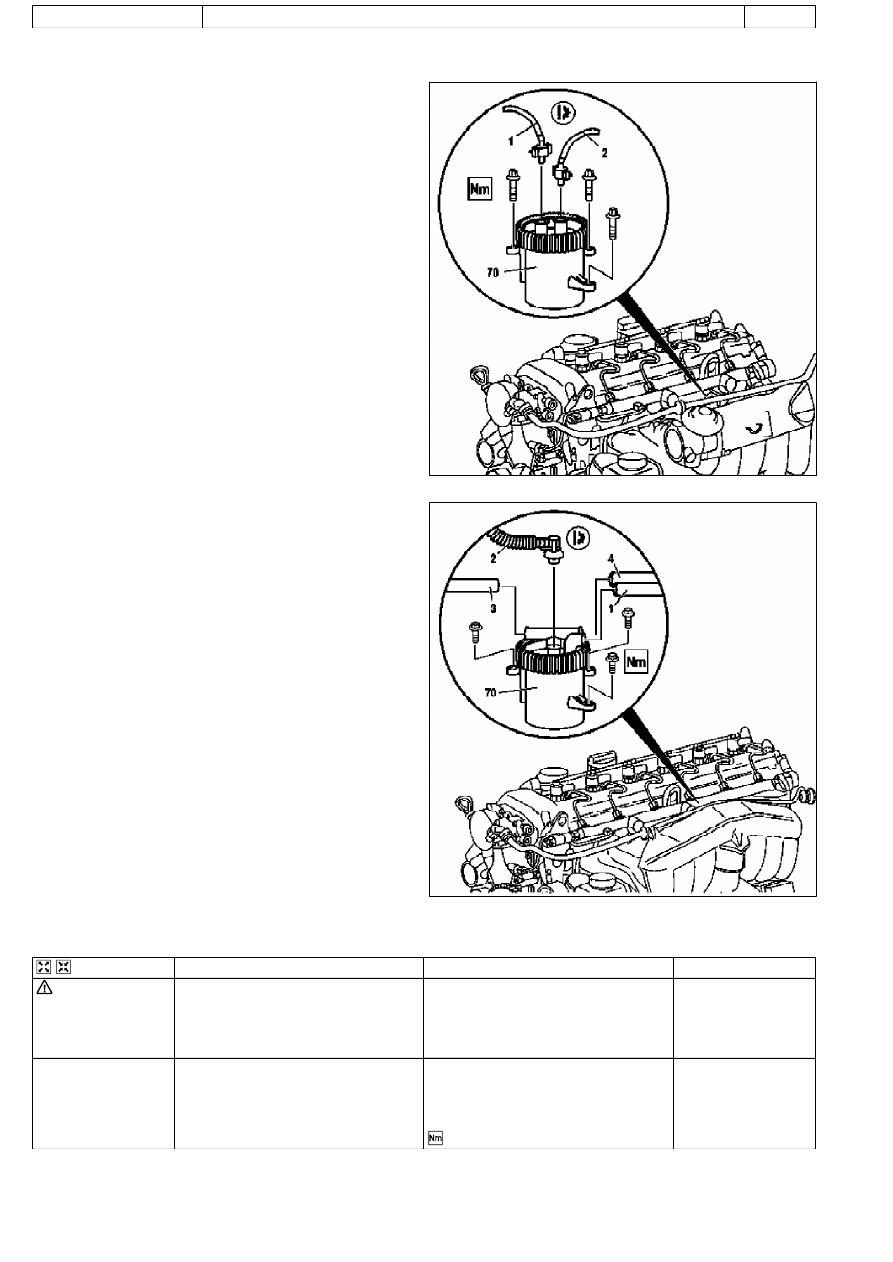

AR47.20-P-1070HB

Remove/install fuel full-flow filter

21.11.97

ENGINE

611.960 /961 /962, 612.961 /963, 613.960 /961

P07.57-0222-12

Shown on Engine 611.960

1

Fuel outlet line

2

Fuel feed line

70

Fuel full-flow filter

P47.20-2024-12

Illustrated on Engine 613.961

1

Fuel feed line of fuel tank

2

Fuel feed line to predelivery pump

3

Fuel return line from rail

4

Fuel return line to fuel cooler (fuel tank)

70

Fuel full-flow filter



Remove/install



Danger!

Risk of explosion due to combustion, Risk
of poisoning due to inhalation and
swallowing of fuel Injury hazard due to skin
and eye contact with fuel

Fire, sparks, open flames or smoking
forbidden.
Pour fuels only into suitable and appropriately
marked containers.

Wear protective clothing when handling fuel.

AS47.00-Z-0001-01A

1

Remove trim panel of charge air distribution
pipe

Engine 611

AR01.20-P-5014-02A

Engine 612

AR01.20-P-5014-02B

Engine 613

AR01.20-P-5014-02C

*BA01.20-P-1003-01A

Copyright DaimlerChrysler AG  28.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

2.1

Disconnect fuel lines (1,2) at main fuel filter
(70)

Engine 611



Collect escaping fuel.

 Pay attention to use of locking arm. Refer

to:

#

Separate fuel lines from engine, reconnect

AR47.25-P-1000-01A

2.2

Disconnect fuel lines (1,2,3,4) at main fuel
filter (70)

Engine 612, 613



Collect escaping fuel.

 Pay attention to use of locking arm. Refer

to:

#

Disconnect, connect fuel lines at engine.

AR47.25-P-1000-01A

3

Remove main fuel filter (70)



If the main fuel filter has been emptied, it

must be filled with fuel after being installed
before starting, the engine starts more easily.

*BA47.20-P-1001-02A

4

Install in the reverse order



Danger!

Risk of accident due to automatic starting-off
when engine is running. Injury hazard due to
crimped connection and combustion when
meshing during starting procedure or when
engine is running

Secure vehicle to prevent it from moving off
by itself.
Wear closed and close-fitting work clothes.
Do not grasp hot or rotating parts.

AS00.00-Z-0005-01A

5

Run engine and inspect fuel system for leaks

 Crankcase ventilation, cylinder head cover

Number

Designation

Engine
611.960/
961/962

Engine
612.961/
962/967

Engine
612.963

Engine
613.960/
961

BA01.20-P-1003-01A

Screw attaching cover panel to charge air
distribution pipe

Nm

10

10

10

10



Fuel filter

Number

Designation

Engine
611.960/
961

Engine
611.962

Engine
612.961/
963

Engine
613.960/
961

BA47.20-P-1001-02A

Bolt of fuel filter to charge air distribution pipe

Nm

14

14

14

14
