Mercedes-Benz ML320. Manual - part 487

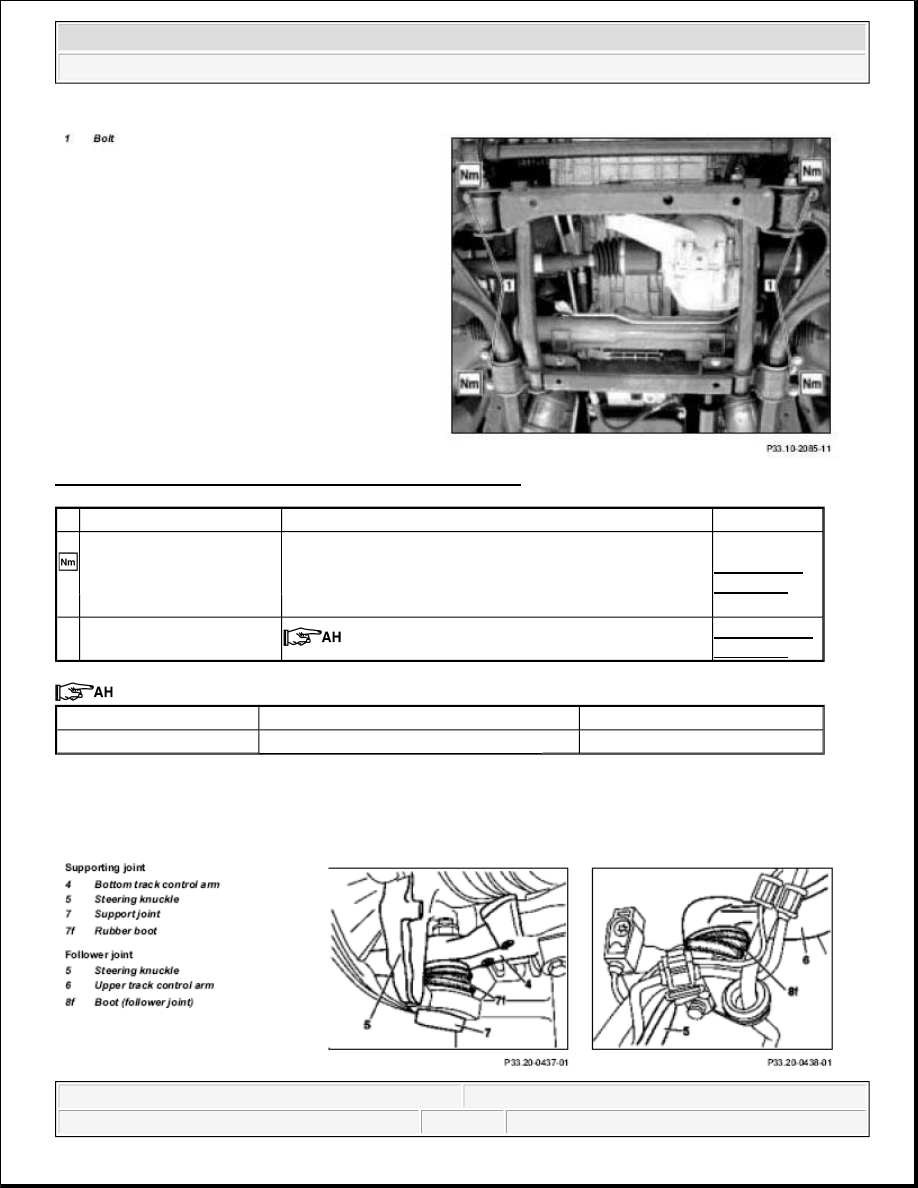

Fig. 103: Identifying Front Axle Carrier - Retightening Bolts

 Front axle carrier

INSPECT FRONT AXLE JOINT FOR PLAY, INSPECT RUBBER BOOTS - AP33.20-P-3353GH

MODEL 163.113 /128 /136 /154 /157 /172 /174 /175



Tightening







Lethal injuries are
possible if vehicle slips off
of lifting platform

Align vehicle between lifting platform columns and
position the four hoisting plates beneath the lifting
platform mounting points specified by the vehicle
manufacturer.

AS00.00-Z-
0010-01A

1 Place vehicle on lift

2

Torque axle carrier bolts
(1)



*BA33.10-P-
1001-01C

Number

Designation

Model 163 up to 31/08/00

BA33.10-P-1001-01C

Bolt, front axle carrier to frame

Nm 200



2001 Mercedes-Benz ML320

1998-2005 DRIVELINE/AXLES Front Axle - 163 Chassis



me



Fig. 104: Identifying Supporting Joint, Bottom Track Control Arm And Rubber Boots

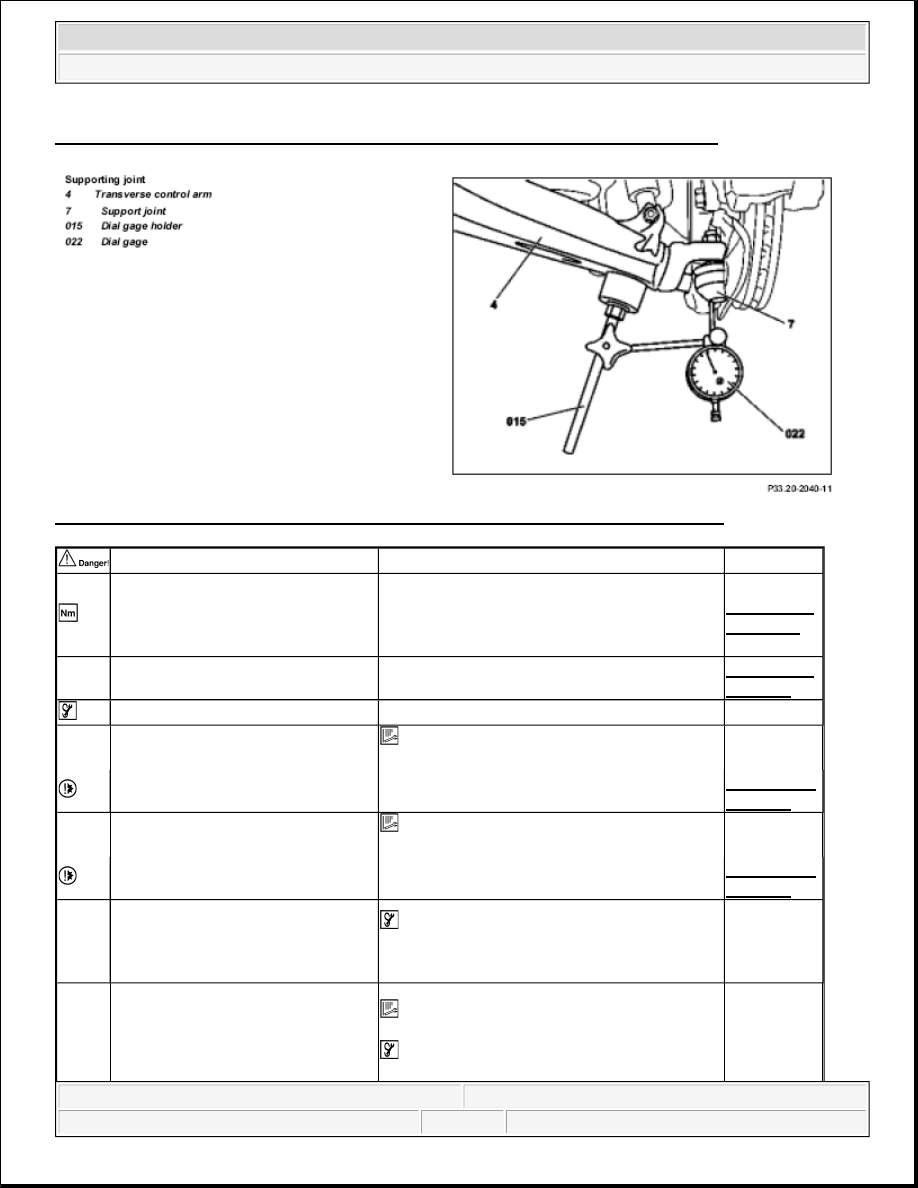

Fig. 105: Identifying Supporting Joint, Transverse Control Arm And Dial Gage Holder

 Remove







Risk of death. Death may result if
vehicle slips or topples from the
lifting platform.

Align vehicle between columns of lifting
platform and position the four support plates
below support points specified by vehicle
manufacturer.

AS00.00-Z-
0010-01A

1

Remove front wheels



AP40.10-P-
4050GH



Inspect





2

Check rubber boot (7f) on
supporting joint for leakage and
condition

 Visual inspection, if rubber boot is leaking

(e.g. grease flowing out): ?





Replace supporting joint

AR33.20-P-
0440GH

3

Check rubber boot (8f) on follower
joint for leakage and condition.

 Visual inspection, if rubber boot is leaking

(e.g. grease flowing out): ?





Replace upper transverse control arm

AR33.20-P-
0500GH

4

Mount dial gage (022) with gage
stand (015) on the underside of the
transverse control arm (4) and pre-
tension

 The feeler must be set firmly up against the

face of the supporting joint dome cap (7) with
an indicating pretightening of 3mm.



5

 Steering angle must not be altered while

measuring.

 Determine the amount of play in the

supporting joint (7) through vertical pulling





2001 Mercedes-Benz ML320

1998-2005 DRIVELINE/AXLES Front Axle - 163 Chassis



me



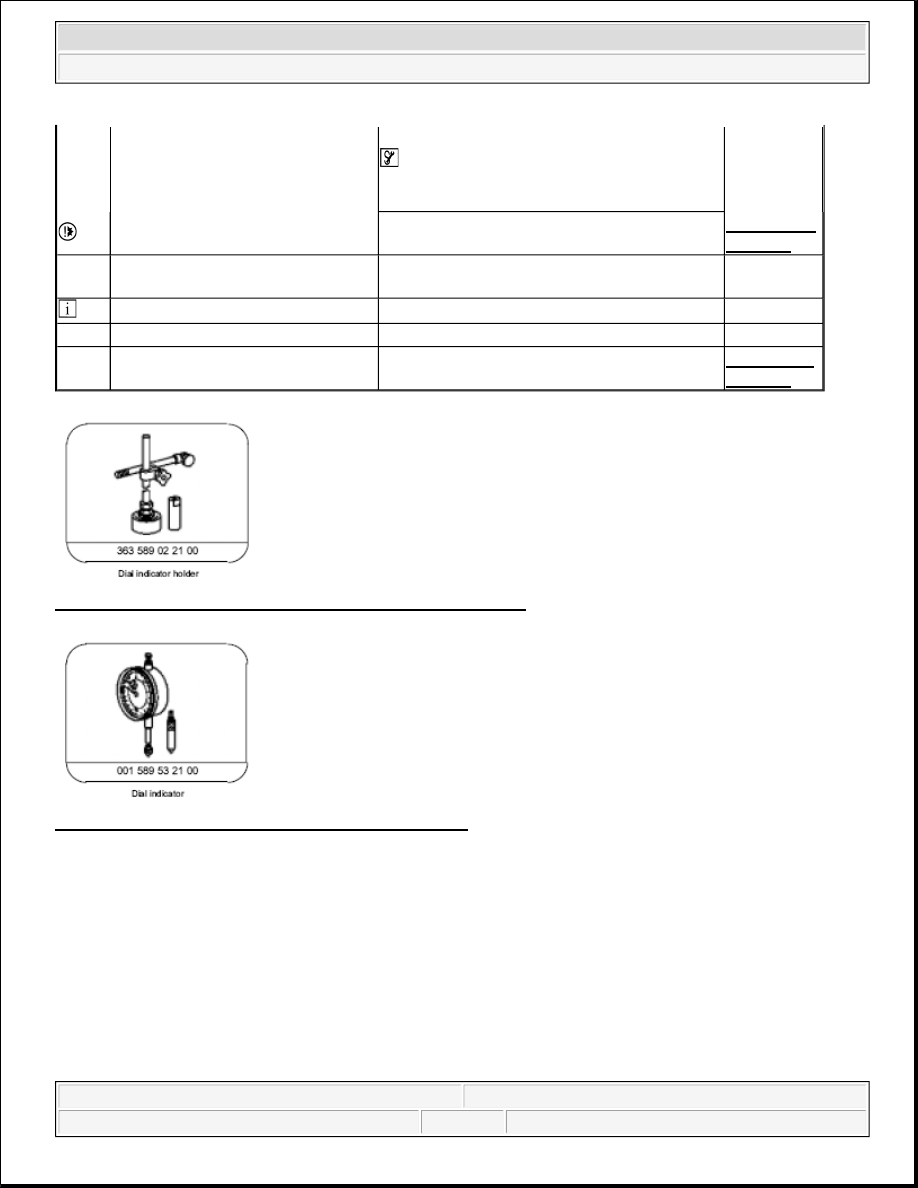

Fig. 106: Identifying Dial Indicator Holder (363 589 02 20 00)

Fig. 107: Identifying Dial Indicator (001 589 53 21 00)

Determine the play in the supporting
joint (7)

and pushing of the wheel hub.

 If measurement yields a play > or = 0,4 mm

the supporting joint (7) must be replaced, refer
to: ?



Replace supporting joint

AR33.20-P-
0440GH

6

Repeat the operation on the other
side of the vehicle







Install





7

Remove dial gage and gage stand





8

Fit front wheels



AP40.10-P-
4050GH



2001 Mercedes-Benz ML320

1998-2005 DRIVELINE/AXLES Front Axle - 163 Chassis



me



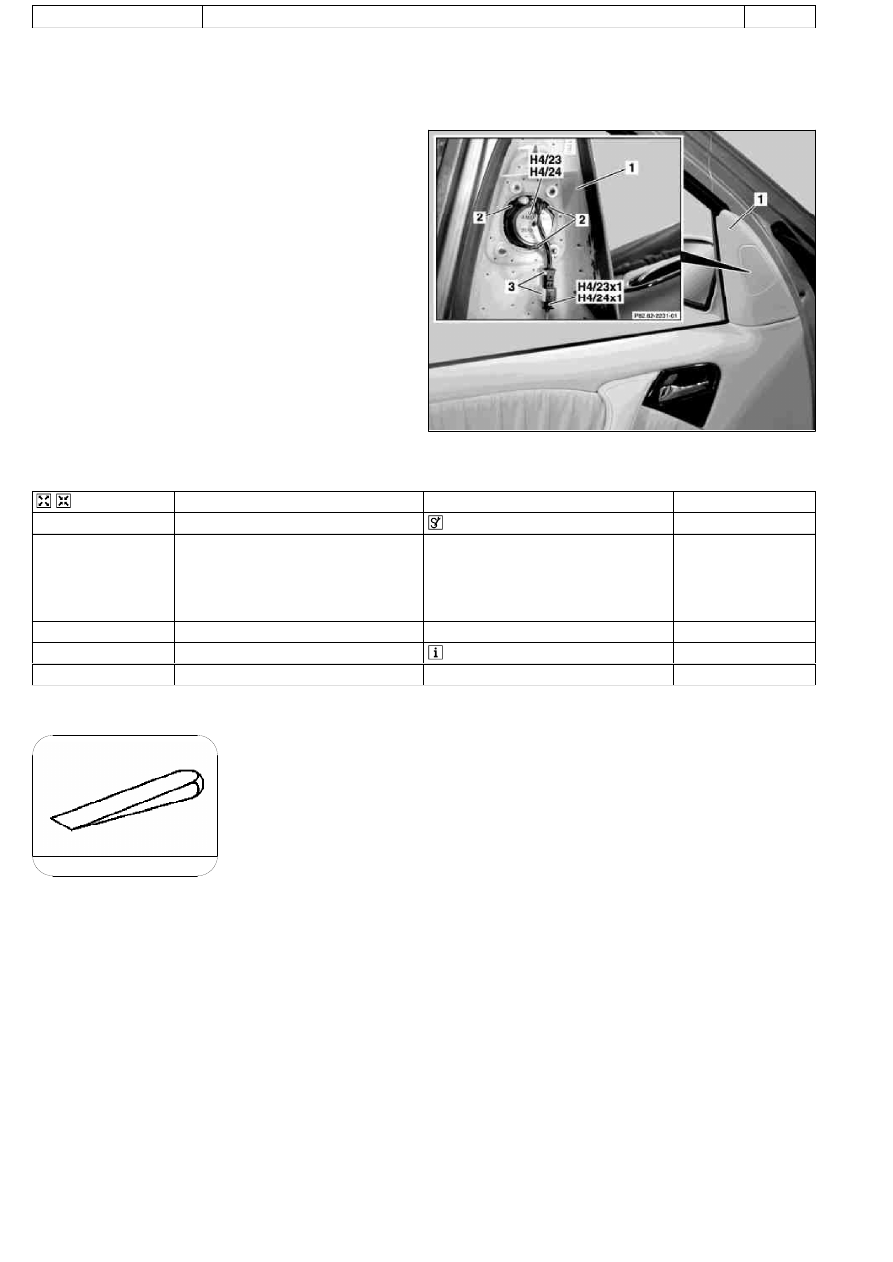

AR82.62-P-7850GH

Remove/install front door speakers in mirror triangle

17.5.01

MODELS

163.113 #A as of 289565,

163.113 #X as of 754620,
163.154 /174 #A as of 289565,
163.128 /157 /175

P82.62-2232-11

1

Mirror triangle

2

Retaining clamps

3

Bracket

H4/23

Left front door speaker, mirror triangle

H4/23x1

Left front door speaker connector, mirror triangle

H4/24

Right front door speaker, mirror triangle

H4/24x1

Right front door speaker connector, mirror triangle



Remove/install

1

Unclip mirror triangle (1) from door

 Assembly wedge

*110589035900

2

Disconnect left front door speaker connector,
mirror triangle (H4/23x1) or right front door
speaker connector, mirror triangle (H4/24x1)
from left front door speaker, mirror triangle
(H4/23) or right front door speaker, mirror
triangle (H4/24)

3

Remove retaining clips (2)

4

Remove speaker from mirror triangle

 Disconnect plug from bracket (3).

5

Install in the reverse order

Assembly wedge

110 589 03 59 00
