 Brake lines, brake hoses

 Brake lines, brake hoses

 Steering shaft

 Steering gear

BA41.20-P-1001-01A Self-locking bolt of propeller shaft to front-axle gear flange Nm 40

Number

Designation

Model
163.128/172/174/175

Type 163.136

Model
163.154/157



BA42.10-P-
1001-04A

Brake pipe to
brake hose

Nm 18

18

18

Number

Designation

Model 163.113 as
of VIN A289565,
X754620 163.154 as
of VIN A289565
except

Model 163.113 to
VIN A289564,
X754619 163.154 to
VIN A289564

BA42.10-P-1001-
04A

Brake pipe to brake
hose

Nm 18

18

Number

Designation

Model Series
163

BA46.10-P-1001-
01D

Self-locking nut of steering coupling to steering shaft and rack-
and-pinion steering

Nm 28

Number

Designation

Model 163 up to
VIN A289559,
X754619

Model 163 as of
VIN A289560,
X754620

BA46.20-P-1001-
01D

Screw joint, return
line connection
fitting to rack-and-
pinion steering

Nm 15

15

BA46.20-P-1002-
01D

Screw joint, high-
pressure expansion
hose connection
fitting to rack-and-
pinion steering

Nm 15

15

BA46.20-P-1004-
01D

Hollow-core screw
from return line to
rack-and-pinion
steering

Nm 30

30

BA46.20-P-1005-
01D

Banjo bolt of high-
pressure stretch hose
to rack-and-pinion
steering

Nm 30

30



2001 Mercedes-Benz ML320

1998-2005 DRIVELINE/AXLES Front Axle - 163 Chassis



me



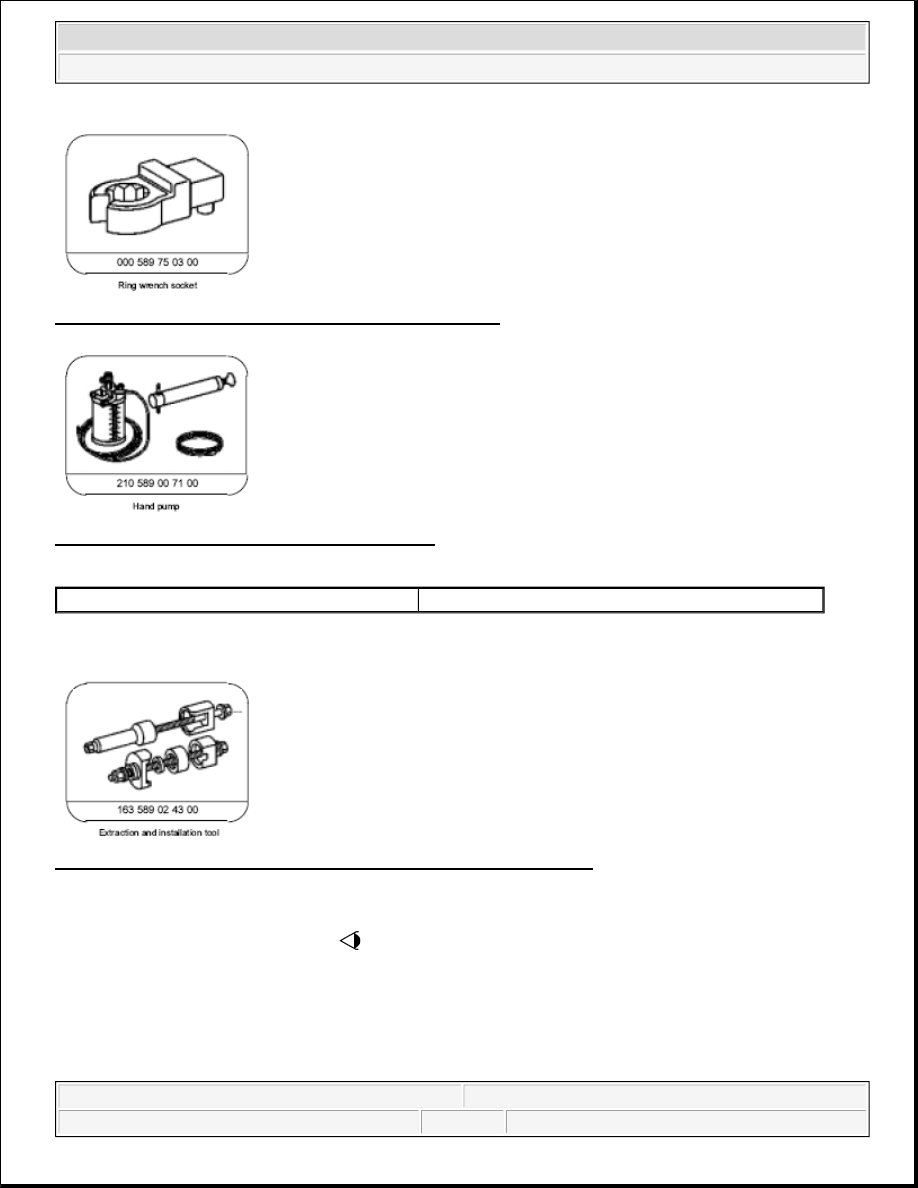

Fig. 5: Identifying Ring Wrench Socket (000 589 75 03 00)

Fig. 6: Identifying Hand Pump (210 589 00 71 00)

Workshop equipment

REMOVING/INSTALL RUBBER MOUNTS - AR33.10-P-0120-01GH

Fig. 7: Identifying Extraction And Installation Tool (163 589 02 43 00)

Remove rubber mounts

1. Use insertion and extraction tool

 (Parts 04, 05) to pull the front and rear rubber bushings from the

front subframe.

WE58.40-Z-1019-11A

Removal fixture for axles



2001 Mercedes-Benz ML320

1998-2005 DRIVELINE/AXLES Front Axle - 163 Chassis



me



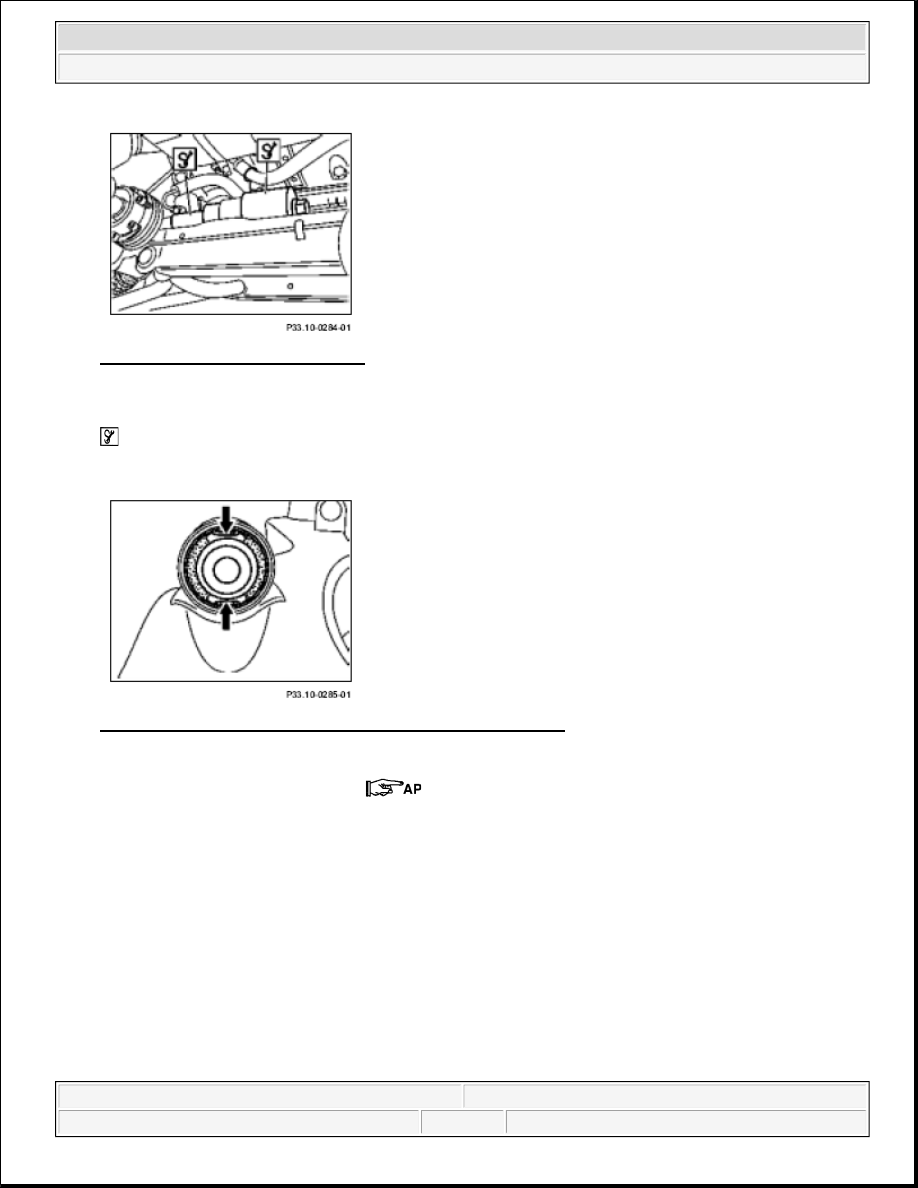

Fig. 8: Identifying Extraction Tool

Install rubber mount

 Observe installed position of rubber mounts. The recesses (arrows) must be horizontal relative to the

front-axle carrier.

Fig. 9: Identifying Position Of Rubber Mounts And Recesses

2. Coat rubber mounts with liquid lubricant.

3. Use the insertion and extraction tool

 (Parts 01, 02, 03) to pull the front and rear rubber bushings

into the front subframe, continuing until they are flush with the surface.

Rear bushing shown



2001 Mercedes-Benz ML320

1998-2005 DRIVELINE/AXLES Front Axle - 163 Chassis



me



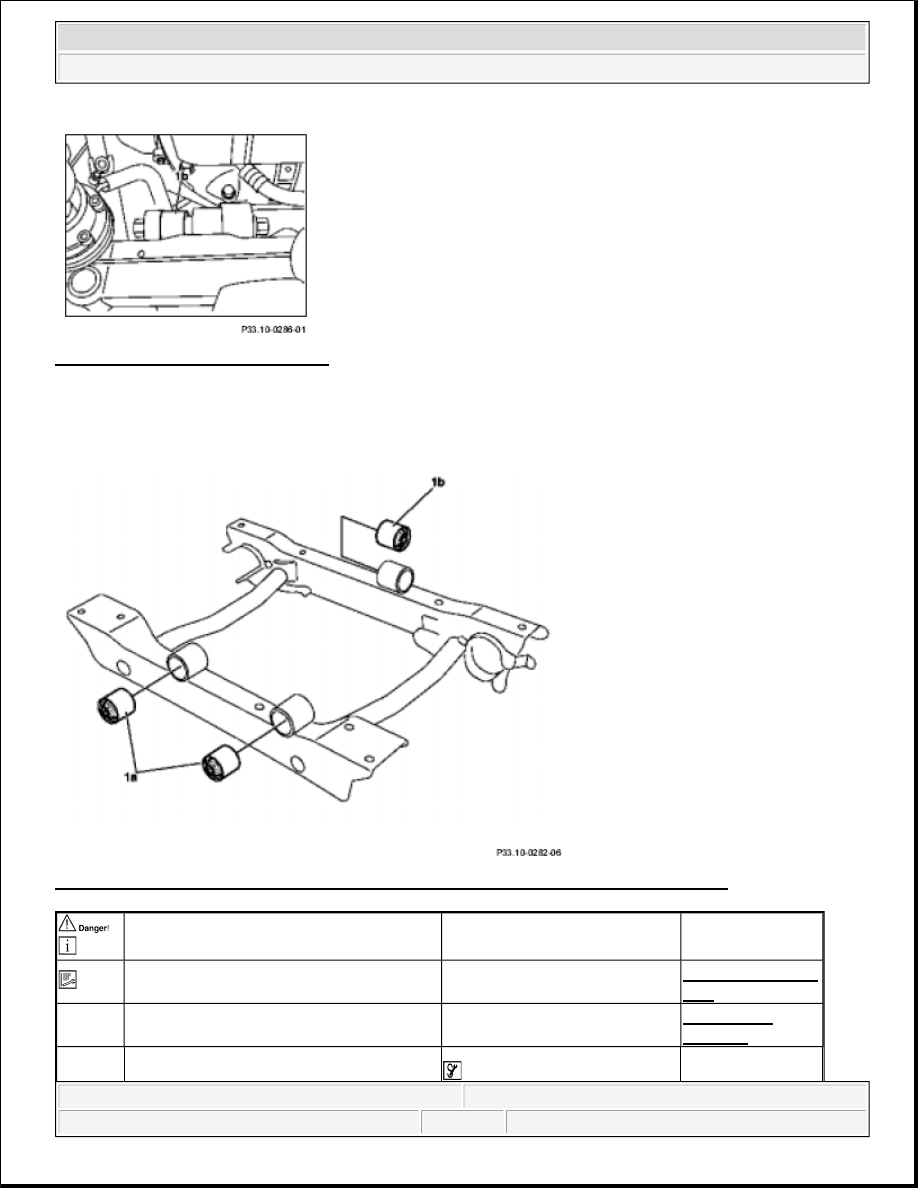

Fig. 10: Identifying Extraction Tool

REMOVE/INSTALL RUBBER BUSHES OF FRONT AXLE TRANSMISSION MOUNTING - AR33.10-P-0120GH

MODEL 163.113 /128 /136 /154 /157 /172 /174 /175

Fig. 11: Identifying Rubber Bushes Of Front Axle Transmission Mounting Components





Remove/Install







Notes on self-locking nuts and bolts

All models

AH00.00-N-0001-
01A

1

Remove front axle gear



AR33.30-P-
0525GH

Remove rubber mounts (1a, 1b) of front

 Detach holders for

AR33.10-P-0120-
