Mercedes-Benz ML320. Manual - part 454

 Cylinder head

 Crankcase, timing case cover, end cover

 Camshaft

 Camshaft

Number

Designation

Engine
112.910/911/
912/913/914/
915/916/917/
920/921/922/
923/940/941/
942/943/944/
945/946/947/
949/951/953/
954/955/960/
961/970/972/
973/975/976

Engines
113.940/941/
942/943/944/
948/960/961/
962/963/965/
966/967/968/
969/971/980/
981/982/984/
986

BA01.30-P-
1001-01D

Bolt, cylinder
head to
crankcase

Stage 1

Nm

10

10

Stage 2

Nm

30

30

Stage 3

Angle °

90

90

Stage 4

Angle °

90

90

Number

Designation

Engine 112
except 112.951/
976

Engine 112.951/
976

Engines
113.940/941/
942/943/944/
945/946/948/
960/961/962/
963/964/965/
966/967/968/
969/971/980/
981/982/984/
986/992/995

BA01.40-P-
1002-01C

Bolt, cylinder
head to timing
case cover

Nm 20

20

20

Number

Designation

Engine 112
except
112.951/976

Engine
112.951/ 976

BA05.20-P-
1001-01B

Bolt, camshaft
sprocket

M12 x 45

Stage 1

Nm 50

50

Stage 2

Angle ° 90

90

Engines
113.940/941/
942/943/944/
948/961/962/



2001 Mercedes-Benz ML320

1998-2005 ENGINE Complete engine - 163 Chassis



me



 Fuel rail

 Fuel rail

 Exhaust manifold

Number

Designation

963/964/965/
966/967/968/
969/971/980/
981/982/984/
986/992/995

BA05.20-P-
1001-01B

Bolt, camshaft
sprocket

M12 x 45

Stage 1

Nm

50

Stage 2

Angle °

90

Number

Designation

Engine 112 except
112.945/951/ 960/961

BA07.52-P-1001-01A

Disconnect fuel feed line
at fuel rail

Nm 38

Number Designation

Engines
113.940/941/942/943/944/945/946/948/960/961/962/963/964/965/966/967/968/969/97

BA07.52-
P-1001-
01A

Disconnect
fuel feed
line at fuel
rail

Nm 38

Number Designation

Engine
112
except
112.951/
976

Engines 113.940/941/ 942/943/944/ 945/946/948/
960/961/962/963/964/965/966/967/968/969/971/980/981/982/984/986/992/9

BA14.10-
P-1002-
01B

Flange
connection,
exhaust
manifold
and front
exhaust
pipes

Nm 20

20



2001 Mercedes-Benz ML320

1998-2005 ENGINE Complete engine - 163 Chassis



me



Fig. 83: Identifying External Torx Set (001 589 76 09 00)

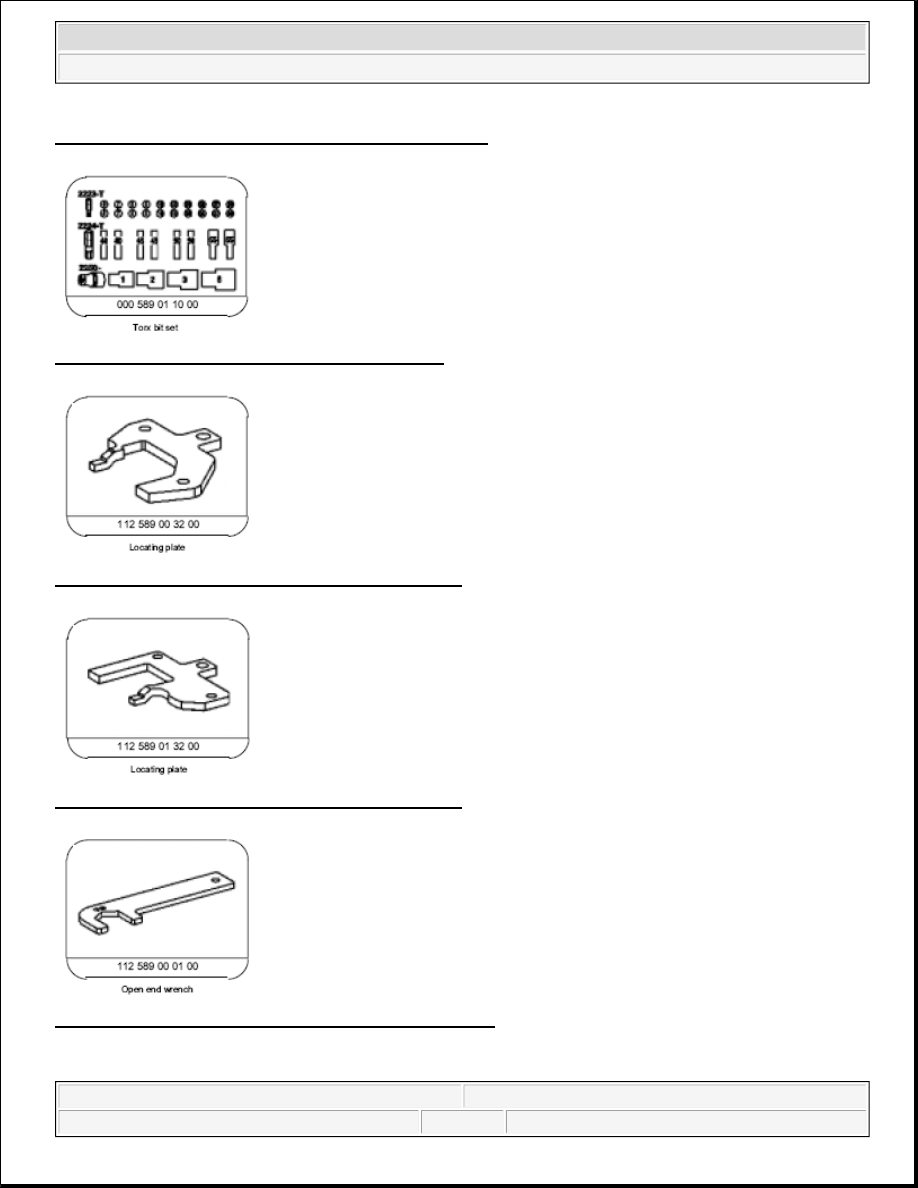

Fig. 84: Identifying Torx Bit Set (000 589 01 10 00)

Fig. 85: Identifying Locating Plate (112 589 00 32 00)

Fig. 86: Identifying Locating Plate (112 589 01 32 00)

Fig. 87: Identifying Open End Wrench (112 589 00 01 00)



2001 Mercedes-Benz ML320

1998-2005 ENGINE Complete engine - 163 Chassis



me

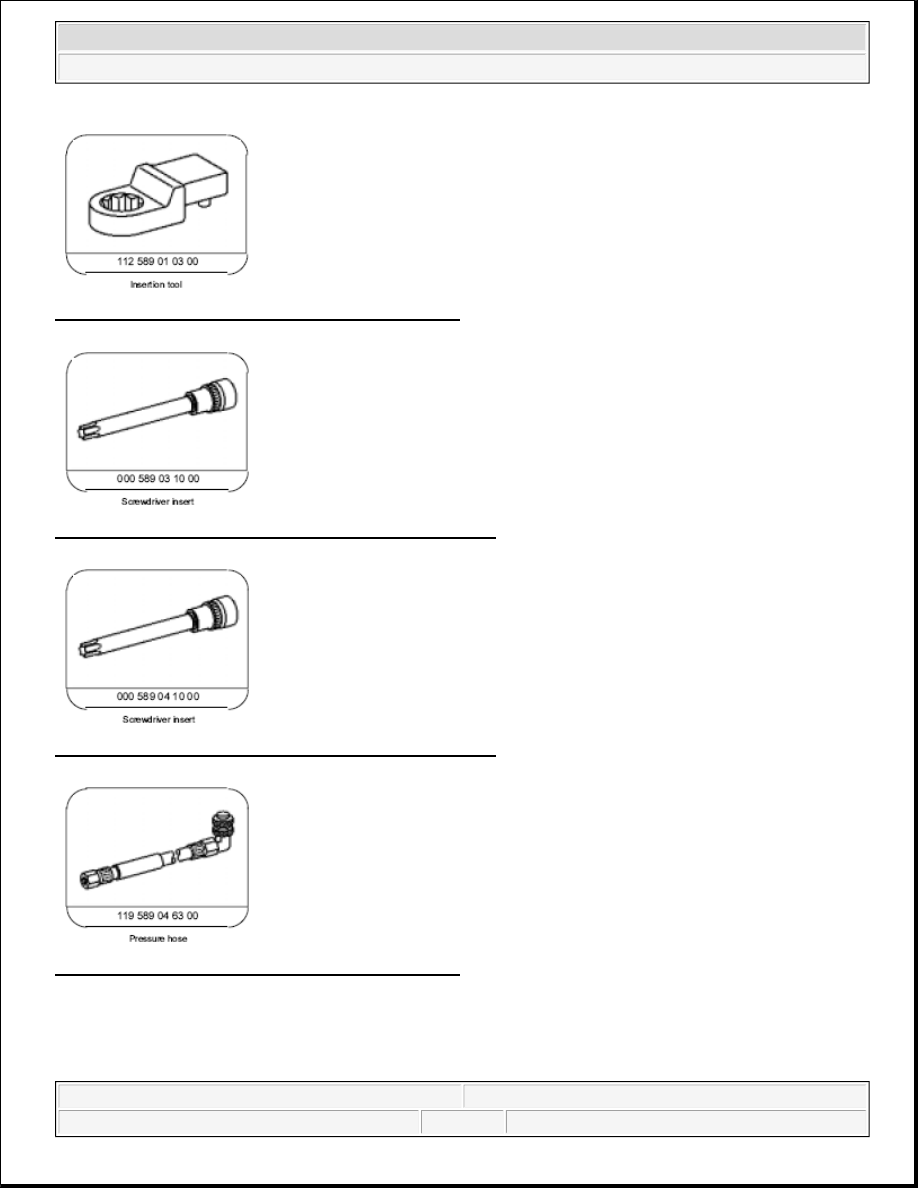

Fig. 88: Identifying Insertion Tool (112 589 01 03 00)

Fig. 89: Identifying Screwdriver Insert (000 589 03 10 00)

Fig. 90: Identifying Screwdriver Insert (000 589 04 10 00)

Fig. 91: Identifying Pressure Hose (119 589 04 63 00)



2001 Mercedes-Benz ML320

1998-2005 ENGINE Complete engine - 163 Chassis



me
