AF72.10-P-6003-01A

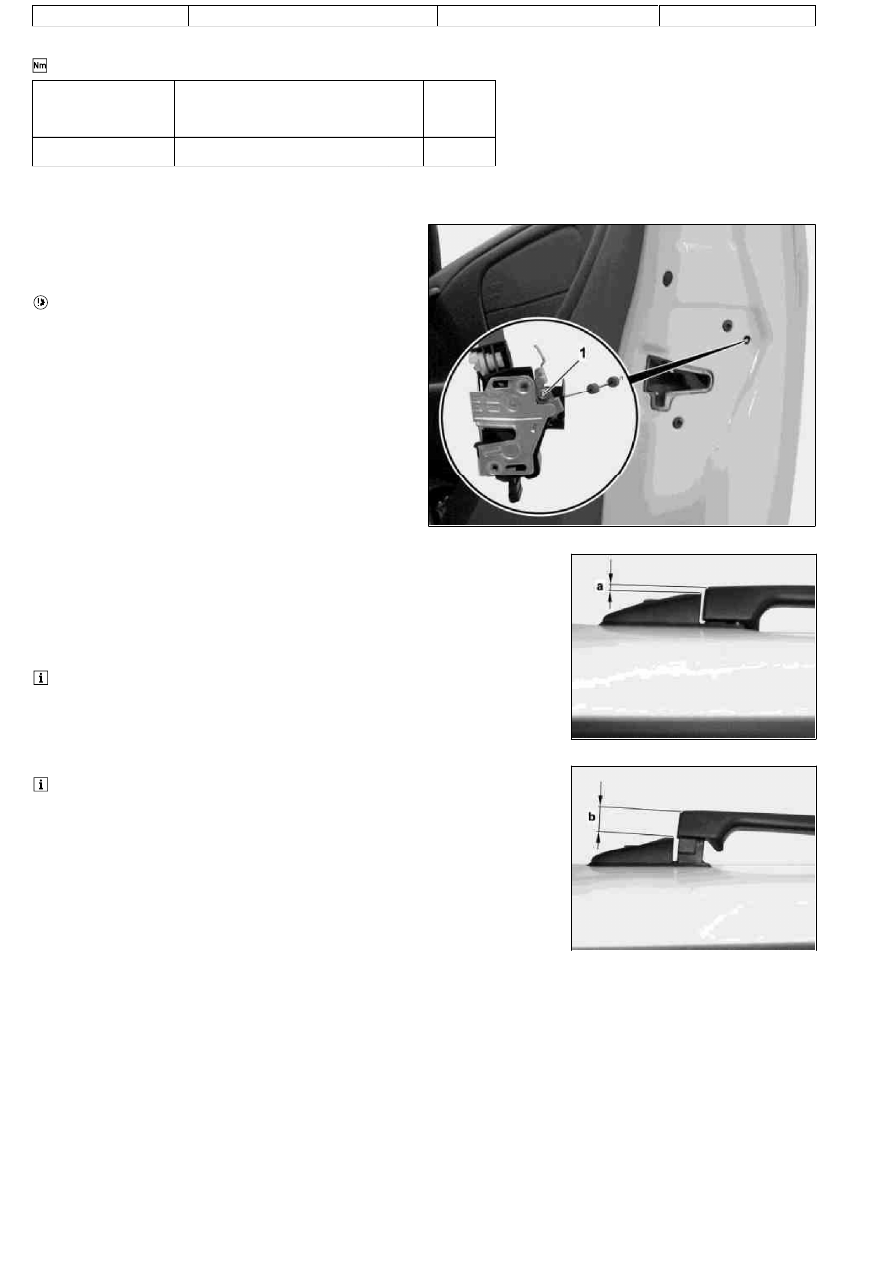

Adjusting front door lock



Front door

Number

Designation

Model 163

BA72.10-P-1004-01D

Screw on door lock

Nm

8

P72.10-2031-11

1

Remove plug for adjustment screw on front door lock

2

Press door handle inward and remove adjustment screw (1) on
door lock. Do not remove tool.

 Note that door lock in right front door has left-hand thread.

P72.10-2032-01

3

Pull door handle outward approx. 1 mm and hold in this position

4

Press adjustment screw in direction of door inner paneling with attached tool and tighten

5

Release door handle

6

Observe motion of adjustment screw through access hole while pulling door handle outward

 Door handle should have 1-2 mm of play (a) before the adjustment screw moves.

P72.10-2033-01

 The lock opens when the door handle is pulled out approx. 15 mm (b).

7

Reinstall plug for adjustment screw on door lock

Copyright DaimlerChrysler AG  09.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

AR72.10-P-4011GH

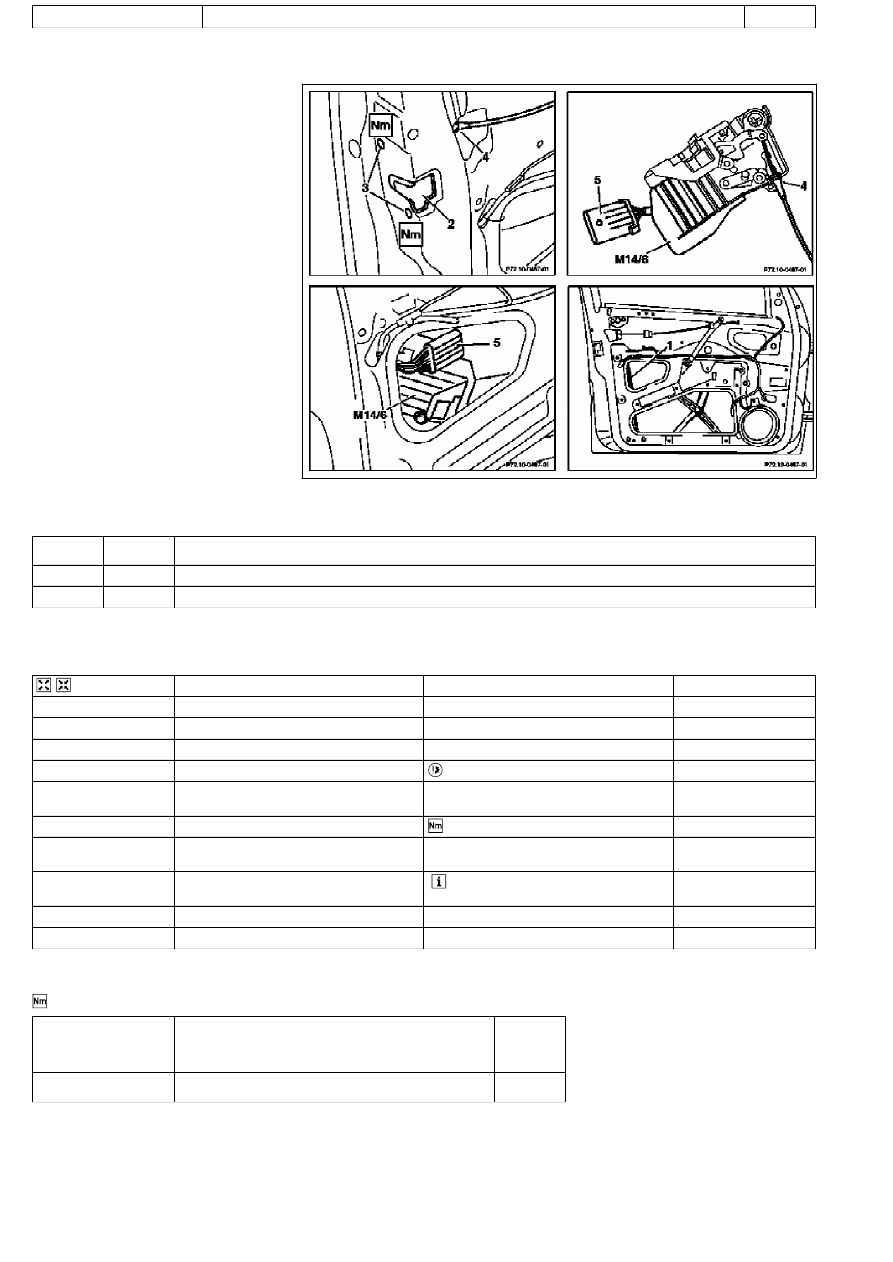

Removing and installing front door lock

13.2.97

MODEL

163

P72.10-0487-06

1

Guide rail

2

Door lock

3

Screws

4

Control cable

5

Connector

M14/5

Right front door central locking
motor (not illustrated)

M14/6

Left front door central locking
motor (not illustrated)

Operation no. of operation texts or of standard texts and flat rates

Division

Operation
no.

Operation text

P

724290

REPLACING LOCK ON LEFT FRONT DOOR

P

724300

REPLACING LOCK ON RIGHT FRONT DOOR



Removal, installation

1

Remove door liner on front door

AR72.10-P-1000GH

2

Remove outer door handle on front door

AR72.10-P-2400GH

3

Remove bearing bracket for door handle

4

Pull door foil off of inner door panel

 Installation: Replace damaged foil

5

Remove window lift mechanism
guide rail (1)

6

Unscrew screws (3)

*BA72.10-P-1004-01D

7

Disconnect connector (5) on central locking
motor (M14/5 or M14/6)

8

Remove door lock (2)



 Remove door lock (2) downward through

installation opening

9

Unhook control cable (4)

10

Install in opposite order



Front door

Number

Designation

Model 163

BA72.10-P-1004-01D

Screw on door lock

Nm

8

Copyright DaimlerChrysler AG  09.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

SI72.10-P-0001A

Service Information on adjusting front door lock

19.6.98

MODEL

163

 Repairs concerning complaints about the front door not being

able to be opened after unlocking the vehicle, should be addressed in
the following manner:

1.

Adjust the door lock

2.

If attempt to adjust door lock was unsuccessful, replace door
lock.

 The majority of door locks being returned under warranty for this

complaint have been found to be servicable after adjustment.

1

Adjust front door lock

If adjustment unsuccessful

#

AF72.10-P-6003-01A

Replace front door lock

AR72.10-P-4011GH

Copyright DaimlerChrysler AG  09.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

SI72.10-P-0002GH

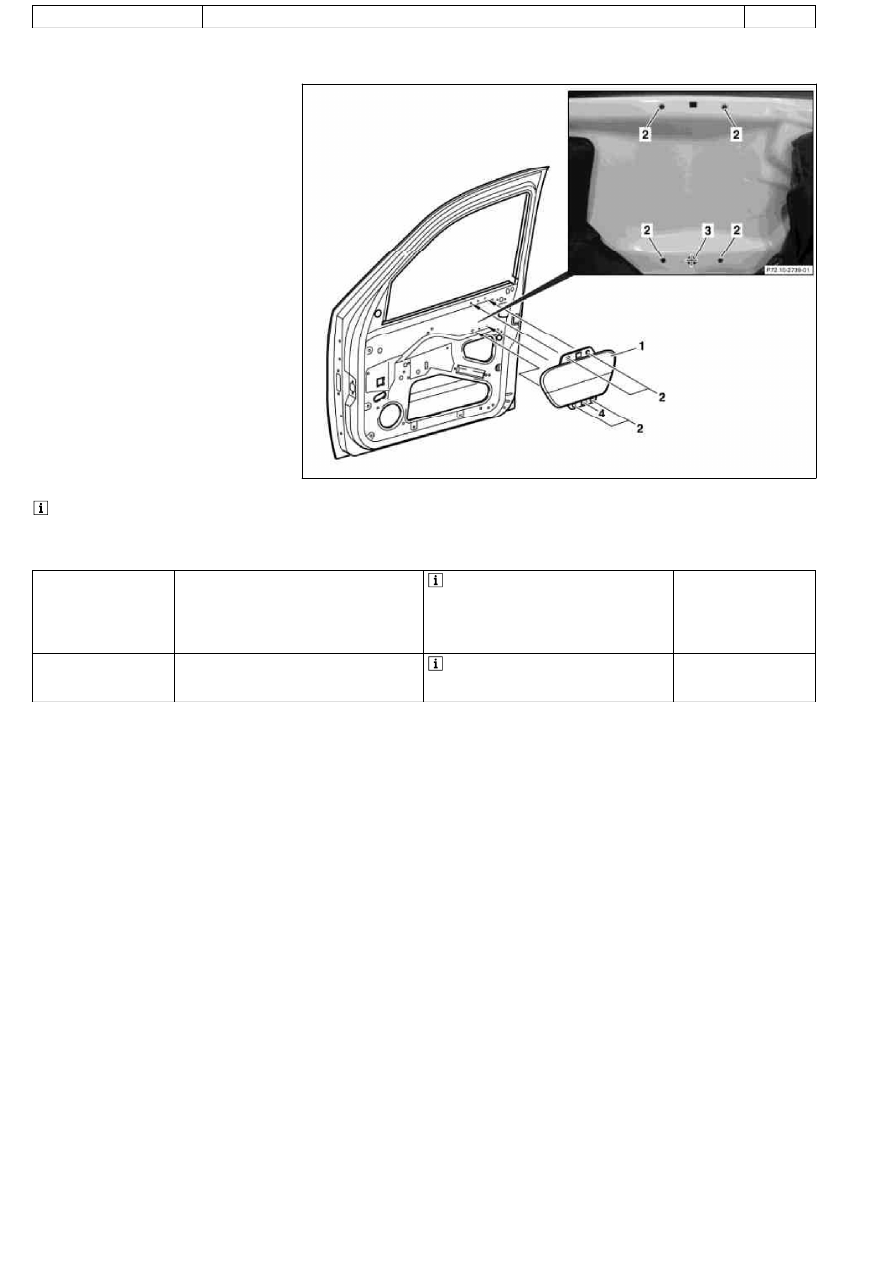

Service Information: Modification of the front door

6.5.03

MODEL

163.113 /128 /136 /154 /157 /172 /174 /175

P72.10-2740-06

1

Side airbag

2

Attachment hole

3

Locating hole

4

Locating pin

 Due to a design modification to the door skin, both parts must be

checked when exchanging the door or the sidebag.

1

Check the replacement door to see if the
aligning bore for the sidebag is present

 Should the replacement door not have an

aligning bore and the sidebag is equipped
with a fixing pin:

#

Modify the front door

SM72.10-P-0004A

2

Check to see of the fixing pin is present for
the replacement sidebag

 If there is no fixing pin present on the

sidebag, the door does not need to be
modified.
