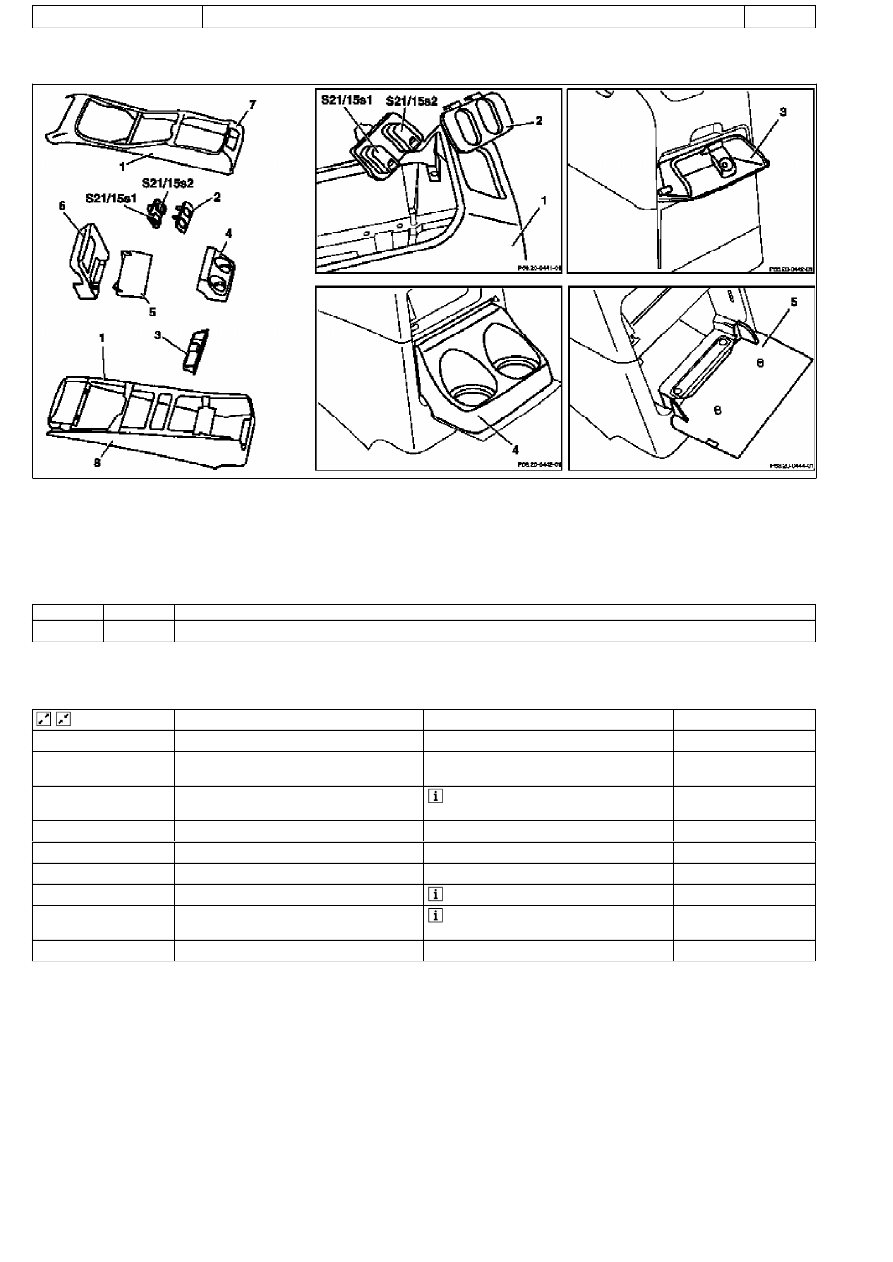

AR68.20-P-2150GH

Disassembling and assembling center console

4.2.97

MODEL

163.113 /136 /154 /172 /174 up to 31.8.01

P68.20-0440-09

1

Center console.

2

Cover

3

Ashtray housing

4

Beverage holder

S21/15s1

Left rear power window switch

S21/15s2

Right rear power window switch

5

Cover

6

Internal component

7

Center console upper section

8

Center console bottom section

Operation no. of operation texts or standard texts and flat rates

Range

Op. no.

Operation text

P

685115

REPLACING CENTER CONSOLE



Disassemble/assemble

1

Remove center console

AR68.20-P-2000GH

2

Lay center console (1) down on suitable
subsurface with opening pointing downward

3

Remove rear power window switches
(S21/15s1) and (S21/15s2)

 Remove switch to inside and cover (2) to

outside

4

Remove rear ashtray housing (3)

5

Unclip cup holder (4) from cover (5)

6

Remove cover (5) for cup holder

7

Remove inner section (6)

 Installation: Install inner section at top.

8

Separate center console on top section (7)
and bottom section (8)

 6 screws

9

Assemble in reverse sequence

Copyright DaimlerChrysler AG  10.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

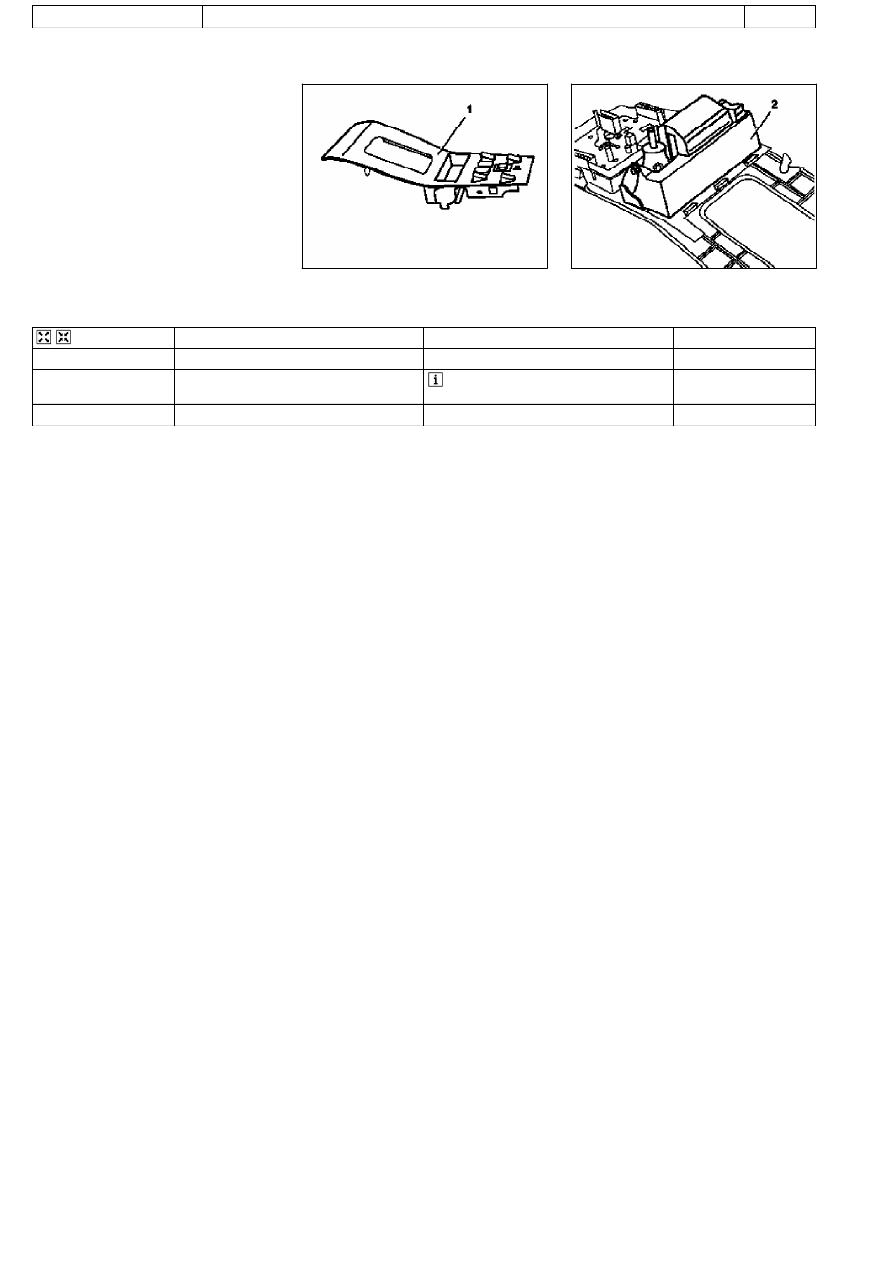

AR68.20-P-2400GH

Removing and installing ashtray housing from front center console

11.2.97

MODEL

163.113 /136 /154 /172 /174 up to 31.8.01

P68.20-0455-01

1

Cover on gearshift lever

2

Ashtray housing

P68.20-0454-01



Remove/install

1

Remove cover on gearshift lever (1)

AR68.20-P-2310GH

2

Remove ashtray housing (2) toward rear

 Installation: Slide ashtray housing into

mount and catch.

3

Install in the reverse order

Copyright DaimlerChrysler AG  10.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

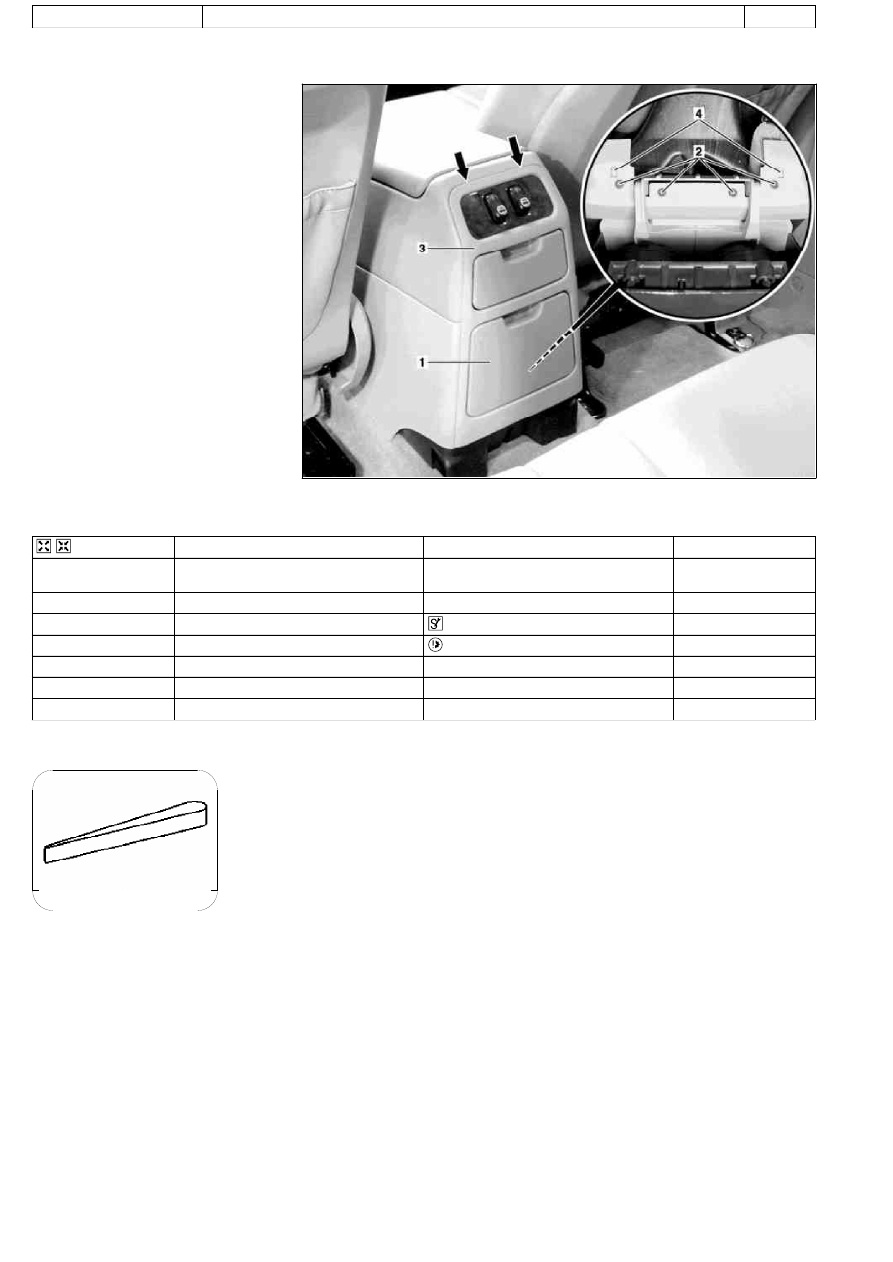

AR68.20-P-2020GH

Removing and installing rear section of center console

18.5.01

MODEL

163.113 /136 /154 /172 /174 as of 1.9.99 up to 31.8.01

P68.20-2492-06

1

Rear cupholder

2

Screw

3

Center console rear section

4

Tab



Remove, install

1

Open rear cupholder (1), release from center
console and fold down

2

Remove screws (2)

3

Unclip rear section (3) at top (arrows)



*115589035900

4

Release tabs (4) at bottom

 Danger of breaking.

5

Pull rear section (3) away from center console

6

Unplug connectors for rear window switches

7

Install in reverse order

Long wedge

115 589 03 59 00

Copyright DaimlerChrysler AG  10.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

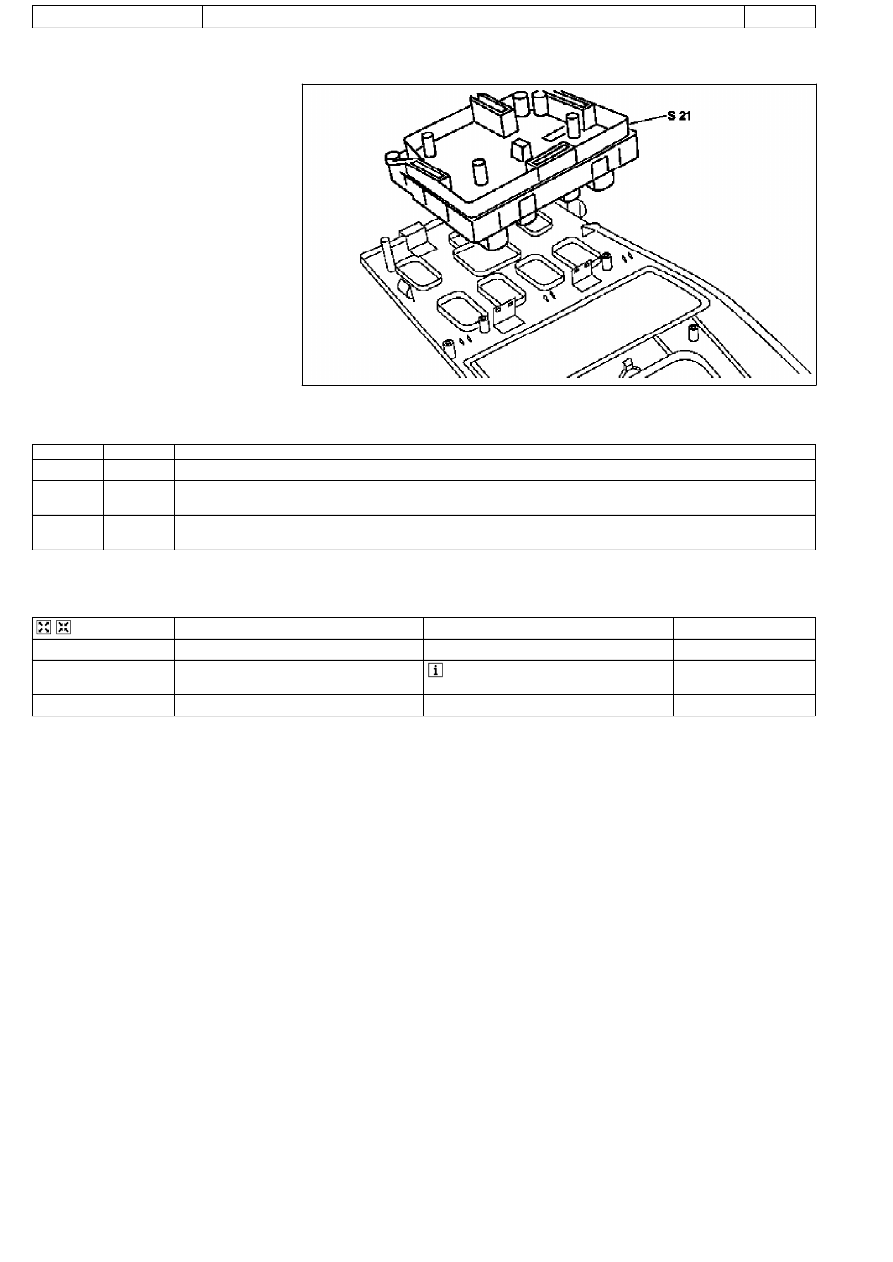

AR72.29-P-0001GH

Removing and installing center console switch group

14.2.97

MODEL

163.113 /136 /154 /172 /174 up to 31.8.01

P72.29-0273-05

S21 Center console switch group

Operation no. of operation texts or standard texts and flat rates

Range

Op. no.

Operation text

P

725733

REPLACING SWITCH FOR POWER WINDOW IN CENTER CONSOLE; LOCATION: ............. (AFTER CHECKING)

P

725734

REPLACING SWITCH FOR POWER WINDOW IN CENTER CONSOLE FOR REAR OPERATION; LOCATION .............
(AFTER CHECKING)

P

725760

REPLACING SWITCH FOR POWER WINDOWS (BOTH) IN CENTER CONSOLE FOR LEFT AND RIGHT REAR
DOOR (AFTER CHECKING)



Removal, installation

1

Remove ashtray at front of center console

AR68.20-P-2400GH

2

Unclip center console switch group (S21)

 Center console switch group can only be

replaced completely.

3

Install in the reverse order

Copyright DaimlerChrysler AG  10.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.
