Mercedes-Benz ML320. Manual - part 329

Parts ordering notes

4

Remove stowage compartment
in center armrest





5

Remove wooden cover from
shift lever





6

Remove A-pillar paneling at
top right





7

Remove glove compartment





8

Remove automatic A/C
control panel





9

Remove cover below right
instrument panel





10

Tie out D-net antenna lead

 Tied back in radio

shaft.





Installation





11

Modify wiring harness and
install



AZ82.70-P-0001-04C

12

Installing handsfree system
microphone



AZ82.70-P-0001-02C

13

Install loudspeaker



AZ82.70-P-0001-03C

14

Install holder on telephone
console



AZ82.70-P-0001-01C

15

Installing transmitter/receiver

AZ82.70-P-0001-06C

16

Install D-net antenna on roof

 See assembly

instructions from
Kathrein company
Install antenna without
modification.



17

Retrofit antenna lead

 Only on vehicles

with Audio 30 APS
radio

AZ82.70-P-0002-01A

18

Carry out function check

 Set illumination to

"User defined" and
volume to "very
loud" .



19

Reassemble vehicle 9-1





Part no.

Designation

Quantity

B6 682 94 14

Nokia 6090 permanently installed
telephone

1

B6 682 94 13

Vehicle installation kit (DIN/ISO
installation frame)

1

B6 788 01 28

Antenna radiator, Kathrein

1



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



RETROFITTING PERMANENTLY INSTALLED D-NETWORK CAR PHONE - AZ82.70-P-0002GH

MODEL 163 as of 1.9.00 up to 30.9.01 except CODE (352a) COMAND operating and display system

Nokia 6090 permanently installed telephone

A000 823 0077

Antenna adapter, mini UHF/SAP

1

B6 682 94 18

Wiring harness assy.

1

B6 788 03 46

Telephone console, anthracite,
left-hand steering

as req.

B6 788 03 49

Telephone console, anthracite,
right-hand steering

as req.

B6 788 03 47

Telephone console, medium orion
gray, left-hand steering

as req.

B6 788 03 50

Telephone console, orion gray,
medium, right-hand steering

as req.

B6 788 03 48

Telephone console, java, left-hand
steering

as req.

B6 788 03 51

Telephone console, java, right-
hand steering

as req.

KG82 (see EPC)

Packard connector housing

1

Group 82 (see EPC)

Packard terminals

7

N007 985 004 107

Screw

2

N304 032 004 002

Nuts

2

B6 788 03 52

Bracket

1



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



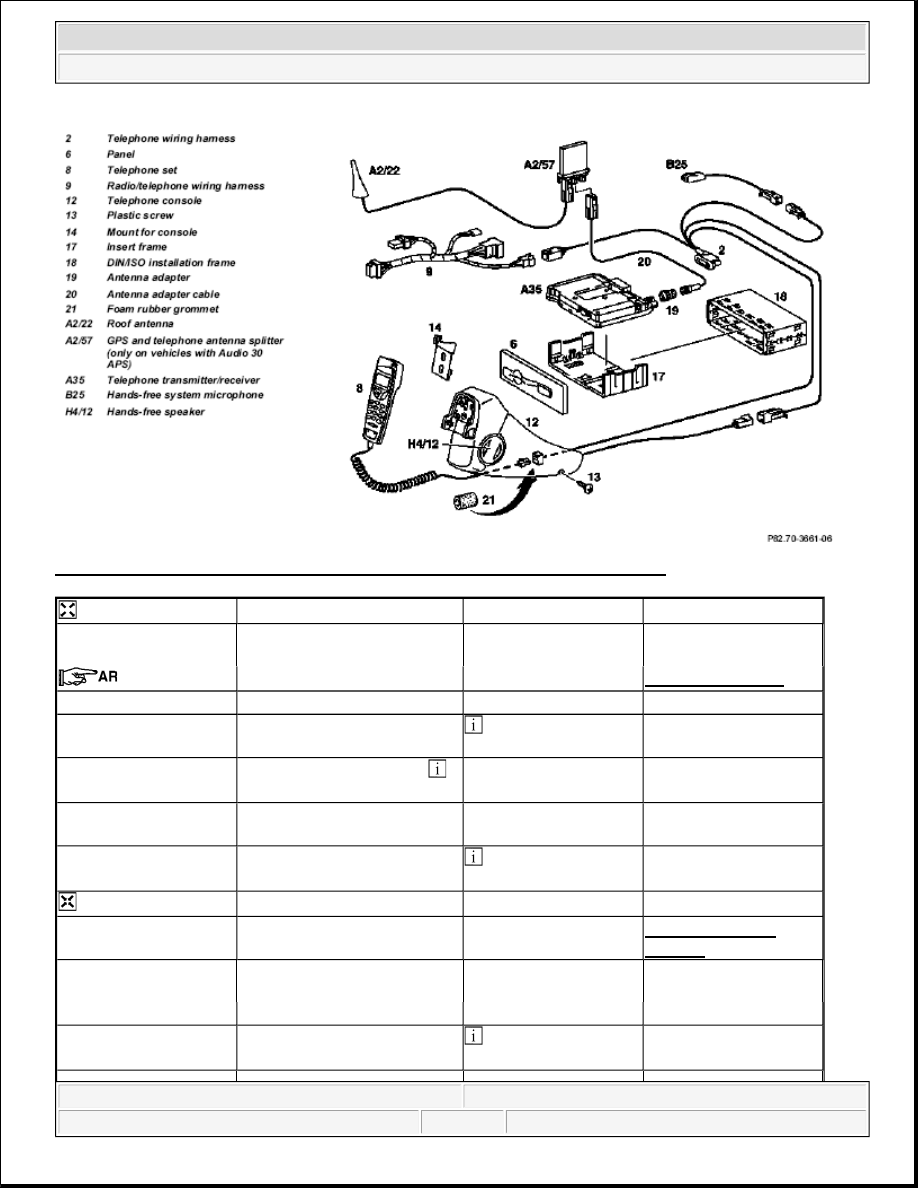

Fig. 401: Identifying Permanently Installed D-Network Car Phone Components



Removal





1

Disconnect ground cable of
battery











AR54.10-P-0003A

2

Remove radio





3

Remove stowage compartment
below radio

 No longer required.



4

Remove cover from radio



Remove cover from radio.





5

Remove AAC pushbutton
control module





6

Tie out D-network antenna
lead

 Tied back in radio

shaft





Installation





7

Modify wiring harness and
install



AZ82.70-P-0001-
04GHH

8

Installing hands-free system
microphone

Vehicles up to 31.12.00. AZ82.70-P-0001-02E





Vehicles as of 1.1.01.

AZ82.70-P-0001-02GH

9

Mount holder on telephone
console and install

 Retrofit telephone

console

AZ82.70-P-0001-
01GGH



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



Parts ordering notes

10

Installing transmitter/receiver

AZ82.70-P-0001-06GH

11

Install D-network antenna on
roof

 See assembly

instructions from
Kathrein company
Install antenna without
modifying.



12

Retrofit antenna lead

 Only on vehicles

with Audio 30 APS
radio

AZ82.70-P-0002-01A

13

Carry out operational check

 Set illumination to

"User defined" and
volume to "very
loud" .



14

Fit remaining parts 5-1 to
vehicle





Part no.

Designation

Quantity

B6 682 94 14

Permanently installed unit, Nokia
6090 (installation kit)

1

B6 682 94 13

Installation frame, Nokia 6090
(DIN/ISO frame)

1

A035 545 0328

Connector housing (9-pin)

1

A035 545 1128

Connector (terminal)

7

A036 545 4128

Connector housing (2-pin, green)
(for microphone)

1

A034 545 0928

Flat plug (for microphone)

2

A000 545 5073

Lock (for microphone)

1

A010 545 2126

Connector sleeve housing (2-pin,
black) (for loudspeaker)

1

A010 545 6626

Flat socket sleeve (for
loudspeaker)

2

A000 545 4973

Lock (for loudspeaker)

1

A000 823 0077

Antenna adapter (straight)

1

B6 682 8613

Antenna lead

1

B6 682 8612

Antenna lead

1

B6 788 0390

FA console LHS (anthracite)

1

B6 788 0389

FA console LHS (orion gray
middle)

1

B6 788 0391

FA console LHS (java)

1

B6 788 0387

FA console RHS (anthracite)

1

B6 788 0386

FA console RHS (orion gray
middle)

1



2001 Mercedes-Benz ML320
