Mercedes-Benz ML320. Manual - part 300

(min. 60°), drive another
300 meters straight ahead
and then turn again, etc.
It makes no difference for
the calibration if the course
of the road does not allow
the vehicle to be driven the
specified route straight
ahead or to turn min. 60°.
This only increases the
length of the route to be
driven. Calibration is
completed when the location
is indicated in the AUDIO
mode (without active
objective guidance) when
the INFO button is pressed.

However, the location

can only be displayed when
the vehicle is driven on a
digitized road.

Perform test drive

Call up navigation menu by
pressing the NAV
multifunction button.
Enter destination (see
operating instructions) and
drive to destination.

Start-up step

Action on keypad

Feedback on display

Accelerated start-up

Insert navigation CD

Loading time can take
several minutes

Navigation menu

Call navigation menu by
pressing NAV button

LANGUAGE POS

TIME WHEEL

Call default calibration
values

Select the menu

"ADDRESS ENTRY" by
turning right knob (10)
and confirm by pressing
knob (10). Press
multifunction buttons 2
and 7 one after another
and then release
simultaneously. Press
multifunction button
KAL.

CAL

Select the menu

Vehicle menu appears

2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis

RETROFIT ANTENNA FOR GLOBAL POSITIONING SYSTEM (GPS) - AN82.61-P-7474-04AZ

Model 163 up to 31.8.00

1. Install the combination antenna on roof as specified in the enclosed installation instructions of the

manufacturer Kathrein.

Radiator does not need to be shortened for GSM telephones.

2. Expose the antenna lead (40) already installed in the vehicle, in the radio slot and connect to antenna

diplexer (A2/57) at the middle connection.

3. Connect GPS antenna lead (41) to GPS output.

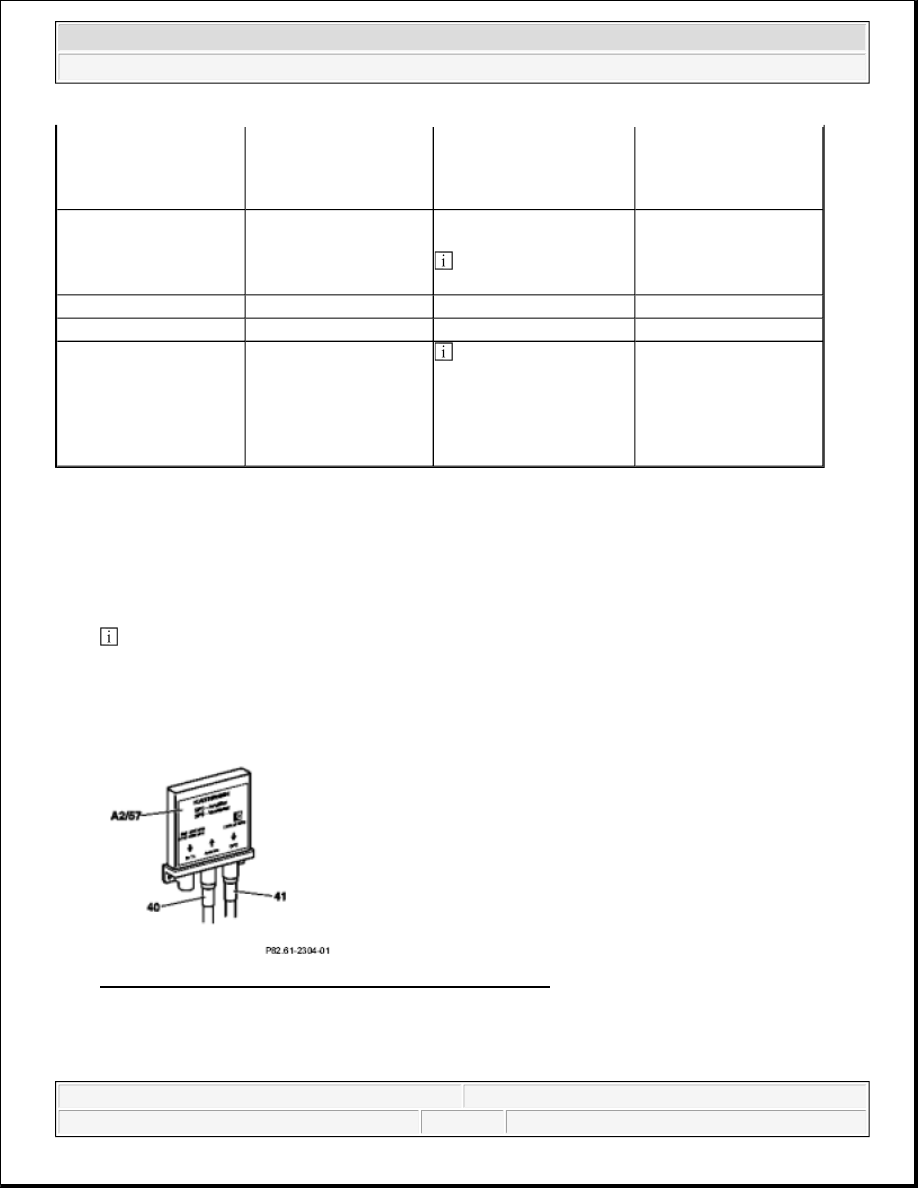

Fig. 238: Identifying Antenna Diplexer And Antenna Lead

4. Fit on antenna diplexer (A) in left of radio slot at longitudinal strut, as shown in figure.

"Calibration value
defaults" by turning right
knob (10) and confirm by
pressing knob (10).

Enter type of vehicle

Select given entry, e.g. MB
pass. car.

Only for vehicles as of

model year 1998.

MB pass. car

Enter tire parameters

Enter complete values

Wheel

Store parameters

Select entry "Store values"

System restart

The vehicle is now

calibrated and is ready for
use with GPS reception of
"Fix ZD".
A calibration drive is no
longer required.

2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis

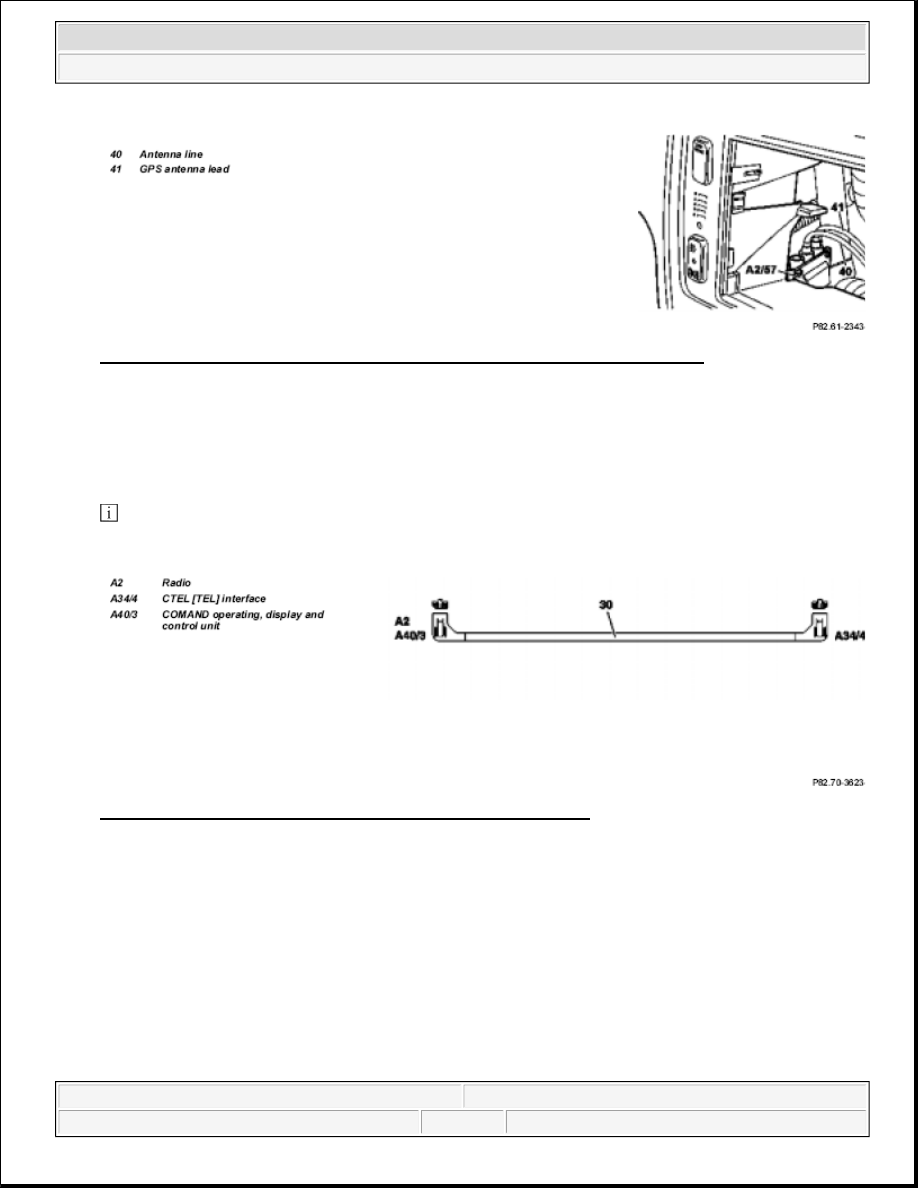

Fig. 239: Identifying Antenna Diplexer, Antenna Line And GPS Antenna Lead

RETROFIT FIBER OPTIC CABLE WIRING HARNESS - AN82.70-P-0002-01GH

Connection diagram of fiber optic cable

1. Prepare fiber optic cable wiring harness (30) as shown in figure.

The vehicle is preinstalled with a fiber optic cable for the CD player with changer. This fiber optic

cable is tied back in the radio slot and is not required in this case.

Fig. 240: Identifying Connection Diagram Of Fiber Optic Cable

2. Connect fiber optic cable wiring harness (30) to the CTEL interface (A34/4).

3. After installing CTEL interface (A34/4) in the center console, route fiber optic cable wiring harness (30)

into the radio slot.

4. Connect wiring harness when installing radio (A2) or COMAND (A40/3).

2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis

Fig. 241: Identifying CTEL Interface And Fiber Optic Cable Wiring Harness

RETROFIT FIBER OPTIC CABLE WIRING HARNESS - AN82.70-P-0002-01GHH

1. Prepare fiber optic cable wiring harness (31) as shown in figure.

2. Connect fiber optic cable wiring harness (31) to the CTEL interface (A34/4).

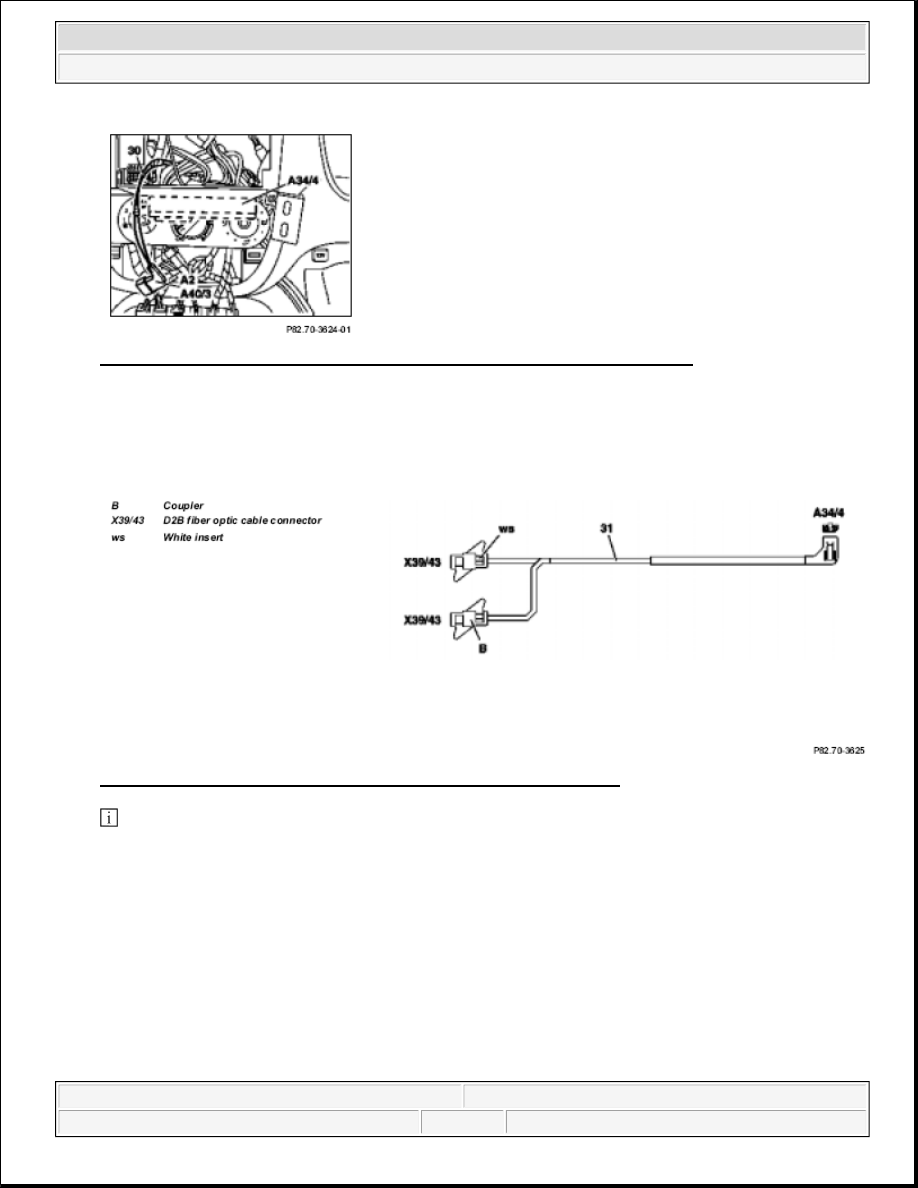

Fig. 242: Identifying Fiber Optic Cable Wiring Harness Connection

The D2B fiber optic cable ring is enlarged with two new fiber optic cable modules M2 and M3.

Module M5 remains unchanged in the vehicle.

Shown on vehicle with radio
