 Fog and other lighting influences, e.g., due to oncoming traffic, do not have any effect on the automatic

driving light actuation.

 Automatic driving light actuation when starting a journey and during it



Automatic driving light actuation with driving lights is only possible when the engine is running (circuit
61 ON).



When the engine is switched off and the electronic starter switch is in position "2" (circuit 15 ON) only
the side lamps and the license plate lamps are actuated.



Driving light actuation is disabled as soon as one of the basic prerequisites changes, e.g. when changing
from darkness to daylight after driving through a tunnel.

 Automatic driving light actuation at the end of a journey or in darkness



After switching off the engine (circuit 61 OFF) and when the electronic starter switch is in position
"2" (circuit 15 ON), only the side lamps and the license plate lamps remain on.



The exterior lighting is switched off as of key position "1" (circuit 15R).

DAYTIME RUNNING LIGHT ACTUATION, FUNCTION - GF82.10-P-3005GH

MODEL 163 as of 01.09.01

With daytime running lamps the low beam, the side lamps and the license plate lamps are switched on if the
engine is running (there are national variants).

Function prerequisites:



Circuit 61 "ON"

 In "AUTO" position of the exterior lamp switch daytime running lamps and automatic driving lights are

OR gated, i.e. depending on the prerequisites daytime running lamps or automatic driving lights are switched
on.

 For the daytime running lamp conditions, there is no difference between the positions "0" and "AUTO" of

the exterior lamp switch.

Corresponding to the national legislation, the daytime running lamps can be coded in different variants via
Star Diagnosis.

Canada and USA



Table of contents,
function description for
exterior lighting



GF82.10-P-0999A



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me





during the day only the low beam is on



when dark, the side lamps, license plate lamps as well as the switch and controls illumination (circuit
58d) are switched on



With halogen headlights the low beam is operated during the day with a reduced voltage



The lighting switches off automatically if the gearshift lever remains in "P" or "N" position for more than
3 min

Scandinavia



with daytime running lamps the low beam, the side lamps and the license plate lamps are active



the daytime running lamps switch off if the light switch assumes the "side lamps ON" position

Other countries



with daytime running lamps the low beam, the side lamps and the license plate lamps are active



the daytime running lamps are always active

The high beams can only be switched on if the exterior lamp switch:



is at "low beam"



is at "AUTO" and "Darkness" is detected



daytime running lamps for "Other countries" has been coded

CONTENTS - FUNCTION DESCRIPTION OF EXTERIOR LIGHTING, LOCATION/ PURPOSE/DESIGN/FUNCTION -
GF82.10-P-9999B

MODELS 129, 140, 202, 208, 210, 163 up to 31.08.01 with CODE (612b) xenon headlamp unit

MODEL 163 as of 01.09.01 with CODE (614) bi-xenon headlamp unit



Automatic driving light
actuation, function



GF82.10-P-3003GH



Table of contents,
function description for
exterior lighting



GF82.10-P-0999A



Axle sensor for headlamp range
adjustment, location/task

MODELS 129, 140,
202, 208, 210 with
code 612b xenon
headlamp unit

GF82.10-P-2100A



Headlamp range adjustment motor,
location/ task

MODELS 129, 140,
202, 208, 210 with
code 612b xenon
headlamp unit

GF82.10-P-2101A



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



HEADLAMP CLEANING SYSTEM (HCS), LOCATION OF COMPONENTS - GF82.15-P-0002-03GH



Control module for headlamp range
adjustment, location/task

MODELS 129, 140,
202, 208, 210 with
code 612b xenon
headlamp unit

GF82.10-P-2102A



Xenon headlamp, position/function MODELS 129, 140,

202, 208, 210 with
code 612b xenon
headlamp unit

GF82.10-P-2001A



Xenon headlamp, position/function Model 215

GF82.10-P-2001B



Xenon headlamp,
position/design/function

MODEL 163 up to
31.08.01

GF82.10-P-2007GH





MODEL 163 as of
01.09.01

GF82.10-P-
2007GHA



Xenon headlamp control module,
location/task

MODELS 129, 140,
202, 208, 210 with
code 612b xenon
headlamp unit

GF82.10-P-2104A



Xenon headlamp ignition module,
location/task

MODELS 129, 140,
202, 208, 210 with
code 612b xenon
headlamp unit

GF82.10-P-2105A



Table of contents, function
description for exterior lighting



GF82.10-P-0999A



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me

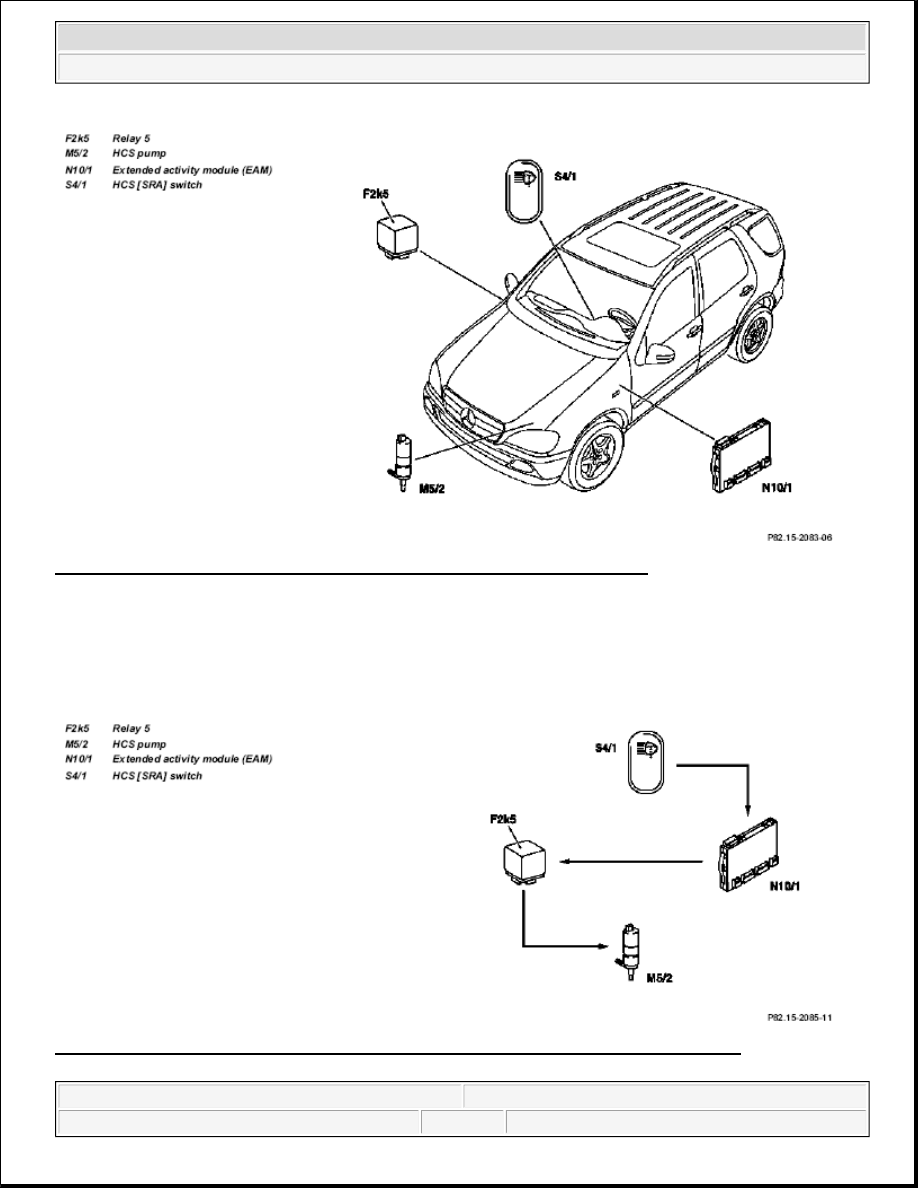

Fig. 12: Identifying Headlamp Cleaning System (HCS) Components Location

HEADLAMP CLEANING SYSTEM (HCS), FUNCTION - GF82.15-P-0002GH

MODEL 163 as of 01.09.01 with CODE (600a) headlamp cleaning system

Connection diagram

Fig. 13: Identifying Headlamp Cleaning System (HCS) Components Connection Diagram
