Mercedes-Benz ML320. Manual - part 196

Shift Pressure Shift Valve, Location/Task/Function

See SHIFT PRESSURE SHIFT VALVE, LOCATION/TASK/FUNCTION.

Overlap Regulating Valve, Location/Task/Function

See OVERLAP REGULATING VALVE, LOCATION/TASK/FUNCTION.

Location/Task/Function Of Command Valve

See LOCATION/TASK/FUNCTION OF COMMAND VALVE.

Selector Valve, Location/Task

See SELECTOR VALVE, LOCATION/TASK.

Location/Task/Design/Function Of Oil Pump

See LOCATION/TASK/DESIGN/FUNCTION OF OIL PUMP.

Shift Valve Pressure, Function

Operation

The shift valve pressure is derived from the regulating valve pressure, regulated at the shift valve pressure
regulating valve and is then present:



1-2 And 4-5 Shift Solenoid Valve (Y3/6Y3)



3-4 Shift Solenoid Valve (Y3/6Y4)



2-3 Shift Solenoid Valve (Y3/6Y5)



Torque Converter Lockup PWM Solenoid Valve (Y3/6Y6)



3-4 And 2-3 Shift Pressure Valve Shift Valve

The shift valve pressure controls the command valves via the upshift/downshift solenoid valves.

Upshift/Downshift Solenoid Valve, Location/Task/Design/Function

See UPSHIFT/DOWNSHIFT SOLENOID VALVE, LOCATION/TASK/DESIGN/FUNCTION.

Location/Task/Design/Function Of PWM Solenoid Valve, Torque Converter Lockup Clutch

See LOCATION/TASK/DESIGN/FUNCTION OF PWM SOLENOID VALVE, TORQUE
CONVERTER LOCKUP CLUTCH.

Shift Pressure Regulating Valve, Location/Task/Function




2001 Mercedes-Benz ML320

1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662



me



See SHIFT PRESSURE REGULATING VALVE, LOCATION/TASK/FUNCTION.

Shift Pressure Shift Valve, Location/Design/Function

See SHIFT PRESSURE SHIFT VALVE, LOCATION/TASK/FUNCTION.

Shift Valve Pressure Regulating Valve, Location/Task/Function

See SHIFT VALVE PRESSURE REGULATING VALVE, LOCATION/TASK/FUNCTION.

Shift Pressure Regulating Solenoid Valve, Location/Task/Design/Function

See SHIFT PRESSURE REGULATING SOLENOID VALVE,
LOCATION/TASK/DESIGN/FUNCTION.

Multiple-Disc Brake, Location/Task/Design/Function

See MULTIPLE-DISC BRAKE, LOCATION/TASK/DESIGN/FUNCTION.

Multiplate Clutch, Location/Task/Design/Function

See MULTI-PLATE CLUTCH, LOCATION/TASK/DESIGN/FUNCTION.

Holding Pressure Shift Valve, Location/Design/Function

See HOLDING PRESSURE SHIFT VALVE, LOCATION/TASK/FUNCTION.

Overlap Regulating Valve, Location/Design/Function

See OVERLAP REGULATING VALVE, LOCATION/TASK/FUNCTION.

Location/Task/Function Of Command Valve

See LOCATION/TASK/FUNCTION OF COMMAND VALVE.

Selector Valve, Location/Task

See SELECTOR VALVE, LOCATION/TASK.

Location/Task/Design/Function Of Oil Pump

See LOCATION/TASK/DESIGN/FUNCTION OF OIL PUMP.

Overlap Regulating Valve, Location/Task/Function



2001 Mercedes-Benz ML320

1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662



me

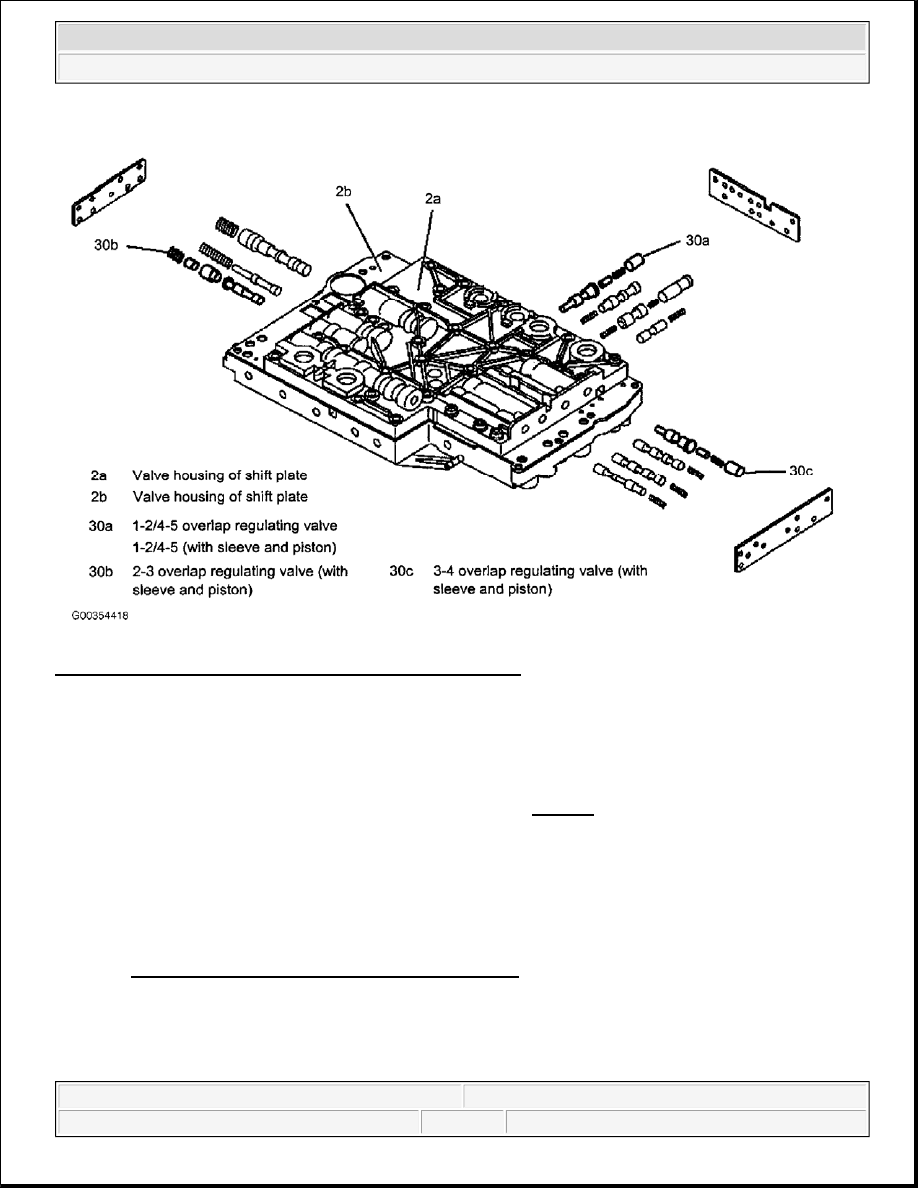

Fig. 138: Overlap Regulating Valve, Location/Task/Function
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Overlap Regulating Valve, Location

Each shift group is assigned one overlap regulating valve. The 1-2/4-5 overlap regulating valve (30a) is
installed in the valve housing of the shift plate (2b), the 2-3 overlap regulating valve (30b) and 4-5 (30c)
are installed in the valve housing of the shift plate (2a). See Fig. 138.

Overlap Regulating Valve, Location

The overlap regulating valve regulates the pressure reduction during a shift phase.

Overlap Regulating Valve, Function

See OVERLAP REGULATING VALVE, FUNCTION.

Shift Pressure Shift Valve, Location/Task/Function



2001 Mercedes-Benz ML320

1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662



me

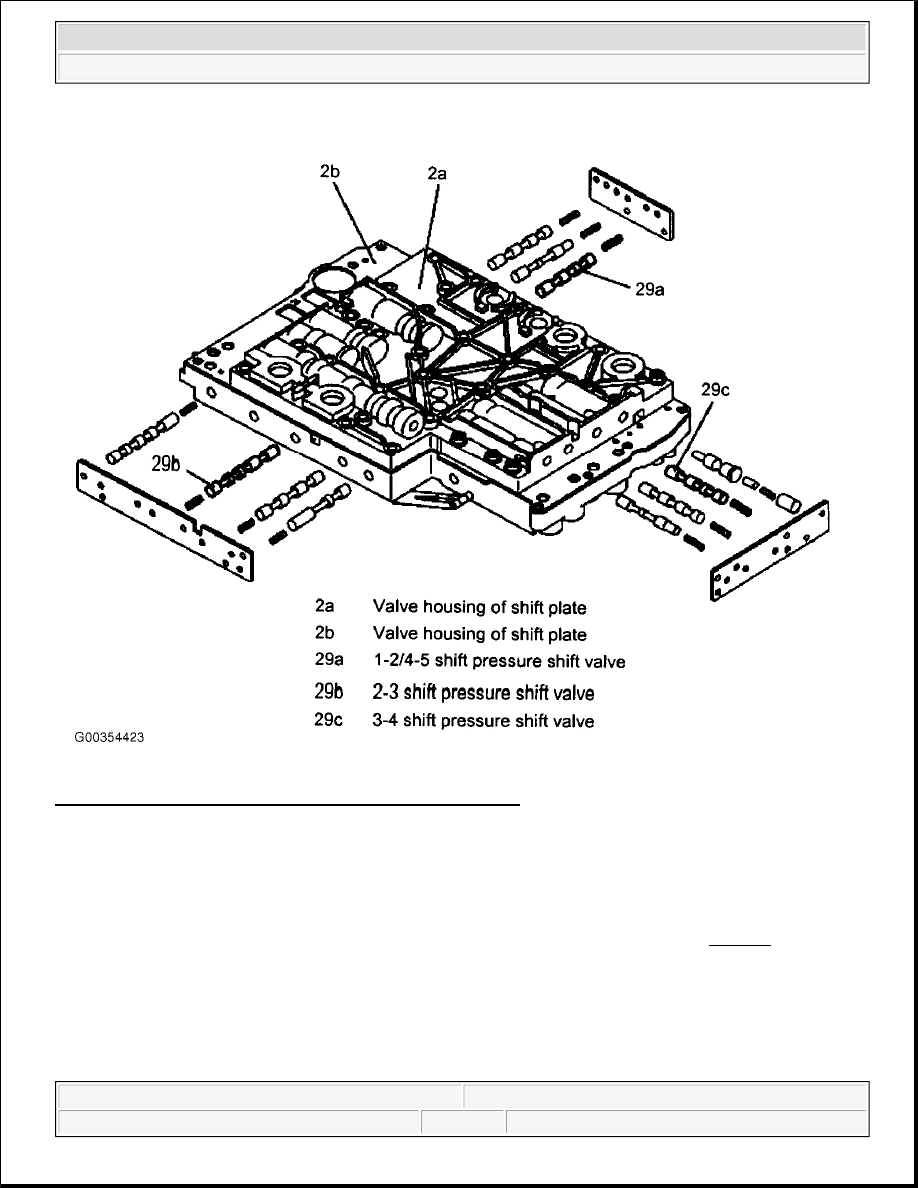

Fig. 139: Shift Pressure Shift Valve, Location/Task/Function
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shift Pressure Shift Valve, Location

Each shift group possesses one shift pressure shift valve. The 1-2/4-5 shift pressure shift valves (29a) and
2-3 shift pressure shift valve (29b) are installed in the valve housing of the shift plate (2b), the 3-4 shift
pressure shift valve (29c) is installed in the valve housing of the shift plate (2a). See Fig. 139.

Shift Pressure Shift Valve, Task

To assign shift pressure to the engaging shift actuator and to assign the overlap pressure, controlled by the
overlap regulating valve, to the disengaging shift actuator.



2001 Mercedes-Benz ML320

1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662



me
