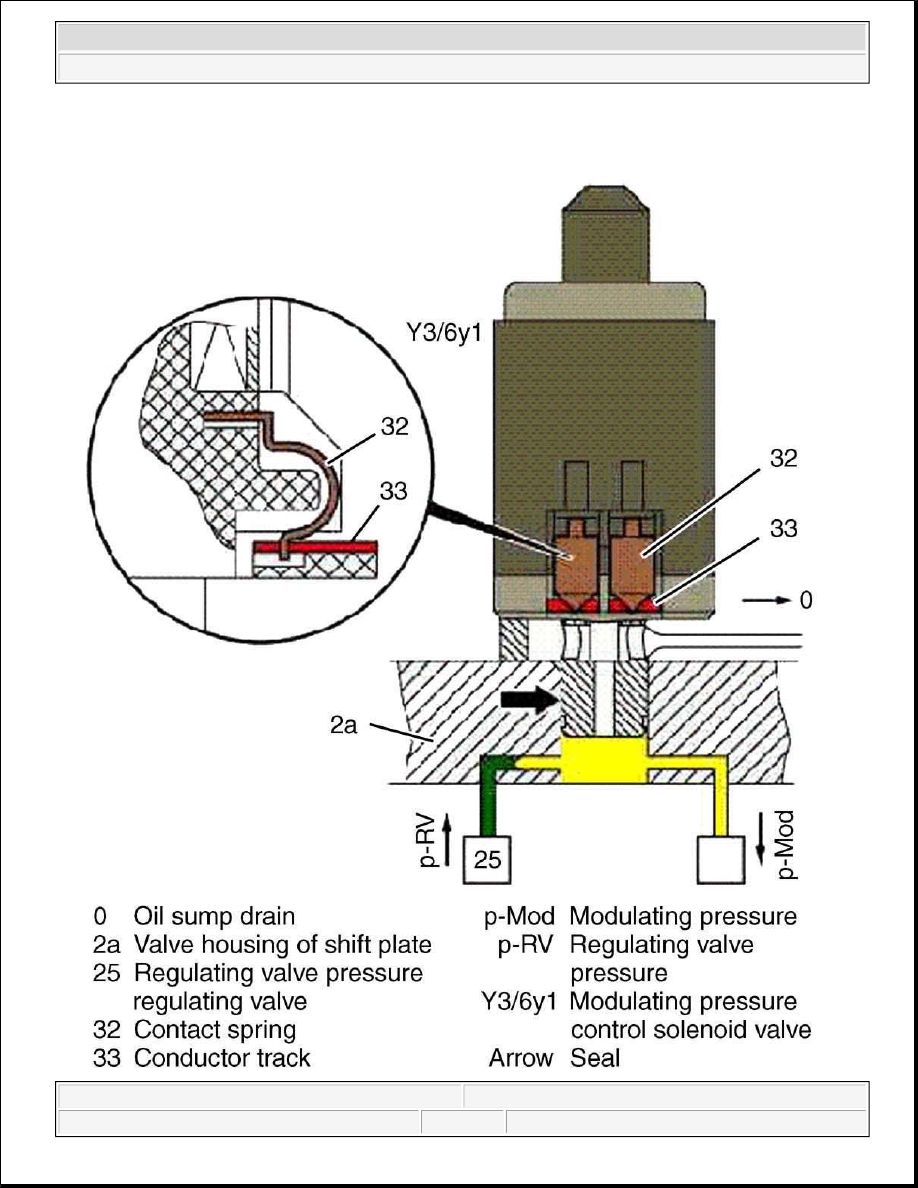

Fig. 65: Modulating Pressure Regulating Solenoid Valve
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Structure - The modulating pressure regulating solenoid valve (Y3/6y1) had an interference fit and is sealed of
to the valve body of the shift plate (2a) by a seal (arrow). See Fig. 65. The contact springs (32) on the
modulating pressure regulating solenoid valve (Y3/6y1) engage in a slot in the conductor tracks (33). The force
of the contact spring (32) ensures safe contacts.

Shift Pressure Regulating Solenoid Valve, Location/Task/Design/Function



2001 Mercedes-Benz ML320

1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662



me





2001 Mercedes-Benz ML320

1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662



me

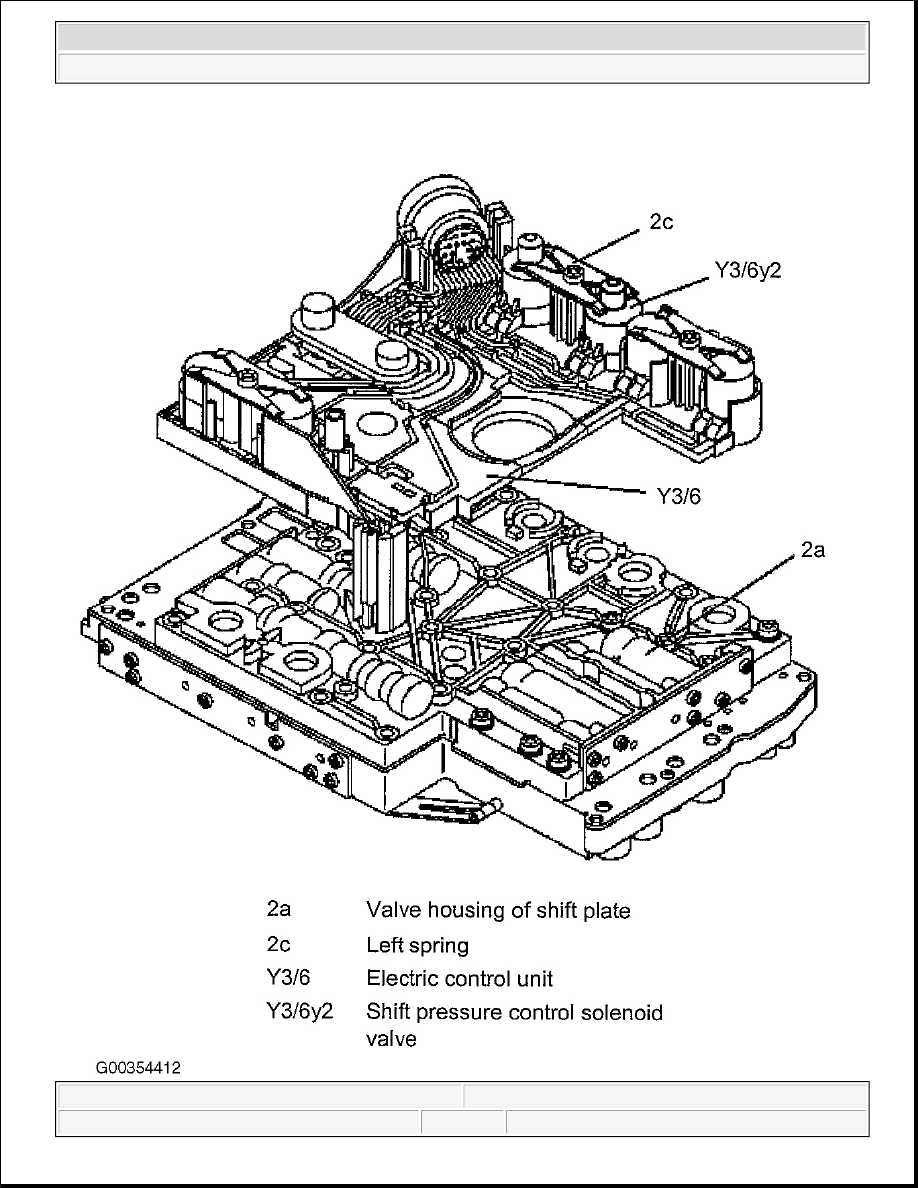

Fig. 66: Shift Pressure Regulating Solenoid Valve, Location/Task/Design/Function
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shift Pressure Regulating Solenoid Valve, Location

In the supporting body of the electrical control unit (Y3/6) and pressed against the valve housing of the
shift plate (2a) by means of a leaf spring. See Fig. 66.

Shift Pressure Regulating Solenoid Valve, Task

To control the shift pressure depending on the constantly changing operating conditions, such as
load/gear changes.

Shift Pressure Regulating Solenoid Valve, Design

See SHIFT PRESSURE REGULATING SOLENOID VALVE, DESIGN.

Shift Pressure Regulating Solenoid Valve, Function

The shift pressure regulating solenoid valve (Y3/6y2) assigns a proportional pressure to the current which
is controlled by the ETC control module (N15/3) according to the load.
