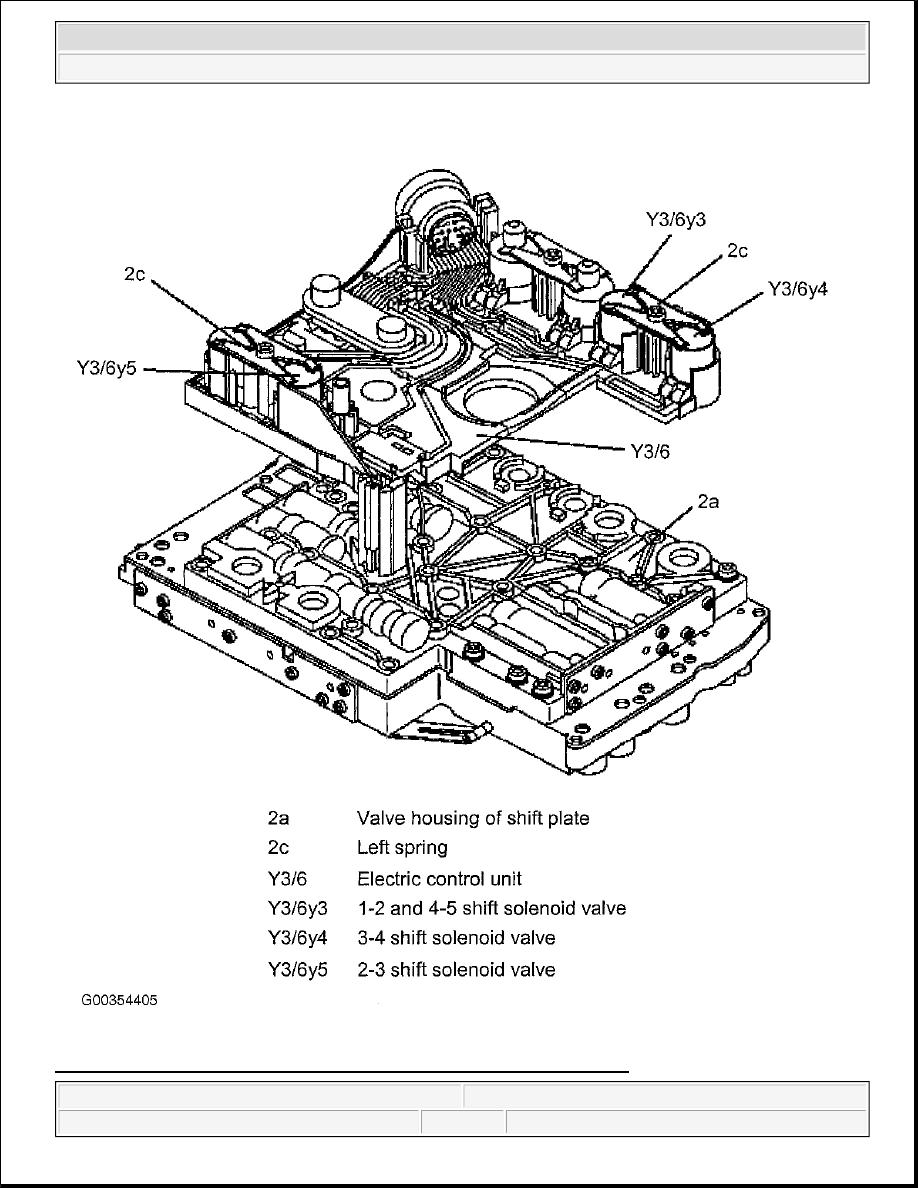

Fig. 47: Upshift/Downshift Solenoid Valve, Location/Task/Design/Function



2001 Mercedes-Benz ML320

1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662



me



Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Upshift/Downshift Solenoid Valve, Location

In the shell of the electric control unit and pressed against the shift plate with a spring. See Fig. 47.

Upshift/Downshift Solenoid Valve, Task

The shift solenoid valves (Y3/6y3, Y3/6y4, Y3/6y5) introduce the sequence of upshifts and downshifts in
the shift plate.

Upshift/Downshift Solenoid Valve, Design

See UPSHIFT/DOWNSHIFT SOLENOID VALVE, DESIGN.

Upshift/Downshift Solenoid Valve, Function

See UPSHIFT/DOWNSHIFT SOLENOID VALVE, FUNCTION.

Upshift/Downshift Solenoid Valve, Design

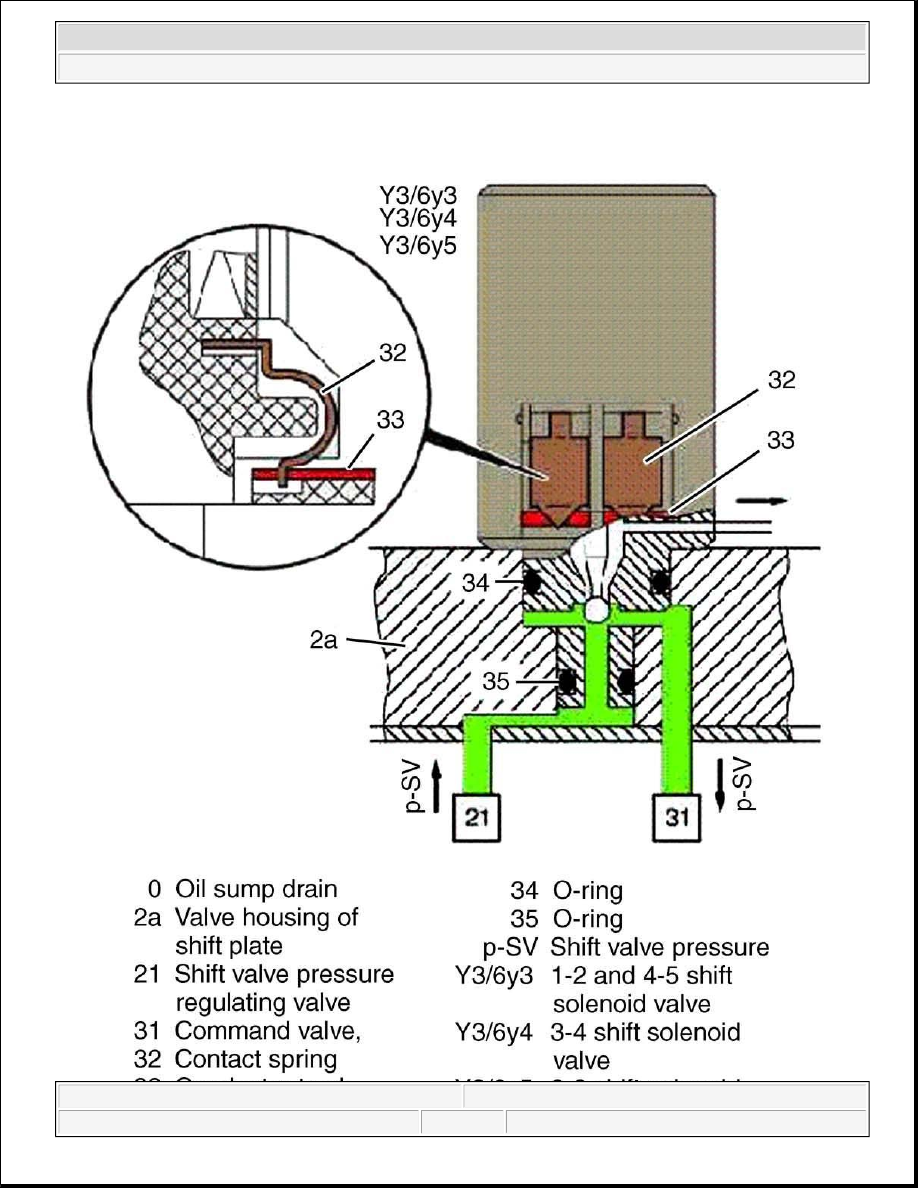

Fig. 48: Upshift/Downshift Solenoid Valve, Design
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.



2001 Mercedes-Benz ML320

1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662



me

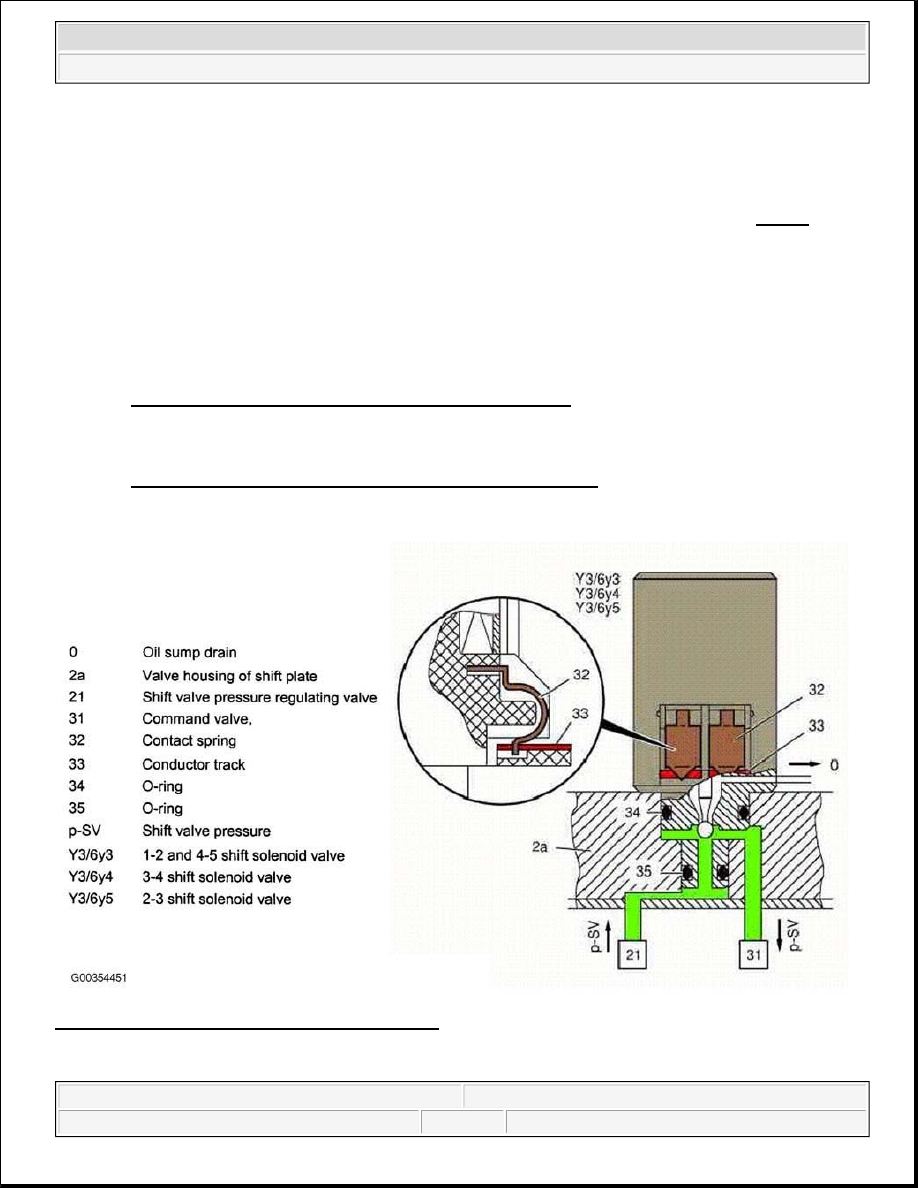

Structure - The shift solenoid valves (Y3/6y3, Y3/6y4, Y3/6y5) are sealed to the valve housing of the shift
plate (2a) by two O-rings (34, 35) (2a). See Fig. 48.

The contact springs (32) on the shift solenoid valves (Y3/6y3, Y3/6y4, Y3/6y5) engages in a slot in the
conductor tracks (33). The force of the contact spring (32) ensures safe contacts.

Upshift/Downshift Solenoid Valve, Function
