Shown on engine 112

2001 Mercedes-Benz ML320

1998-2005 ENGINE Air Intake, Turbo Charging - 163 Chassis

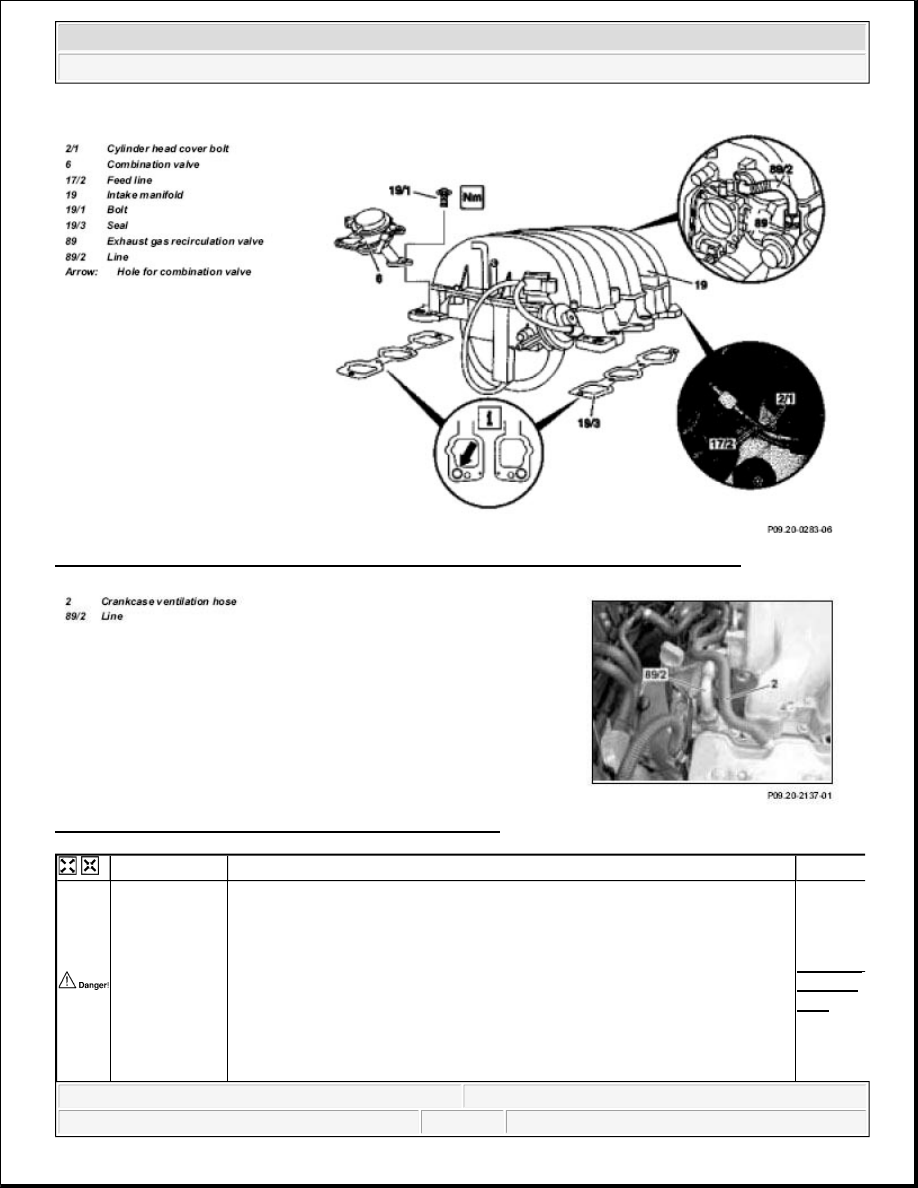

Fig. 10: Identifying Intake Manifold Remove/Install Components - Shown On Engine 112

Fig. 11: Identifying Crankcase Ventilation Hose And Line

Remove/install

Risk of
explosion
caused by fuel
igniting, risk
of poisoning
caused by
inhaling and
swallowing
fuel and risk of
injury to eyes

No fire, sparks, open flames or smoking.
Only pour fuels into suitable and appropriately marked containers.
Wear protective clothing when handling fuel.

AS47.00-
Z-0001-
01A

2001 Mercedes-Benz ML320

1998-2005 ENGINE Air Intake, Turbo Charging - 163 Chassis

and skin caused
by contact with
fuel

Remove key
from electronic
ignition switch

Only on vehicles with electronic ignition switch.

Vehicles with Keyless Go code 889: Switch off engine, remove Keyless

Go-Cards out of vehicle and store outside of the sender range.

Remove cover
on front side of
engine

Model 129, 211, 215, 220, 230 only

3.1

Remove engine
cover with
integrated air
filter

Except model 171.473, 203.076 /276, , 209.376 /476 from 24.4.04

The air filter is integrated in the engine cover. Remove engine cover or air

filter by pulling it vertically up and off the cylinder head covers.

3.2

Remove air
filter housing

Model 171.473
Model 203.076/ 276
Model 209.376/ 476 as of 24.4.04

AR09.10-
P-1150AC

Remove hot
film mass air
flow sensor
with air intake
pipe

Engine 112.910/ 920/ 921/940/ 941/ 942/ 970
Engine 113.940

AR07.07-
P-1454A

Engine 112.922 /944 /972 /973 /975
Engine 113.941/ 948/ 960/ 961/ 963/ 966

AR07.07-
P-1454AA

Engine 112.912 /913 /916 /917 /946 /947 /949 /954 /953 /955
Engine 113.968 /967 /969 /987 /988 /989

AR07.07-
P-1454SV

Engine 112.923 /943
Engine 113.943 /944 /980 /984

AR07.07-
P-1454AG

Engine 113.942 /965/981

AR07.07-
P-
1454MV

Disconnect
lead line (17/2)
at the fuel
distributor

Release fuel pressure via service valve and collect fuel.

*BA07.52
P-1001-
01A

Fig. 12

Removing fuel
rail with
injection valves

Engine 112.910 /920 /921 /923 /940 /941 /942 /943 /970
Engine 113.940 /942 /943 /944 /961 /965 /980 /981 /984

AR07.03-
P-1451A

Engine
112.912/913 /916 /917 /922 /944 /946 /947 /949 /953 /954 /955 /972 /973 /975
Engine 113.941 /948 /960 /963 /966 /967 /968 /969 /987 /988 /989

AR07.03-
P-1451AA

Unscrew
