267

Practical hints

Replacing bulbs

Rear lamps

Notes on bulb replacement

앫

Use only 12-volt bulbs of the same type
and with the specified watt rating.

앫

Switch lights off before changing a bulb
to prevent short circuits.

앫

Always use a clean lint-free cloth when
handling bulbs.

앫

Your hands should be dry and free of oil
and grease.

앫

If the newly installed bulb does not light
up, visit an authorized Mercedes-Benz
Light Truck Center.

앫

Have the LEDs and bulbs for the follow-
ing lamps replaced by an authorized
Mercedes-Benz Light Truck Center:

앫

Additional turn signals in the exteri-
or rear view mirrors

앫

Bi-Xenon lamps*

앫

Front fog lamps (vehicles with sport
package)*

Lamp

Type

6 Brake lamp

1073
(32 cp bulb)

7 Backup lamp

1073
(32 cp bulb)

8 Turn signal lamp

PY 21 W

9 Tail, parking and

standing lamp
Rear fog lamp, driv-
er’s side

P 21/4 W

a Side marker lamp

W 5 W

b High mounted brake

lamp

1073
(32 cp bulb)

c License plate lamps C 5 W

Warning!

G

Keep bulbs out of reach of children.

Bulbs and bulb sockets can be very hot. Al-
low the lamp to cool down before changing
a bulb.

Halogen lamps contain pressurized gas. A
bulb can explode if you:

앫

touch or move it when hot

앫

drop the bulb

앫

scratch the bulb

Wear eye and hand protection.

Because of high voltage in xenon lamps, it is
dangerous to replace the bulb or repair the
lamp and its components. We recommend
that you have such work done by a qualified
technician.

268

Practical hints

Replacing bulbs

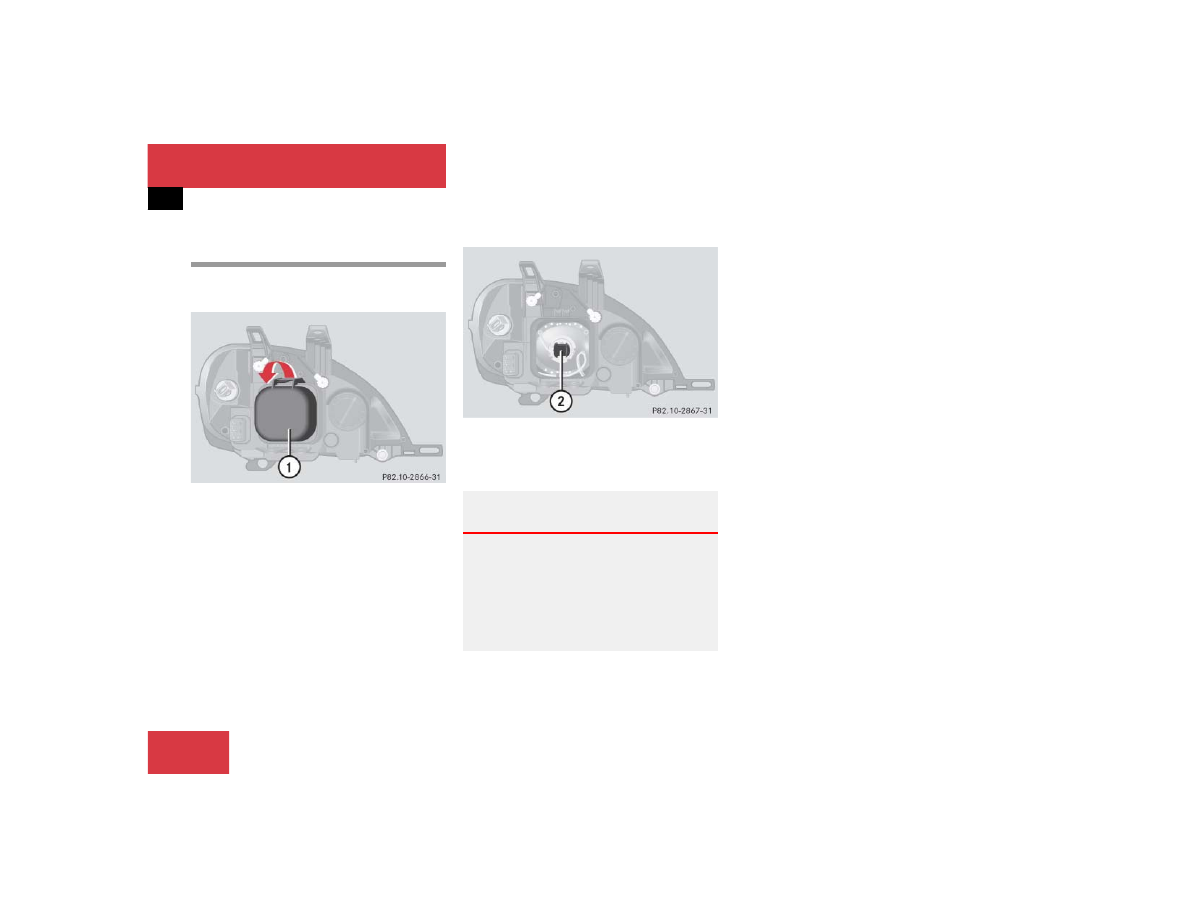

Replacing bulbs for front lamps

Replacing low beam bulbs

1 Low beam halogen or Bi-Xenon* head-

lamp cover with locking tab

2 Electrical connector

Bi-Xenon* headlamp

Halogen headlamp

왘

Switch off the lights.

왘

Open the hood (

컄

page 217).

왘

Push down tab at top end of cover 1
and remove.

왘

Pull electrical connector 2 off.

왘

Unclip the retainer springs and take out
the bulb.

왘

Insert the new bulb so that the base lo-
cates in the recess on the holder.

왘

Clip the retainer springs.

왘

Plug the connector 2 onto the bulb.

왘

Align headlamp cover and click into
place.

Warning!

G

Do not remove the cover

1

 for the

Bi-Xenon headlamp. Because of high voltage
in xenon lamps, it is dangerous to replace
the bulb or repair the lamp and its compo-
nents. We recommend that you have such
work done by a qualified technician.

269

Practical hints

Replacing bulbs

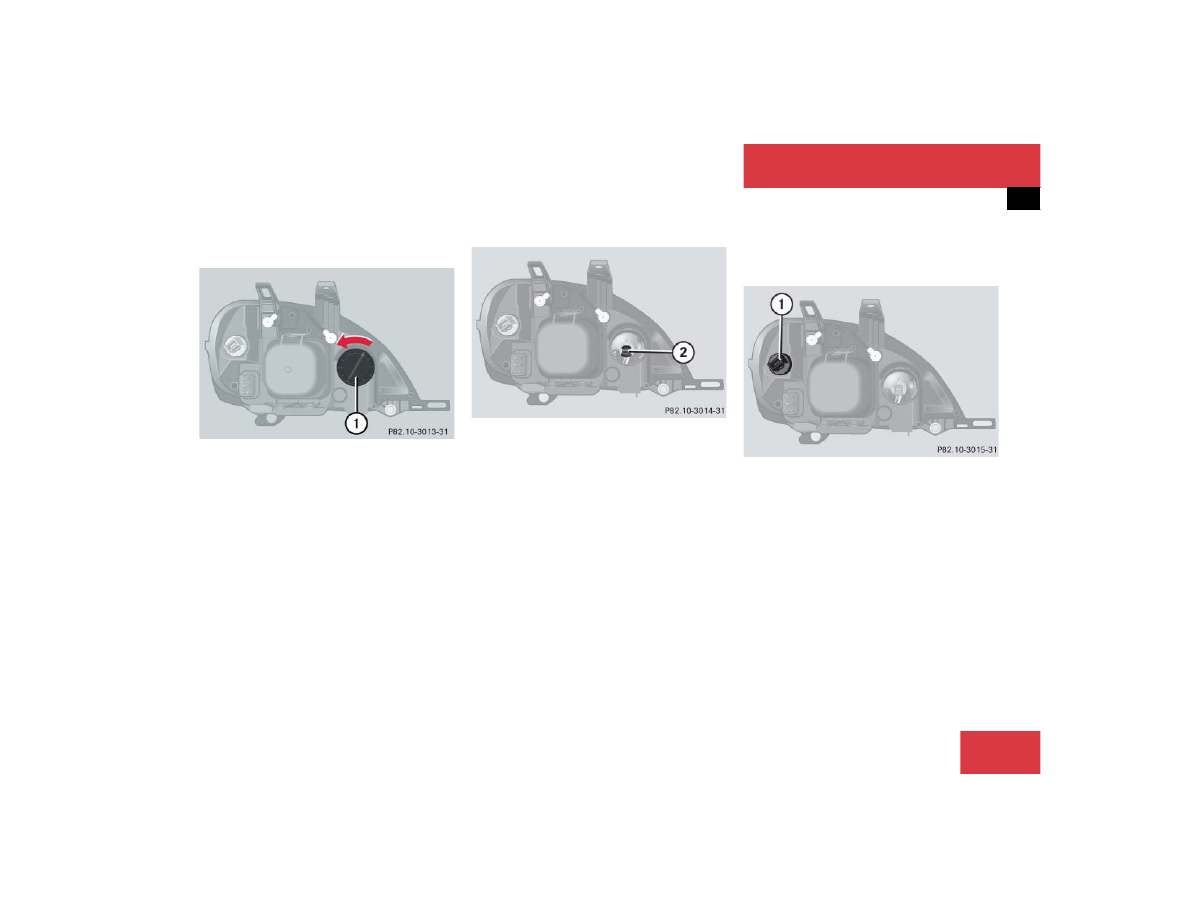

High beam bulbs

1 High beam headlamp cover with lock-

ing tab

왘

Switch off the lights.

왘

Open the hood (

컄

page 217).

왘

Twist cover 1 counterclockwise and
remove.

2 Electrical connector

왘

Pull electrical connector 2 off.

왘

Unclip the retainer springs and take out
the bulb.

왘

Insert the new bulb so that the base lo-
cates in the recess on the holder.

왘

Clip the retainer springs.

왘

Plug the connector 2 onto the bulb.

왘

Align headlamp cover and click into
place.

Turn signal, parking, standing and side
marker lamp bulbs

1 Bulb socket

왘

Switch off the lights.

왘

Open the hood (

컄

page 217).

왘

Twist bulb socket 1 counterclockwise
and pull out.

왘

Push bulb into socket, turn counter-
clockwise and remove.

왘

Insert new bulb in socket, push in and
twist clockwise.

왘

Reinstall the bulb socket.

컄컄

270

Practical hints

Replacing bulbs

왘

Align headlamp cover and click into
place.

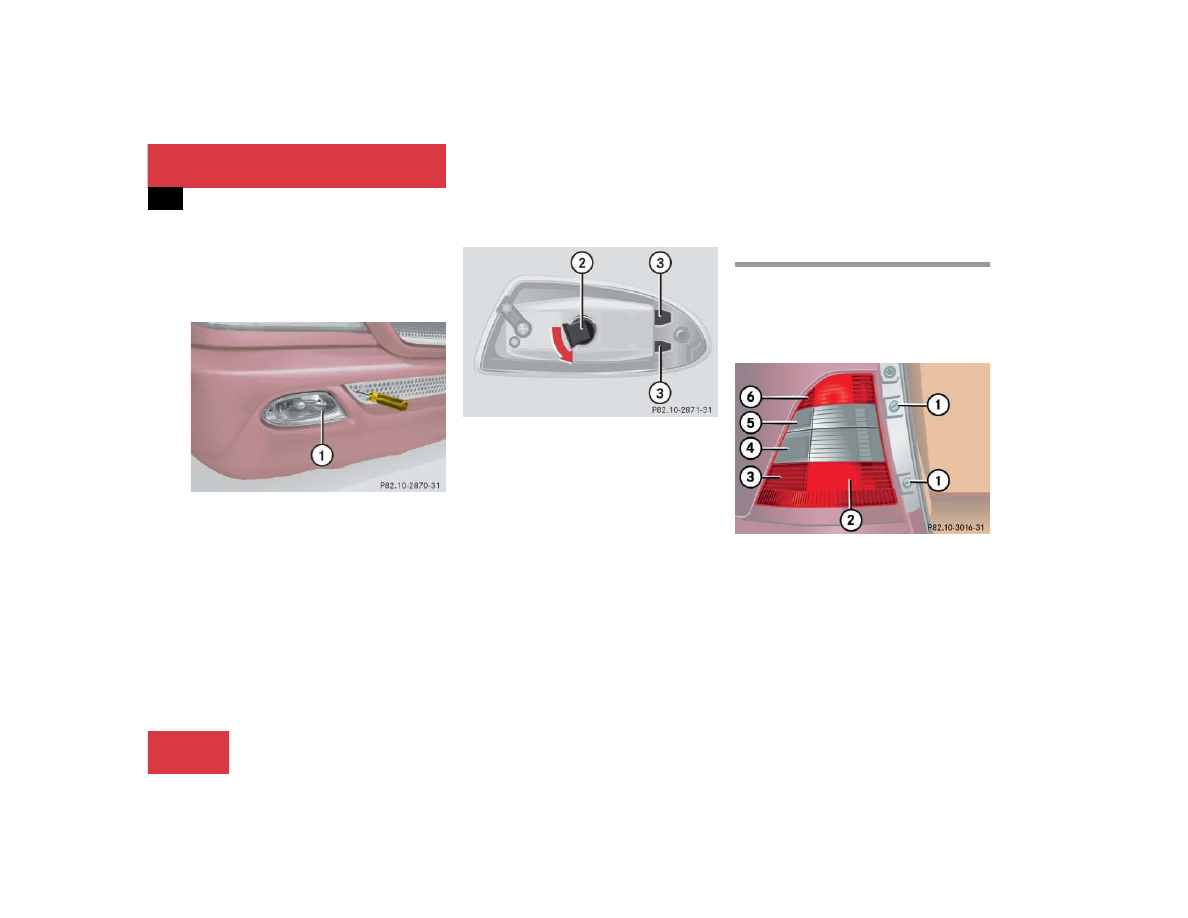

Fog lamp bulbs

1 Fog lamp

왘

Switch off the lights.

왘

Use a suitable object (e.g. screwdriver)
to press on the release lever behind the
front panel.

Front fog lamp 1 releases.

왘

Remove fog lamp out of bumper.

2 Bulb socket
3 Tabs

왘

Twist bulb socket 2 counterclockwise
to its end stop and pull out.

왘

Pull bulb out of the bulb socket.

왘

Insert new bulb in socket.

왘

Reinstall bulb socket 2.

왘

Twist bulb socket 2 clockwise to its
end stop.

왘

Reinstall fog lamp into the bumper.

Make sure tabs 3 firmly seat into the
slots of holder.

Replacing bulbs for rear lamps

Tail lamp assemblies

왘

Switch off the lights.

왘

Open liftgate.

1 Screws
2 Tail, parking and standing lamp

Fog lamp, driver’s side

3 Side marker lamp
4 Turn signal lamp
5 Backup lamp
6 Brake lamp

왘

Remove screws 1.

왘

Remove tail lamp.
