155

Controls in detail

Driving systems

Warning indicators

The warning indicators show the distance
between the sensor and the obstacle. The
warning indicators for the front area are lo-
cated above the center air vents in the
dashboard. The warning indicator for the
rear area is located in the rear passenger
compartment lamp.

1 Segments, left side of vehicle
2 Segments, right side of vehicle

Each warning indicator has six yellow and
two red segments.

The gear selector lever position deter-
mines which warning indicator is activat-
ed.

As soon as the sensors detect an obstacle,
one or more segments light up, depending
on the distance. An intermittent acoustic
warning will also sound as the seventh seg-
ment comes on and a constant acoustic
warning lasting a maximum of
three seconds will sound for the eighth
segment.

Selector lever
position

Warning indicator

D, R, N, P

Front area activated

R

Rear area activated

!

If all red segments light up in the warn-
ing indicators, a dirty sensor or a ultra-
sonic signal could be the reason.

앫

Clean the sensors (

컄

page 237).

After cleaning the sensors, switch
the ignition on.

156

Controls in detail

Driving systems

Switching Parktronic system on/off

You can switch Parktronic system off
manually.

The switch is located on the lower part of
the center console.

1 Parktronic off
2 Indicator lamp
3 Parktronic on

Switching Parktronic off

왘

Press switch on the upper part 1.

Indicator lamp 2 comes on.

Switching Parktronic on

왘

Press switch on the upper part 3.

The indicator lamp 2 goes out.

!

If the Parktronic system is malfunction-
ing, all red segments of the warning in-
dicators light up and an additional
warning sounds.

Contact your Mercedes-Benz Light
Truck Center as soon as possible.

i

If you switch the ignition on, the
Parktronic system will be automatically
switched on.

The rear Parktronic sensors will not au-
tomatically disengage when towing a
trailer. Therefore switch the Parktronic
system off.

157

Controls in detail

Loading

왔

Loading

Loading instructions

The gross vehicle weight which is the
weight of the vehicle including fuel, tools,
spare wheel, installed accessories, pas-
sengers and luggage/cargo must never
exceed the Gross Vehicle Weight Rating
(GVWR) for your vehicle. In addition, the
load must be distributed in such a way so
that the weight on each axle never exceeds
the Gross Axle Weight Rating (GAWR) for
the front and rear axle. The GVWR and
GAWR for your vehicle are indicated on the
certification label which can be found on
the left door pillar.

The handling characteristics of a fully load-
ed vehicle depend greatly on the load dis-
tribution. It is therefore recommended to
load the vehicle according to the illustra-
tions shown, with the heaviest items being
placed towards the front of the vehicle.

Please pay attention to and comply with
the following instructions when loading the
vehicle and transporting cargo:

앫

Always place items being carried
against front or rear seat backrests,
and fasten them as securely as possi-
ble.

앫

The heaviest portion of the cargo
should always be kept as low as possi-
ble against front or rear seat backrests.

Warning!

G

Always fasten items being carried as secure-
ly as possible using cargo tie-down rings and
fastening materials appropriate for the
weight and size of the load.

In an accident, during hard braking or sud-
den maneuvers, loose items will be thrown
around inside the vehicle, and can cause in-
jury to vehicle occupants unless the items
are securely fastened in the vehicle.

To help avoid personal injury during a colli-
sion or sudden maneuver, always use parti-
tion net when transporting cargo.

Never drive vehicle with the liftgate open.
Deadly carbon monoxide (CO) gases may
enter vehicle interior resulting in uncon-
sciousness and death.

158

Controls in detail

Loading

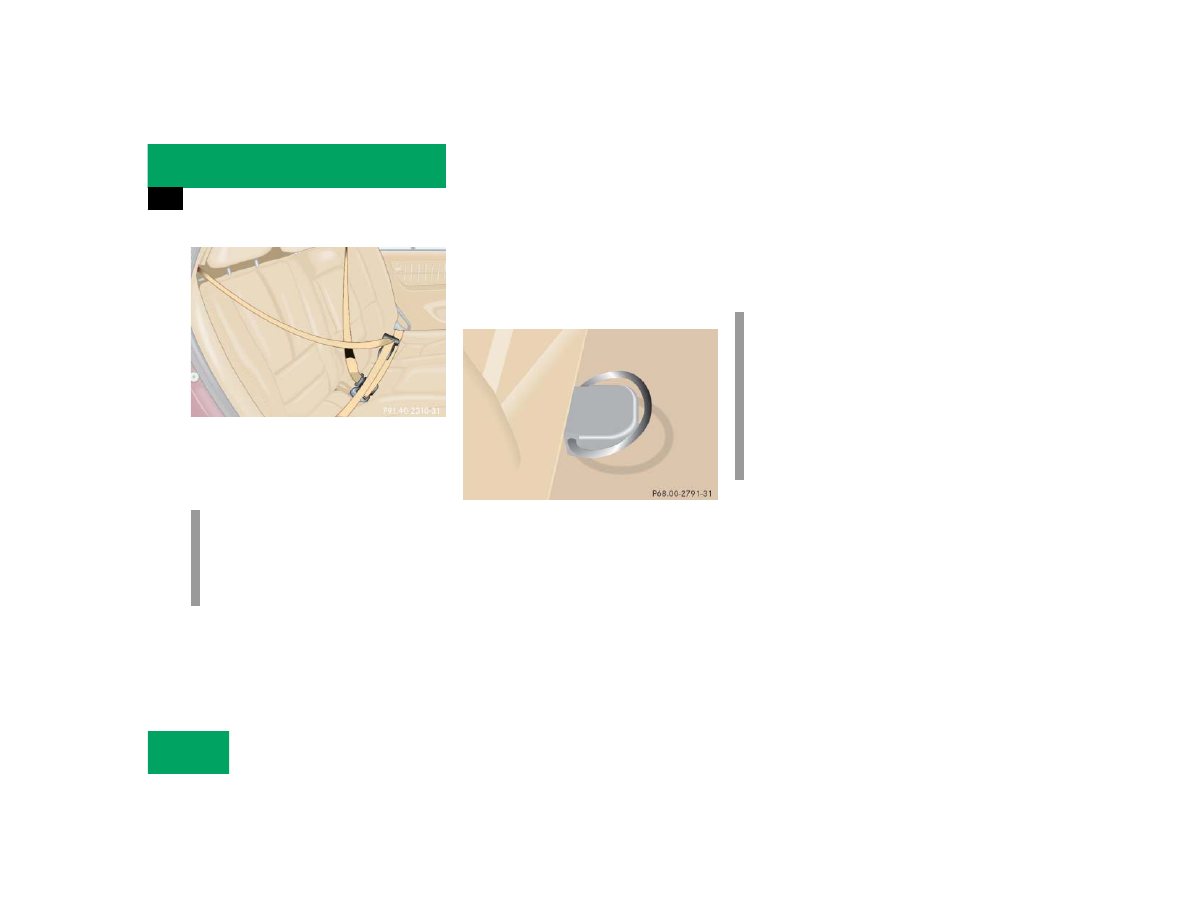

For additional safety when transporting
cargo while the rear seats are unoccupied,
fasten the outer seat belts crosswise into
the opposite side buckles.

Cargo tie-down rings

The cargo area is provided with four
tie-down rings. Additional two rings are lo-
cated at the rear of front seats.

Cargo tie-down ring

Carefully secure cargo by applying even
load on all rings with rope of sufficient
strength to hold down the cargo.

i

The cargo area is the preferred place to
carry objects. The enlarged cargo area
should only be used for items which do
not fit in the cargo area alone.

i

While the partition net* (

컄

page 159)

will help protect you from smaller ob-
jects, it cannot prevent the movement
of large, heavier objects into the pas-
senger area in an accident. Such items
must be properly secured using the
cargo tie-down rings in the cargo area
floor.
