Mercedes-Benz ML320. Manual - part 20

Fig. 18: SRS & ETR Diagnosis (2000 Models, Except E Class-9 Of 17)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

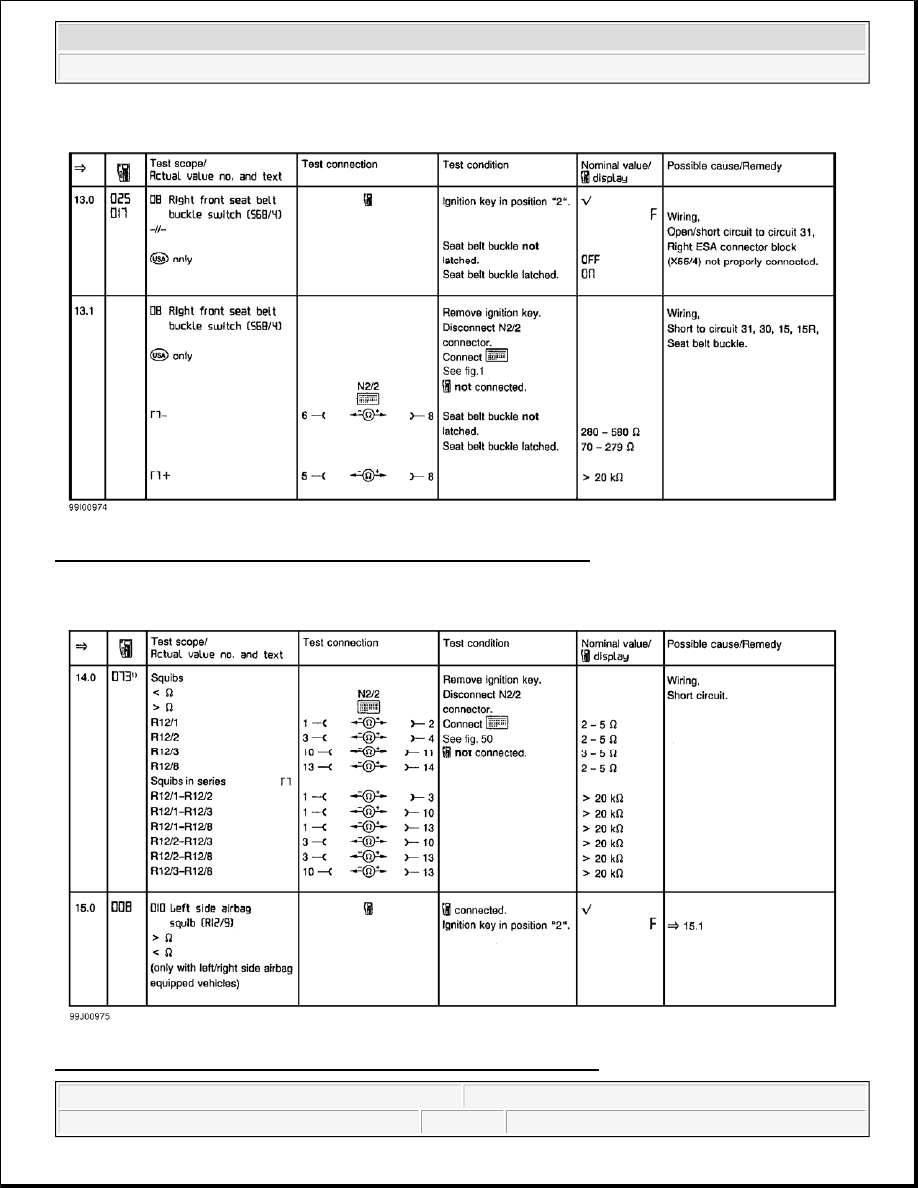

Fig. 19: SRS & ETR Diagnosis (2000 Models, Except E Class-10 Of 17)



2001 Mercedes-Benz ML320

2000-01 ACCESSORIES/SAFETY EQUIPMENT Mercedes-Benz - Air Bag Restraint Systems



me



Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

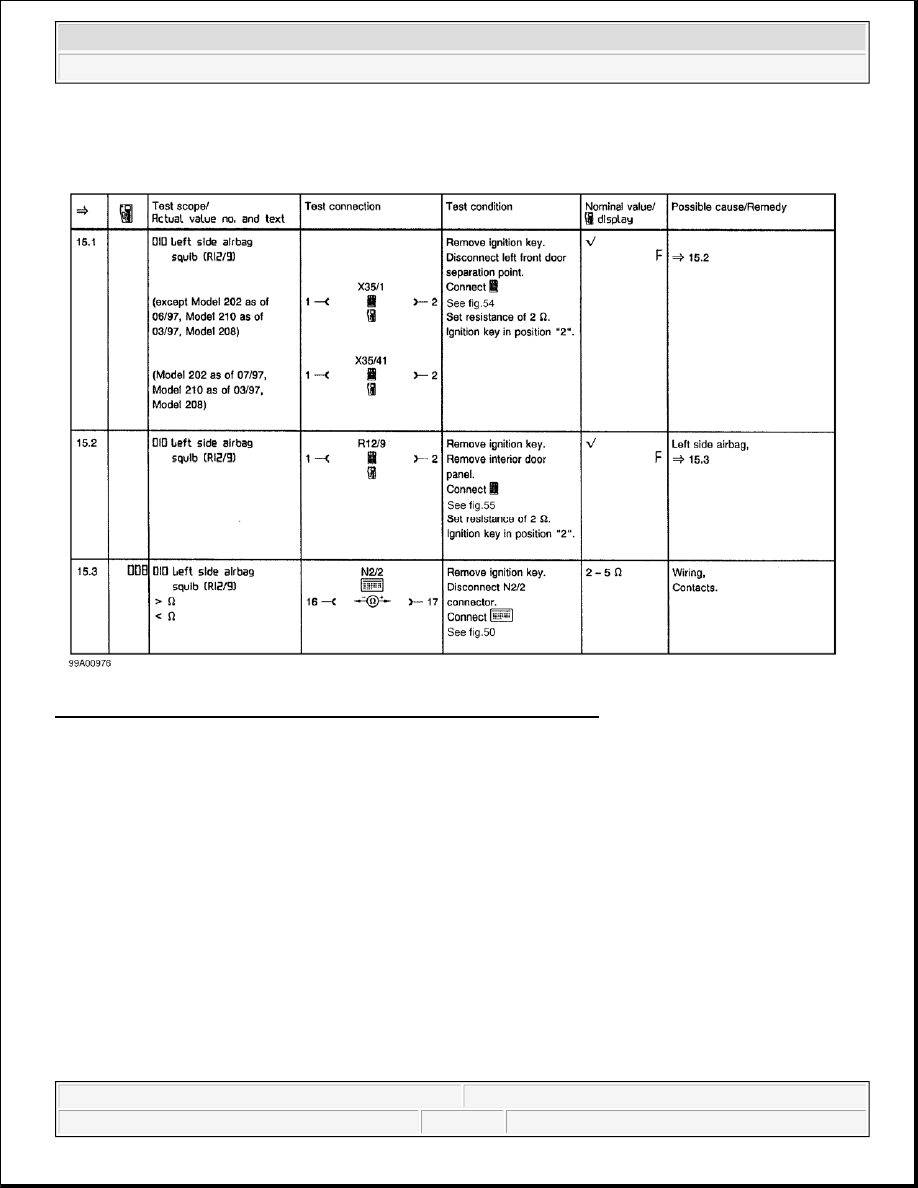

Fig. 20: SRS & ETR Diagnosis (2000 Models, Except E Class-11 Of 17)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.



2001 Mercedes-Benz ML320

2000-01 ACCESSORIES/SAFETY EQUIPMENT Mercedes-Benz - Air Bag Restraint Systems



me

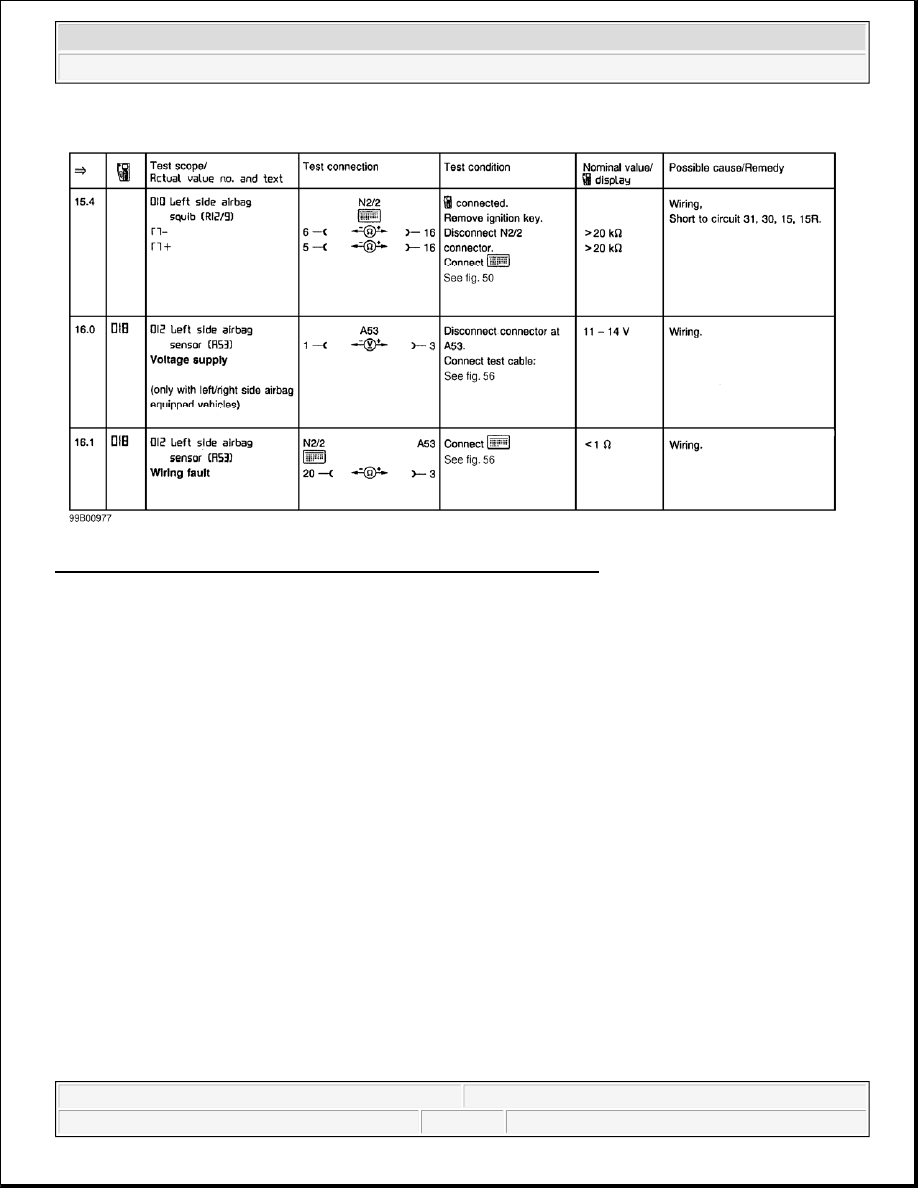

Fig. 21: SRS & ETR Diagnosis (2000 Models, Except E Class-12 Of 17)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.



2001 Mercedes-Benz ML320

2000-01 ACCESSORIES/SAFETY EQUIPMENT Mercedes-Benz - Air Bag Restraint Systems



me

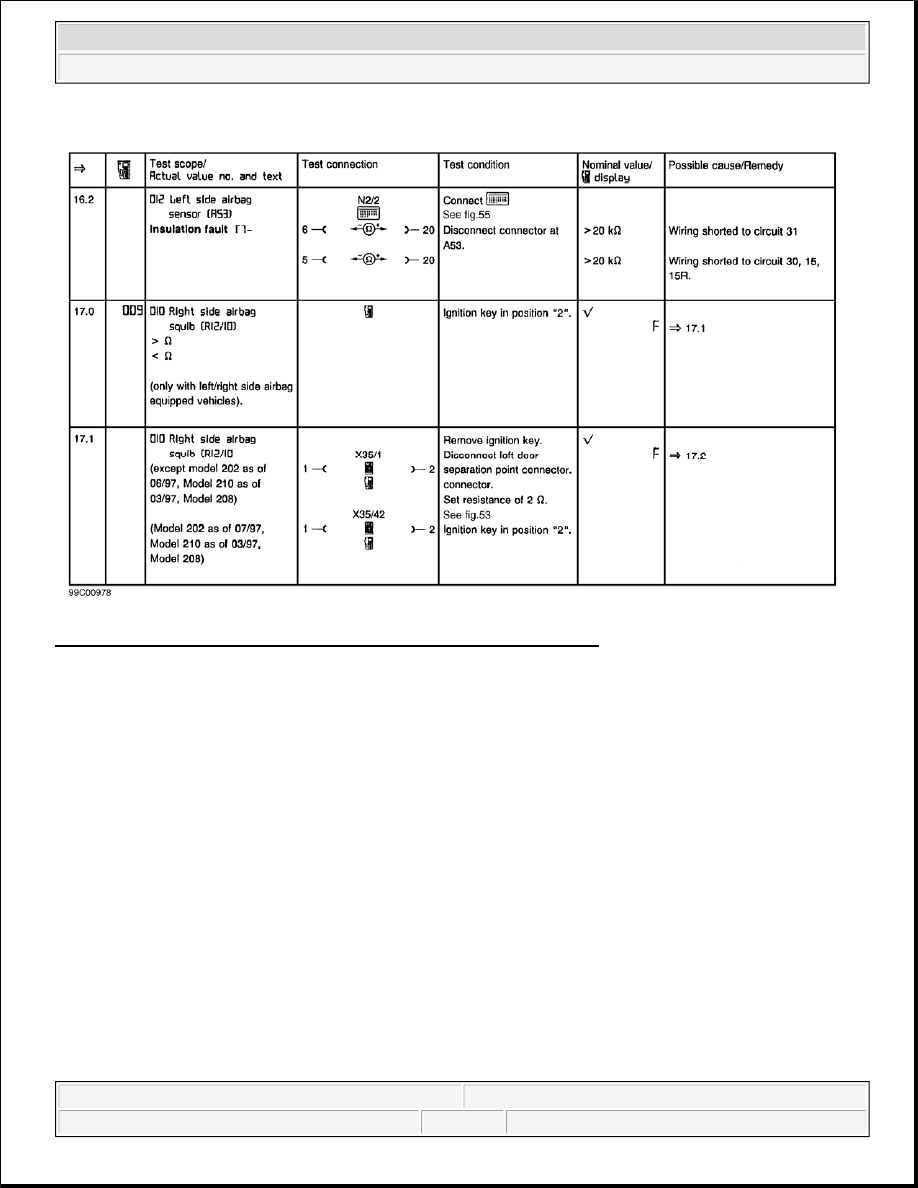

Fig. 22: SRS & ETR Diagnosis (2000 Models, Except E Class-13 Of 17)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.



2001 Mercedes-Benz ML320

2000-01 ACCESSORIES/SAFETY EQUIPMENT Mercedes-Benz - Air Bag Restraint Systems



me
