When Driving
Tire Pressure Monitoring System
Tires and Wheels
3. After about 15 minutes, drive the
vehicle at a speed of at least 25 km/h
(16 mph) for 10 minutes and the tire
CAUTION
pressure sensor ID signal code will be
registered automatically.
When inspecting or adjusting the tire air
pressures, do not apply excessive force to
NOTE
the stem part of the wheel unit. The stem
If the vehicle is driven within about 15
part could be damaged.
minutes of changing tires, the tire pressure
monitoring system warning light will flash
Changing tires and wheels
because the sensor ID signal code would
The following procedure allows the TPMS
not have been registered. If this happens,
to recognize a tire pressure sensor's unique
park the vehicle for about 15 minutes,
ID signal code whenever tires or wheels
after which the sensor ID signal code will
are changed, such as changing to and from
register upon driving the vehicle for 10
winter tires.
minutes.
NOTE
Replacing tires and wheels
Each tire pressure sensor has a unique ID
signal code. The signal code must be
CAUTION
registered with the TPMS before it can
work. The easiest way to do it is to have
¾ When replacing/repairing the tires or
an Authorized Mazda Dealer, change your
wheels or both, have the work done by
tire and complete ID signal code
an Authorized Mazda Dealer, or the tire
registration.
pressure sensors may be damaged.
When having tires changed at an
¾ The wheels equipped on your Mazda are
Authorized Mazda Dealer
specially designed for installation of the
tire pressure sensors. Do not use
When an Authorized Mazda Dealer,
non-genuine wheels, otherwise it may
changes your vehicle's tires, they will
not be possible to install the tire pressure
complete the tire pressure sensor ID signal
sensors.
code registration.
Be sure to have the tire pressure sensors
installed whenever tires or wheels are
When changing tires yourself
replaced.
If you or someone else changes tires, you
When having a tire or wheel or both
or someone else can also undertake the
replaced, the following types of tire
steps for the TPMS to complete the ID
pressure sensor installations are possible.
signal code registration.
The tire pressure sensor is removed
1. After tires have been changed, switch
from the old wheel and installed to the
the ignition ON, then back to ACC or
new one.
OFF.
2. Wait for about 15 minutes.
4-278
When Driving
Tire Pressure Monitoring System
The same tire pressure sensor is used
with the same wheel. Only the tire is
replaced.
A new tire pressure sensor is installed to
a new wheel.
NOTE
The tire pressure sensor ID signal code
must be registered when a new tire
pressure sensor is purchased. For
purchase of a tire pressure sensor and
registration of the tire pressure sensor
ID signal code, consult an Authorized
Mazda Dealer.
When reinstalling a previously removed
tire pressure sensor to a wheel, replace
the grommet (seal between valve body/
sensor and wheel) for the tire pressure
sensor.
4-279
When Driving
Rear View Monitor (Mazda Connect (Type A))
Rear View Monitor (Mazda Connect (Type A))*
The rear view monitor provides visual images of the rear of the vehicle when reversing.
WARNING
Always drive carefully confirming the safety of the rear and the surrounding conditions by
looking directly with your eyes:
Reversing the vehicle by only looking at the screen is dangerous as it may cause an accident
or a collision with an object. The rear view monitor is only a visual assist device when
reversing the vehicle. The images on the screen may be different from the actual conditions.
CAUTION
¾ Do not use the rear view monitor under the following conditions: Using the rear view
monitor under the following conditions is dangerous and could result in injury or vehicle
damage or both.
¾ Icy or snow-covered roads.
¾ Tire chains or a temporary spare tire is installed.
¾ The liftgate is not fully closed.
¾ The vehicle is on a road incline.
¾ When the display is cold, images may course across the monitor or the screen and may be
dimmer than usual, which could cause difficulty in confirming the surrounding conditions
of the vehicle. Always drive carefully confirming the safety of the rear and the surrounding
conditions by looking directly with your eyes.
¾ Do not apply excessive force to the camera. The camera position and angle may deviate.
¾ Do not disassemble, modify, or remove it as it may no longer be waterproof.
¾ The camera cover is made of plastic. Do not apply degreasing agents, organic solvents,
wax, or glass coating agents to the camera cover. If any are spilled on the cover, wipe off
with a soft cloth immediately.
¾ Do not rub the camera cover forcefully with an abrasive or hard brush. The camera cover or
lens may be scratched which might affect the images.
NOTE
If water, snow, or mud is stuck on the camera lens, wipe it off using a soft cloth. If it
cannot be wiped off, use a mild detergent.
If the camera temperature changes rapidly (Hot to cold, cold to hot), the rear view
monitor may not operate correctly.
When replacing the tires, consult an Authorized Mazda Dealer. Replacing the tires could
result in deviation of the guide lines which appear on the display.
4-280
*Some models.
When Driving
Rear View Monitor (Mazda Connect (Type A))
If the vehicle's front, side, or rear has been involved in a collision, the alignment of the
rear view parking camera (location, installation angle) may have deviated. Always
consult an Authorized Mazda Dealer to have the vehicle inspected.
If “No camera signal.” is indicated in the display, there could be a problem with the
camera. Have your vehicle inspected at an Authorized Mazda Dealer.
Rear View Parking Camera Location
Rear view parking camera
Switching to the Rear View Monitor Display
Shift the selector lever to R with the ignition switched ON to switch the display to the rear
view monitor display.
NOTE
When the selector lever is shifted from R to another selector lever position, the screen
returns to the previous display.
4-281
When Driving
Rear View Monitor (Mazda Connect (Type A))
Displayable Range on the Screen
The images on the screen may be different from the actual conditions.
(Screen display)
Garnish
Bumper
(Actual view)
Object
NOTE
The displayable range varies depending on the vehicle and road conditions.
The displayable range is limited. Objects under the bumper or around the bumper ends
cannot be displayed.
The distance appearing in the displayed image is different from the actual distance
because the rear view parking camera is equipped with a specific lens.
Some optionally installed vehicle accessories may be picked up by the camera. Do not
install any optional parts that can interfere with the camera view, such as illuminating
parts or parts made of reflective material.
It may be difficult to see the display under the following conditions, however, it does not
indicate a malfunction.
In darkened areas.
When the temperature around the lens is high/low.
When the camera is wet such as on a rainy day or during periods of high humidity.
When foreign material such as mud is stuck around the camera.
When the camera lens reflects sunlight or headlight beams.
Image display may be delayed if the temperature around the camera is low.
4-282
When Driving
Rear View Monitor (Mazda Connect (Type A))
Viewing the Display
Guide lines which indicate the width of the vehicle (yellow) are displayed on the screen as a
reference to the approximate width of the vehicle in comparison to the width of the parking
space you are about to back into.
Use this display view for parking your vehicle in a parking space or garage.
a
b
a) Vehicle width guide lines (yellow)
These guide lines serve as a reference to the approximate width of the vehicle.
b) Distance guide lines.
These guide lines indicate the approximate distance to a point measured from the
vehicle's rear (from the end of the bumper).
The red line indicates the point about 0.5 m (19.7 in) from the rear bumper. The yellow
lines indicate the points about 1.0 m (39.4 in) and 2.0 m (78 in) from the rear bumper.
CAUTION
The guide lines on the screen are fixed lines. They are not synced to the driver's turning of the
steering wheel. Always be careful and check the area to the vehicle's rear and the surrounding
area directly with your eyes while backing up.
Rear View Monitor Operation
The operation of the rear view monitor when reversing the vehicle varies depending on the
traffic, road, and vehicle conditions. The amount of steering and the timing also varies
depending on conditions, so confirm the surrounding conditions directly with your eyes and
steer the vehicle in accordance with the conditions.
Be well aware of the above cautions prior to using the rear view monitor.
NOTE
Images displayed on the monitor from the rear view parking camera are reversed images
(mirror images).
1. Shift the selector lever to R to switch the display to the rear view monitor display.
4-283
When Driving
Rear View Monitor (Mazda Connect (Type A))
2. Confirming the surrounding conditions, reverse the vehicle.
(Display condition)
(Vehicle condition)
3. After your vehicle begins entering the parking space, continue backing up slowly so that
the distance between the vehicle width lines and the sides of the parking space on the
left and right are roughly equal.
4. Continue to adjust the steering wheel until the vehicle width guide lines are parallel to
the left and right sides of the parking space.
5. Once they are parallel, straighten the wheels and back your vehicle slowly into the
parking space. Continue checking the vehicle's surroundings and then stop the vehicle in
the best possible position.
(Display condition)
(Vehicle condition)
6. When the selector lever is shifted from R to another selector lever position, the screen
returns to the previous display.
4-284
When Driving
Rear View Monitor (Mazda Connect (Type A))
NOTE
If the parking space has division lines, straighten the wheels when the vehicle width
guide lines are parallel to them.
Because there may be a difference between the displayed image, such as indicated
below, and the actual conditions when parking, always verify the safety at the rear of
the vehicle and the surrounding area directly with your eyes.
In the image of the parking space (or garage) displayed on the screen, the back end
and distance guide lines may appear aligned in the monitor, but they may not
actually be aligned on the ground.
When parking in a space with a division line on only one side of the parking space,
the division line and the vehicle width guide line appear aligned in the monitor, but
they may not actually be aligned on the ground.
Variance Between Actual Road Conditions and Displayed Image
Some variance occurs between the actual road and the displayed road. Such variance in
distance perspective could lead to an accident. Note the following conditions that may cause
a variance in distance perspective.
4-285
When Driving
Rear View Monitor (Mazda Connect (Type A))
When the vehicle is tilted due to the weight of passengers and load
When the vehicle rear is lowered, the object displayed on the screen appears farther than the
actual distance.
Variance
Object
When there is a steep grade behind the vehicle
When there is a steep upgrade (downgrade) behind the vehicle, the object displayed on the
screen appears farther (downgrade: closer) than the actual distance.
Appears
Appears
A
farther than
B
closer than
actual
actual
B
A
distance
distance
Object at actual position
Object on screen
Object on screen
Object at actual
A: Distance between the vehicle and object displayed on the screen.
position
B: Actual distance between the vehicle and object.
4-286
When Driving
Rear View Monitor (Mazda Connect (Type A))
Three-dimensional object on vehicle rear
Because the distance guide lines are displayed based on a flat surface, the distance to the
three-dimensional object displayed on the screen is different from the actual distance.
(Screen display)
(Actual condition)
A
A
B
C
C B
(Actual distance) B>C=A
Sensed distance on screen A>B>C
Picture Quality Adjustment
WARNING
Always adjust the picture quality of the rear view monitor while the vehicle is stopped:
Do not adjust the picture quality of the rear view monitor while driving the vehicle. Adjusting
the picture quality of the rear view monitor such as brightness, contrast, color, and tint while
driving the vehicle is dangerous as it could distract your attention from the vehicle operation
which could lead to an accident.
Picture quality adjustment must be done while the selector lever is in reverse (R).
There are four settings which can be adjusted including, brightness, contrast, tint, and color.
When adjusting, pay sufficient attention to the vehicle surroundings.
1. Select the
icon on the screen to display the tabs.
2. Select the desired tab item.
3. Adjust the brightness, contrast, tint, and color using the slider.
If you need to reset, press the reset button.
4. Select the
icon on the screen to close the tab.
4-287
When Driving
Rear View Monitor (Mazda Connect (Type B))
Rear View Monitor (Mazda Connect (Type B))*
The rear view monitor provides visual images of the rear of the vehicle when reversing.
WARNING
Always drive carefully confirming the safety of the rear and the surrounding conditions by
looking directly with your eyes:
Reversing the vehicle by only looking at the screen is dangerous as it may cause an accident
or a collision with an object. The rear view monitor is only a visual assist device when
reversing the vehicle. The images on the screen may be different from the actual conditions.
CAUTION
¾ Do not use the rear view monitor under the following conditions: Using the rear view
monitor under the following conditions is dangerous and could result in injury or vehicle
damage or both.
¾ Icy or snow-covered roads.
¾ Tire chains or a temporary spare tire is installed.
¾ The liftgate is not fully closed.
¾ The vehicle is on a road incline.
¾ When the display is cold, images may course across the monitor or the screen and may be
dimmer than usual, which could cause difficulty in confirming the surrounding conditions
of the vehicle. Always drive carefully confirming the safety of the rear and the surrounding
conditions by looking directly with your eyes.
¾ Do not apply excessive force to the camera. The camera position and angle may deviate.
¾ Do not disassemble, modify, or remove it as it may no longer be waterproof.
¾ The camera cover is made of plastic. Do not apply degreasing agents, organic solvents,
wax, or glass coating agents to the camera cover. If any are spilled on the cover, wipe off
with a soft cloth immediately.
¾ Do not rub the camera cover forcefully with an abrasive or hard brush. The camera cover or
lens may be scratched which might affect the images.
NOTE
If water, snow, or mud is stuck on the camera lens, wipe it off using a soft cloth. If it
cannot be wiped off, use a mild detergent.
If the camera temperature changes rapidly (Hot to cold, cold to hot), the rear view
monitor may not operate correctly.
When replacing the tires, consult an Authorized Mazda Dealer. Replacing the tires could
result in deviation of the guide lines which appear on the display.
4-288
*Some models.
When Driving
Rear View Monitor (Mazda Connect (Type B))
If the vehicle's front, side, or rear has been involved in a collision, the alignment of the
rear view parking camera (location, installation angle) may have deviated. Always
consult an Authorized Mazda Dealer to have the vehicle inspected.
If “No camera signal.” is indicated in the display, there could be a problem with the
camera. Have your vehicle inspected at an Authorized Mazda Dealer.
Rear View Parking Camera Location
Rear view parking camera
Switching to the Rear View Monitor Display
Shift the selector lever to reverse (R) position with the ignition switched ON to switch the
display to the rear view monitor display.
NOTE
When the selector lever is shifted from reverse (R) position to another selector lever
position, the screen returns to the previous display.
4-289
When Driving
Rear View Monitor (Mazda Connect (Type B))
Displayable Range on the Screen
The images on the screen may be different from the actual conditions.
(Screen display)
Bumper
(Actual view)
Object
NOTE
The displayable range varies depending on the vehicle and road conditions.
If the camera lens is touched or there is any dirt on it, it could affect the screen image.
Wipe the lens using a soft cloth.
The displayable range is limited. Objects under the bumper or around the bumper ends
cannot be displayed.
The distance appearing in the displayed image is different from the actual distance
because the rear view parking camera is equipped with a specific lens.
Images displayed on the monitor from the rear view parking camera are reversed images
(mirror images).
Some optionally installed vehicle accessories may be picked up by the camera. Do not
install any optional parts that can interfere with the camera view, such as illuminating
parts or parts made of reflective material.
It may be difficult to see the display under the following conditions, however, it does not
indicate a malfunction.
In darkened areas.
When the temperature around the lens is high/low.
When the camera is wet such as on a rainy day or during periods of high humidity.
4-290
When Driving
Rear View Monitor (Mazda Connect (Type B))
When foreign material such as mud is stuck around the camera.
When the camera lens reflects sunlight or headlight beams.
The surroundings are illuminated by vehicle lights, fluorescent lights, or LED lights
(display may flicker).
Extremely small dark or white dots appear on the screen (dots may flicker).
Image display may be delayed if the temperature around the camera is low.
Viewing the Display
Guide lines which indicate the width of the vehicle are displayed on the screen as a
reference to the approximate width of the vehicle in comparison to the width of the parking
space you are about to back into.
Use this display view for parking your vehicle in a parking space or garage.
a) Vehicle width guide lines
Guide lines serve as a reference to the approximate width of the vehicle.
b) Distance guide lines
These guide lines indicate the approximate distance to a point measured from the
vehicle's rear (from the end of the bumper).
The red line indicates the point about 0.5 m (19 in) from the rear bumper.
The yellow lines indicate the points about 1.0 m (39 in) and 2.0 m (78 in) from the rear
bumper.
Rear View Monitor Operation
The operation of the rear view monitor when reversing the vehicle varies depending on the
traffic, road, and vehicle conditions. The amount of steering and the timing also varies
depending on conditions, so confirm the surrounding conditions directly with your eyes and
steer the vehicle in accordance with the conditions.
Be well aware of the above cautions prior to using the rear view monitor.
NOTE
Images displayed on the monitor from the rear view parking camera are reversed images
(mirror images).
4-291
When Driving
Rear View Monitor (Mazda Connect (Type B))
1. Shift the selector lever to reverse (R) position to switch the display to the rear view
monitor display.
2. Confirming the surrounding conditions, reverse the vehicle.
3. After your vehicle begins entering the parking space, continue backing up slowly so that
the distance between the vehicle width lines and the sides of the parking space on the
left and right are roughly equal.
(Display condition)
(Vehicle condition)
4. Continue to adjust the steering wheel until the vehicle width guide lines are parallel to
the left and right sides of the parking space.
5. Once they are parallel, straighten the wheels and back your vehicle slowly into the
parking space. Continue checking the vehicle's surroundings and then stop the vehicle in
4-292
When Driving
Rear View Monitor (Mazda Connect (Type B))
the best possible position. (If the parking space has division lines, check whether the
vehicle width guide lines are parallel to them.)
(Display condition)
(Vehicle condition)
6. When the selector lever is shifted from reverse (R) position to another selector lever
position, the screen returns to the previous display.
NOTE
Because there may be a difference between the displayed image, such as indicated below,
and the actual conditions when parking, always verify the safety at the rear of the vehicle
and the surrounding area directly with your eyes.
In the image of the parking space (or garage) displayed on the screen, the back end and
distance guide lines may appear aligned in the monitor, but they may not actually be
aligned on the ground.
4-293
When Driving
Rear View Monitor (Mazda Connect (Type B))
When parking in a space with a division line on only one side of the parking space, the
division line and the vehicle width guide line appear aligned in the monitor, but they may
not actually be aligned on the ground.
Variance Between Actual Road Conditions and Displayed Image
Some variance occurs between the actual road and the displayed road. Such variance in
distance perspective could lead to an accident. Note the following conditions that may cause
a variance in distance perspective.
When the vehicle is tilted due to the weight of passengers and load
When the vehicle rear is lowered, the object displayed on the screen appears farther than the
actual distance.
Variance
Object
4-294
When Driving
Rear View Monitor (Mazda Connect (Type B))
When there is a steep grade behind the vehicle
When there is a steep upgrade (downgrade) behind the vehicle, the object displayed on the
screen appears farther (downgrade: closer) than the actual distance.
Appears
Appears
A
farther than
B
closer than
actual
actual
B
A
distance
distance
Object at actual position
Object on screen
Object on screen
Object at actual
A: Distance between the vehicle and object displayed on the screen.
position
B: Actual distance between the vehicle and object.
Three-dimensional object on vehicle rear
Because the distance guide lines are displayed based on a flat surface, the distance to the
three-dimensional object displayed on the screen is different from the actual distance.
(Screen display)
Sensed distance on screen A>B>C
(Actual view)
A
C B
(Actual distance) B>C=A
4-295
When Driving
Parking Sensor System (Mazda Connect (Type A))
Parking Sensor System (Mazda Connect (Type A))*
The parking sensors use ultrasonic sensors which detect obstructions around the vehicle
when the vehicle is driven at low speeds, such as during garage or parallel parking, and a
buzzer sound and detection indicator notify the driver of the approximate distance from the
vehicle to the surrounding obstruction.
Front corner ultrasonic sensor
Rear ultrasonic sensor
Front ultrasonic sensor
Rear corner ultrasonic sensor
WARNING
Do not rely completely on the parking sensor system and be sure to confirm the safety around
your vehicle visually when driving:
This system can assist the driver in operating the vehicle in the forward and backward
directions while parking. The detection ranges of the sensors are limited, therefore, driving the
vehicle while relying only on the system may cause an accident. Always confirm the safety
around your vehicle visually when driving.
NOTE
Do not install any accessories within the detection ranges of the sensors. It may affect the
system operation.
Depending on the type of obstruction and the surrounding conditions, the detection range
of a sensor may narrow, or the sensors may not be able to detect obstructions.
The system may not operate normally under the following conditions:
Mud, ice, or snow is adhering to the sensor area (Returns to normal operation when
removed).
The sensor area is frozen (Returns to normal operation when the ice is thawed).
The sensor is covered by a hand.
The sensor is excessively shocked.
The vehicle is excessively tilted.
Under extremely hot or cold weather conditions.
4-296
*Some models.
When Driving
Parking Sensor System (Mazda Connect (Type A))
The vehicle is driven on bumps, inclines, gravel, or grass covered roads.
Anything which generates ultrasound is near the vehicle, such as another vehicle's
horn, the engine sound of a motorcycle, the air brake sound of a large-sized vehicle, or
another vehicle's sensors.
The vehicle is driven in heavy rain or in road conditions causing water-splash.
A commercially-available fender pole or an antenna for a radio transmitter is installed
to the vehicle.
The vehicle is moving towards a tall or square curbstone.
An obstruction is too close to the sensor.
Obstructions under the bumper may not be detected. Obstructions that are lower than the
bumper or thin which may have been initially detected may no longer be detected as the
vehicle approaches more closely to the obstruction.
The following types of obstructions may not be detected:
Thin objects such as wire or rope
Things which absorb sonic waves easily such as cotton or snow
Angular shaped objects
Very tall objects, and those which are wide at the top
Small, short objects
Always have the system inspected at an Authorized Mazda Dealer if any shock is applied
to the bumpers, even in a minor accident. If the sensors are deviated, they cannot detect
obstructions.
The system may have a malfunction if the beep does not operate or the indicator light
does not illuminate when the parking sensor switch is turned on. Consult an Authorized
Mazda Dealer.
The system may have a malfunction if the beep sound which indicates a system
malfunction is heard and the indicator light flashes. Consult an Authorized Mazda Dealer.
The beeper which indicates a system malfunction may not be heard if the ambient
temperature is extremely cold, or mud, ice, or snow adheres to the sensor area. Remove
any foreign material from the sensor area.
When installing a trailer hitch, consult an Authorized Mazda Dealer.
4-297
When Driving
Parking Sensor System (Mazda Connect (Type A))
Sensor Detection Range
The sensors detect obstructions within the following range.
A: About 55 cm (About 21.6 in)
Rear corner ultrasonic sensor detection range
B: About 55 cm (About 21.6 in)
C: About 100 cm (About 39.3 in)
Front ultrasonic sensor detection range
D: About 150 cm (About 59.0 in)
B
A
C
D
Rear ultrasonic sensor detection range
Front corner ultrasonic sensor detection range
Viewing distance display
Distance between vehicle and obstruction
Display
Front ultrasonic sensor/Front ulဨ
Rear ultrasonic sensor/Rear ultraဨ
trasonic corner sensor
sonic corner sensor
Green
Front ultrasonic sensor:
Rear ultrasonic sensor:
Approx. 100―60 cm (39.3―23.6
Approx. 150―60 cm (59.0―23.6
in)
in)
4-298
When Driving
Parking Sensor System (Mazda Connect (Type A))
Distance between vehicle and obstruction
Display
Front ultrasonic sensor/Front ulဨ
Rear ultrasonic sensor/Rear ultraဨ
trasonic corner sensor
sonic corner sensor
Yellow
Front ultrasonic sensor:
Rear ultrasonic sensor:
Approx. 60―45 cm (23.6―17.7 in)
Approx. 60―45 cm (23.6―17.7 in)
Front corner ultrasonic sensor:
Rear corner ultrasonic sensor:
Approx. 55―38 cm (21.6―14.9 in)
Approx. 55―38 cm (21.6―14.9 in)
Amber
Front ultrasonic sensor:
Rear ultrasonic sensor:
Approx. 45―35 cm (17.7―13.7 in)
Approx. 45―35 cm (17.7―13.7 in)
Front corner ultrasonic sensor:
Rear corner ultrasonic sensor:
Approx. 38―25 cm (14.9―9.8 in)
Approx. 38―25 cm (14.9―9.8 in)
Red
Front ultrasonic sensor:
Rear ultrasonic sensor:
Within approx. 35 cm (13.7 in)
Within approx. 35 cm (13.7 in)
Front corner ultrasonic sensor:
Rear corner ultrasonic sensor:
Within approx. 25 cm (9.8 in)
Within approx. 25 cm (9.8 in)
4-299
When Driving
Parking Sensor System (Mazda Connect (Type A))

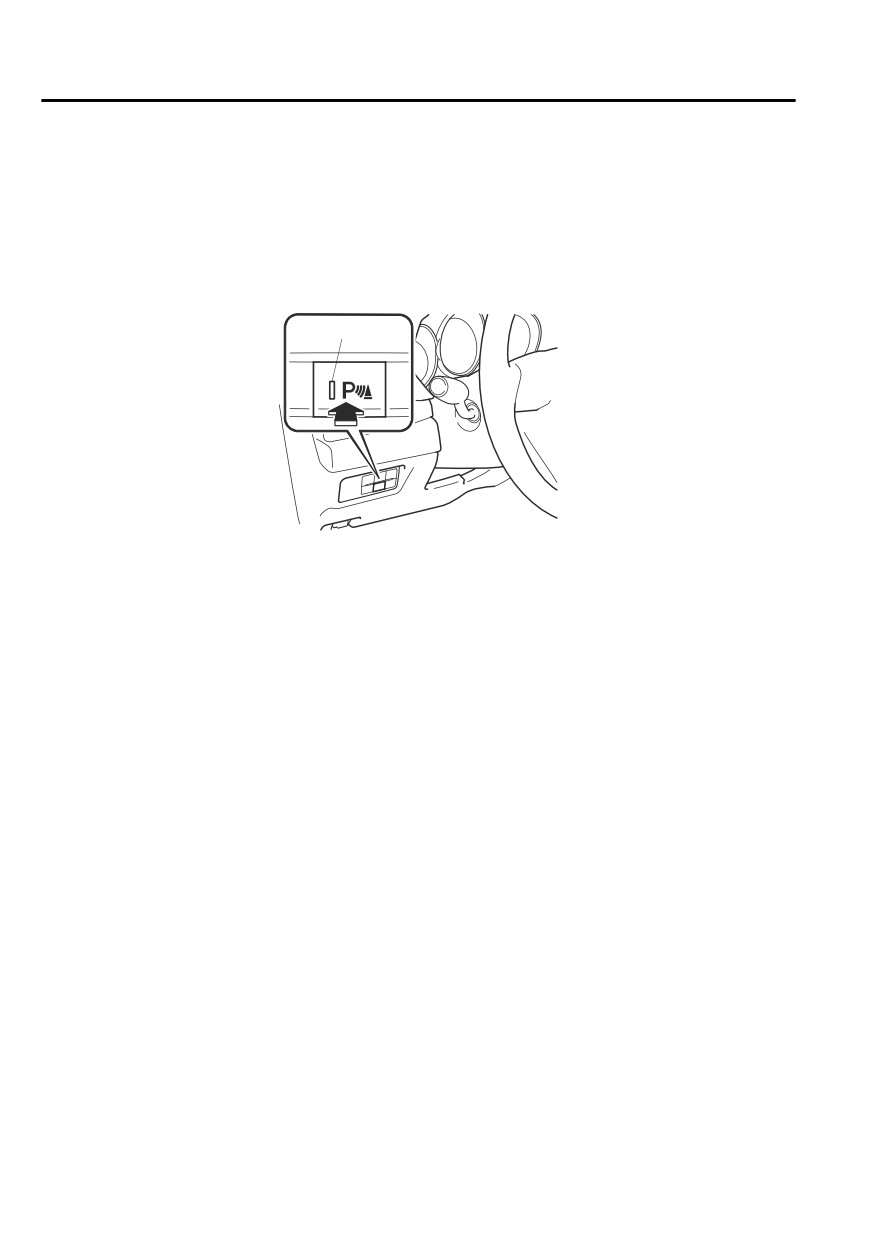

Parking Sensor System Operation
When the parking sensor switch is pressed with the ignition switched ON, the buzzer sounds
and the indicator light turns on.
When the ignition is switched ON with the parking sensor activated, the indicator light turns
on.
Press the switch again to stop the operation.
Indicator light
Operation conditions
The parking sensor system can be used when all of the following conditions are met:
The ignition is switched ON.
The parking sensor switch is turned on.
NOTE
The detection indicator and buzzer of the front ultrasonic sensors/front corner ultrasonic
sensors do not operate when the selector lever is in the P position.
The detection indicator and buzzer sound do not activate when the parking brake is
applied.
Obstruction Detection Indication
The position of a sensor which has detected an obstruction is indicated. The gauge
illuminates in different areas depending on the distance to an obstruction detected by the
sensor.
4-300
When Driving
Parking Sensor System (Mazda Connect (Type A))
As the vehicle approaches closer to an obstruction, the zone in the gauge closer to the
vehicle illuminates.
Front ultrasonic sensor
Left front corner
Right front corner
ultrasonic sensor
ultrasonic sensor
Left rear corner
Right rear corner
ultrasonic sensor
ultrasonic sensor
Rear ultrasonic sensor
NOTE
The detection indicator can switch between display and non-display.
Refer to the Settings section in the Mazda Connect Owner's Manual.
When the detection indicator is set to “Display”, even with the 360° view monitor not
displayed, if a front ultrasonic sensor or a front corner ultrasonic sensor detects an
obstruction, the 360° view monitor switches automatically to display. When an obstruction
is no longer detected, the display switches to the display before the obstruction was
detected. However, while the 360° view monitor is displayed, it continues to display no
matter if an obstruction is detected or not.
System problem notification
If a problem occurs, the driver is notified of the problem by the following indications.
Detection Indicator
Solution
The system may have a malfunction. Have the
Disconnection
vehicle inspected at an Authorized Mazda Deal-
er as soon as possible.
4-301
When Driving
Parking Sensor System (Mazda Connect (Type A))
Detection Indicator
Solution
The system may have a malfunction. Have the
System mal-
vehicle inspected at an Authorized Mazda Deal-
function
er as soon as possible.
Foreign matter may be on the sensor area corre-
sponding to the obstruction detection indication
Frost/soiling
shown. If the system does not recover, have the
vehicle inspected at an Authorized Mazda Deal-
er.
Parking Sensor Warning Beep
The beeper sounds as follows while the system is operating.
Front Ultrasonic Sensor, Rear Ultrasonic Sensor
Distance detecဨ
Distance between vehicle and obstruction
Beeper sound*1
tion area
Front ultrasonic sensor
Rear ultrasonic sensor
Approx. 100―60 cm (39.3―23.6
Approx. 150―60 cm (59.0―23.6
in)
in)
Slow intermittent
Farthest distance
sound
Approx. 60―45 cm (23.6―17.7
Approx. 60―45 cm (23.6―17.7
in)
in)
Medium intermit-
Far distance
tent sound
4-302
When Driving
Parking Sensor System (Mazda Connect (Type A))
Distance detecဨ
Distance between vehicle and obstruction
Beeper sound
*1
tion area
Front ultrasonic sensor
Rear ultrasonic sensor
Approx. 45―35 cm (17.7―13.7
Approx. 45―35 cm (17.7―13.7
in)
in)
Fast intermittent
Middle distance
sound
Within approx. 35 cm (13.7 in)
Within approx. 35 cm (13.7 in)
Close distance
Continuous sound
*1
The rate at which the intermittent sound beeps increases as the vehicle approaches the obstruction.
Front Corner Ultrasonic Sensor, Rear Corner Ultrasonic Sensor
Distance between vehicle and obstruction
Distance detection area
Front corner ultrasonic/Rear corner ultrasonic
Beeper sound*1
sensor
Approx. 55―38 cm (21.6―14.9 in)
Far distance
Medium intermittent sound
Approx. 38―25 cm (14.9―9.8 in)
Middle distance
Fast intermittent sound
Within approx. 25 cm (9.8 in)
Close distance
Continuous sound
*1
The rate at which the intermittent sound beeps increases as the vehicle approaches the obstruction.
4-303
When Driving
Parking Sensor System (Mazda Connect (Type A))
NOTE
If an obstruction is detected in a zone for 6 seconds or more, the beep sound is stopped
(except for the close-distance zone). If the same obstruction is detected in another zone, the
corresponding beep sound is heard.
When Warning Indicator/Beep is Activated
The system notifies the driver of an abnormality by activating the beep sound and the
indicator light.
Indicator/Beep
How to check
The indicator light flashes when
the parking sensor switch is
The system may have a malfunction. Have the vehicle inspected at an Author-
pressed at a vehicle speed of 10
ized Mazda Dealer as soon as possible.
km/h (6 mph) or less.
The system may have a malfunction. Have the vehicle inspected at an Author-
The beep sound is not heard.
ized Mazda Dealer as soon as possible.
The intermittent sound of the
Remove any foreign material from the sensor area. If the system does not re-
buzzer is heard 5 times.
cover, have the vehicle inspected at an Authorized Mazda Dealer.
A certain obstruction detection
indicator is continuously dis-
Refer to Obstruction Detection Indication on page 4-300.
played.
4-304
When Driving
Parking Sensor System (Mazda Connect (Type B))
Parking Sensor System (Mazda Connect (Type B))*
The parking sensors use ultrasonic sensors which detect obstructions around the vehicle
when the vehicle is driven at low speeds, such as during garage or parallel parking, and a
buzzer sound and detection indicator notify the driver of the approximate distance from the
vehicle to the surrounding obstruction.
Front corner ultrasonic sensor
Rear ultrasonic sensor
Front ultrasonic sensor
Rear corner ultrasonic sensor
WARNING
Do not rely completely on the parking sensor system and be sure to confirm the safety around
your vehicle visually when driving:
This system can assist the driver in operating the vehicle in the forward and backward
directions while parking. The detection ranges of the sensors are limited, therefore, driving the
vehicle while relying only on the system may cause an accident. Always confirm the safety
around your vehicle visually when driving.
NOTE
Do not install any accessories within the detection ranges of the sensors. It may affect the
system operation.
Depending on the type of obstruction and the surrounding conditions, the detection range
of a sensor may narrow, or the sensors may not be able to detect obstructions.
The system may not operate normally under the following conditions:
Mud, ice, or snow is adhering to the sensor area (Returns to normal operation when
removed).
The sensor area is frozen (Returns to normal operation when the ice is thawed).
The sensor is covered by a hand.
The sensor is excessively shocked.
The vehicle is excessively tilted.
Under extremely hot or cold weather conditions.
*Some models.
4-305
When Driving
Parking Sensor System (Mazda Connect (Type B))
The vehicle is driven on bumps, inclines, gravel, or grass covered roads.
Anything which generates ultrasound is near the vehicle, such as another vehicle's
horn, the engine sound of a motorcycle, the air brake sound of a large-sized vehicle, or
another vehicle's sensors.
The vehicle is driven in heavy rain or in road conditions causing water-splash.
A commercially-available fender pole or an antenna for a radio transmitter is installed
to the vehicle.
The vehicle is moving towards a tall or square curbstone.
An obstruction is too close to the sensor.
Obstructions under the bumper may not be detected. Obstructions that are lower than the
bumper or thin which may have been initially detected may no longer be detected as the
vehicle approaches more closely to the obstruction.
The following types of obstructions may not be detected:
Thin objects such as wire or rope
Things which absorb sonic waves easily such as cotton or snow
Angular shaped objects
Very tall objects, and those which are wide at the top
Small, short objects
Always have the system inspected at an Authorized Mazda Dealer if any shock is applied
to the bumpers, even in a minor accident. If the sensors are deviated, they cannot detect
obstructions.
The system may have a malfunction if the beep does not operate or the indicator light
does not illuminate when the parking sensor switch is turned on. Consult an Authorized
Mazda Dealer.
The system may have a malfunction if the beep sound which indicates a system
malfunction is heard and the indicator light flashes. Consult an Authorized Mazda Dealer.
The beeper which indicates a system malfunction may not be heard if the ambient
temperature is extremely cold, or mud, ice, or snow adheres to the sensor area. Remove
any foreign material from the sensor area.
When installing a trailer hitch, consult an Authorized Mazda Dealer.
4-306
When Driving
Parking Sensor System (Mazda Connect (Type B))
Sensor Detection Range
The sensors detect obstructions within the following range.
A: About 55 cm (About 21.6 in)
Rear corner ultrasonic sensor detection range
B: About 55 cm (About 21.6 in)
C: About 100 cm (About 39.3 in)
Front ultrasonic sensor detection range
D: About 150 cm (About 59.0 in)
B
A
C
D
Rear ultrasonic sensor detection range
Front corner ultrasonic sensor detection range
Viewing distance display
Distance between vehicle and obstruction
Display
Front ultrasonic sensor/Front corဨ
Rear ultrasonic sensor/Rear corဨ
ner ultrasonic sensor
ner ultrasonic sensor
Green
Front ultrasonic sensor:
Rear ultrasonic sensor:
Approx. 100―60 cm (39.3―23.6
Approx. 150―60 cm (59.0―23.6
in)
in)
4-307
When Driving
Parking Sensor System (Mazda Connect (Type B))
Distance between vehicle and obstruction
Display
Front ultrasonic sensor/Front corဨ
Rear ultrasonic sensor/Rear corဨ
ner ultrasonic sensor
ner ultrasonic sensor
Yellow
Front ultrasonic sensor:
Rear ultrasonic sensor:
Approx. 60―45 cm (23.6―17.7 in)
Approx. 60―45 cm (23.6―17.7 in)
Front corner ultrasonic sensor:
Rear corner ultrasonic sensor:
Approx. 55―38 cm (21.6―14.9 in)
Approx. 55―38 cm (21.6―14.9 in)
Amber
Front ultrasonic sensor:
Rear ultrasonic sensor:
Approx. 45―35 cm (17.7―13.7 in)
Approx. 45―35 cm (17.7―13.7 in)
Front corner ultrasonic sensor:
Rear corner ultrasonic sensor:
Approx. 38―25 cm (14.9―9.8 in)
Approx. 38―25 cm (14.9―9.8 in)
Red
Front ultrasonic sensor:
Rear ultrasonic sensor:
Within approx. 35 cm (13.7 in)
Within approx. 35 cm (13.7 in)
Front corner ultrasonic sensor:
Rear corner ultrasonic sensor:
Within approx. 25 cm (9.8 in)
Within approx. 25 cm (9.8 in)
4-308
When Driving
Parking Sensor System (Mazda Connect (Type B))
Parking Sensor System Operation

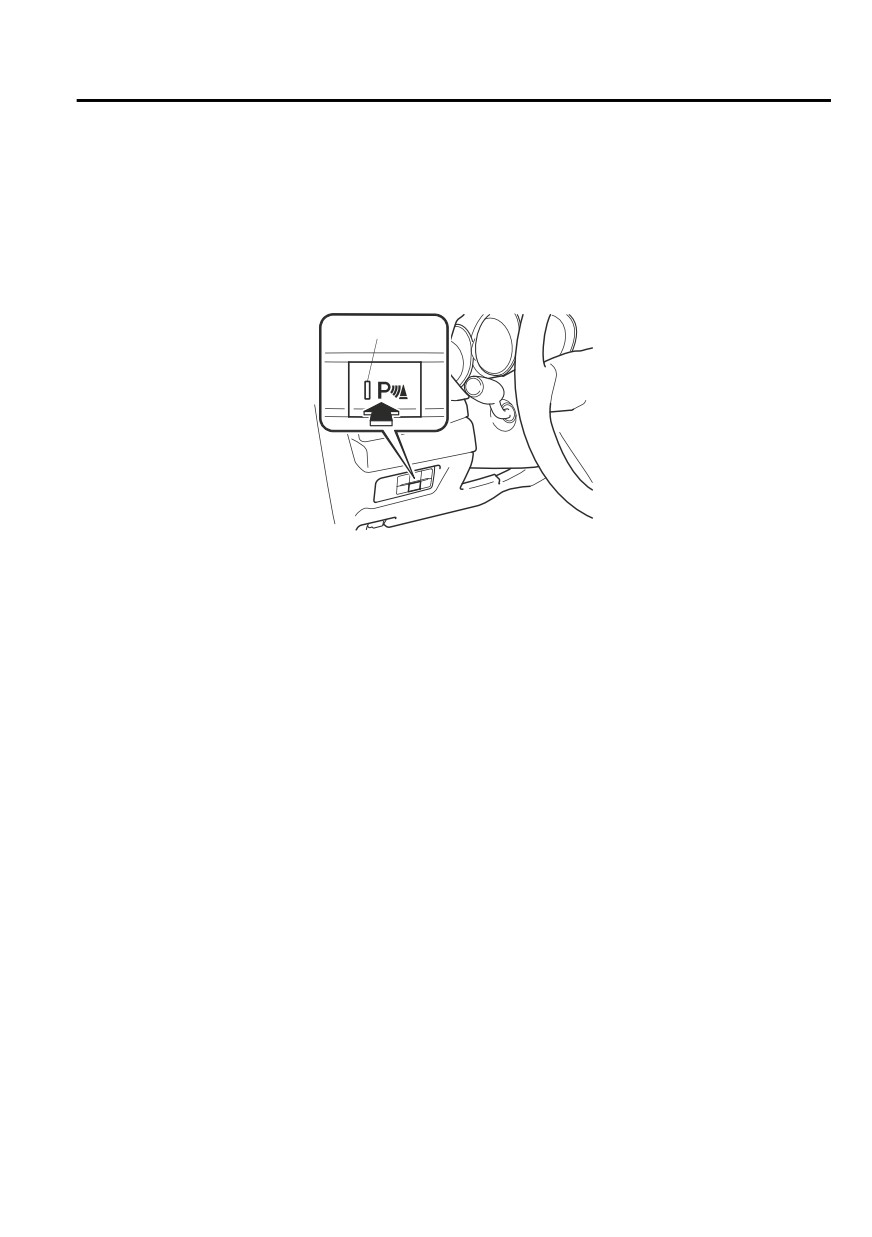

When the parking sensor switch is pressed with the ignition switched ON, the buzzer sounds
and the indicator light turns on.
When the ignition is switched ON with the parking sensor activated, the indicator light turns
on.
Press the switch again to stop the operation.
Indicator light
Operation conditions
The parking sensor system can be used when all of the following conditions are met:
The ignition is switched ON.
The parking sensor switch is turned on.
NOTE
The detection indicator and buzzer of the front sensors/front corner sensors do not
operate when the selector lever is in the P position.
The detection indicator and buzzer sound do not activate when the parking brake is
applied.
Obstruction Detection Indication
The position of a sensor which has detected an obstruction is indicated. The gauge
illuminates in different areas depending on the distance to an obstruction detected by the
sensor.
4-309















Content      ..     12      13      14      15     ..
